LED Luminaire 60W 7800Lm 4200ºK Linear Dimmable Dali 30,000H 40,000H [WR6870-RAIL-1418-7X-W]

LED Luminaire 60W 7800Lm 4200ºK Linear Dimmable Dali 30,000H 40,000H [WR6870-RAIL-1418-7X-W]

For additional amounts the delivery period is 60 days As of the order date
  • Brand:GreenIce
  • SkuWR6870-RAIL-1418-7XW
  • AAA 2021
Eprel file
Warranty
  • Warranty 3 years
  • 120 º Opening
132,21€
132,21€ Infinity%
Tax included. The Shipping expenses They are calculated on the payment screen.

Stock available

Warranty
  • Warranty 3 years
  • 120 º Opening
Are you a professional customer?

We have published a new website only for professionals.

Go to Professional Area
Advantages of buying in Greenice
  • Guaranteed minimum price
  • Free returns up to 60 days
  • Free shipping From € 21.95
  • Until 10 years guarantee
(WR6870-RAIL1418-7XCW_padreImg_wr6870_rail1418_7xcw_0.jpeg)
Daylight
Stock available
Free shipping
132,21€
132,21€ Infinity%

Accessories

  • (SUS-WR6870-RAIL-1418-7X_padreImg_sus_wr6870_rail_1418_7x_0.jpeg) (SUS-WR6870-RAIL-1418-7X_padreImg_sus_wr6870_rail_1418_7x_1.jpeg)

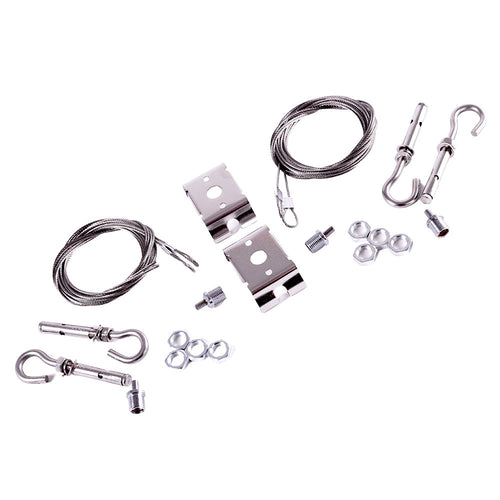

    Cable Suspension WR6870-RAIL-1418-7X

    GreenIce

    Cable Suspension WR6870-RAIL-1418-7X

    8,59€
    8,59€ Infinity%
  • (TB-WR6870-I-7X_padreImg_tb_wr6870_i_7x_0.jpeg) (TB-WR6870-I-7X_padreImg_tb_wr6870_i_7x_1.jpeg)

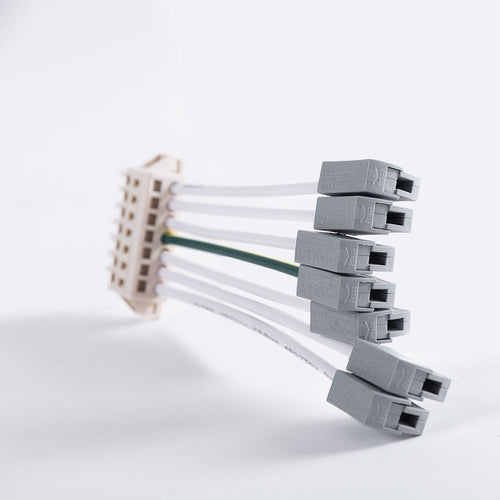

    Terminal Connection WR6870-I-7X

    GreenIce

    Terminal Connection WR6870-I-7X

    4,50€
    4,50€ Infinity%
  • (CON-WR6870-I-7X_padreImg_con_wr6870_i_7x_0.jpeg) (CON-WR6870-I-7X_padreImg_con_wr6870_i_7x_1.jpeg)

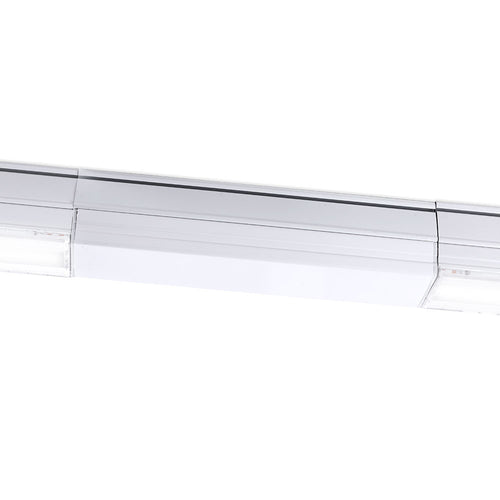

    Connector WR6870-I-7X

    GreenIce

    Connector WR6870-I-7X

    21,30€
    21,30€ Infinity%

Technical file

Product code
WR6870-RAIL-1418-7X-W
Luminous efficacy (LM/W)
130
Light temperature
Natural White
Kelvin º
4200
Power (W)
60.0
Luminosity (LM)
7800
Measures (mm)
1420x68x70
High
70.0
Long
1420.0
Broad
68.0
Number and type of LEDs
Philips Led
CRI
80
UGR
◄17
Power factor (PF)
0.98
Construction
Aluminum/PC
Opening Angle (º)
120
Facility
IP40
Strain
180-240VAC
Estimated life (H)
40000
Dimable
Yes
Equivalence (W)
320
Isolation class
II
Work frequency (Hz)
50/ 60
Start time (s)
0.1
Energy class
E
Certificates
CE/ROHS/ISO9001
Bush
Terminal
Temperature range (ºC)
-20 +40
Lighting cycles
100000
Diffuser
Microprismatic
Energy consumption (kWh/1000h)
60.0
Weight (gr)
5000
Flicker
0.76
Half -year useful life (at 3 h/day)
36.52
Half -Year Useful Life (5 h/day)
21.91
Half -year useful life (at 8 h/day)
13.69
Directional
Non-Directional
Single CCT
4200
INDEX R9
1
Minimum cri range
96
Maximum cri range
5
Chromaticity x
0.389
Chromaticity y
0.387
Additional information
Supplied without Accessories / See "Accessories" tab
Driver output
DC24V-80V 300MA
Applicable standards
EN 55015:2009;EN 61547:2009:EN 61000-3-2:2006;EN 61000-3-3:2008;EN 60598-2-2:2012;EN 60598-1:2009;EN 1122B:2001

Characteristics

Product code
WR6870-RAIL-1418-7X-W
Luminous efficacy (LM/W)
130
Light temperature
Natural White
Kelvin º
4200
Power (W)
60.0
Luminosity (LM)
7800
Measures (mm)
1420x68x70
High
70.0
Long
1420.0
Broad
68.0
Number and type of LEDs
Philips Led
CRI
80
UGR
◄17
Power factor (PF)
0.98
Construction
Aluminum/PC
Opening Angle (º)
120
Facility
IP40
Strain
180-240VAC
Estimated life (H)
40000
Dimable
Yes
Equivalence (W)
320
Isolation class
II
Work frequency (Hz)
50/ 60
Start time (s)
0.1
Energy class
E
Certificates
CE/ROHS/ISO9001
Bush
Terminal
Temperature range (ºC)
-20 +40
Lighting cycles
100000
Diffuser
Microprismatic
Energy consumption (kWh/1000h)
60.0
Weight (gr)
5000
Flicker
0.76
Half -year useful life (at 3 h/day)
36.52
Half -Year Useful Life (5 h/day)
21.91
Half -year useful life (at 8 h/day)
13.69
Directional
Non-Directional
Single CCT
4200
INDEX R9
1
Minimum cri range
96
Maximum cri range
5
Chromaticity x
0.389
Chromaticity y
0.387
Additional information
Supplied without Accessories / See "Accessories" tab
Driver output
DC24V-80V 300MA
Applicable standards
EN 55015:2009;EN 61547:2009:EN 61000-3-2:2006;EN 61000-3-3:2008;EN 60598-2-2:2012;EN 60598-1:2009;EN 1122B:2001

Description

Linear LED luminaire with aluminum chassis that provides excellent thermal conductivity and offers great resistance to high temperatures. It mounts a 90º Opening Polycarbonate optic that offers optimal lighting in corridors and passageways.

It can be connected in series and create linear light structures. Its electrical connection is made up of 7 wires with a 2.5 mm2 section. It allows connecting up to 50 luminaires forming continuous sections of up to 75 meters, without there being a large voltage drop. The luminaire can transport three electrical phases and the neutral (L1, L2, L3, N). It is electrically isolated by connecting the ground (GND). To regulate the light intensity of the LED Linear Luminaire, connect the DALI dimmer to the DIM1 and DIM2 wires.

The connection has a moving part so that we can choose the electrical line with which we want to power the driver. the Linear LED Luminaire. In this way we will be able to carry out three independent ignitions in the entire section of Linear Bars. For example, if we connect 30 linear bars in series, we can select that the first 10 are powered by L1, the next 10 by L2, and the last 10 by L3. Thus, with a triple switch we could decide the group of luminaires that we want to turn on.

Designed for use in shops, exhibitions, homes, industries, supermarkets, offices...

Documents

Installation_manual
