LED Panel 28W 2800Lm 6000ºK 60X30Cm 40,000H Driver Lifud UGR17 [HOPBD3060LIUGR17-CW]

Name: LED Panel 28W 2800Lm 6000ºK 60X30Cm 40,000H Driver Lifud UGR17 [HOPBD3060LIUGR17-CW]
Brand: GreenIce
SKU: HOPBD3060LIUGR17-CW
Price: 15.03 EUR
Availability: InStock

LED Panel 28W 2800Lm 6000ºK 60X30Cm 40,000H Driver Lifud UGR17 [HOPBD3060LIUGR17-CW]

6000K: Cool White Delivery in 48 h ... if you ask before Stock available

For additional amounts the delivery period is 60 days As of the order date

Product variants

Brand:GreenIce / Lifud Driver
SkuHOPBD3060LIUGR17-CW

2021

Warranty

Warranty 5 years

Eye Care
TUV SUD
120 º Opening

Documents

Ver todos los documentos

15,03€

15,03€ Infinity%

Tax included. The Shipping expenses They are calculated on the payment screen.

Stock available

Amount

Warranty

Warranty 5 years

Eye Care
TUV SUD
120 º Opening

Documents

Ver todos los documentos

Are you a professional customer?

We have published a new website only for professionals.

Go to Professional Area

Advantages of buying in Greenice

Guaranteed minimum price
Free returns up to 60 days
Free shipping From € 21.95
Until 10 years guarantee

(HOPBD3060LIUGR17-CW_padreImg_hopbd3060liugr17_cw_0.jpeg)

Cool White

Stock available

Free shipping

15,03€

15,03€ Infinity%

Accessories

Mounting Frame Surface Mounted LED Panel 60X30Cm

Supplier:
GreenIce

Mounting Frame Surface Mounted LED Panel 60X30Cm

Usual price 7,87€

Usual price Offer price 7,87€ Discount Infinity%
Unit price by

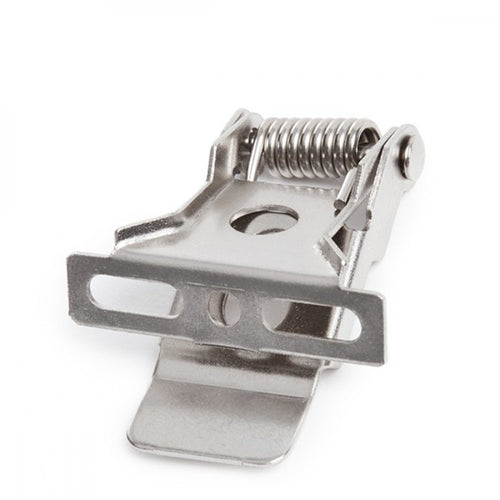

Set of 4 Clips for LED Panel Mounting

Supplier:
GreenIce

Set of 4 Clips for LED Panel Mounting

Usual price 1,33€

Usual price Offer price 1,33€ Discount Infinity%
Unit price by

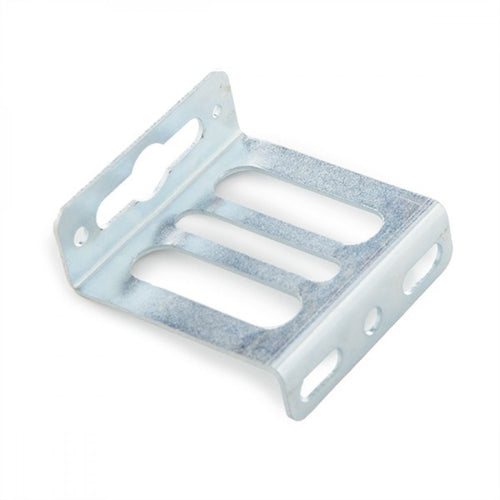

Surface Mounting Kit for LED Panels

Supplier:
GreenIce

Surface Mounting Kit for LED Panels

Usual price 3,33€

Usual price Offer price 3,33€ Discount Infinity%
Unit price by

Technical file

Product code

HOPBD3060LIUGR17-CW

Luminous efficacy (LM/W)

100

Light temperature

CW

Kelvin º

6000

Power (W)

28.0

Luminosity (LM)

2800

LED efficacy

110

Measures (mm)

295x595x35

High

35.0

Long

595.0

Broad

295.0

Number and type of LEDs

Sanmsung Led

CRI

90

UGR

◄17

Power factor (PF)

0.99

Construction

Alu/PC

Opening Angle (º)

120

Facility

IP40

Strain

165-265VAC

Estimated life (H)

40000

Isolation class

II

Work frequency (Hz)

50/60

Start time (s)

0.1

Energy class

F

Certificates

CE/ROHS/ISO9001

Temperature range (ºC)

-20 +40

Lighting cycles

100000

Diffuser

Micro

Energy consumption (kWh/1000h)

28.0

Weight (gr)

1300

Flicker

0.88

Half -year useful life (at 3 h/day)

36.52

Half -Year Useful Life (5 h/day)

21.91

Half -year useful life (at 8 h/day)

13.69

Single CCT

6000

INDEX R9

38

Driver output

30-42V 1050mA

Applicable standards

EN 55015:2013;EN 61547:2009:EN 61000-3-2:2006;EN 61000-3-3:2013;EN 61000-4-2:2009;EN 61000-4-3:2006;EN 61000-4-4:2004;EN 61000-4-5:2006; EN 61000-4-6:2009; EN 61000-4-8:2010; EN 61000-4-11:2004;1194/2012/EU;874/2012/EU;EN 60598-1:2008;EN 60598-2-2:2012

Characteristics

Product code

HOPBD3060LIUGR17-CW

Luminous efficacy (LM/W)

100

Light temperature

CW

Kelvin º

6000

Power (W)

28.0

Luminosity (LM)

2800

LED efficacy

110

Measures (mm)

295x595x35

High

35.0

Long

595.0

Broad

295.0

Number and type of LEDs

Sanmsung Led

CRI

90

UGR

◄17

Power factor (PF)

0.99

Construction

Alu/PC

Opening Angle (º)

120

Facility

IP40

Strain

165-265VAC

Estimated life (H)

40000

Isolation class

II

Work frequency (Hz)

50/60

Start time (s)

0.1

Energy class

F

Certificates

CE/ROHS/ISO9001

Temperature range (ºC)

-20 +40

Lighting cycles

100000

Diffuser

Micro

Energy consumption (kWh/1000h)

28.0

Weight (gr)

1300

Flicker

0.88

Half -year useful life (at 3 h/day)

36.52

Half -Year Useful Life (5 h/day)

21.91

Half -year useful life (at 8 h/day)

13.69

Single CCT

6000

INDEX R9

38

Driver output

30-42V 1050mA

Applicable standards

EN 55015:2013;EN 61547:2009:EN 61000-3-2:2006;EN 61000-3-3:2013;EN 61000-4-2:2009;EN 61000-4-3:2006;EN 61000-4-4:2004;EN 61000-4-5:2006; EN 61000-4-6:2009; EN 61000-4-8:2010; EN 61000-4-11:2004;1194/2012/EU;874/2012/EU;EN 60598-1:2008;EN 60598-2-2:2012

Description

The 30x60 UGR17 LED Panel with a flicker-free LIFUD driver and white frame combines a very modern design with excellent efficiency and light quality. This panel is especially suitable for offices and work areas due to its low glare factor. The LED panel's light source has a brightness of 2,800 lumens, equivalent to that of a conventional 160W luminaire. This provides significant savings compared to traditional low-consumption luminaires. Suitable for lighting offices thanks to its low glare. Glare caused by lighting can negatively affect people, as a comfortable lighting environment is needed to assist us in our tasks. A low UGR17 level increases workers' sense of well-being, which indirectly contributes to productivity. Low glare levels are recommended in all areas where people spend long periods of time exposed to artificial light, especially in offices, educational centers, work areas, etc. White finish made of aluminum. The panel has an IP40 protection rating (valid for indoor dust and humidity), and is robust enough to withstand the required mechanical demands. These extra-flat LED screens consume up to 55% less energy and require no maintenance, avoiding the need to replace starters or ballasts. They also have the advantage of being a much lighter and more manageable product. The LED panel can be used supported on an Armstrong false ceiling, on plasterboard using the LED panel mounting clips, which allow the panel to be embedded in the ceiling, or with the LED panel suspension kits. These kits consist of four tensioners, one in each corner, allowing us to achieve the desired height or angle to perfectly complement our decor. This panel is available in natural white (4200°K) and cool white (6000°K). The indicated color temperature may vary within a tolerance of 7%.
