LED Panel 40W 4,000Lm 6000ºK 60x60Cm UGR17 Driver PRO White Frame 60,000H [HO-LP-40W-UGR17-OS-CW]

LED Panel 40W 4,000Lm 6000ºK 60x60Cm UGR17 Driver PRO White Frame 60,000H [HO-LP-40W-UGR17-OS-CW]

For additional amounts the delivery period is 60 days As of the order date
  • Brand:GreenIce / Ledvance-Osram
  • SkuHO-LP-40W-UGR17-OS-CW
  • AA 2021
Eprel file
Warranty
  • Warranty 5 years
  • Eye Care Eye Care
  • Tüv Süd TUV SUD
  • 120 º Opening
19,98€
19,98€ Infinity%
Tax included. The Shipping expenses They are calculated on the payment screen.

Stock available

Warranty
  • Warranty 5 years
  • Eye Care Eye Care
  • Tüv Süd TUV SUD
  • 120 º Opening
Are you a professional customer?

We have published a new website only for professionals.

Go to Professional Area
Advantages of buying in Greenice
  • Guaranteed minimum price
  • Free returns up to 60 days
  • Free shipping From € 21.95
  • Until 10 years guarantee
(HO-LP-40W-UGR17-OS-CW_padreImg_ho_lp_40w_ugr17_os_cw_0.jpeg)
Cool White
Stock available
Free shipping
19,98€
19,98€ Infinity%

Accessories

  • (HO-AF-600x600_padreImg_ho_af_600x600_0.jpeg) (HO-AF-600x600_padreImg_ho_af_600x600_1.jpeg)

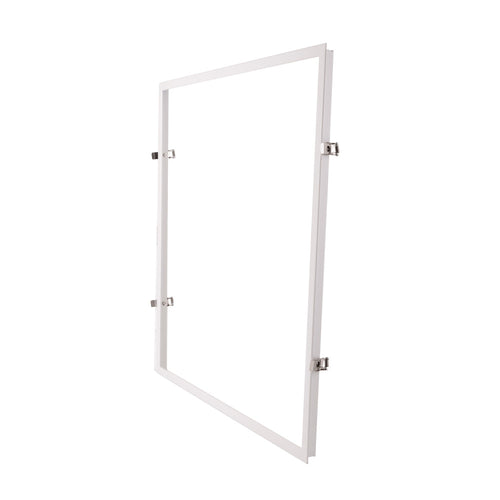

    Frame Aluminum LED Panel 60x60Cm

    GreenIce

    Frame Aluminum LED Panel 60x60Cm

    8,97€
    8,97€ Infinity%
  • (SB-BS041_padreImg_sb_bs041_0.jpeg) (SB-BS041_padreImg_sb_bs041_1.jpeg)

    Motion Sensor Recessed 360º ►1200/300W

    GreenIce

    Motion Sensor Recessed 360º ►1200/300W

    9,53€
    9,53€ Infinity%
  • (HO-CLIP-PAN-4_padreImg_ho_clip_pan_4_0.jpeg) (HO-CLIP-PAN-4_padreImg_ho_clip_pan_4_1.jpeg)

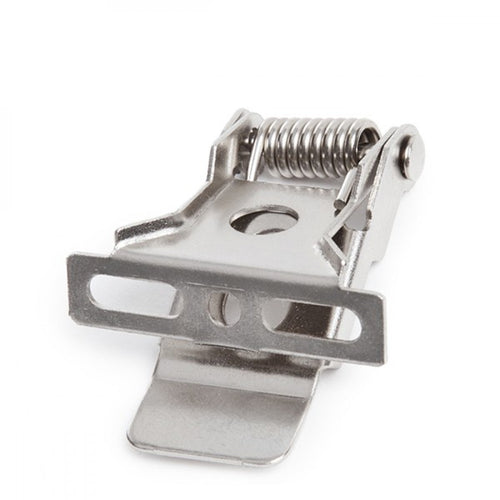

    Set of 4 Clips for LED Panel Mounting

    GreenIce

    Set of 4 Clips for LED Panel Mounting

    1,33€
    1,33€ Infinity%
  • (HO-KIT-MONSUP_padreImg_ho_kit_monsup_0.jpeg) (HO-KIT-MONSUP_padreImg_ho_kit_monsup_1.jpeg)

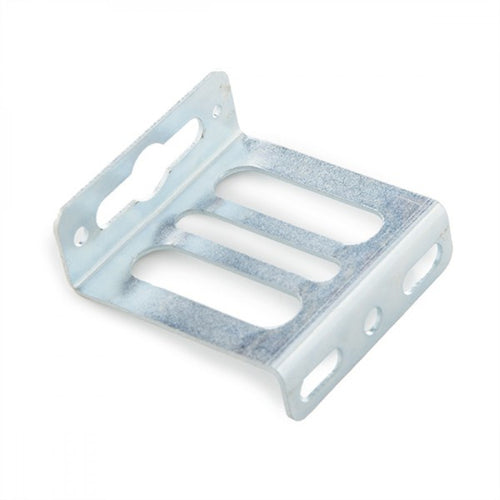

    Surface Mounting Kit for LED Panels

    GreenIce

    Surface Mounting Kit for LED Panels

    3,33€
    3,33€ Infinity%
  • (NE-M-P-600600_padreImg_ne_m_p_600600_0.jpeg) (NE-M-P-600600_padreImg_ne_m_p_600600_1.jpeg)

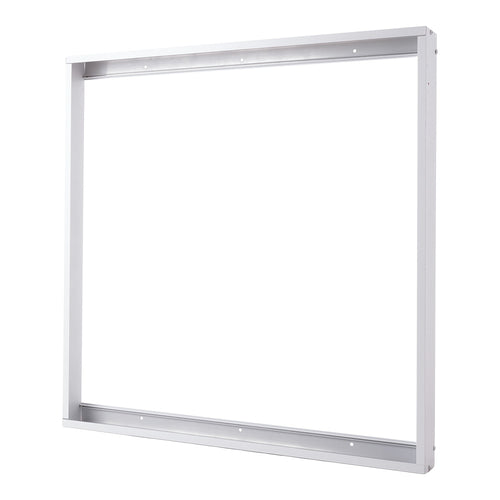

    Mounting Frame Surface Mounted LED Panel 60x60Cm

    GreenIce

    Mounting Frame Surface Mounted LED Panel 60x60Cm

    9,97€
    9,97€ Infinity%

Technical file

Product code
HO-LP-40W-UGR17-OS-CW
Luminous efficacy (LM/W)
100
Light temperature
Cold White
Kelvin º
6000
Power (W)
40.0
Luminosity (LM)
4000
Measures (mm)
595x595x14
High
14.0
Long
595.0
Broad
595.0
Number and type of LEDs
Osram Led
CRI
90
UGR
◄17
Power factor (PF)
0.99
Construction
Aluminum/PC
Opening Angle (º)
120
Facility
IP20
Strain
85-265VAC
Estimated life (H)
60000
Dimable
No
Equivalence (W)
215
Isolation class
II
Work frequency (Hz)
50/ 60
Start time (s)
0.1
Energy class
F
Certificates
CE/ROHS/ISO9001
Bush
Terminal
Temperature range (ºC)
-20+45
Lighting cycles
100000
Diffuser
Microprismatic
Energy consumption (kWh/1000h)
40.0
Weight (gr)
2500
Flicker
0.98
Half -year useful life (at 3 h/day)
54.79
Half -Year Useful Life (5 h/day)
32.87
Half -year useful life (at 8 h/day)
20.54
Directional
Non-Directional
Single/range CCT
Only
Single CCT
6000
INDEX R9
18
Minimum cri range
92
Maximum cri range
18
Chromaticity x
0.323
Chromaticity y
0.353
Driver output
DC55-86V
Applicable standards
EN 55015:2013;EN 61547:2009:EN 61000-3-2:2006;EN 61000-3-3:2013;EN 61000-4-2:2009;EN 61000-4-3:2006;EN 61000-4-4:2004;EN 61000-4-5:2006; EN 61000-4-6:2009; EN 61000-4-8:2010; EN 61000-4-11:2004;1194/2012/EU;874/2012/EU;EN 60598-1:2008;EN 60598-2-2:2012

Characteristics

Product code
HO-LP-40W-UGR17-OS-CW
Luminous efficacy (LM/W)
100
Light temperature
Cold White
Kelvin º
6000
Power (W)
40.0
Luminosity (LM)
4000
Measures (mm)
595x595x14
High
14.0
Long
595.0
Broad
595.0
Number and type of LEDs
Osram Led
CRI
90
UGR
◄17
Power factor (PF)
0.99
Construction
Aluminum/PC
Opening Angle (º)
120
Facility
IP20
Strain
85-265VAC
Estimated life (H)
60000
Dimable
No
Equivalence (W)
215
Isolation class
II
Work frequency (Hz)
50/ 60
Start time (s)
0.1
Energy class
F
Certificates
CE/ROHS/ISO9001
Bush
Terminal
Temperature range (ºC)
-20+45
Lighting cycles
100000
Diffuser
Microprismatic
Energy consumption (kWh/1000h)
40.0
Weight (gr)
2500
Flicker
0.98
Half -year useful life (at 3 h/day)
54.79
Half -Year Useful Life (5 h/day)
32.87
Half -year useful life (at 8 h/day)
20.54
Directional
Non-Directional
Single/range CCT
Only
Single CCT
6000
INDEX R9
18
Minimum cri range
92
Maximum cri range
18
Chromaticity x
0.323
Chromaticity y
0.353
Driver output
DC55-86V
Applicable standards
EN 55015:2013;EN 61547:2009:EN 61000-3-2:2006;EN 61000-3-3:2013;EN 61000-4-2:2009;EN 61000-4-3:2006;EN 61000-4-4:2004;EN 61000-4-5:2006; EN 61000-4-6:2009; EN 61000-4-8:2010; EN 61000-4-11:2004;1194/2012/EU;874/2012/EU;EN 60598-1:2008;EN 60598-2-2:2012

Description

The Samsung Driver Osram LED Panel 60x60cm 40W 4000lm (UGR17)with white frame combines a very modern design with excellent efficiency and light quality. This panel is especially suitable for offices and work areas due to its low glare factor.

The light source of the LED panel has a brightness of 4000 lumens, which is equivalent to to which a conventional 100W luminaire would emit. In this way, a very important saving is achieved compared to this type of traditional low consumption luminaires. It supports multi-voltage between 85V 265V AC and a working ambient temperature range of -20ºC to 45ºC.

Suitable for lighting offices thanks to its low glare . The glare caused by lighting can negatively influence people, since a comfortable light environment is needed to help us in our tasks, a low level of UGR increases the feeling of well-being of workers, which contributes to the level productivity indirectly.

Low levels of glare are recommended in all places where long periods of time are spent exposed to artificial light, being very important in offices, educational centers, work areas, etc.

Specially designed for installation in technical ceilings, it is used above all in commercial or work spaces such as: hotels, restaurants, supermarkets, exhibition halls, museums or offices. It provides a high quality and very uniform light that improves working conditions. It also includes an opal diffuser that reduces glare.

* They are installed in a removable false ceiling. Other installation options are available in the accessories section.
