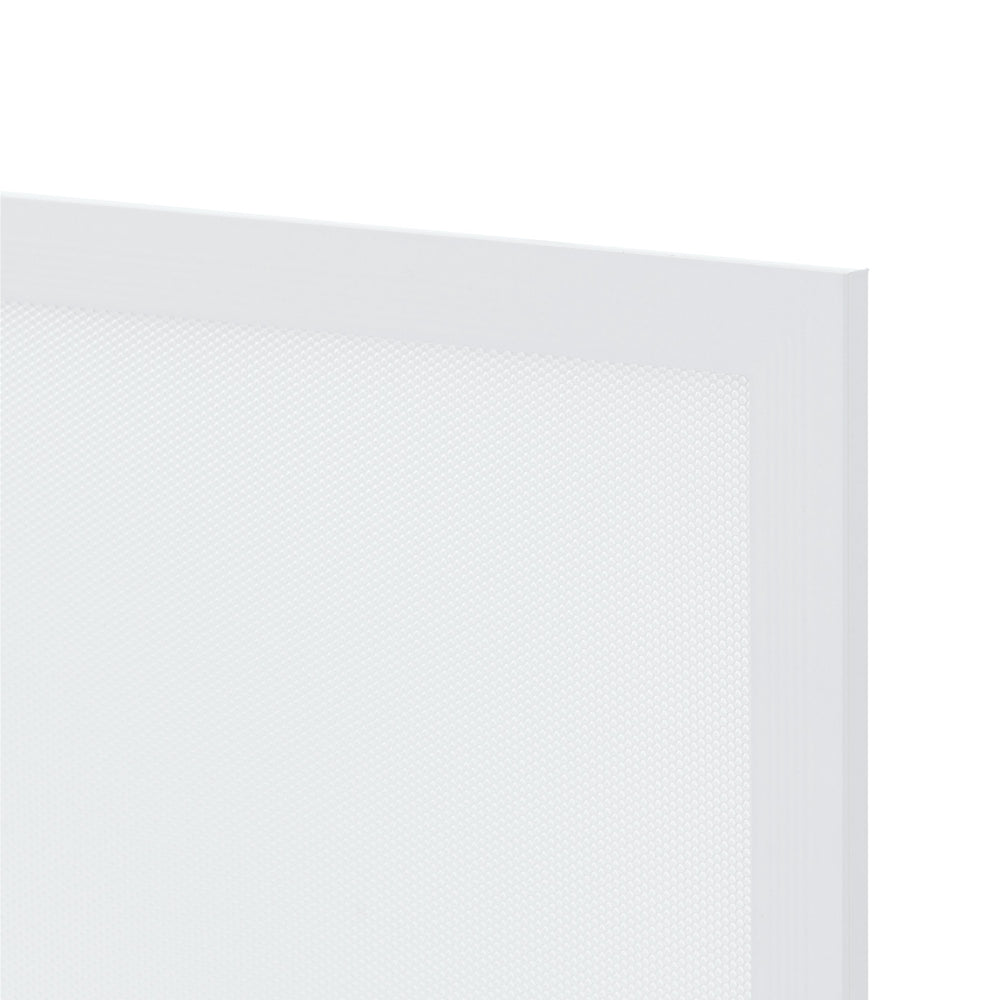

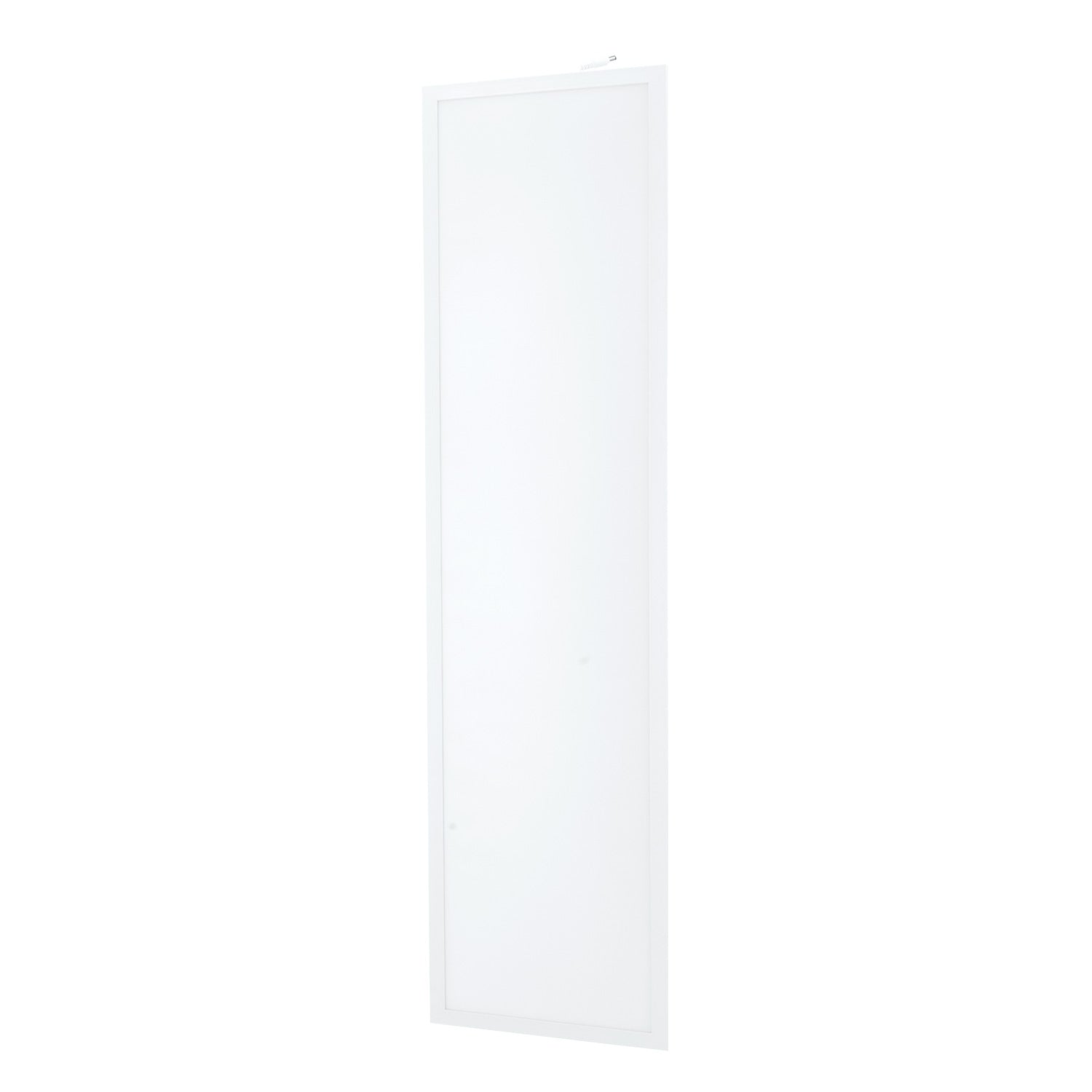

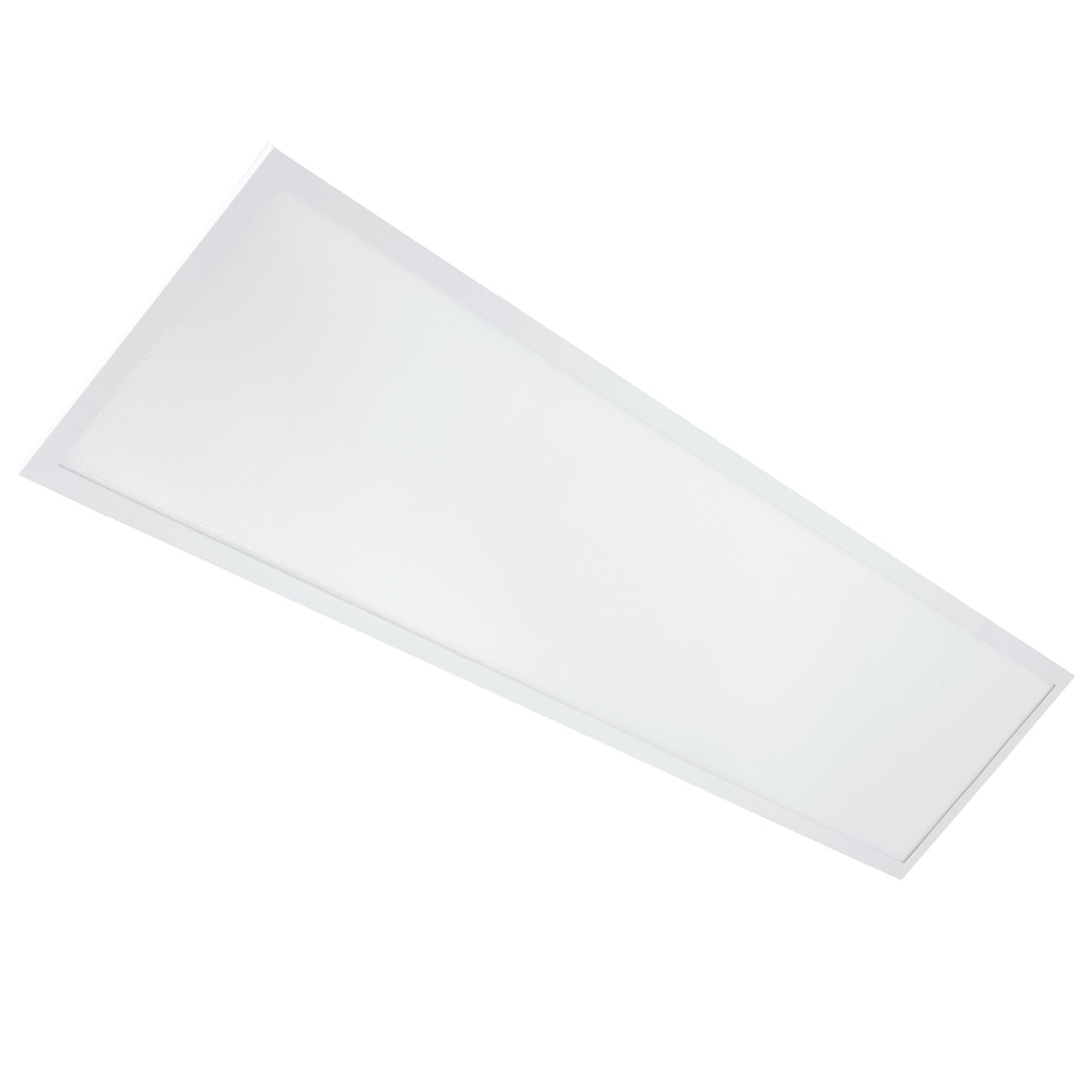

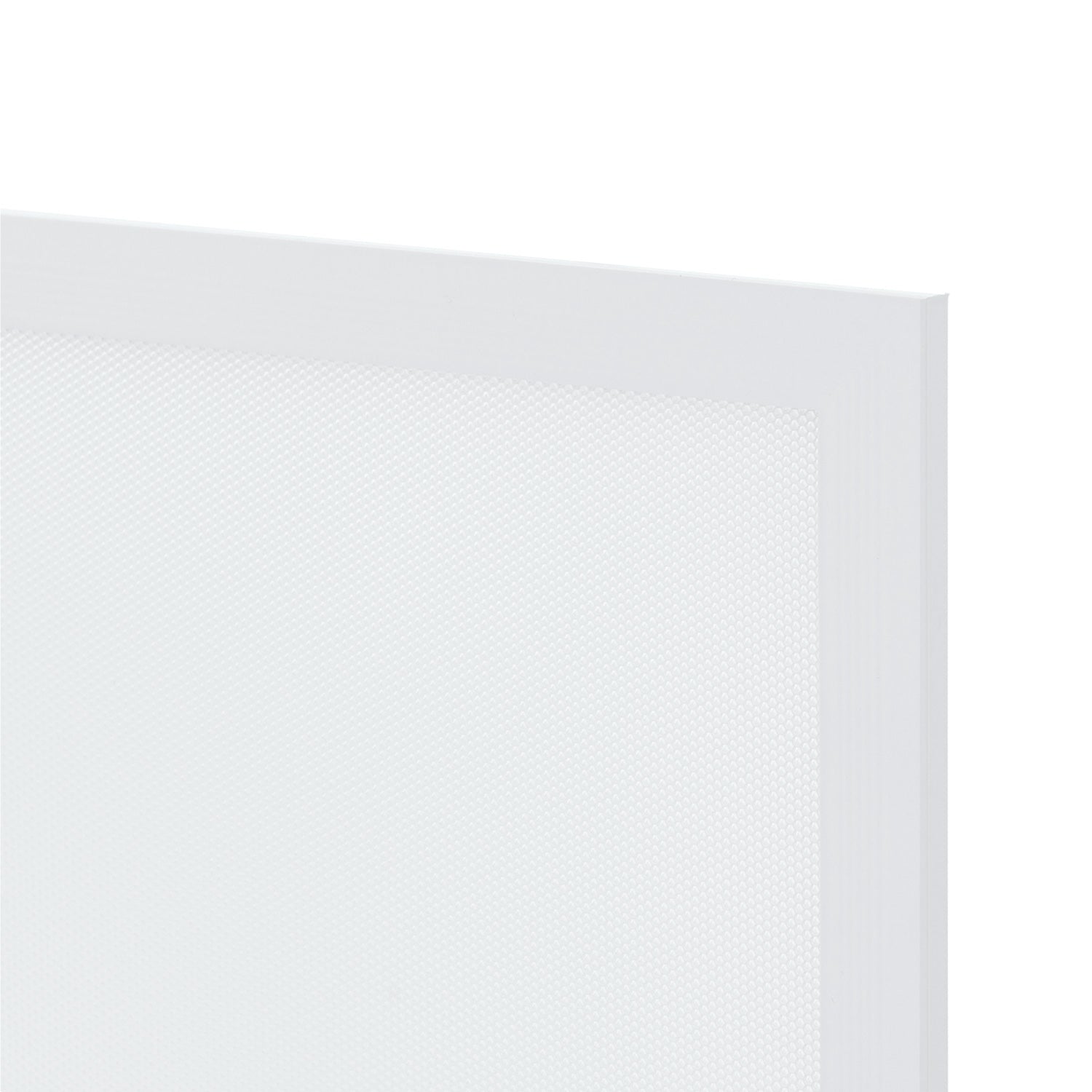

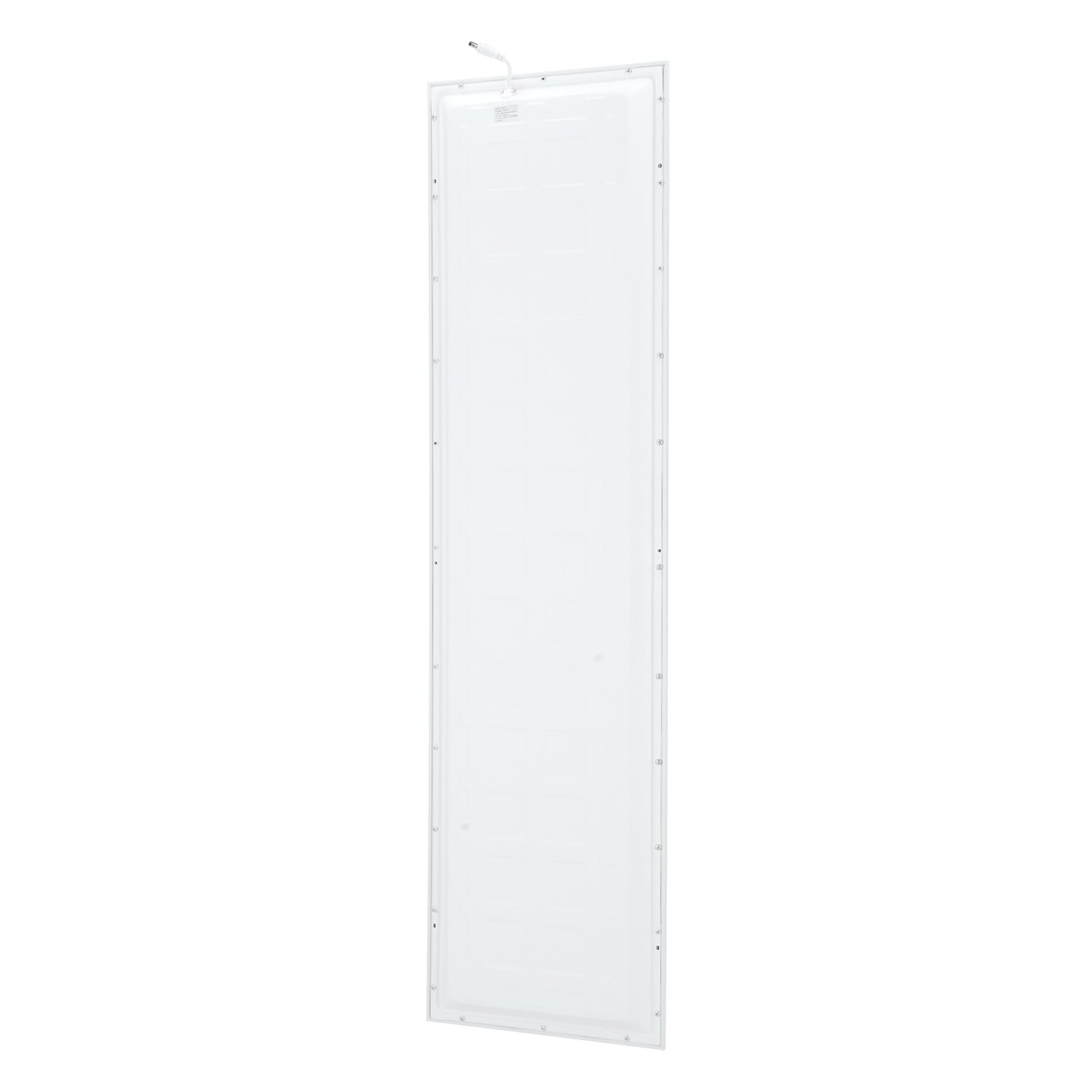

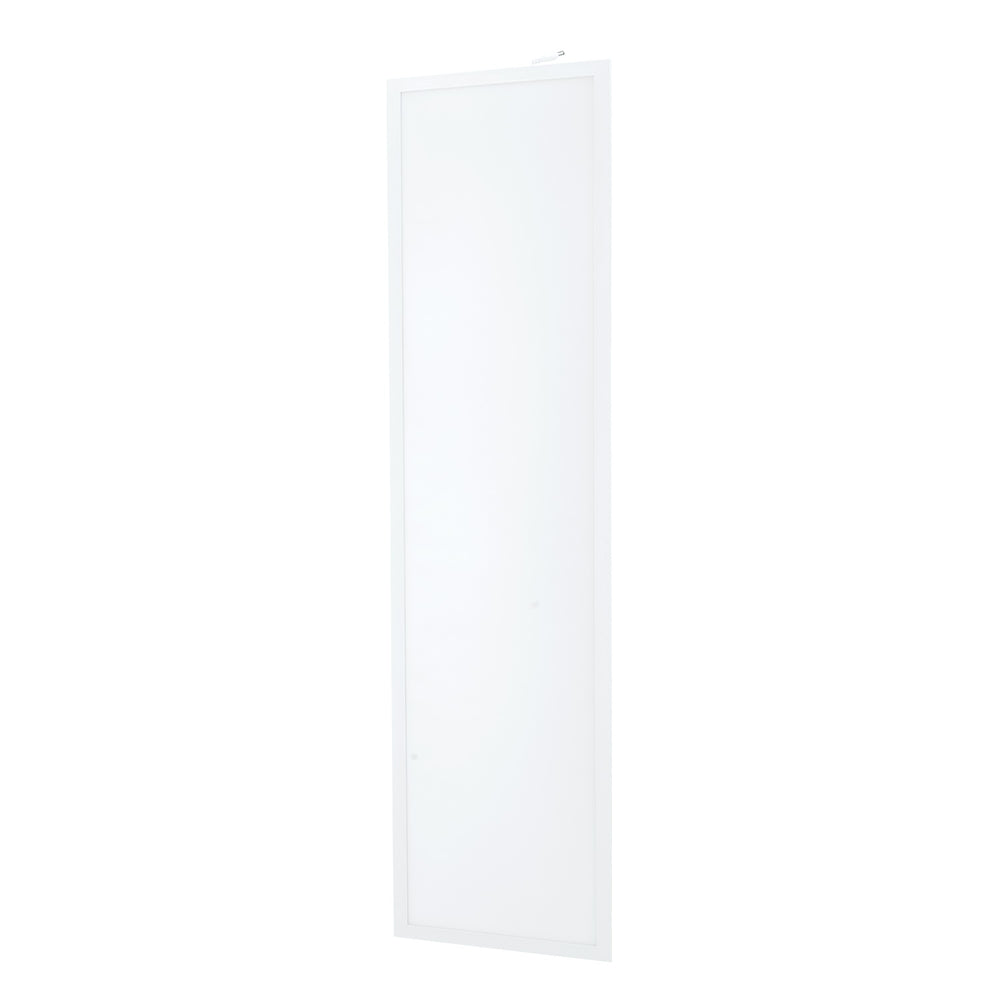

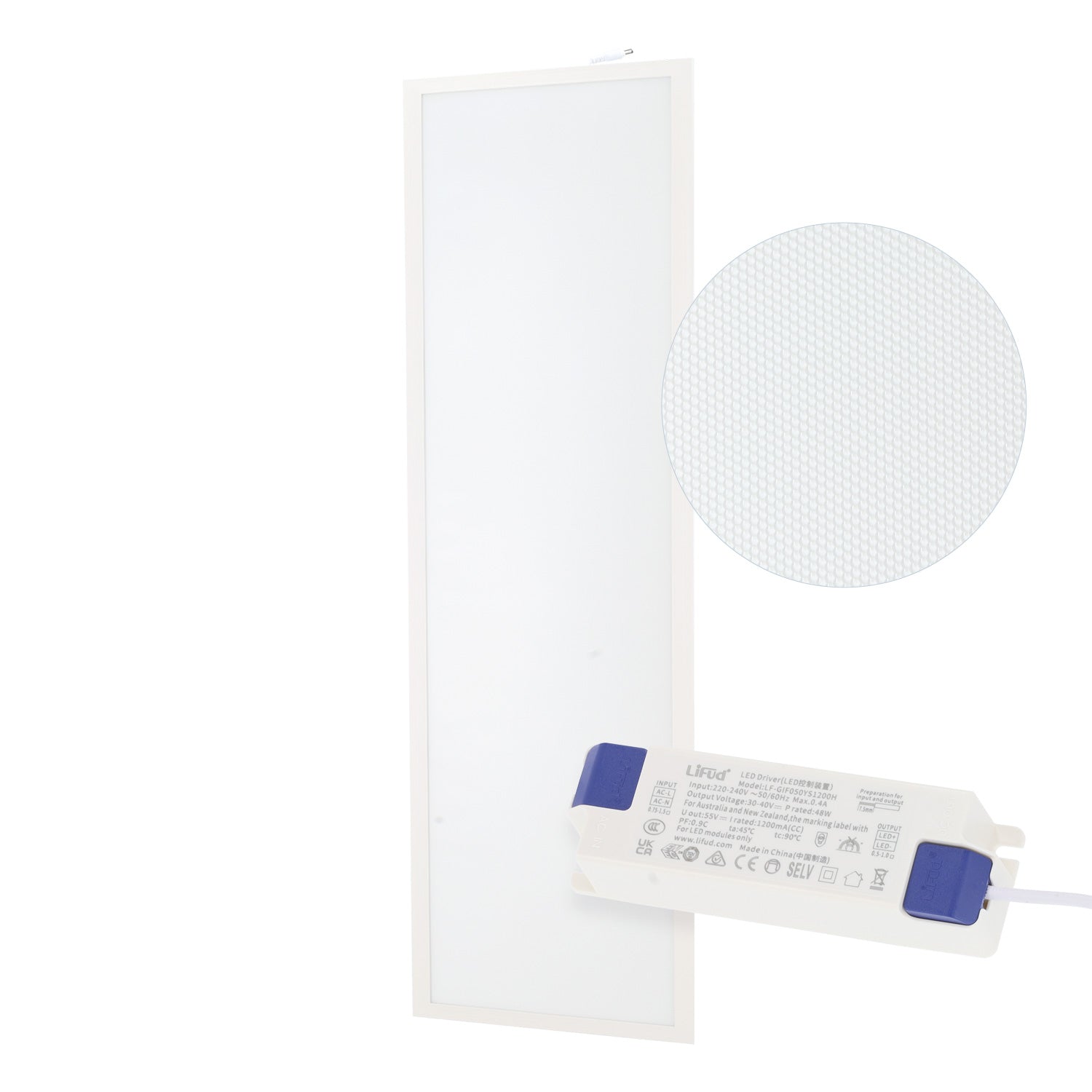

LED Panel 50W 5000Lm 4000ºK 120X30Cm 40,000H Driver Lifud UGR17 [HOPBD30120LIUGR17-W]

LED Panel 50W 5000Lm 4000ºK 120X30Cm 40,000H Driver Lifud UGR17 [HOPBD30120LIUGR17-W]

See questions and answers

For additional amounts the delivery period is 60 days As of the order date
  • + Lifud Driver
  • Sku:HOPBD30120LIUGR17-W
Eprel file
Warranty
  • Warranty 5 years
  • Eye Care Eye Care
  • Tüv Süd TUV SUD
  • 120 º Opening
  • Certificado ENEC
22,96€
22,96€ Infinity%
Tax included. The Shipping expenses They are calculated on the payment screen.

Stock available

Warranty
  • Warranty 5 years
  • Eye Care Eye Care
  • Tüv Süd TUV SUD
  • 120 º Opening
  • Certificado ENEC
Are you a professional customer?

We have published a new website only for professionals.

Go to Professional Area
Advantages of buying in Greenice
  • Guaranteed minimum price
  • Free returns up to 60 days
  • Free shipping From € 21.95
  • Until 10 years guarantee
(HOPBD30120LIUGR17-W_padreImg_hopbd30120liugr17_w_0.jpeg)
Daylight
Stock available
Free shipping
22,96€
22,96€ Infinity%

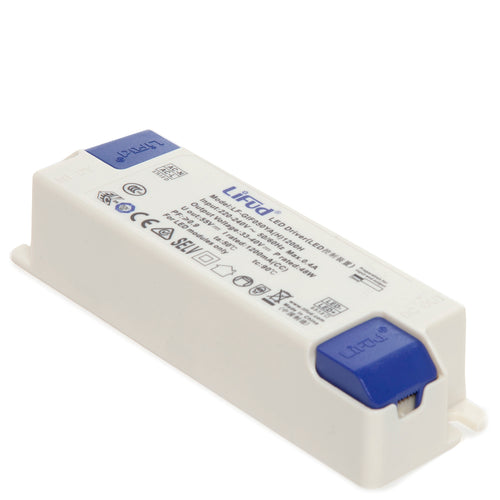

Accessories

Technical file

Product code
HOPBD30120LIUGR17-W
Light temperature
NW
Kelvin º
4000
Power (W)
50.0
Luminosity (LM)
5000
Luminous efficacy (LM/W)
100
LED efficacy
110
Type of LEDs
Sanmsung Led
Measures (mm)
295x1195x35
High
35.0
Long
1195.0
Broad
295.0
CRI
90
UGR
◄17
Diffuser
Micro
Power factor (PF)
0.99
Construction
Alu/PC
Opening Angle (º)
120
Facility
IP40
IK Protection Index
IK05
Strain
165-265VAC
Driver output
30-42V 1050mA
Estimated life (H)
40000
Equivalence (W)
277
Isolation class
II
Work frequency (Hz)
50/60
Start time (s)
0.1
Energy class
E
Certificates
CE/ROHS/ISO9001
Bush
Terminal Block
Temperature range (ºC)
-20 +40
Lighting cycles
100000
Energy consumption (kWh/1000h)
50.0
Weight (gr)
2700
Flicker
0.09
Half -year useful life (at 3 h/day)
36.52
Half -Year Useful Life (5 h/day)
21.91
Half -year useful life (at 8 h/day)
13.69
Single CCT
4000
INDEX R9
90
Minimum cri range
90
Maximum cri range
80
Chromaticity x
0.38
Chromaticity y
0.383

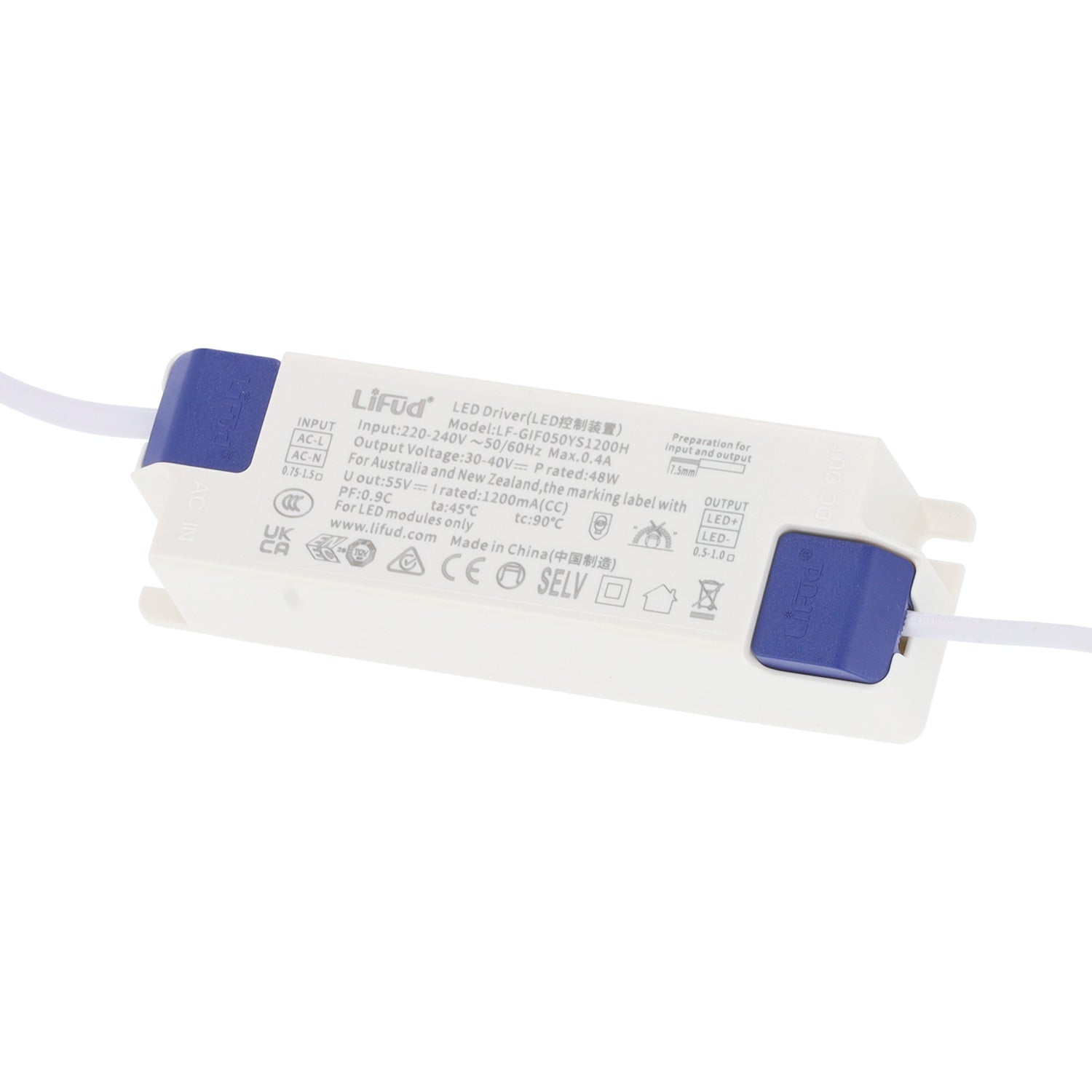

Driver
Lifud
Número unidades caja exterior
5.0
Applicable standards
EN 55015:2013;EN 61547:2009:EN 61000-3-2:2006;EN 61000-3-3:2013;EN 61000-4-2:2009;EN 61000-4-3:2006;EN 61000-4-4:2004;EN 61000-4-5:2006; EN 61000-4-6:2009; EN 61000-4-8:2010; EN 61000-4-11:2004;1194/2012/EU;874/2012/EU;EN 60598-1:2008;EN 60598-2-2:2012

Characteristics

Product code
HOPBD30120LIUGR17-W
Light temperature
NW
Kelvin º
4000
Power (W)
50.0
Luminosity (LM)
5000
Luminous efficacy (LM/W)
100
LED efficacy
110
Type of LEDs
Sanmsung Led
Measures (mm)
295x1195x35
High
35.0
Long
1195.0
Broad
295.0
CRI
90
UGR
◄17
Diffuser
Micro
Power factor (PF)
0.99
Construction
Alu/PC
Opening Angle (º)
120
Facility
IP40
IK Protection Index
IK05
Strain
165-265VAC
Driver output
30-42V 1050mA
Estimated life (H)
40000
Equivalence (W)
277
Isolation class
II
Work frequency (Hz)
50/60
Start time (s)
0.1
Energy class
E
Certificates
CE/ROHS/ISO9001
Bush
Terminal Block
Temperature range (ºC)
-20 +40
Lighting cycles
100000
Energy consumption (kWh/1000h)
50.0
Weight (gr)
2700
Flicker
0.09
Half -year useful life (at 3 h/day)
36.52
Half -Year Useful Life (5 h/day)
21.91
Half -year useful life (at 8 h/day)
13.69
Single CCT
4000
INDEX R9
90
Minimum cri range
90
Maximum cri range
80
Chromaticity x
0.38
Chromaticity y
0.383
Driver
Lifud
Número unidades caja exterior
5.0
Applicable standards
EN 55015:2013;EN 61547:2009:EN 61000-3-2:2006;EN 61000-3-3:2013;EN 61000-4-2:2009;EN 61000-4-3:2006;EN 61000-4-4:2004;EN 61000-4-5:2006; EN 61000-4-6:2009; EN 61000-4-8:2010; EN 61000-4-11:2004;1194/2012/EU;874/2012/EU;EN 60598-1:2008;EN 60598-2-2:2012

Description

LED Panel 50W 5000Lm 4000ºK 120X30Cm 40,000H Driver Lifud UGR17 [HOPBD30120LIUGR17-W]
