LED Panel 50W 5000Lm 6000ºK 120X30Cm 40,000H Driver Lifud [HO-PBD-30120-LI-CW]

LED Panel 50W 5000Lm 6000ºK 120X30Cm 40,000H Driver Lifud [HO-PBD-30120-LI-CW]

For additional amounts the delivery period is 60 days As of the order date
  • Brand:GreenIce / Lifud Driver
  • SkuHO-PBD-30120-LI-CW
  • AA 2021
Warranty
  • Warranty 5 years
  • Eye Care Eye Care
  • Tüv Süd TUV SUD
  • 120 º Opening
22,97€
22,97€ Infinity%
Tax included. The Shipping expenses They are calculated on the payment screen.

Stock available

Warranty
  • Warranty 5 years
  • Eye Care Eye Care
  • Tüv Süd TUV SUD
  • 120 º Opening
Are you a professional customer?

We have published a new website only for professionals.

Go to Professional Area
Advantages of buying in Greenice
  • Guaranteed minimum price
  • Free returns up to 60 days
  • Free shipping From € 21.95
  • Until 10 years guarantee
(HO-PBD-30120-LI-CW_padreImg_ho_pbd_30120_li_cw_0.jpeg)
Cool White
Stock available
Free shipping
22,97€
22,97€ Infinity%

Accessories

  • (HZ-KITUSPENSION_padreImg_hz_kituspension_0.jpeg)

    Suspension Kit 970Mm LED Panels

    GreenIce

    Suspension Kit 970Mm LED Panels

    3,11€
    3,11€ Infinity%
  • (HO-AF-1200x300_padreImg_ho_af_1200x300_0.jpeg) (HO-AF-1200x300_padreImg_ho_af_1200x300_1.jpeg)

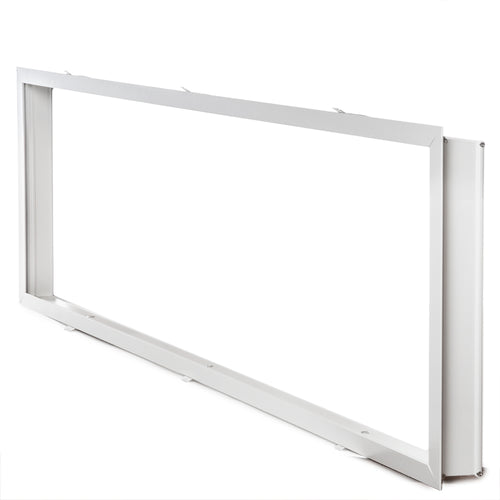

    Frame Aluminum LED Panel 120x30Cm

    GreenIce

    Frame Aluminum LED Panel 120x30Cm

    10,54€
    10,54€ Infinity%
  • (HO-CLIP-PAN-4_padreImg_ho_clip_pan_4_0.jpeg) (HO-CLIP-PAN-4_padreImg_ho_clip_pan_4_1.jpeg)

    Set of 4 Clips for LED Panel Mounting

    GreenIce

    Set of 4 Clips for LED Panel Mounting

    1,33€
    1,33€ Infinity%
  • (NE-M-P-1200300_padreImg_ne_m_p_1200300_0.jpeg) (NE-M-P-1200300_padreImg_ne_m_p_1200300_1.jpeg)

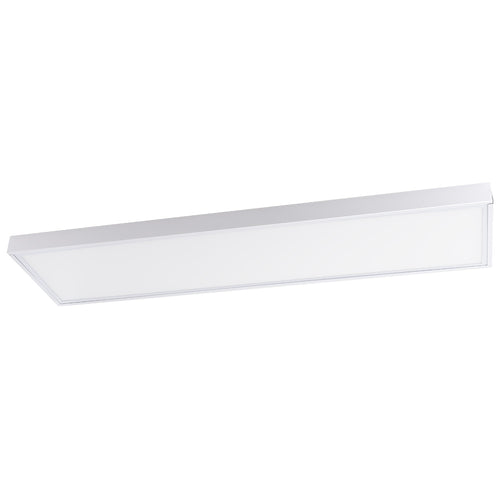

    Mounting Frame Surface Mounted LED Panel 120x30Cm

    GreenIce

    Mounting Frame Surface Mounted LED Panel 120x30Cm

    12,96€
    12,96€ Infinity%

Technical file

Product code
HO-PBD-30120-LI-CW
Luminous efficacy (LM/W)
100
Light temperature
Cold White
Kelvin º
6000
Power (W)
50.0
Luminosity (LM)
5000
Measures (mm)
295x1195x35
High
35.0
Long
1195.0
Broad
295.0
Number and type of LEDs
Sanmsung Led
CRI
80
UGR
◄19
Power factor (PF)
0.9
Construction
Aluminum/PC
Opening Angle (º)
120
Facility
IP20
Strain
165-265VAC
Estimated life (H)
40000
Dimable
No
Isolation class
II
Work frequency (Hz)
50/60
Start time (s)
0.1
Energy class
F
Certificates
CE/ROHS/ISO9001
Bush
Terminal
Temperature range (ºC)
-20 +40
Lighting cycles
100000
Diffuser
Microprismatic
Energy consumption (kWh/1000h)
50.0
Weight (gr)
2700
Flicker
0.88
Half -year useful life (at 3 h/day)
36.52
Half -Year Useful Life (5 h/day)
21.91
Half -year useful life (at 8 h/day)
13.69
Directional
Non-Directional
Single/range CCT
Only
Single CCT
6000
INDEX R9
36
Minimum cri range
93
Maximum cri range
12
Chromaticity x
0.311
Chromaticity y
0.332

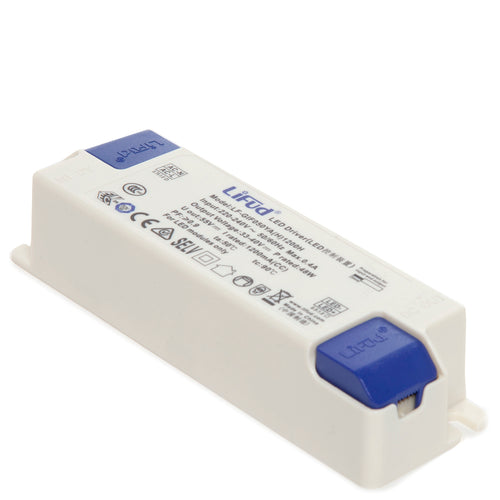

Driver output
30-42V 1050mA
Applicable standards
EN 55015:2013;EN 61547:2009:EN 61000-3-2:2006;EN 61000-3-3:2013;EN 61000-4-2:2009;EN 61000-4-3:2006;EN 61000-4-4:2004;EN 61000-4-5:2006; EN 61000-4-6:2009; EN 61000-4-8:2010; EN 61000-4-11:2004;1194/2012/EU;874/2012/EU;EN 60598-1:2008;EN 60598-2-2:2012

Characteristics

Product code
HO-PBD-30120-LI-CW
Luminous efficacy (LM/W)
100
Light temperature
Cold White
Kelvin º
6000
Power (W)
50.0
Luminosity (LM)
5000
Measures (mm)
295x1195x35
High
35.0
Long
1195.0
Broad
295.0
Number and type of LEDs
Sanmsung Led
CRI
80
UGR
◄19
Power factor (PF)
0.9
Construction
Aluminum/PC
Opening Angle (º)
120
Facility
IP20
Strain
165-265VAC
Estimated life (H)
40000
Dimable
No
Isolation class
II
Work frequency (Hz)
50/60
Start time (s)
0.1
Energy class
F
Certificates
CE/ROHS/ISO9001
Bush
Terminal
Temperature range (ºC)
-20 +40
Lighting cycles
100000
Diffuser
Microprismatic
Energy consumption (kWh/1000h)
50.0
Weight (gr)
2700
Flicker
0.88
Half -year useful life (at 3 h/day)
36.52
Half -Year Useful Life (5 h/day)
21.91
Half -year useful life (at 8 h/day)
13.69
Directional
Non-Directional
Single/range CCT
Only
Single CCT
6000
INDEX R9
36
Minimum cri range
93
Maximum cri range
12
Chromaticity x
0.311
Chromaticity y
0.332
Driver output
30-42V 1050mA
Applicable standards
EN 55015:2013;EN 61547:2009:EN 61000-3-2:2006;EN 61000-3-3:2013;EN 61000-4-2:2009;EN 61000-4-3:2006;EN 61000-4-4:2004;EN 61000-4-5:2006; EN 61000-4-6:2009; EN 61000-4-8:2010; EN 61000-4-11:2004;1194/2012/EU;874/2012/EU;EN 60598-1:2008;EN 60598-2-2:2012

Description

The 120x30 LED Panel with LIFUD flicker free driver with white frame combines a very modern design with excellent efficiency and lighting quality. This Panel is especially suitable for offices and work areas due to its low glare factor.

The light source of the LED panel has a luminosity of 4500 lumens, which is equivalent to what a conventional 280W luminaire would emit. In this way, very significant savings are achieved compared to this type of traditional low-consumption luminaires.

Suitable for illuminating offices thanks to its low glare. The glare caused by lighting can negatively influence people, since a comfortable lighting environment is needed to help us in our tasks, a low level of UGR increases the feeling of well-being of workers, which contributes to the level of productivity of indirect way.

Low levels of glare are recommended in all places where long periods of time are spent exposed to artificial light, being very important in offices, educational centers, work areas, etc.

White finish built with aluminum. The panel has an IP20 protection degree (valid for dust and humidity indoors), in addition to being sufficiently robust for the required mechanical demands.

These extra-flat LED screens consume up to 55% less and do not require any type of maintenance, thus avoiding the need to replace primers or ballasts. And having the advantage of being a much lighter and more manageable product.

The LED panel can be used supported on an Armstrong false ceiling, on plasterboard with the help of the fastening clips for LED panels, with which we can recess the panel in the ceiling, or with the suspension kits for LED panels. These kits are made up of four tensioners, one in each corner, allowing us to achieve the desired height or inclination to give the perfect touch to our decoration.

This panel is available in natural white (4200°K) and cool white (6000°K). The indicated color temperature may vary within a tolerance of 7%.
