LED Pixel Screen 16X16Cm 256 Pixels 5VDC 77W IP30 RGB

LED Pixel Screen 16X16Cm 256 Pixels 5VDC 77W IP30 RGB

For additional amounts the delivery period is 30 days As of the order date
  • Brand:GreenIce
  • SkuWU- P-16X16-RGB
Warranty
  • Warranty 3 years
  • 120 º Opening
Documents
52,91€
52,91€ Infinity%
Tax included. The Shipping expenses They are calculated on the payment screen.

There are few

Warranty
  • Warranty 3 years
  • 120 º Opening
Documents
Are you a professional customer?

We have published a new website only for professionals.

Go to Professional Area
Advantages of buying in Greenice
  • Guaranteed minimum price
  • Free returns up to 60 days
  • Free shipping From € 21.95
  • Until 10 years guarantee
(WU- P-16X16-RGB_padreImg_wu_p_16x16_rgb_0.jpeg)
RGB
There are few
Free shipping
52,91€
52,91€ Infinity%

Technical file

Product code
WU- P-16X16-RGB
Light temperature
RGB
Power (W)
77.0
Measures (mm)
160x160
Long
160.0
Broad
160.0
Number and type of LEDs
SMD5050
Construction
Aluminum/PC
Opening Angle (º)
120
Facility
IP30
Strain
5VDC
Estimated life (H)
40000
Dimable
No
Work frequency (Hz)
50/ 60
Start time (s)
0.1
Certificates
CE/ROHS/ISO9001
Bush
Terminal
Temperature range (ºC)
-20 +65
Lighting cycles
80000
Diffuser
Transparent
Energy consumption (kWh/1000h)
77.0
Weight (gr)
10
Half -year useful life (at 3 h/day)
36.52
Half -Year Useful Life (5 h/day)
21.91
Half -year useful life (at 8 h/day)
13.69
Single/range CCT
Range
Additional information
Transformer/centralized control required

Characteristics

Product code
WU- P-16X16-RGB
Light temperature
RGB
Power (W)
77.0
Measures (mm)
160x160
Long
160.0
Broad
160.0
Number and type of LEDs
SMD5050
Construction
Aluminum/PC
Opening Angle (º)
120
Facility
IP30
Strain
5VDC
Estimated life (H)
40000
Dimable
No
Work frequency (Hz)
50/ 60
Start time (s)
0.1
Certificates
CE/ROHS/ISO9001
Bush
Terminal
Temperature range (ºC)
-20 +65
Lighting cycles
80000
Diffuser
Transparent
Energy consumption (kWh/1000h)
77.0
Weight (gr)
10
Half -year useful life (at 3 h/day)
36.52
Half -Year Useful Life (5 h/day)
21.91
Half -year useful life (at 8 h/day)
13.69
Single/range CCT
Range
Additional information
Transformer/centralized control required

Description

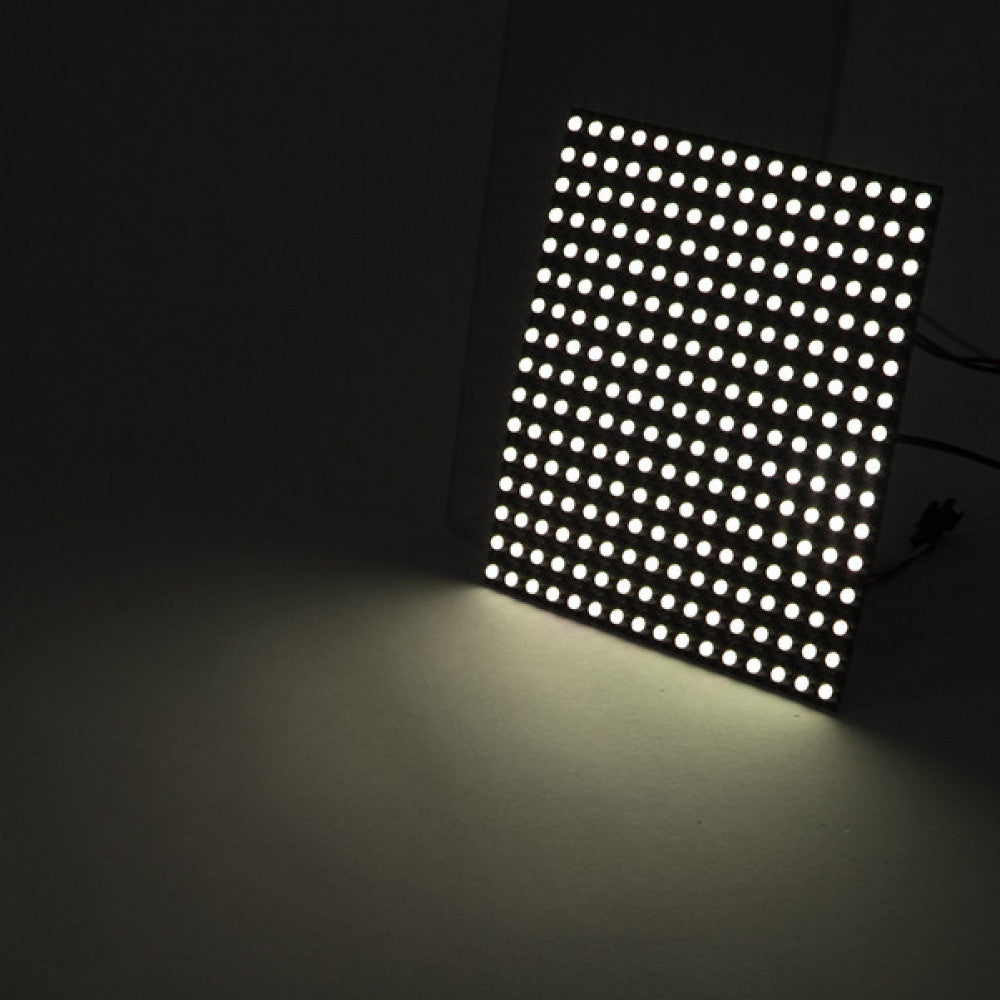

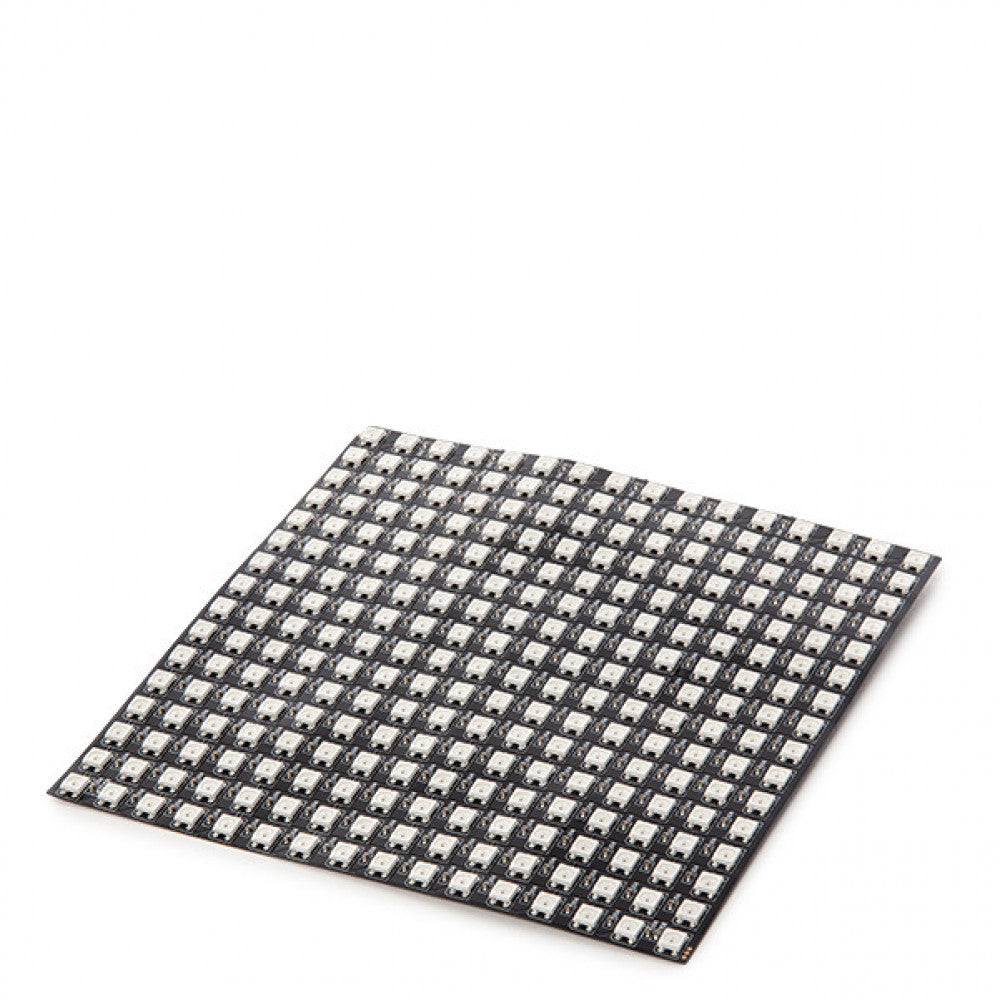

The 160x160mm LED pixel screen consists of 256 RGB pixels, it consists of a flexible screen that can be easily adapted to any shape, as well as being a totally modular product, thus being able to be combined with other pixel screens.

It has a total consumption of 77W and requires a 5VDC power supply. Additionally, this screen is controlled by an SPI (Additional Accessory) controller, with which a large number of lighting effects can be performed.

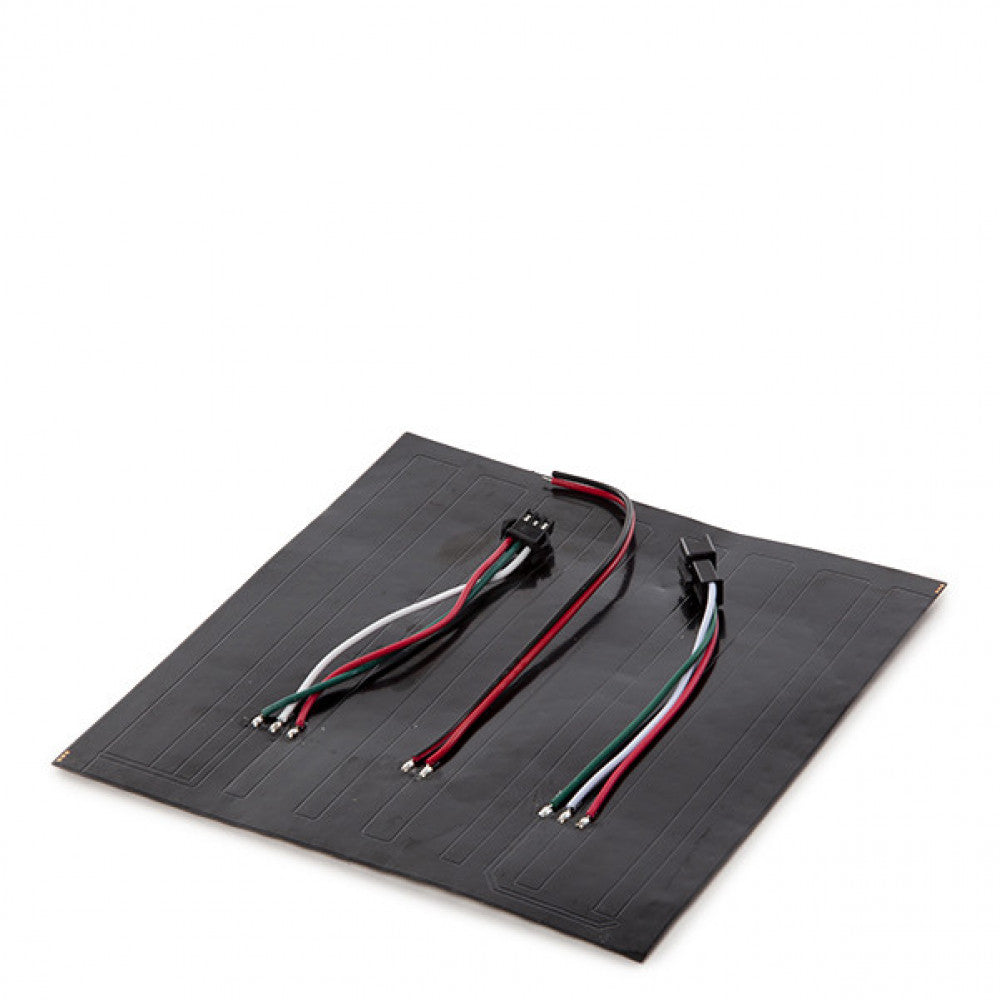

This screen has 256 pixels distributed in 16 lines of 16 pixels, generating a square and completely symmetrical shape, having one pixel per square centimeter, additionally, on the back of the screen there are the power supply connections, the input data and data output thus providing the possibility of connecting more similar displays. This product has an IP30 protection index, being suitable for dust and dry indoor environments.
