LED Plate 12W 1200Lm 2700ºK Circular Golden 50,000H [GL-CL-R12N-G-WW]

LED Plate 12W 1200Lm 2700ºK Circular Golden 50,000H [GL-CL-R12N-G-WW]

For additional amounts the delivery period is 60 days As of the order date
  • Brand:GreenIce / Osram Led
  • SkuGL-CL-R12N-G-WW
  • AA 2021
Eprel file
Warranty
  • Warranty 3 years
  • Eye Care Eye Care
  • 120 º Opening
11,41€
11,41€ Infinity%
Tax included. The Shipping expenses They are calculated on the payment screen.

Available

Warranty
  • Warranty 3 years
  • Eye Care Eye Care
  • 120 º Opening
Are you a professional customer?

We have published a new website only for professionals.

Go to Professional Area
Advantages of buying in Greenice
  • Guaranteed minimum price
  • Free returns up to 60 days
  • Free shipping From € 21.95
  • Until 10 years guarantee
(GL-CL-R12N-G-WW_padreImg_gl_cl_r12n_g_ww_0.jpeg)
Warm White
Available
Free shipping
11,41€
11,41€ Infinity%

Accessories

  • (SB-BS031B_padreImg_sb_bs031b_0.jpeg) (SB-BS031B_padreImg_sb_bs031b_1.jpeg)

    Motion Sensor Recessed 160º ►600W/200W

    GreenIce

    Motion Sensor Recessed 160º ►600W/200W

    3,43€
    3,43€ Infinity%
  • (GR-DRDIM-12W_padreImg_gr_drdim_12w_0.jpeg) (GR-DRDIM-12W_padreImg_gr_drdim_12w_1.jpeg)

    Driver Dimmable Slimline Downlights 12W

    GreenIce

    Driver Dimmable Slimline Downlights 12W

    5,88€
    5,88€ Infinity%
  • (GR-DRDIM0-10V-12W_padreImg_gr_drdim0_10v_12w_0.jpeg) (GR-DRDIM0-10V-12W_padreImg_gr_drdim0_10v_12w_1.jpeg)

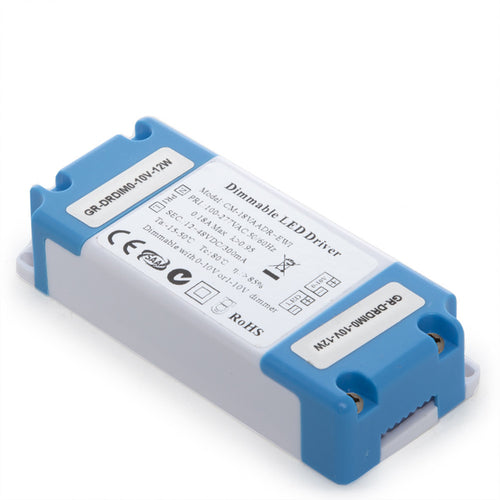

    Driver Adjustable 0-10V Ceiling Light / Placa /Downlight LED 12W

    GreenIce

    Driver Adjustable 0-10V Ceiling Light / Placa /Downlight LED 12W

    10,04€
    10,04€ Infinity%
  • (OL-LCM-25_padreImg_ol_lcm_25_0.jpeg) (OL-LCM-25_padreImg_ol_lcm_25_1.jpeg)

    Driver Meanwell Downlights 25W Smart Adjustable0-10V IP20

    MEANWELL

    Driver Meanwell Downlights 25W Smart Adjustable0-10V IP20

    35,38€
    35,38€ Infinity%
  • (DR-FD-ND-12W_padreImg_dr_fd_nd_12w_0.jpeg) (DR-FD-ND-12W_padreImg_dr_fd_nd_12w_1.jpeg)

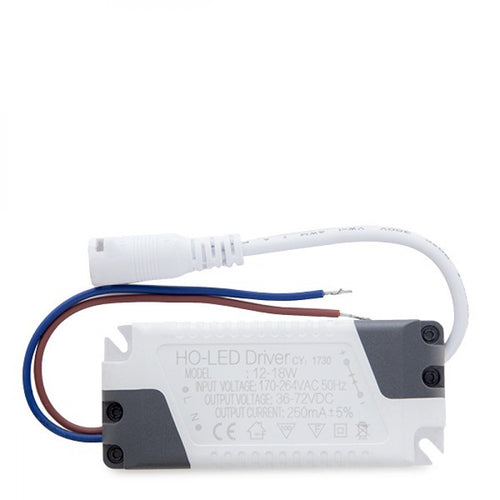

    Driver Non Dimmable Downlight LED 12W

    GreenIce

    Driver Non Dimmable Downlight LED 12W

    1,98€
    1,98€ Infinity%
  • (GH-90963601_padreImg_gh_90963601_0.jpeg) (GH-90963601_padreImg_gh_90963601_1.jpeg)

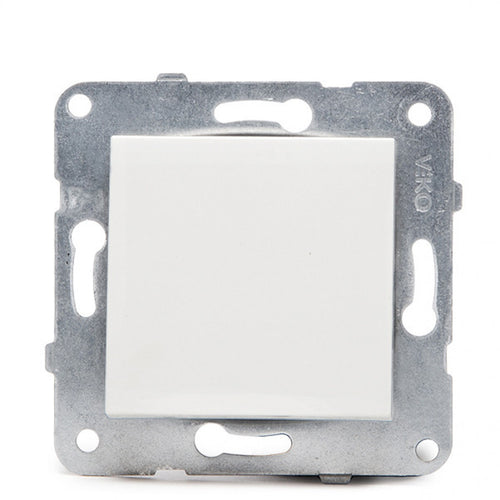

    Switch Panasonic Karre 10A 250V/Metal Frame With Claws/Key White

    PANASONIC

    Switch Panasonic Karre 10A 250V/Metal Frame With Claws/Key White

    4,37€
    4,37€ Infinity%
  • (KD-LEDDIM-CREM_padreImg_kd_leddim_crem_0.jpeg) (KD-LEDDIM-CREM_padreImg_kd_leddim_crem_1.jpeg)

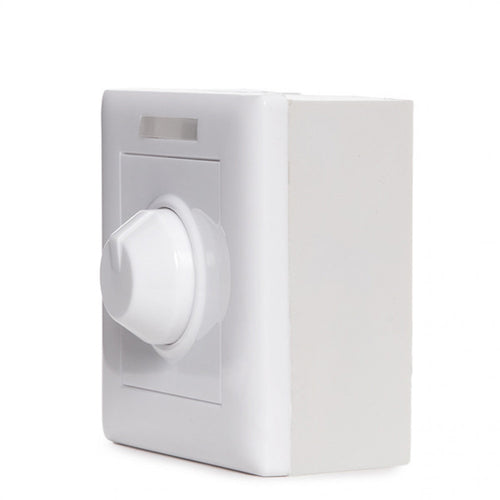

    Dimmer LEDs 90-240VAC 0-100% 200W Remote Control

    GreenIce

    Dimmer LEDs 90-240VAC 0-100% 200W Remote Control

    25,08€
    25,08€ Infinity%
  • (HO-HP-ND-12W_padreImg_ho_hp_nd_12w_0.jpeg) (HO-HP-ND-12W_padreImg_ho_hp_nd_12w_1.jpeg)

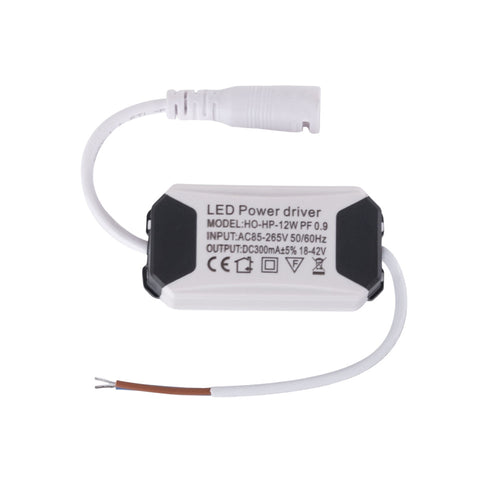

    Driver Non Dimmable 0.95 F.P. 50.000H Downlights LED 12W

    GreenIce

    Driver Non Dimmable 0.95 F.P. 50.000H Downlights LED 12W

    1,98€
    1,98€ Infinity%

Technical file

Product code
GL-CL-R12N-G-WW
Luminous efficacy (LM/W)
100
Light temperature
NW
Kelvin º
2700
Power (W)
12.0
Luminosity (LM)
1200
Measures (mm)
Ø169x20
Roof cut (mm)
Ø153
High
20.0
Diameter
169
Number and type of LEDs
Epistar Led
CRI
80
Power factor (PF)
0.98
Construction
Aluminum/PC
Opening Angle (º)
120
Facility
IP20
Strain
85-265VAC
Estimated life (H)
50000
Dimable
No
Equivalence (W)
80
Isolation class
II
Work frequency (Hz)
50/ 60
Start time (s)
0.1
Energy class
G
Certificates
CE/ROHS/ISO9001
Bush
Terminal
Temperature range (ºC)
-20 +40
Lighting cycles
100000
Diffuser
Milky
Energy consumption (kWh/1000h)
12.0
Weight (gr)
246
Flicker
0.64
Half -year useful life (at 3 h/day)
45.66
Half -Year Useful Life (5 h/day)
27.39
Half -year useful life (at 8 h/day)
17.12
Directional
Non-Directional
Single/range CCT
Only
Single CCT
2700
INDEX R9
2
Minimum cri range
97
Maximum cri range
6
Chromaticity x
0.436
Chromaticity y
0.412
Additional information
Possibility of dimming by purchasing a dimmable controller in the Accessories tab
Driver output
DC24-48V
Applicable standards
EN 55015:2009;EN 61547:2009:EN 61000-3-2:2006;EN 61000-3-3:2008;EN 60598-2-2:2012;EN 60598-1:2009;EN 1122B:2001

Characteristics

Product code
GL-CL-R12N-G-WW
Luminous efficacy (LM/W)
100
Light temperature
NW
Kelvin º
2700
Power (W)
12.0
Luminosity (LM)
1200
Measures (mm)
Ø169x20
Roof cut (mm)
Ø153
High
20.0
Diameter
169
Number and type of LEDs
Epistar Led
CRI
80
Power factor (PF)
0.98
Construction
Aluminum/PC
Opening Angle (º)
120
Facility
IP20
Strain
85-265VAC
Estimated life (H)
50000
Dimable
No
Equivalence (W)
80
Isolation class
II
Work frequency (Hz)
50/ 60
Start time (s)
0.1
Energy class
G
Certificates
CE/ROHS/ISO9001
Bush
Terminal
Temperature range (ºC)
-20 +40
Lighting cycles
100000
Diffuser
Milky
Energy consumption (kWh/1000h)
12.0
Weight (gr)
246
Flicker
0.64
Half -year useful life (at 3 h/day)
45.66
Half -Year Useful Life (5 h/day)
27.39
Half -year useful life (at 8 h/day)
17.12
Directional
Non-Directional
Single/range CCT
Only
Single CCT
2700
INDEX R9
2
Minimum cri range
97
Maximum cri range
6
Chromaticity x
0.436
Chromaticity y
0.412
Additional information
Possibility of dimming by purchasing a dimmable controller in the Accessories tab
Driver output
DC24-48V
Applicable standards
EN 55015:2009;EN 61547:2009:EN 61000-3-2:2006;EN 61000-3-3:2008;EN 60598-2-2:2012;EN 60598-1:2009;EN 1122B:2001

Description

LED Plate 12W 805Lm 2700ºK Circular Golden 50,000H [GL-CL-R12N-G-WW]

Documents

Installation_manual
Technical_drawings

Opinions

Opinions about this product
