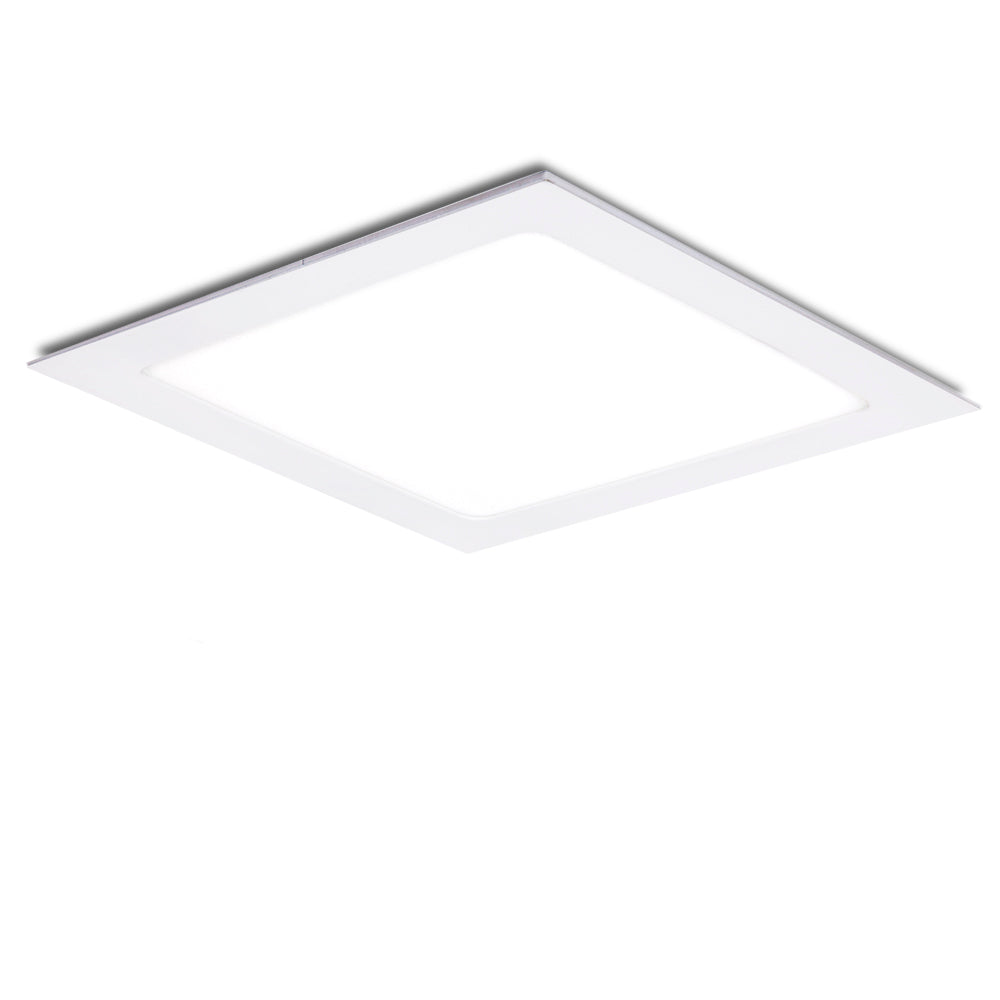

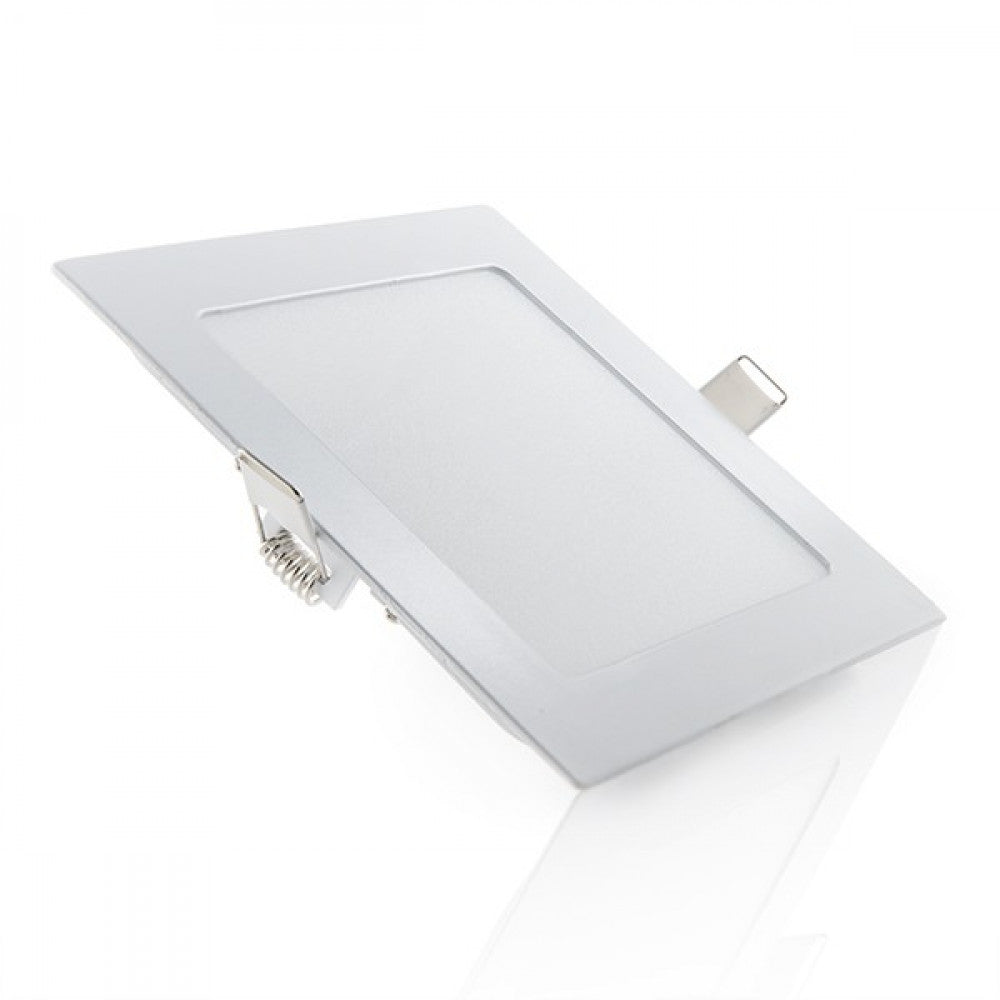

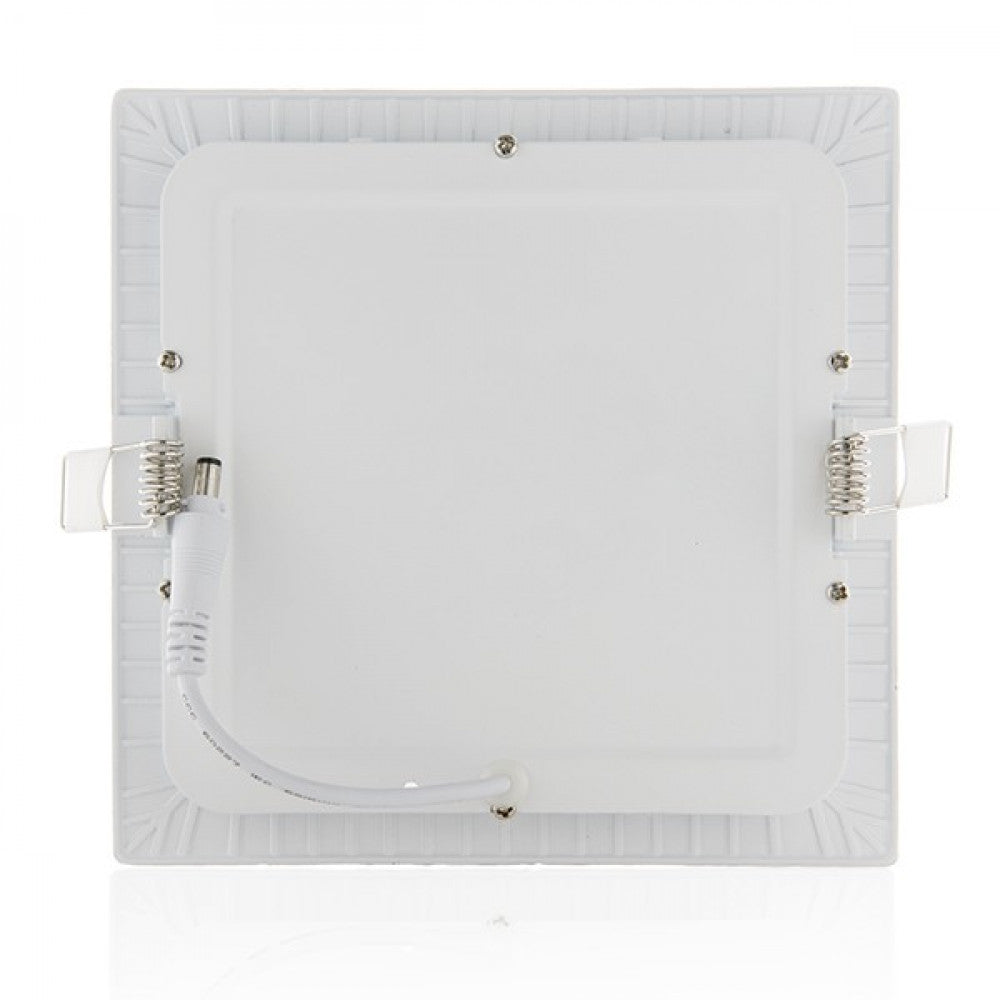

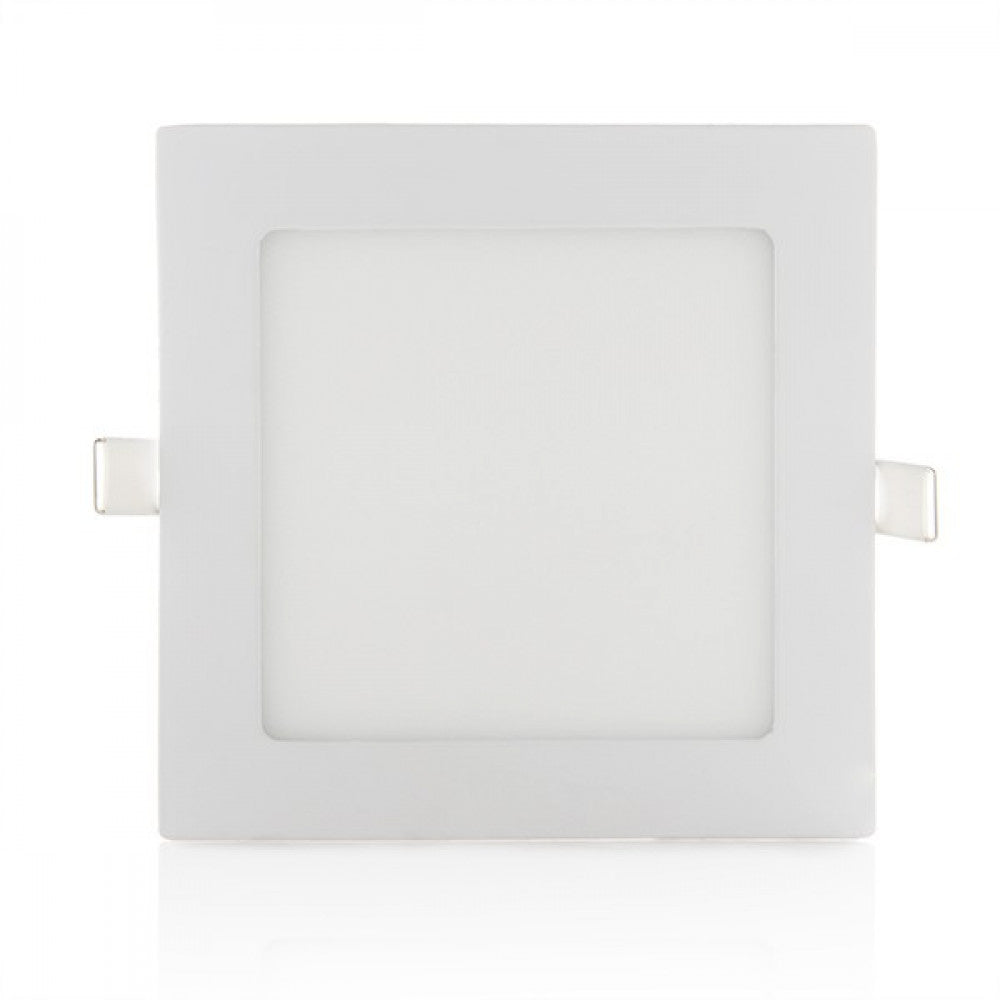

LED Plate 12W 1200Lm 4200ºK Square 40,000H [HO-GP-LZ-5-W]

LED Plate 12W 1200Lm 4200ºK Square 40,000H [HO-GP-LZ-5-W]

See questions and answers

For additional amounts the delivery period is 60 days As of the order date
  • Brand:GreenIce
  • SkuHO-GP-LZ-5-W
Energy efficiency
  • AA 2021
Eprel file
Warranty
  • Warranty 3 years

  • 120 º Opening

Documents
Usual price 3,55€
Usual price Offer price 3,55€ Discount Infinity%
Tax included. The Shipping expenses They are calculated on the payment screen.

Available

Warranty
  • Warranty 3 years

  • 120 º Opening

Documents
¿Eres Cliente Profesional?

Hemos publicado una nueva web solo para Profesionales.

ir a Área Profesional
VENTAJAS DE COMPRAR EN GREENICE
  • Precio Mínimo Garantizado
  • Devoluciones Gratis hasta en 60 días
  • Envío Gratis desde 21,95€
  • Hasta 10 años de Garantía
(JL-GP-LZ-5_padreImg_jl_gp_lz_5_0.jpeg)
Daylight
Available
Free shipping
Usual price 3,55€
Usual price Offer price 3,55€ Discount Infinity%

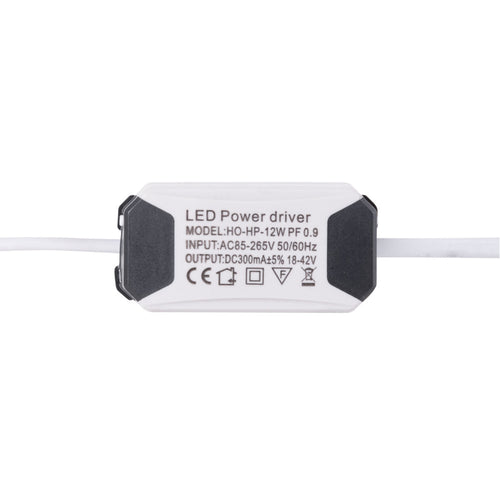

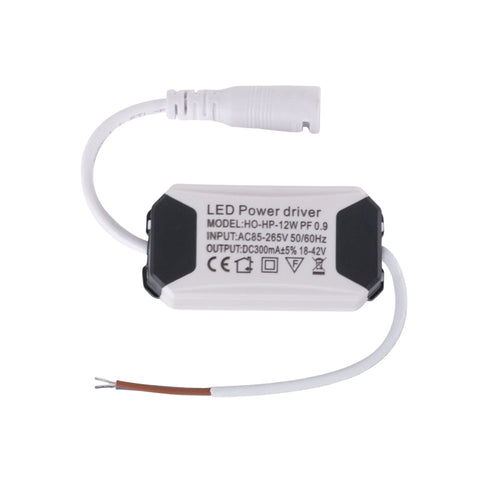

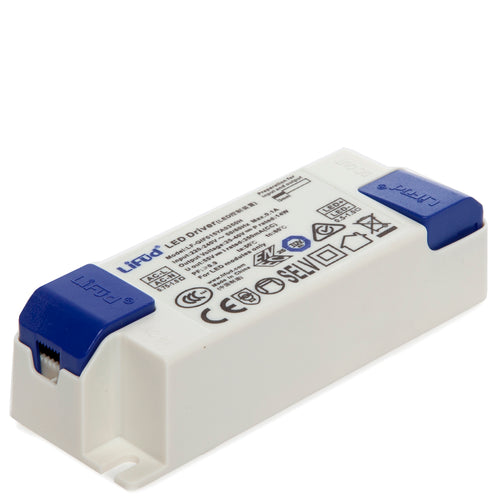

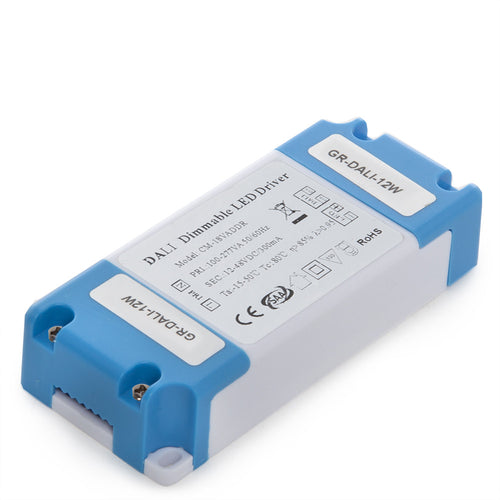

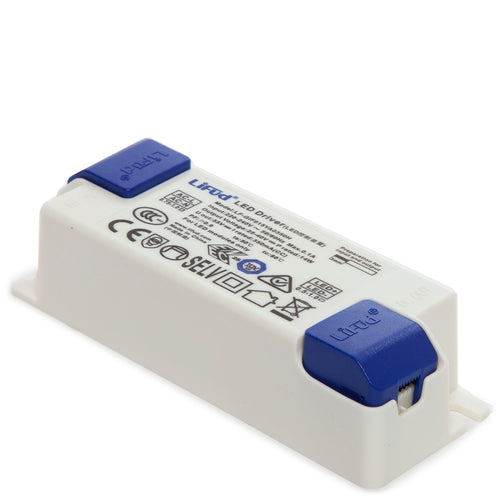

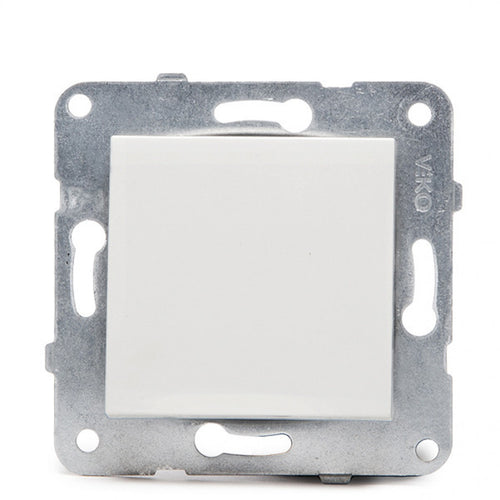

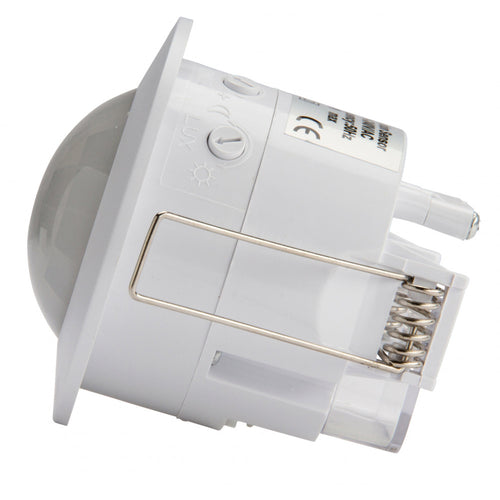

Accessories

Technical file

Product code
HO-GP-LZ-5-W
Light temperature
Natural White
Kelvin º
4200
Power (W)
12.0
Luminosity (LM)
1200
Luminous efficacy (LM/W)
100
LED efficacy
110
Type of LEDs
Osram Led
Number of LEDs
60
Measures (mm)
170x170
Roof cut (mm)
153x153
Long
170.0
Broad
170.0
CRI
80
Diffuser
Milky
Power factor (PF)
0.98
Construction
Aluminum/PC
Opening Angle (º)
120
Facility
IP20
Strain
220-240VAC

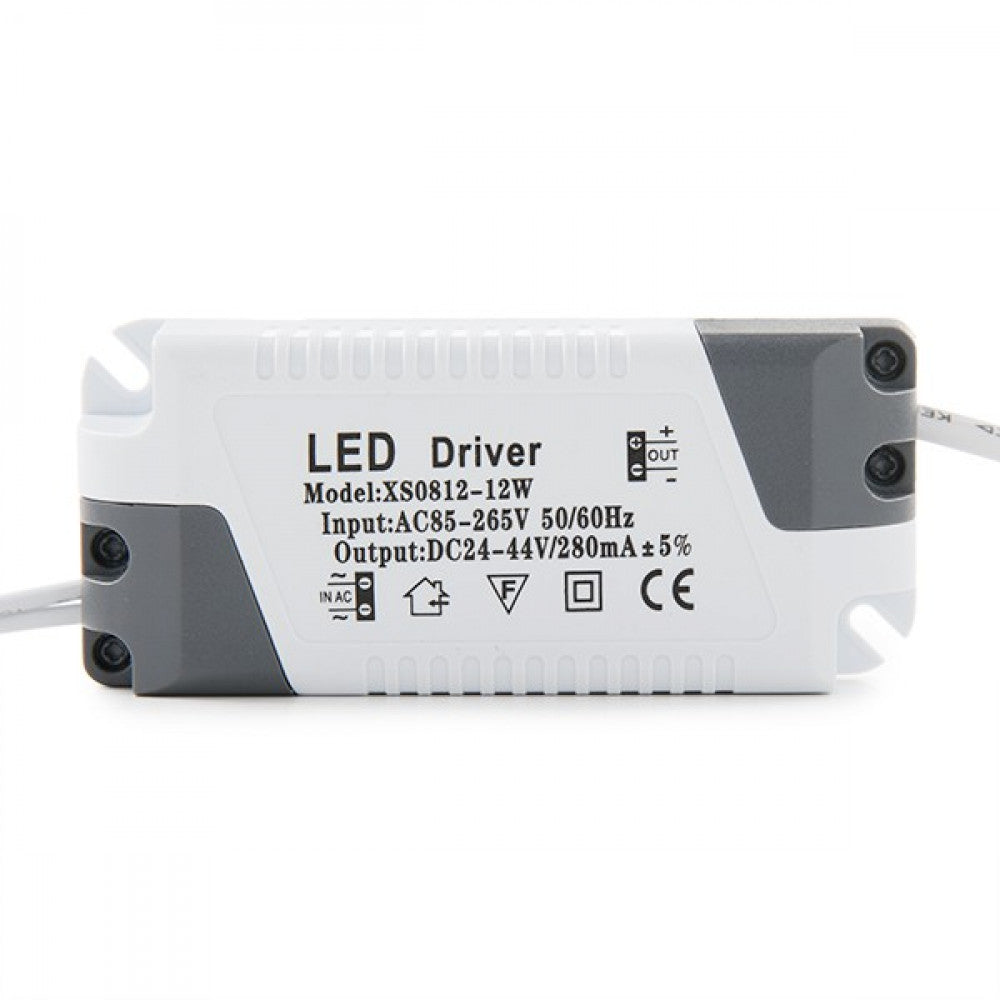

Driver output
30-42 V
Estimated life (H)
40000
Dimable
No
Equivalence (W)
80
Isolation class
II
Work frequency (Hz)
50/ 60
Start time (s)
0.2
Energy class
G
Certificates
CE/ROHS/ISO9001
Bush
Terminal
Temperature range (ºC)
-20 +40
Lighting cycles
100000
Energy consumption (kWh/1000h)
12.0
Weight (gr)
325
Flicker
0.78
Half -year useful life (at 3 h/day)
36.52
Half -Year Useful Life (5 h/day)
21.91
Half -year useful life (at 8 h/day)
13.69
Directional
Non-Directional
Single/range CCT
Only
Single CCT
4200
INDEX R9
1
Minimum cri range
88
Maximum cri range
28
Chromaticity x
0.319
Chromaticity y
0.338
Additional information

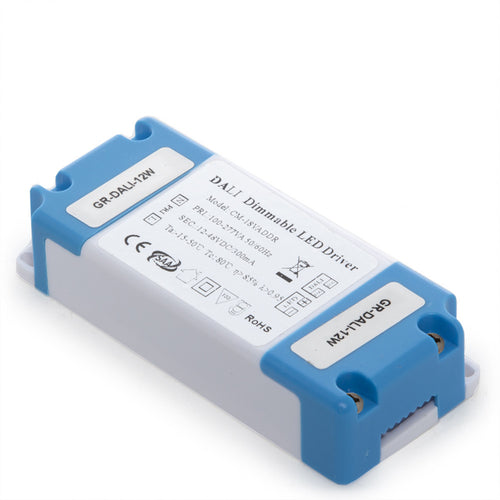

Possibility of dimming by purchasing a dimmable controller in the Accessories tab
Applicable standards
EN 55015:2009;EN 61547:2009:EN 61000-3-2:2006;EN 61000-3-3:2008;EN 60598-2-2:2012;EN 60598-1:2009;EN 1122B:2001
