LED Plate 20W 1600Lm 6000ºK Circular Custom Case 40,000H [GR-RDP15-20W-CW-EP01]

LED Plate 20W 1600Lm 6000ºK Circular Custom Case 40,000H [GR-RDP15-20W-CW-EP01]

For additional amounts the delivery period is 8 days As of the order date
  • Brand:GreenIce
  • SkuGR-RDP15-20W-CW-EP01
  • A 2021
Warranty
  • Warranty 3 years
  • 120 º Opening
Documents
7,56€
7,56€ Infinity%
Tax included. The Shipping expenses They are calculated on the payment screen.

Stock available

Warranty
  • Warranty 3 years
  • 120 º Opening
Documents
Are you a professional customer?

We have published a new website only for professionals.

Go to Professional Area
Advantages of buying in Greenice
  • Guaranteed minimum price
  • Free returns up to 60 days
  • Free shipping From € 21.95
  • Until 10 years guarantee
(GR-RDP15-20W-CW-EP01_padreImg_gr_rdp15_20w_cw_ep01_0.jpeg)
Cool White
Stock available
Free shipping
7,56€
7,56€ Infinity%

Accessories

  • (DR-P-ND-20W_padreImg_dr_p_nd_20w_0.jpeg) (DR-P-ND-20W_padreImg_dr_p_nd_20w_1.jpeg)

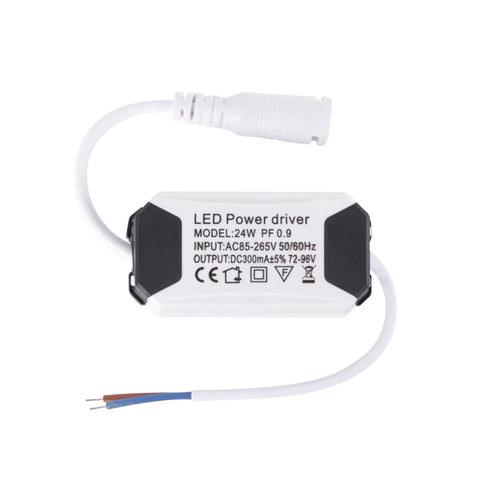

    Driver Non Dimmable Slimline Downlights 20W

    GreenIce

    Driver Non Dimmable Slimline Downlights 20W

    2,95€
    2,95€ Infinity%
  • (SB-BS031B_padreImg_sb_bs031b_0.jpeg) (SB-BS031B_padreImg_sb_bs031b_1.jpeg)

    Motion Sensor Recessed 160º ►600W/200W

    GreenIce

    Motion Sensor Recessed 160º ►600W/200W

    3,43€
    3,43€ Infinity%
  • (GH-90963602_padreImg_gh_90963602_0.jpeg) (GH-90963602_padreImg_gh_90963602_1.jpeg)

    Switch Double Panasonic Karre 10A 250V/Metal Frame With Claws/Key White

    PANASONIC

    Switch Double Panasonic Karre 10A 250V/Metal Frame With Claws/Key White

    3,06€
    3,06€ Infinity%
  • (SB-BS039_padreImg_sb_bs039_0.jpeg) (SB-BS039_padreImg_sb_bs039_1.jpeg)

    Motion Sensor Surface Mounted 180º IP44 ►1200/300W [SB-BS039]

    GreenIce

    Motion Sensor Surface Mounted 180º IP44 ►1200/300W [SB-BS039]

    6,76€
    6,76€ Infinity%
  • (SB-BS036B_padreImg_sb_bs036b_0.jpeg) (SB-BS036B_padreImg_sb_bs036b_1.jpeg)

    Motion Sensor Surface Mounted 360º ►1200/300W

    GreenIce

    Motion Sensor Surface Mounted 360º ►1200/300W

    6,75€
    6,75€ Infinity%
  • (GR-DRDIM-25W_padreImg_gr_drdim_25w_0.jpeg) (GR-DRDIM-25W_padreImg_gr_drdim_25w_1.jpeg)

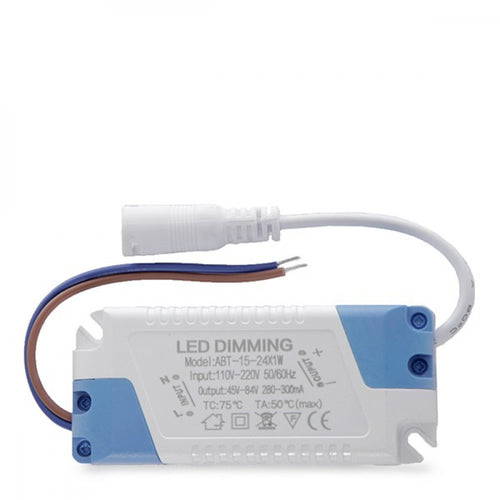

    Driver Dimmable LED Panel 25W

    GreenIce

    Driver Dimmable LED Panel 25W

    11,18€
    11,18€ Infinity%
  • (GH-90963601_padreImg_gh_90963601_0.jpeg) (GH-90963601_padreImg_gh_90963601_1.jpeg)

    Switch Panasonic Karre 10A 250V/Metal Frame With Claws/Key White

    PANASONIC

    Switch Panasonic Karre 10A 250V/Metal Frame With Claws/Key White

    4,37€
    4,37€ Infinity%
  • (GH-90963604_padreImg_gh_90963604_0.jpeg) (GH-90963604_padreImg_gh_90963604_1.jpeg)

    Commutator Panasonic Karre 10A 250V/Metal Frame With Claws/Key White

    PANASONIC

    Commutator Panasonic Karre 10A 250V/Metal Frame With Claws/Key White

    5,12€
    5,12€ Infinity%

Technical file

Product code
GR-RDP15-20W-CW-EP01
Luminous efficacy (LM/W)
80
Light temperature
Cold White
Kelvin º
6000
Power (W)
20.0
Luminosity (LM)
1600
Measures (mm)
Ø240x17
Roof cut (mm)
Ø217
High
17.0
Diameter
240
Number and type of LEDs
Osram Led
CRI
80
Power factor (PF)
0.98
Construction
Aluminum/PC
Opening Angle (º)
120
Facility
IP20
Strain
85-265VAC
Estimated life (H)
40000
Dimable
No
Equivalence (W)
135
Isolation class
II
Work frequency (Hz)
50/ 60
Start time (s)
0.2
Energy class
G
Certificates
CE/ROHS/ISO9001
Bush
Terminal
Temperature range (ºC)
-20 +40
Lighting cycles
100000
Diffuser
Milky
Energy consumption (kWh/1000h)
20.0
Weight (gr)
493
Flicker
0.83
Half -year useful life (at 3 h/day)
36.52
Half -Year Useful Life (5 h/day)
21.91
Half -year useful life (at 8 h/day)
13.69
Directional
Non-Directional
Single/range CCT
Only
Single CCT
6000
INDEX R9
25
Minimum cri range
97
Maximum cri range
2
Chromaticity x
0.392
Chromaticity y
0.39
Additional information
Possibility of dimming by purchasing a dimmable controller in the Accessories tab
Applicable standards
EN 55015:2009;EN 61547:2009:EN 61000-3-2:2006;EN 61000-3-3:2008;EN 60598-2-2:2012;EN 60598-1:2009;EN 1122B:2001

Characteristics

Product code
GR-RDP15-20W-CW-EP01
Luminous efficacy (LM/W)
80
Light temperature
Cold White
Kelvin º
6000
Power (W)
20.0
Luminosity (LM)
1600
Measures (mm)
Ø240x17
Roof cut (mm)
Ø217
High
17.0
Diameter
240
Number and type of LEDs
Osram Led
CRI
80
Power factor (PF)
0.98
Construction
Aluminum/PC
Opening Angle (º)
120
Facility
IP20
Strain
85-265VAC
Estimated life (H)
40000
Dimable
No
Equivalence (W)
135
Isolation class
II
Work frequency (Hz)
50/ 60
Start time (s)
0.2
Energy class
G
Certificates
CE/ROHS/ISO9001
Bush
Terminal
Temperature range (ºC)
-20 +40
Lighting cycles
100000
Diffuser
Milky
Energy consumption (kWh/1000h)
20.0
Weight (gr)
493
Flicker
0.83
Half -year useful life (at 3 h/day)
36.52
Half -Year Useful Life (5 h/day)
21.91
Half -year useful life (at 8 h/day)
13.69
Directional
Non-Directional
Single/range CCT
Only
Single CCT
6000
INDEX R9
25
Minimum cri range
97
Maximum cri range
2
Chromaticity x
0.392
Chromaticity y
0.39
Additional information
Possibility of dimming by purchasing a dimmable controller in the Accessories tab
Applicable standards
EN 55015:2009;EN 61547:2009:EN 61000-3-2:2006;EN 61000-3-3:2008;EN 60598-2-2:2012;EN 60598-1:2009;EN 1122B:2001

Description

The 240mm diameter round LED plate with ultra-thin dimensions (20mm), offers solutions for offices, factories, supermarkets, shops and for residential use. It can be installed directly to power outlets supplied by the electrical network (85-265VAC) with a service frequency of 50/60Hz.

It has a high efficiency (80 Lm/W) consuming 20W through SMD2835 type LEDs and managing to provide a flux luminous of 1600Lm uniformly distributed by an opal plastic diffuser from which a color rendering index of 80 is obtained. It provides lighting equivalent to a 120W incandescent bulb, its consumption represents a value of 20kWh/1000h , reducing the amount of energy billed and the emissions of polluting gases into the atmosphere.

This board is powered by a non-dimmable driver included in the package that must be connected directly to the network, with a exit c Compatible with the connection of the plate (45-72VDC, 300mA), additionally the necessary accessories for the installation of the plate are included. White finish built with aluminum.

The plate has a IP25 degree of protection (valid for dust and humidity indoors), as well as being robust enough for the required mechanical demands .

LED downlights are ideal for general lighting in spaces that require high performance and long periods of continuous lighting. And that is why they include a high-quality aluminum heat sink, which contributes to minimal heat emission from the LED luminaire. They are also very easy to install and being so thin they can be placed in false ceilings with little height where more voluminous solutions could not be used.

This plate is available in natural white (4200°K ), cold white (6000°K) and warm white (3000°K). The indicated color temperature may suffer fluctuations corresponding to a tolerance of 7%.
