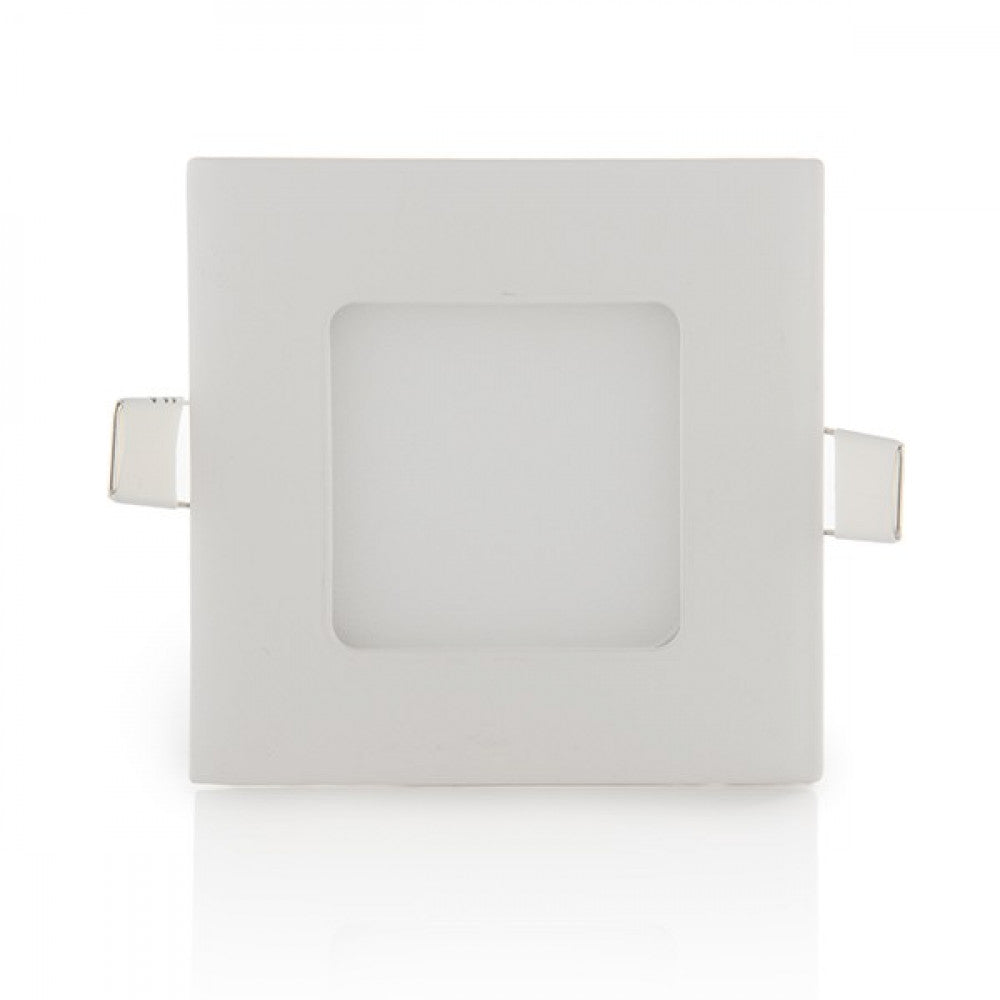

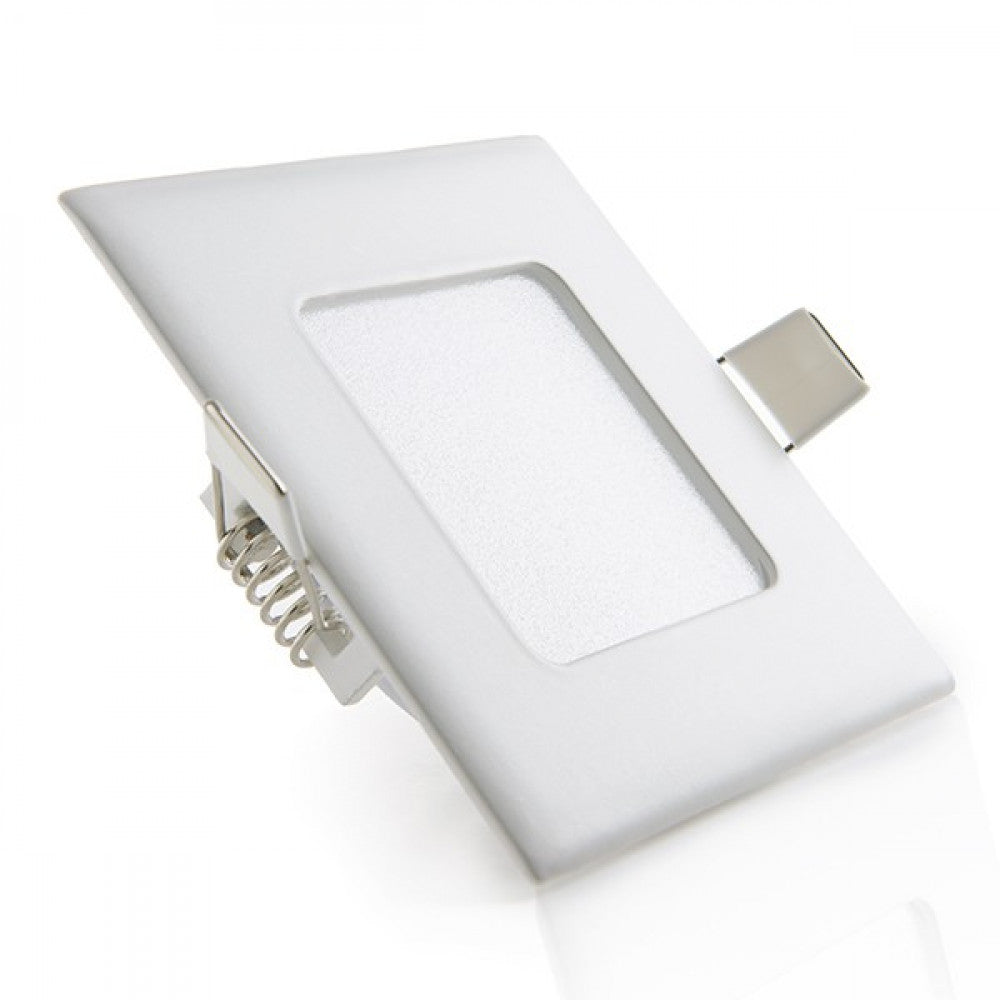

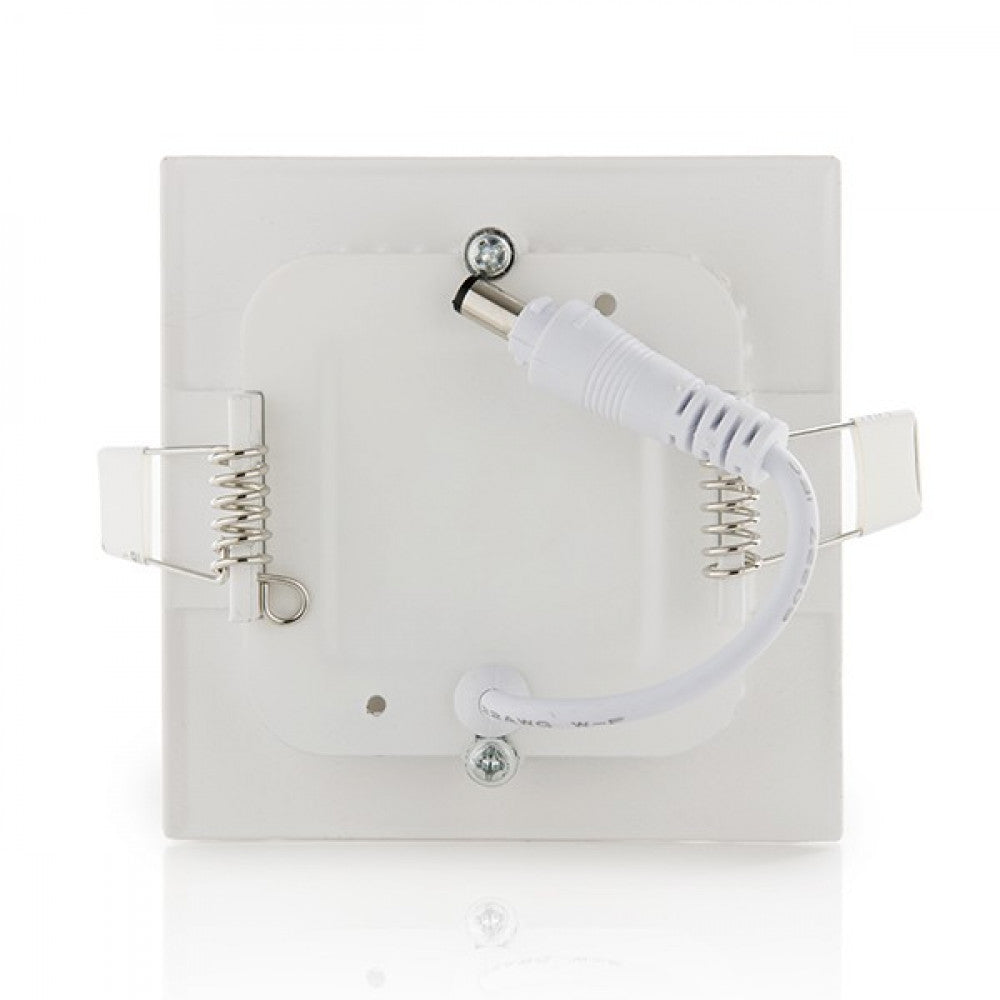

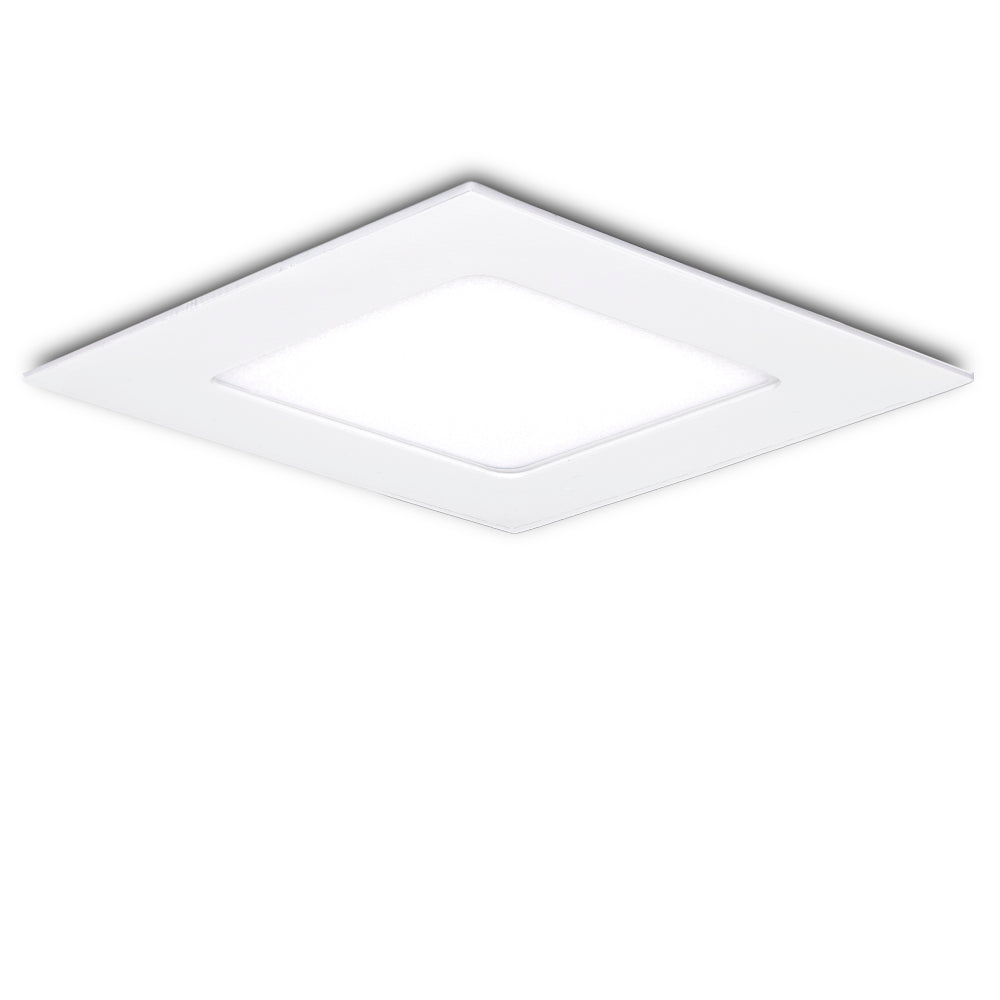

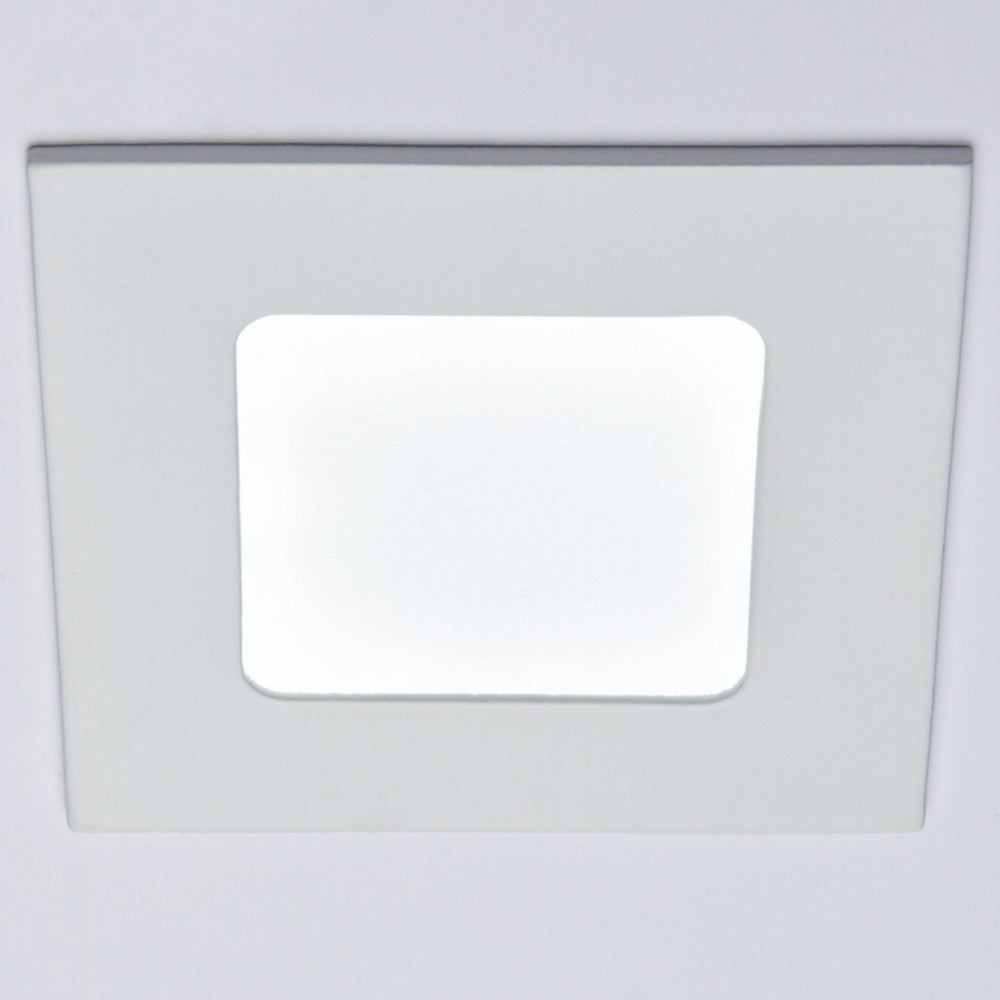

LED Plate 3W 300Lm 6000ºK Square 40,000H [GR-RDP02-3W-CW]

LED Plate 3W 300Lm 6000ºK Square 40,000H [GR-RDP02-3W-CW]

See questions and answers

For additional amounts the delivery period is 60 days As of the order date
  • Brand:GreenIce / Osram Led
  • SkuGR-RDP02-3W-CW
  • AA 2021
Eprel file
Warranty
  • Warranty 3 years
  • Eye Care Eye Care
  • 120 º Opening
2,29€
2,29€ Infinity%
Tax included. The Shipping expenses They are calculated on the payment screen.

Stock available

Warranty
  • Warranty 3 years
  • Eye Care Eye Care
  • 120 º Opening
¿Eres Cliente Profesional?

Hemos publicado una nueva web solo para Profesionales.

ir a Área Profesional
VENTAJAS DE COMPRAR EN GREENICE
  • Precio Mínimo Garantizado
  • Devoluciones Gratis hasta en 60 días
  • Envío Gratis desde 21,95€
  • Hasta 10 años de Garantía
(GR-RDP02-3W-CW_padreImg_gr_rdp02_3w_cw_0.jpeg)
Cool White
Stock available
Free shipping
2,29€
2,29€ Infinity%

Accessories

  • (SB-BS036B_padreImg_sb_bs036b_0.jpeg) (SB-BS036B_padreImg_sb_bs036b_1.jpeg)

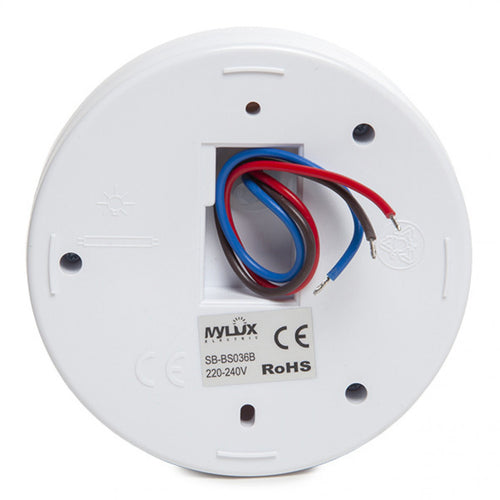

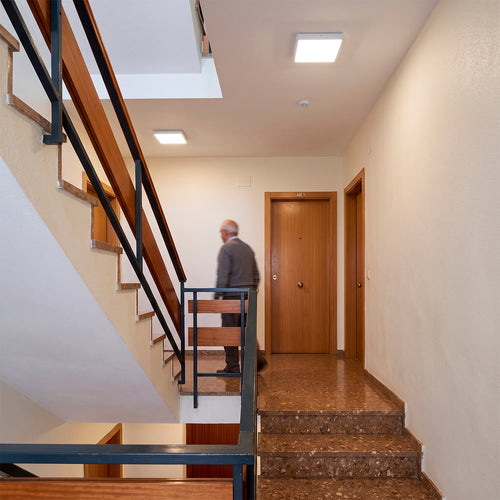

    Motion Sensor Surface Mounted 360º ►1200/300W

    GreenIce

    Motion Sensor Surface Mounted 360º ►1200/300W

    6,99€
    6,99€ Infinity%
  • (HO-HP-ND-3W_padreImg_ho_hp_nd_3w_0.jpeg) (HO-HP-ND-3W_padreImg_ho_hp_nd_3w_1.jpeg)

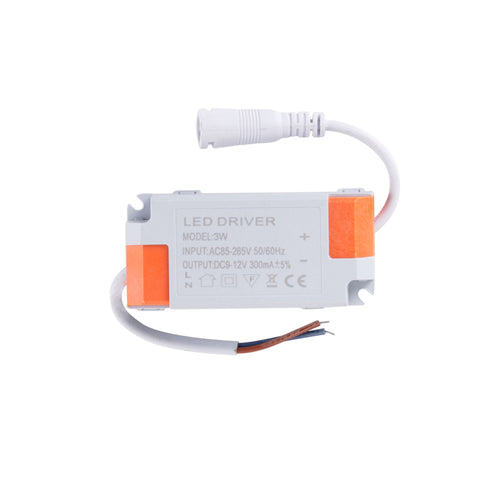

    Driver Non Dimmable 0.95 F.P. 50.000H Slimline Downlight 3W

    GreenIce

    Driver Non Dimmable 0.95 F.P. 50.000H Slimline Downlight 3W

    0,93€
    0,93€ Infinity%
  • (GR-DRDIM-3W_padreImg_gr_drdim_3w_0.jpeg) (GR-DRDIM-3W_padreImg_gr_drdim_3w_1.jpeg)

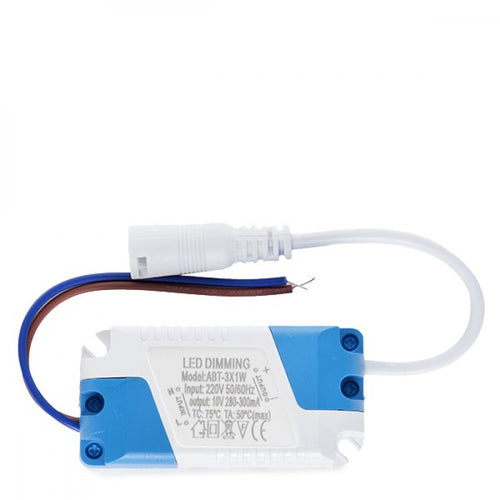

    Driver Dimmable Slimline Downlights 3W

    GreenIce

    Driver Dimmable Slimline Downlights 3W

    2,07€
    2,07€ Infinity%
  • (KD-LEDDIM-CREM_padreImg_kd_leddim_crem_0.jpeg) (KD-LEDDIM-CREM_padreImg_kd_leddim_crem_1.jpeg)

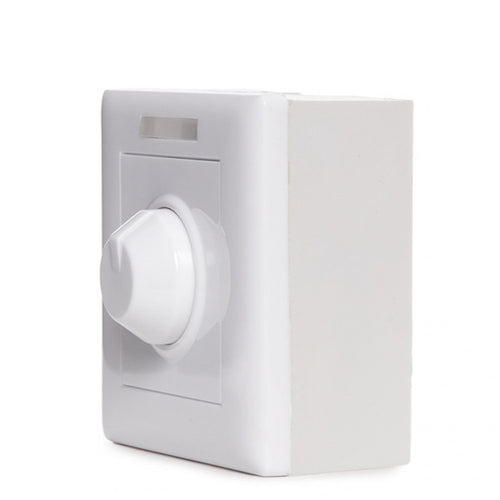

    Dimmer LEDs 90-240VAC 0-100% 200W Remote Control

    GreenIce

    Dimmer LEDs 90-240VAC 0-100% 200W Remote Control

    23,13€
    23,13€ Infinity%
  • (DR-P-ND-3W_padreImg_dr_p_nd_3w_0.jpeg) (DR-P-ND-3W_padreImg_dr_p_nd_3w_1.jpeg)

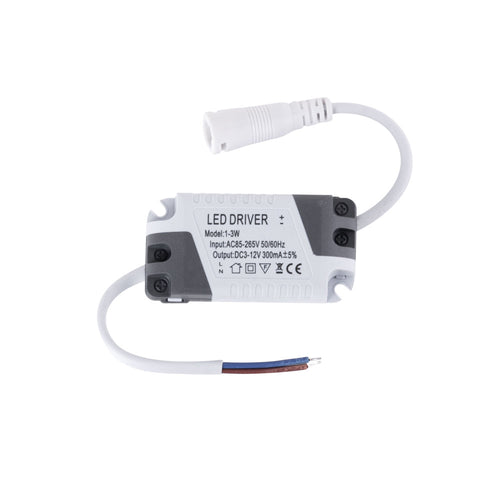

    Driver Non Dimmable Slimline Downlights 3W

    GreenIce

    Driver Non Dimmable Slimline Downlights 3W

    0,84€
    0,84€ Infinity%
  • (GH-90963604_padreImg_gh_90963604_0.jpeg) (GH-90963604_padreImg_gh_90963604_1.jpeg)

    Commutator Panasonic Karre 10A 250V/Metal Frame With Claws/Key White

    PANASONIC

    Commutator Panasonic Karre 10A 250V/Metal Frame With Claws/Key White

    5,21€
    5,21€ Infinity%

Technical file

Product code
GR-RDP02-3W-CW
Light temperature
Cold white
Kelvin º
6000
Power (W)
3.0
Luminosity (LM)
300
Luminous efficacy (LM/W)
100
LED efficacy
110
Type of LEDs
Osram Led
Number of LEDs
15
Measures (mm)
85x85
Roof cut (mm)
72x72
High
85.0
Long
85.0
CRI
80
Diffuser
Milky
Power factor (PF)
0.98
Construction
Aluminum/PC
Opening Angle (º)
120
Facility
IP20
Strain
85-265VAC

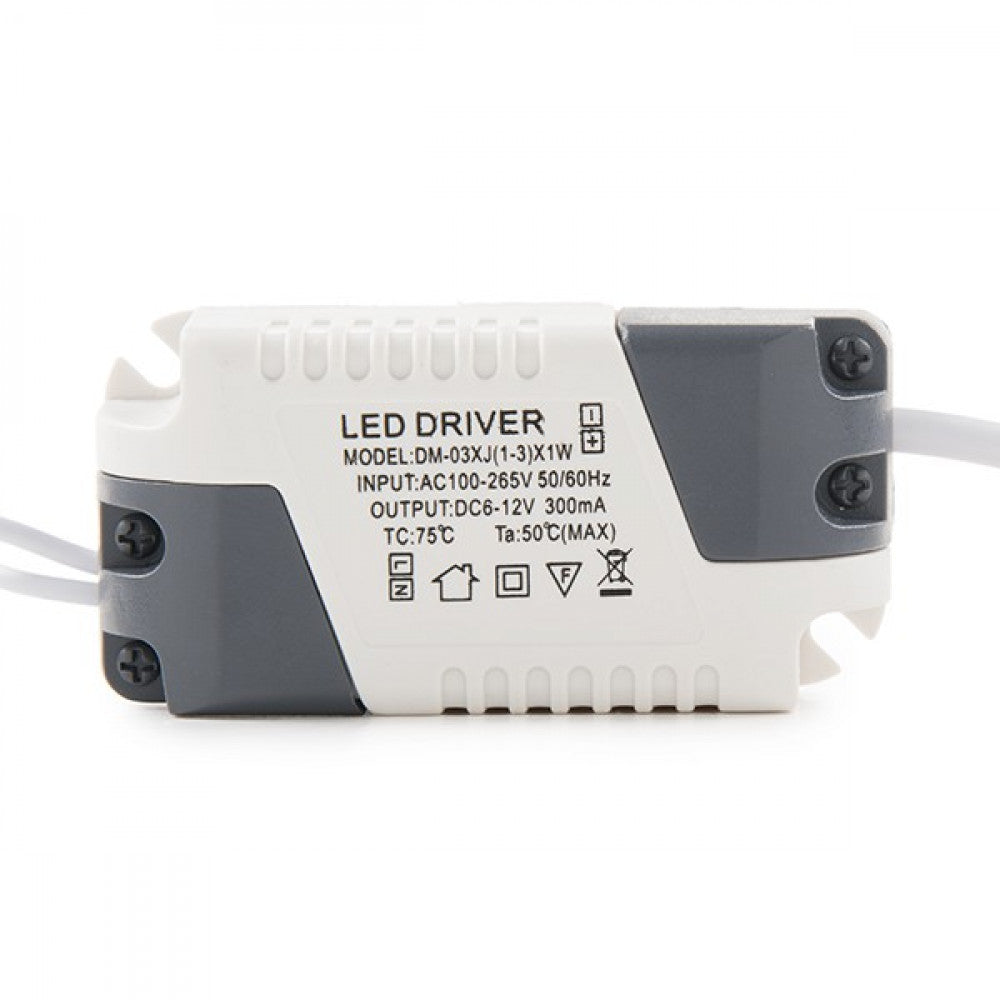

Driver output
DC3-12V
Estimated life (H)
40000
Dimable
No
Equivalence (W)
30
Isolation class
II
Work frequency (Hz)
50/ 60
Start time (s)
0.2
Energy class
G
Certificates
CE/ROHS/ISO9001
Bush
Terminal
Temperature range (ºC)
-20 +40
Lighting cycles
100000
Energy consumption (kWh/1000h)
3.0
Weight (gr)
115
Flicker
0.82
Half -year useful life (at 3 h/day)
36.52
Half -Year Useful Life (5 h/day)
21.91
Half -year useful life (at 8 h/day)
13.69
Directional
Non-Directional
Single/range CCT
Only
Single CCT
6000
INDEX R9
30
Minimum cri range
98
Maximum cri range
5
Chromaticity x
0.445
Chromaticity y
0.4
Additional information
Possibility of dimming by purchasing a dimmable controller in the Accessories tab
Applicable standards
EN 55015:2009;EN 61547:2009:EN 61000-3-2:2006;EN 61000-3-3:2008;EN 60598-2-2:2012;EN 60598-1:2009;EN 1122B:2001

Características

Product code
GR-RDP02-3W-CW
Light temperature
Cold white
Kelvin º
6000
Power (W)
3.0
Luminosity (LM)
300
Luminous efficacy (LM/W)
100
LED efficacy
110
Type of LEDs
Osram Led
Number of LEDs
15
Measures (mm)
85x85
Roof cut (mm)
72x72
High
85.0
Long
85.0
CRI
80
Diffuser
Milky
Power factor (PF)
0.98
Construction
Aluminum/PC
Opening Angle (º)
120
Facility
IP20
Strain
85-265VAC
Driver output
DC3-12V
Estimated life (H)
40000
Dimable
No
Equivalence (W)
30
Isolation class
II
Work frequency (Hz)
50/ 60
Start time (s)
0.2
Energy class
G
Certificates
CE/ROHS/ISO9001
Bush
Terminal
Temperature range (ºC)
-20 +40
Lighting cycles
100000
Energy consumption (kWh/1000h)
3.0
Weight (gr)
115
Flicker
0.82
Half -year useful life (at 3 h/day)
36.52
Half -Year Useful Life (5 h/day)
21.91
Half -year useful life (at 8 h/day)
13.69
Directional
Non-Directional
Single/range CCT
Only
Single CCT
6000
INDEX R9
30
Minimum cri range
98
Maximum cri range
5
Chromaticity x
0.445
Chromaticity y
0.4
Additional information
Possibility of dimming by purchasing a dimmable controller in the Accessories tab
Applicable standards
EN 55015:2009;EN 61547:2009:EN 61000-3-2:2006;EN 61000-3-3:2008;EN 60598-2-2:2012;EN 60598-1:2009;EN 1122B:2001

Descripción

LED Plate 3W 230Lm 6000ºK Square 40,000H [GR-RDP02-3W-CW]
