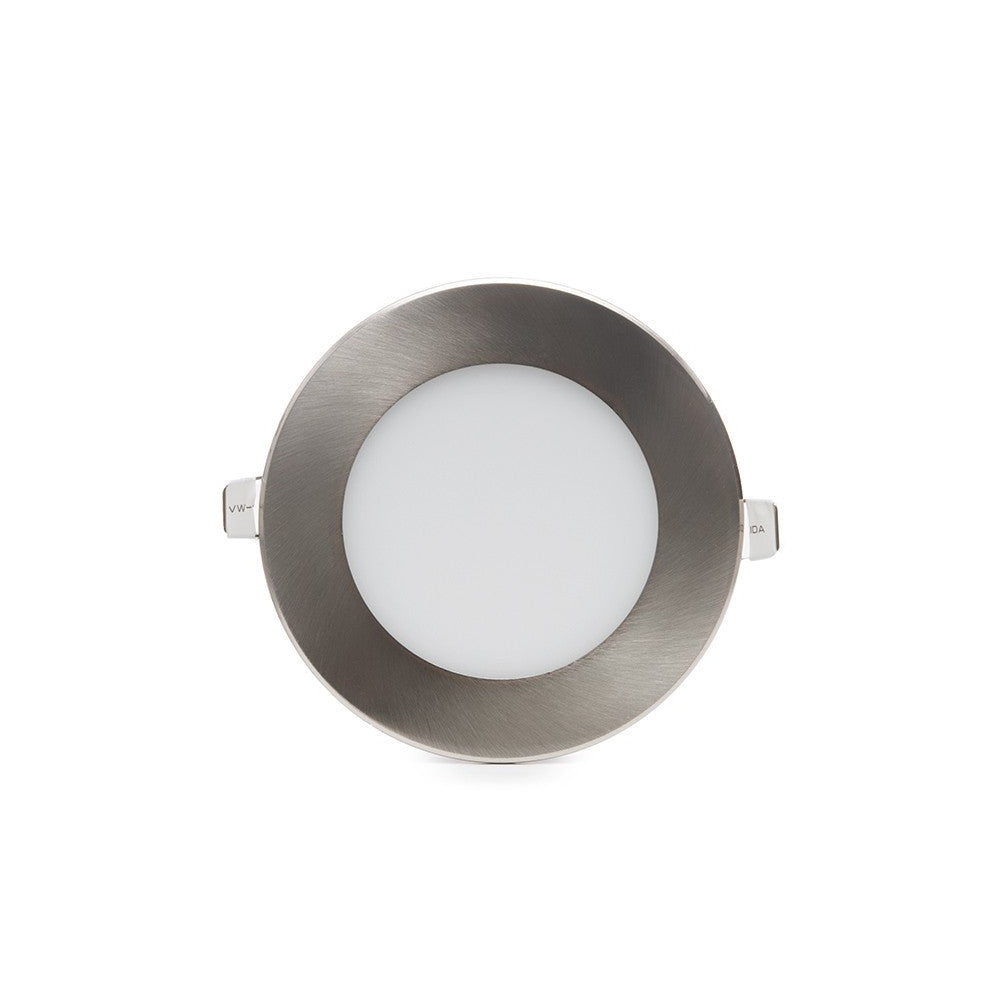

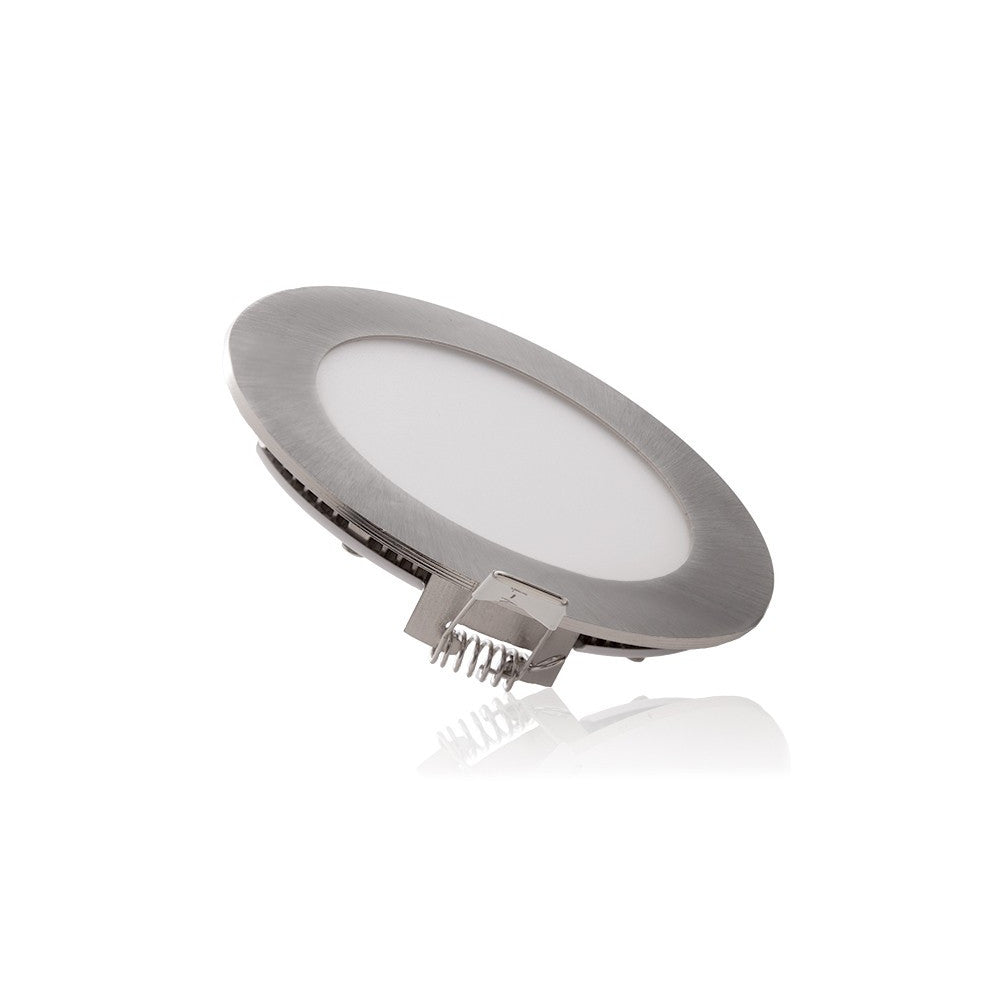

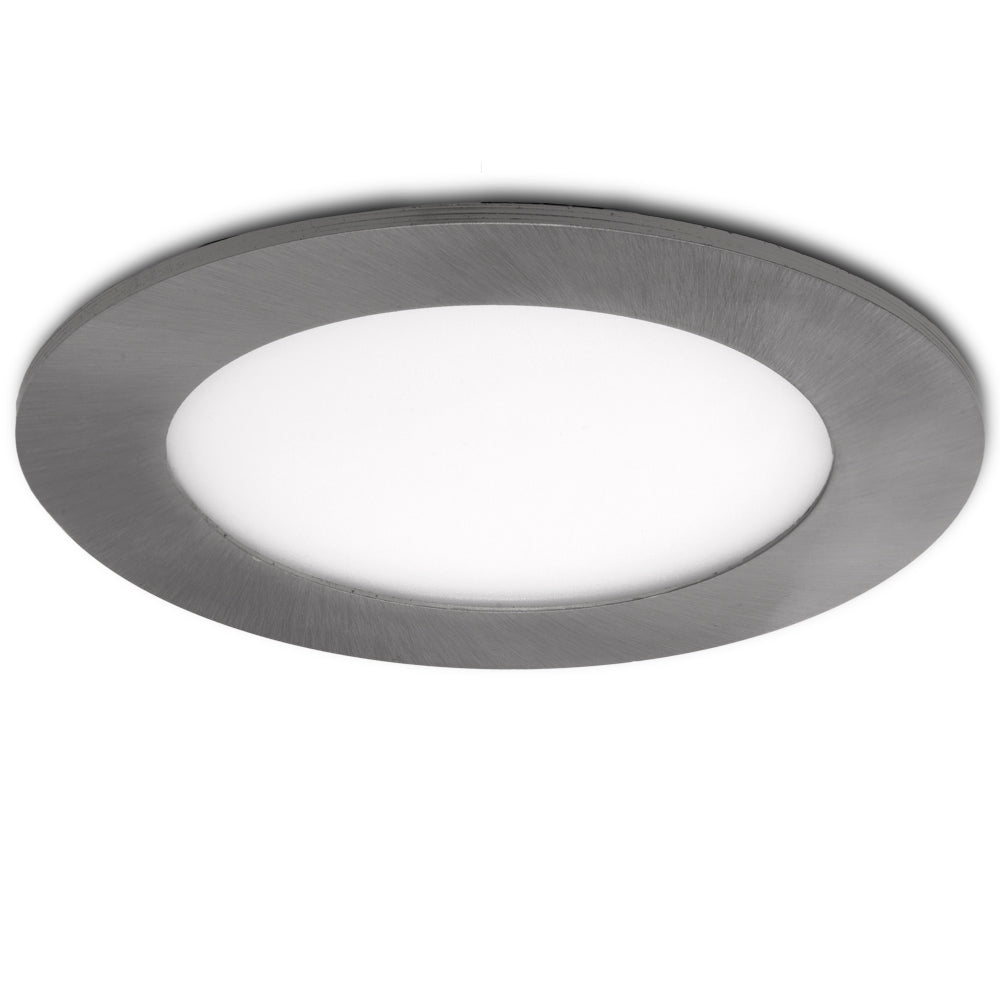

LED Plate 9W 900Lm PF 0.99 Satin Nickel 230V AC

LED Plate 9W 900Lm PF 0.99 Satin Nickel 230V AC

See questions and answers

For additional amounts the delivery period is 60 days As of the order date
  • Brand:GreenIce / Samsung Led
  • SkuHO-PLCIR9WHPNS-9W-CW
  • AA 2021
Eprel file
Warranty
  • Warranty 3 years
  • Eye Care Eye Care
  • 120 º Opening
4,51€
4,51€ Infinity%
Tax included. The Shipping expenses They are calculated on the payment screen.

Stock available

Warranty
  • Warranty 3 years
  • Eye Care Eye Care
  • 120 º Opening
Are you a professional customer?

We have published a new website only for professionals.

Go to Professional Area
Advantages of buying in Greenice
  • Guaranteed minimum price
  • Free returns up to 60 days
  • Free shipping From € 21.95
  • Until 10 years guarantee
(HO-PLCIR9WHPNS-9W-CW_padreImg_ho_plcir9whpns_9w_cw_0.jpeg)
Cool White
Stock available
Free shipping
4,51€
4,51€ Infinity%

Accessories

  • (GR-DRDIM-12W_padreImg_gr_drdim_12w_0.jpeg) (GR-DRDIM-12W_padreImg_gr_drdim_12w_1.jpeg)

    Driver Dimmable Slimline Downlights 12W

    GreenIce

    Driver Dimmable Slimline Downlights 12W

    4,87€
    4,87€ Infinity%
  • (GR-DRDIM0-10V-12W_padreImg_gr_drdim0_10v_12w_0.jpeg) (GR-DRDIM0-10V-12W_padreImg_gr_drdim0_10v_12w_1.jpeg)

    Driver Adjustable 0-10V Ceiling Light / Placa /Downlight LED 12W

    GreenIce

    Driver Adjustable 0-10V Ceiling Light / Placa /Downlight LED 12W

    10,11€
    10,11€ Infinity%
  • (GR-DALI-12W_padreImg_gr_dali_12w_0.jpeg) (GR-DALI-12W_padreImg_gr_dali_12w_1.jpeg)

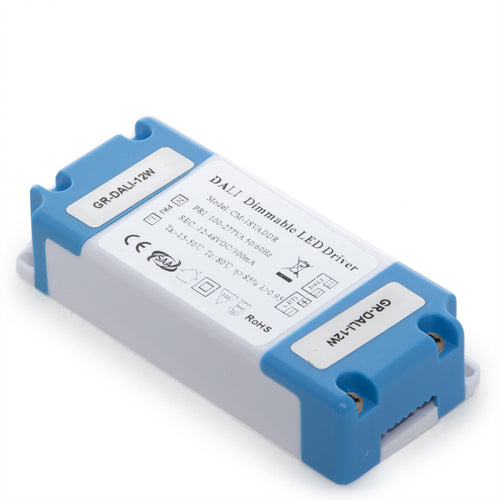

    Driver Adjustable DALI 12W

    GreenIce

    Driver Adjustable DALI 12W

    19,80€
    19,80€ Infinity%

Technical file

Product code
HO-PLCIR9WHPNS-9W-CW
Light temperature
Cold White
Kelvin º
6000
Power (W)
9.0
Luminosity (LM)
900
Luminous efficacy (LM/W)
100
LED efficacy
110
Type of LEDs
Samsung Led
Number of LEDs
45
Measures (mm)
Ø142x20
Roof cut (mm)
Ø130
High
20.0
Diameter
142
CRI
85
Diffuser
Opal
Power factor (PF)
0.9
Construction
Aluminum/ PC
Opening Angle (º)
120
Facility
IP20
Strain
85-265VAC
Driver output
DC24-48V
Estimated life (H)
40000
Dimable
No
Equivalence (W)
80
Isolation class
II
Work frequency (Hz)
50/ 60
Start time (s)
0.1
Energy class
G
Certificates
CE/ROHS/ISO9001
Bush
Terminal Block
Temperature range (ºC)
-20 +40
Energy consumption (kWh/1000h)
9.0
Weight (gr)
150
Flicker
0.95
Half -year useful life (at 3 h/day)
36.52
Half -Year Useful Life (5 h/day)
21.91
Half -year useful life (at 8 h/day)
13.69
Directional
Non-Directional
Single/range CCT
Only
Single CCT
6000
INDEX R9
24
Minimum cri range
95
Maximum cri range
1
Chromaticity x
0.323
Chromaticity y
0.352
Additional information
Possibility of dimming by purchasing a dimmable controller in the Accessories tab
Applicable standards
EN 55015:2009;EN 61547:2009:EN 61000-3-2:2006;EN 61000-3-3:2008;EN 60598-2-2:2012;EN 60598-1:2009;EN 1122B:2001

Characteristics

Product code
HO-PLCIR9WHPNS-9W-CW
Light temperature
Cold White
Kelvin º
6000
Power (W)
9.0
Luminosity (LM)
900
Luminous efficacy (LM/W)
100
LED efficacy
110
Type of LEDs
Samsung Led
Number of LEDs
45
Measures (mm)
Ø142x20
Roof cut (mm)
Ø130
High
20.0
Diameter
142
CRI
85
Diffuser
Opal
Power factor (PF)
0.9
Construction
Aluminum/ PC
Opening Angle (º)
120
Facility
IP20
Strain
85-265VAC
Driver output
DC24-48V
Estimated life (H)
40000
Dimable
No
Equivalence (W)
80
Isolation class
II
Work frequency (Hz)
50/ 60
Start time (s)
0.1
Energy class
G
Certificates
CE/ROHS/ISO9001
Bush
Terminal Block
Temperature range (ºC)
-20 +40
Energy consumption (kWh/1000h)
9.0
Weight (gr)
150
Flicker
0.95
Half -year useful life (at 3 h/day)
36.52
Half -Year Useful Life (5 h/day)
21.91
Half -year useful life (at 8 h/day)
13.69
Directional
Non-Directional
Single/range CCT
Only
Single CCT
6000
INDEX R9
24
Minimum cri range
95
Maximum cri range
1
Chromaticity x
0.323
Chromaticity y
0.352
Additional information
Possibility of dimming by purchasing a dimmable controller in the Accessories tab
Applicable standards
EN 55015:2009;EN 61547:2009:EN 61000-3-2:2006;EN 61000-3-3:2008;EN 60598-2-2:2012;EN 60598-1:2009;EN 1122B:2001

Description

The 150mm diameter circular LED plate with ultra-thin dimensions (18mm), offers solutions for offices, factories, supermarkets, shops and for residential use. It can be installed directly to power outlets supplied by the electrical network (85-265VAC). with a service frequency of 50/60Hz.

It has a high efficiency (80 Lm/W) consuming 9W through SMD2835 type LEDs and managing to provide a luminous flux of 720Lm evenly distributed by an opalized plastic diffuser from which a color rendering index of 80 is obtained. It provides equivalent lighting to a 60W incandescent bulb, its consumption represents a value of 9kWh/1000h, reducing the amount of energy billed and the emissions of polluting gases into the atmosphere.

This board is powered with a non-dimmable driver included in the package that must be connected directly to the network, with an output connector compatible with the connection of the board (24-42VDC, 300mA), additionally the necessary accessories are included for the plate installation.

Finished in satin nickel color with aluminum. The plate has an IP25 degree of protection (valid for dust and humidity indoors), as well as being robust enough for the mechanical demands required.

This plate is available in cold white (6000°K). The indicated color temperature may suffer fluctuations corresponding to a tolerance of 7%.

LED downlights are ideal for general lighting in spaces that demand high output and long periods of continuous on. And that is why they include a high-quality aluminum heatsink, which contributes to minimizing the heat emission of the LED luminaire. In addition, they are very easy to install and, being so thin, they can be placed in false ceilings with a low height where more voluminous solutions could not be used.
