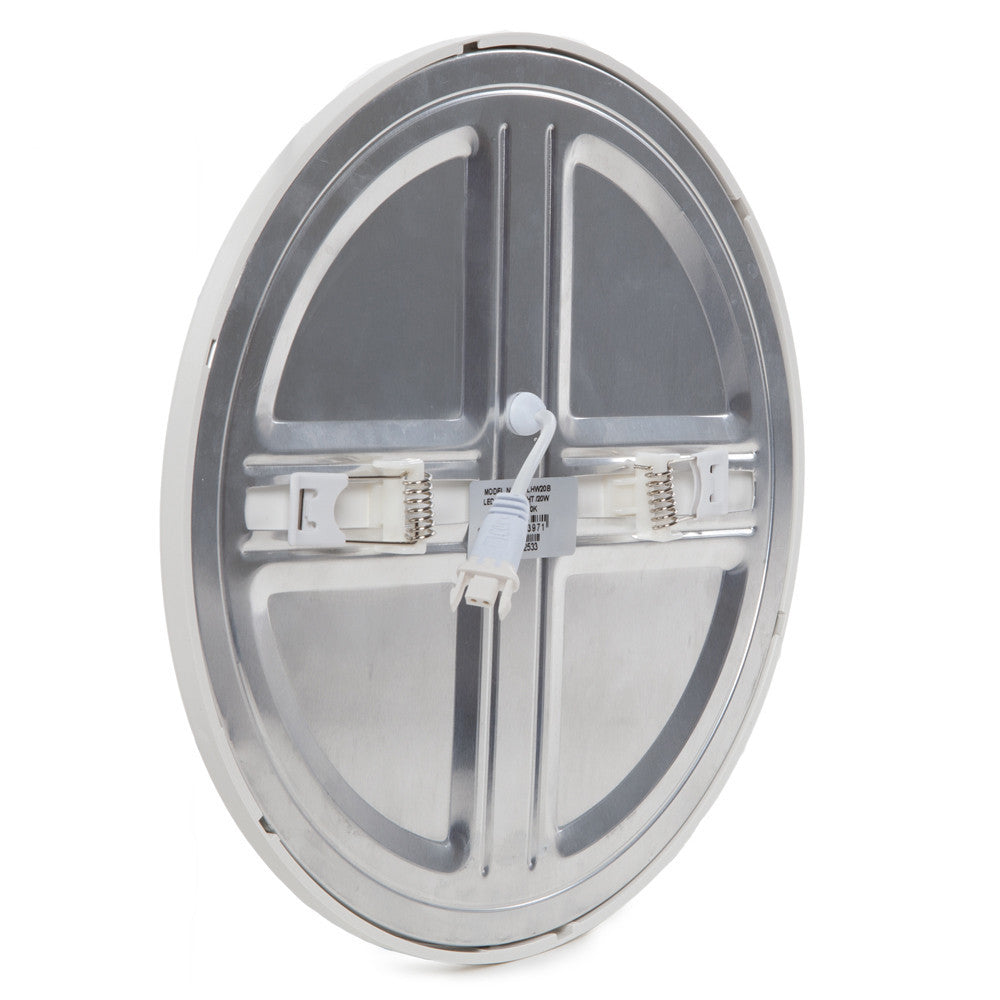

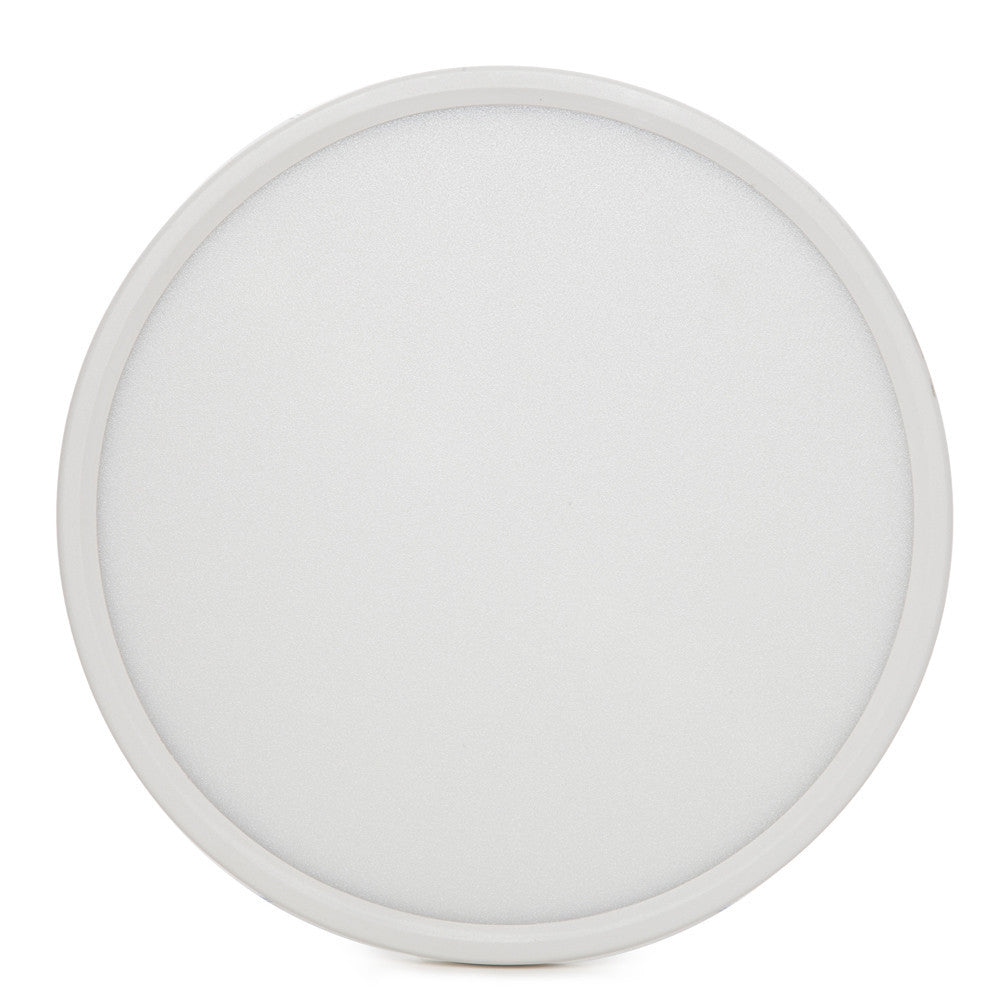

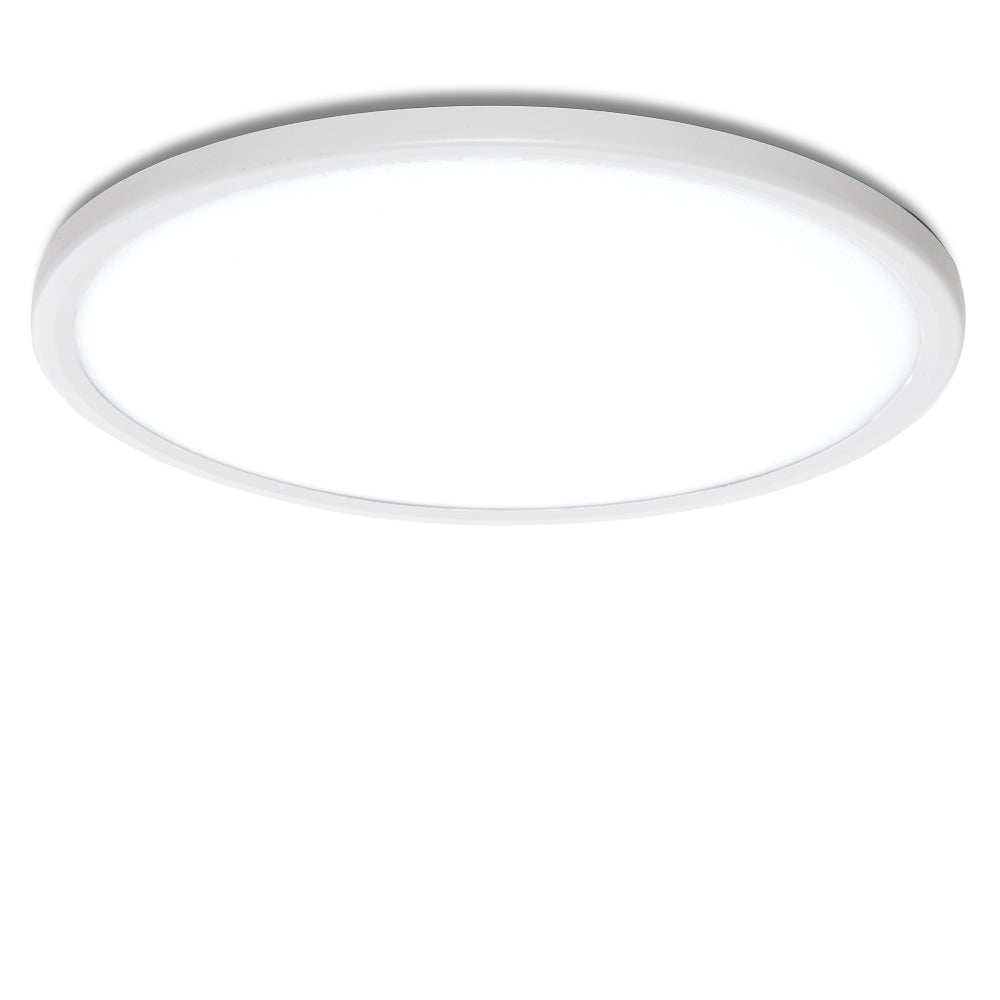

LED Recessed Downlight Spotlight 20W 2,400Lm 6000ºK Variable Cut 50-205mm 40,000H [LH-PCLH20B-CW]

LED Recessed Downlight Spotlight 20W 2,400Lm 6000ºK Variable Cut 50-205mm 40,000H [LH-PCLH20B-CW]

For additional amounts the delivery period is 60 days As of the order date
  • Brand:GreenIce / Osram Led
  • SkuLH-PCLH20B-CW
  • AA 2021
Eprel file
Warranty
  • Warranty 3 years
  • Eye Care Eye Care
  • 120 º Opening
8,44€
8,44€ Infinity%
Tax included. The Shipping expenses They are calculated on the payment screen.

Stock available

Warranty
  • Warranty 3 years
  • Eye Care Eye Care
  • 120 º Opening
Are you a professional customer?

We have published a new website only for professionals.

Go to Professional Area
Advantages of buying in Greenice
  • Guaranteed minimum price
  • Free returns up to 60 days
  • Free shipping From € 21.95
  • Until 10 years guarantee
(LH-PCLH20B-CW_padreImg_lh_pclh20b_cw_0.jpeg)
Cool White
Stock available
Free shipping
8,44€
8,44€ Infinity%

Accessories

  • (GH-90963602_padreImg_gh_90963602_0.jpeg) (GH-90963602_padreImg_gh_90963602_1.jpeg)

    Switch Double Panasonic Karre 10A 250V/Metal Frame With Claws/Key White

    PANASONIC

    Switch Double Panasonic Karre 10A 250V/Metal Frame With Claws/Key White

    3,15€
    3,15€ Infinity%
  • (SB-BS041_padreImg_sb_bs041_0.jpeg) (SB-BS041_padreImg_sb_bs041_1.jpeg)

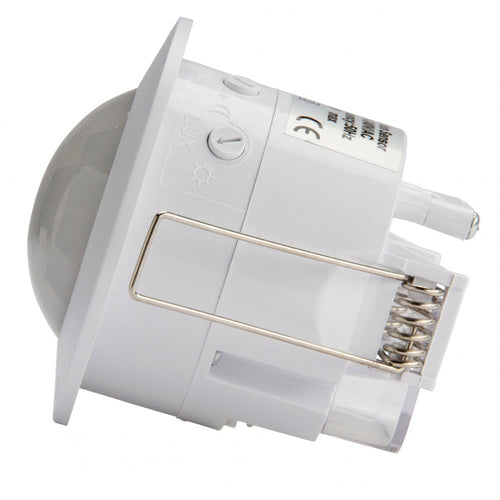

    Motion Sensor Recessed 360º ►1200/300W

    GreenIce

    Motion Sensor Recessed 360º ►1200/300W

    9,44€
    9,44€ Infinity%
  • (SB-BS039_padreImg_sb_bs039_0.jpeg) (SB-BS039_padreImg_sb_bs039_1.jpeg)

    Motion Sensor Surface Mounted 180º IP44 ►1200/300W [SB-BS039]

    GreenIce

    Motion Sensor Surface Mounted 180º IP44 ►1200/300W [SB-BS039]

    6,72€
    6,72€ Infinity%
  • (GH-90963601_padreImg_gh_90963601_0.jpeg) (GH-90963601_padreImg_gh_90963601_1.jpeg)

    Switch Panasonic Karre 10A 250V/Metal Frame With Claws/Key White

    PANASONIC

    Switch Panasonic Karre 10A 250V/Metal Frame With Claws/Key White

    4,37€
    4,37€ Infinity%
  • (SB-BS031B_padreImg_sb_bs031b_0.jpeg) (SB-BS031B_padreImg_sb_bs031b_1.jpeg)

    Motion Sensor Recessed 160º ►600W/200W

    GreenIce

    Motion Sensor Recessed 160º ►600W/200W

    2,95€
    2,95€ Infinity%
  • (GH-90963604_padreImg_gh_90963604_0.jpeg) (GH-90963604_padreImg_gh_90963604_1.jpeg)

    Commutator Panasonic Karre 10A 250V/Metal Frame With Claws/Key White

    PANASONIC

    Commutator Panasonic Karre 10A 250V/Metal Frame With Claws/Key White

    5,12€
    5,12€ Infinity%

Technical file

Product code
LH-PCLH20B-CW
Luminous efficacy (LM/W)
120
Light temperature
Cold white
Kelvin º
6000
Power (W)
20.0
Luminosity (LM)
2400
Measures (mm)
Ø230x12
Roof cut (mm)
Ø50-205
High
12.0
Diameter
230
Number and type of LEDs
Osram Led
CRI
80
Power factor (PF)
0.98
Construction
Aluminum/PC
Opening Angle (º)
120
Facility
IP40
Strain
85-265VAC
Estimated life (H)
40000
Dimable
No
Equivalence (W)
135
Isolation class
II
Work frequency (Hz)
50/ 60
Start time (s)
0.1
Energy class
E
Certificates
CE/ROHS/ISO9001
Bush
Terminal
Temperature range (ºC)
-20 +40
Lighting cycles
100000
Diffuser
Milky
Energy consumption (kWh/1000h)
20.0
Weight (gr)
530
Flicker
0.8
Half -year useful life (at 3 h/day)
36.52
Half -Year Useful Life (5 h/day)
21.91
Half -year useful life (at 8 h/day)
13.69
Directional
Non-Directional
Single/range CCT
Only
Single CCT
6000
INDEX R9
25
Minimum cri range
92
Maximum cri range
9
Chromaticity x
0.31
Chromaticity y
0.336
Driver output
DC24-84V
Applicable standards
EN 55015:2009;EN 61547:2009:EN 61000-3-2:2006;EN 61000-3-3:2008;EN 60598-2-2:2012;EN 60598-1:2009;EN 1122B:2001

Characteristics

Product code
LH-PCLH20B-CW
Luminous efficacy (LM/W)
120
Light temperature
Cold white
Kelvin º
6000
Power (W)
20.0
Luminosity (LM)
2400
Measures (mm)
Ø230x12
Roof cut (mm)
Ø50-205
High
12.0
Diameter
230
Number and type of LEDs
Osram Led
CRI
80
Power factor (PF)
0.98
Construction
Aluminum/PC
Opening Angle (º)
120
Facility
IP40
Strain
85-265VAC
Estimated life (H)
40000
Dimable
No
Equivalence (W)
135
Isolation class
II
Work frequency (Hz)
50/ 60
Start time (s)
0.1
Energy class
E
Certificates
CE/ROHS/ISO9001
Bush
Terminal
Temperature range (ºC)
-20 +40
Lighting cycles
100000
Diffuser
Milky
Energy consumption (kWh/1000h)
20.0
Weight (gr)
530
Flicker
0.8
Half -year useful life (at 3 h/day)
36.52
Half -Year Useful Life (5 h/day)
21.91
Half -year useful life (at 8 h/day)
13.69
Directional
Non-Directional
Single/range CCT
Only
Single CCT
6000
INDEX R9
25
Minimum cri range
92
Maximum cri range
9
Chromaticity x
0.31
Chromaticity y
0.336
Driver output
DC24-84V
Applicable standards
EN 55015:2009;EN 61547:2009:EN 61000-3-2:2006;EN 61000-3-3:2008;EN 60598-2-2:2012;EN 60598-1:2009;EN 1122B:2001

Description

The Variable Cut LED Recessed Downlight with ultra-thin dimensions (20mm), offers solutions for offices, factories, supermarkets, shops and for residential use. It can be installed directly to outlets supplied by the electrical network (85-265VAC) with a service frequency of 50/60Hz.

It has a high efficiency (120 Lm/W) consuming 20W through SMD2835 type LEDs and managing to provide a luminous flux of 2400Lm uniformly distributed by an opal plastic diffuser from which a color rendering index of 80 is obtained. It provides lighting equivalent to a 110W incandescent bulb, its consumption represents a value of 20kWh/1000h, reducing the amount of energy billed and the emissions of polluting gases into the atmosphere.

This downlight is powered by a non-dimmable driver included in the package that must be connected directly to the network, with an output connector compatible with the connection of the plate (50-70VDC, 300mA), additionally the necessary accessories for the installation of the plate are included.

White finish built co n aluminium. The downlight has a IP20 degree of protection (valid for dust and humidity indoors), as well as being robust enough for the required mechanical demands.

This downlight is available in cold white 6000ºK, natural white 4000ºK and warm white 3000ºk. The indicated color temperature may suffer fluctuations corresponding to a tolerance of 7%.

LED downlights are ideal for general lighting in spaces that require high performance and long periods of continuous lighting. And that is why they include a high-quality aluminum heat sink, which contributes to minimal heat emission from the LED luminaire. In addition, they are very easy to install and, being so thin, can be placed in false ceilings with little height where more voluminous solutions could not be used.
