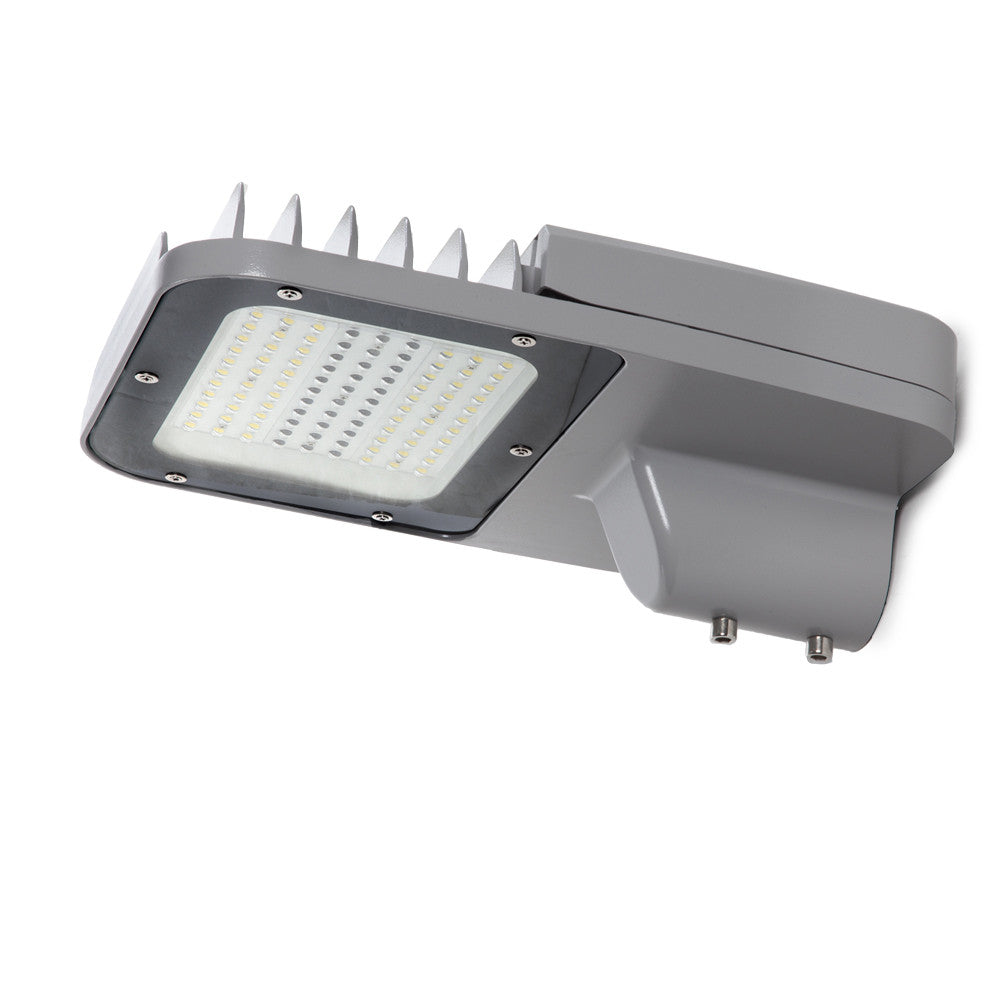

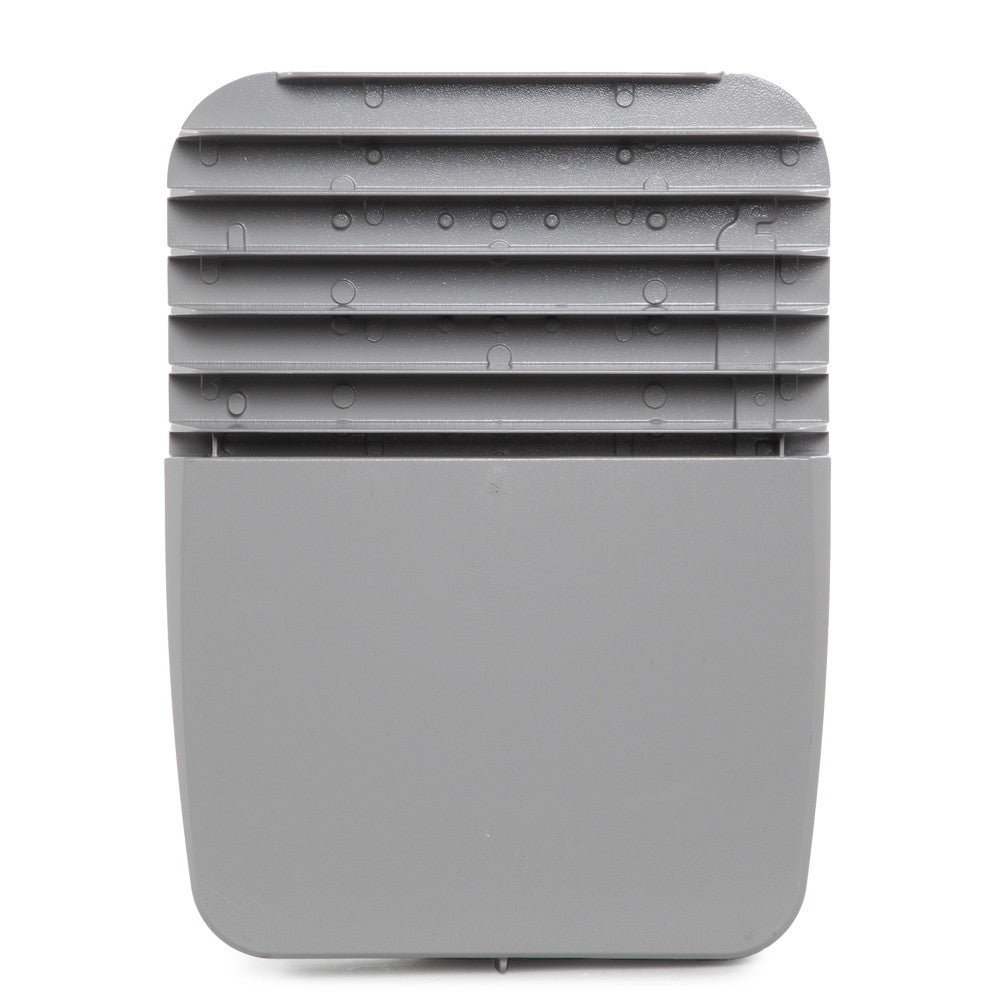

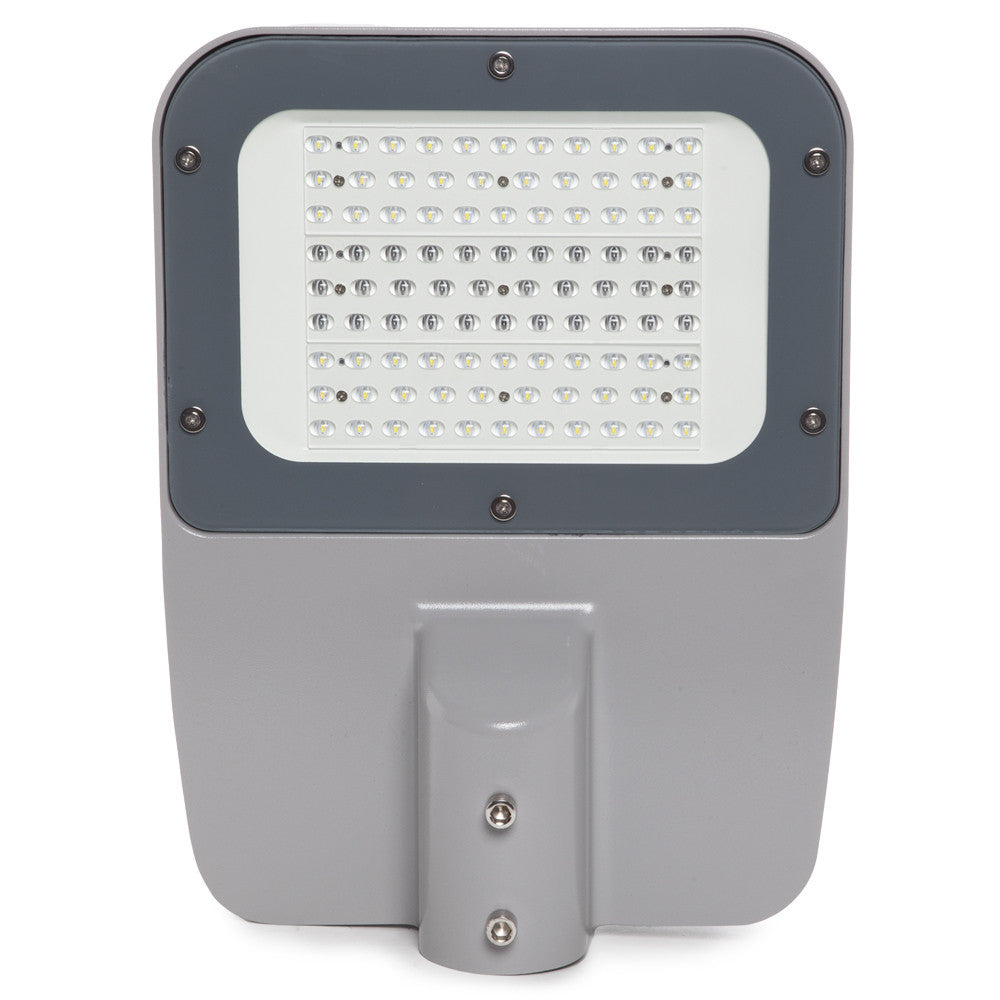

LED streetlight 60W 8,400Lm 6000ºK IP66 PRO SMD3030 Driver Meanwell HLG 100,000H [GMD-STL06-60-CW]

LED streetlight 60W 8,400Lm 6000ºK IP66 PRO SMD3030 Driver Meanwell HLG 100,000H [GMD-STL06-60-CW]

See questions and answers

For additional amounts the delivery period is 60 days As of the order date
  • Brand:GreenIce + Philips Led
  • Sku:GMD-STL06-60-CW
Eprel file
Warranty
  • Warranty 5 years
  • Eye Care Eye Care
  • Tüv Süd TUV SUD
  • 120 º Opening
  • Certificado ENEC
68,96€
68,96€ Infinity%
Tax included. The Shipping expenses They are calculated on the payment screen.

There are few

Warranty
  • Warranty 5 years
  • Eye Care Eye Care
  • Tüv Süd TUV SUD
  • 120 º Opening
  • Certificado ENEC
Are you a professional customer?

We have published a new website only for professionals.

Go to Professional Area
Advantages of buying in Greenice
  • Guaranteed minimum price
  • Free returns up to 60 days
  • Free shipping From € 21.95
  • Until 10 years guarantee
(GMD-STL06-60-CW_padreImg_gmd_stl06_60_cw_0.jpeg)
Cool White
There are few
Free shipping
68,96€
68,96€ Infinity%

Technical file

Product code
GMD-STL06-60-CW
Light temperature
Cold White
Kelvin º
6000
Power (W)
60.0
Luminosity (LM)
8400
Luminous efficacy (LM/W)
140
LED efficacy
154
Type of LEDs
Philips Led
Measures (mm)
540x390x240
High
540.0
Long
390.0
Broad
240.0
CRI
80
Diffuser
Opal
Power factor (PF)
0.99
Construction
Aluminum/Glass
Opening Angle (º)
120
Facility
IP66
IK Protection Index
IK08
Strain
100-240V AC
Estimated life (H)
100000
Dimable
No
Equivalence (W)
320
Isolation class
I
Work frequency (Hz)
50/ 60
Start time (s)
0.1
Energy class
D
Certificates
CE/ROHS/ISO9001
Bush
Terminal Block
Temperature range (ºC)
-20 +60
Lighting cycles
100000
Energy consumption (kWh/1000h)
60.0
Weight (gr)
4000
Flicker
0.55
Half -year useful life (at 3 h/day)
91.32
Half -Year Useful Life (5 h/day)
54.79
Half -year useful life (at 8 h/day)
34.24
Directional
Non-Directional
Single/range CCT
Only
Single CCT
6000
INDEX R9
5
Minimum cri range
98
Maximum cri range
5
Chromaticity x
0.304
Chromaticity y
0.312
Fixing diameter
70mm
Applicable standards
EN 55015:2006; EN 61547:2009; EN 61000-3-2:2006; EN 61000-3-3:2008; IEC 62321:2008

Characteristics

Product code
GMD-STL06-60-CW
Light temperature
Cold White
Kelvin º
6000
Power (W)
60.0
Luminosity (LM)
8400
Luminous efficacy (LM/W)
140
LED efficacy
154
Type of LEDs
Philips Led
Measures (mm)
540x390x240
High
540.0
Long
390.0
Broad
240.0
CRI
80
Diffuser
Opal
Power factor (PF)
0.99
Construction
Aluminum/Glass
Opening Angle (º)
120
Facility
IP66
IK Protection Index
IK08
Strain
100-240V AC
Estimated life (H)
100000
Dimable
No
Equivalence (W)
320
Isolation class
I
Work frequency (Hz)
50/ 60
Start time (s)
0.1
Energy class
D
Certificates
CE/ROHS/ISO9001
Bush
Terminal Block
Temperature range (ºC)
-20 +60
Lighting cycles
100000
Energy consumption (kWh/1000h)
60.0
Weight (gr)
4000
Flicker
0.55
Half -year useful life (at 3 h/day)
91.32
Half -Year Useful Life (5 h/day)
54.79
Half -year useful life (at 8 h/day)
34.24
Directional
Non-Directional
Single/range CCT
Only
Single CCT
6000
INDEX R9
5
Minimum cri range
98
Maximum cri range
5
Chromaticity x
0.304
Chromaticity y
0.312
Fixing diameter
70mm
Applicable standards
EN 55015:2006; EN 61547:2009; EN 61000-3-2:2006; EN 61000-3-3:2008; IEC 62321:2008

Description

Lumileds 3030 IP66 LED luminaire for street and street lighting. It offers instant ignition and great power, being the ideal replacement for old discharge lamps, improving the quality of light and significantly reducing energy consumption.

Made of die-cast aluminium, it contains an internal hinge and a outer closing tab that manage to improve its aesthetics and functionality. It mounts a multiLED optic protected with tempered glass. Its IP66 protection factor is ideal for outdoors, withstanding atmospheric phenomena.

Equipped with the latest lighting technologies, this streetlight mounts Lumileds Lumileds 3030 2D LEDs >high power, which provide high light output. Mount high quality power supply manufactured by the leading company Mean Well. In addition, for greater safety, the luminaire has an overvoltage protector.

Base fixing diameter: Ø70mm
