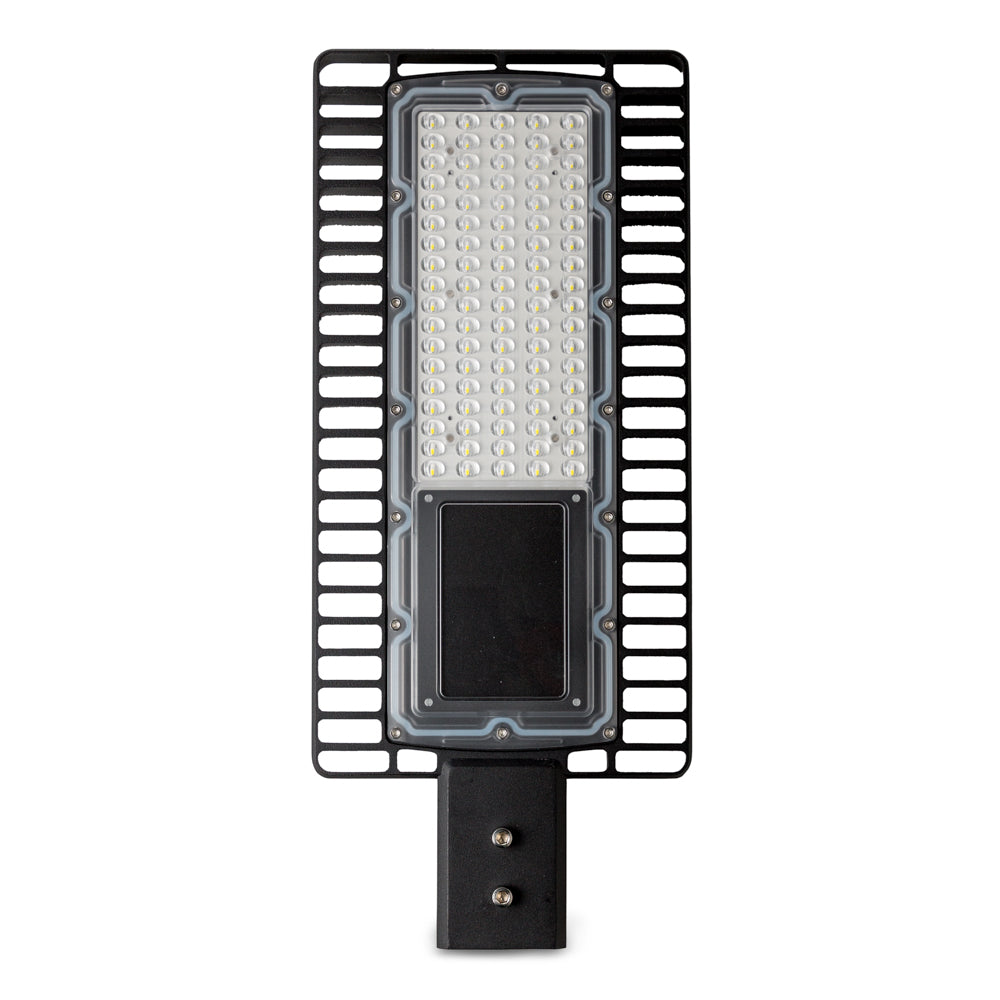

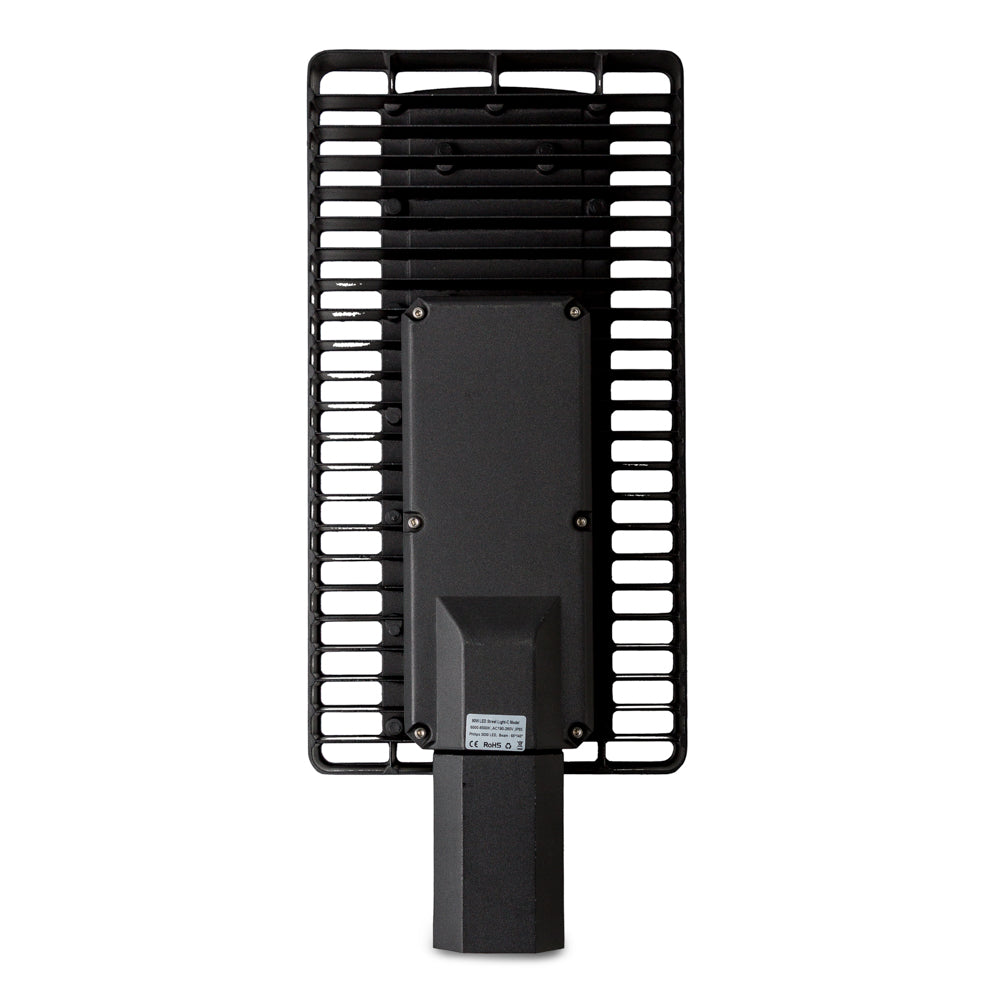

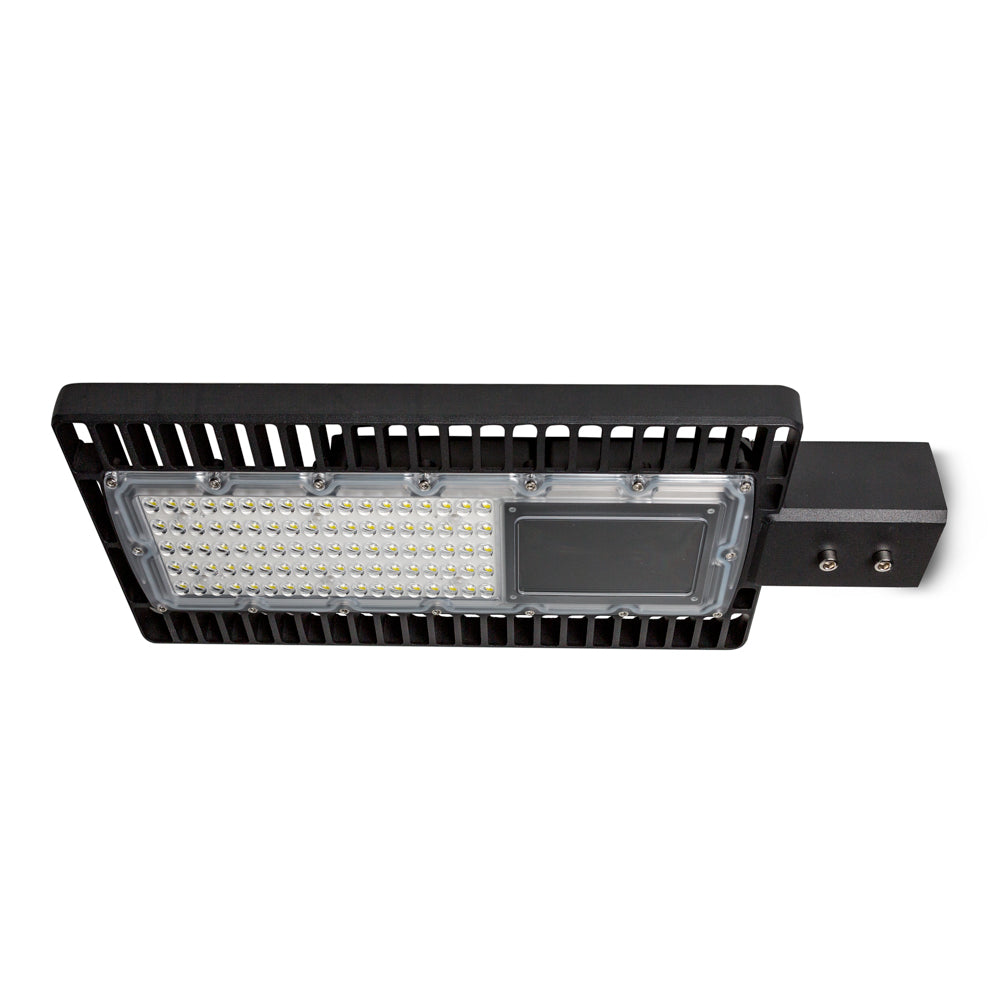

LED streetlight 90W 9,000Lm 6000ºK IP65 PRO SMD3030 Dimable 100,000H [1916-HVSL90W-C-CW]

LED streetlight 90W 9,000Lm 6000ºK IP65 PRO SMD3030 Dimable 100,000H [1916-HVSL90W-C-CW]

For additional amounts the delivery period is 60 days As of the order date
  • Brand:GreenIce / Philips Led
  • Sku1916-HVSL90W-C-CW
  • AA 2021
Eprel file
Warranty
  • Warranty 5 years
  • Tüv Süd TUV SUD
  • 120 º Opening
45,77€
45,77€ Infinity%
Tax included. The Shipping expenses They are calculated on the payment screen.

There are few

Warranty
  • Warranty 5 years
  • Tüv Süd TUV SUD
  • 120 º Opening
Are you a professional customer?

We have published a new website only for professionals.

Go to Professional Area
Advantages of buying in Greenice
  • Guaranteed minimum price
  • Free returns up to 60 days
  • Free shipping From € 21.95
  • Until 10 years guarantee
(1916-HVSL90W-C-CW_padreImg_1916_hvsl90w_c_cw_0.jpeg)
Cool White
There are few
Free shipping
45,77€
45,77€ Infinity%

Accessories

  • (BL-YMD220V_padreImg_bl_ymd220v_0.jpeg) (BL-YMD220V_padreImg_bl_ymd220v_1.jpeg)

    Dimmer LED 200-250VAC ► 300W

    Exhausted
    GreenIce

    Dimmer LED 200-250VAC ► 300W

    11,15€
    11,15€ Infinity%
    Exhausted
  • (BL-KHD220V_padreImg_bl_khd220v_0.jpeg) (BL-KHD220V_padreImg_bl_khd220v_1.jpeg)

    Dimmer LED 200-250VAC 10-100% ► 630W

    GreenIce

    Dimmer LED 200-250VAC 10-100% ► 630W

    20,45€
    20,45€ Infinity%

Technical file

Product code
1916-HVSL90W-C-CW
Luminous efficacy (LM/W)
100
Light temperature
Cold White
Kelvin º
6000
Power (W)
90.0
Luminosity (LM)
9000
Measures (mm)
505x216x73
High
100.0
Long
423.0
Broad
258.0
Number and type of LEDs
Philips Led
CRI
80
Power factor (PF)
0.99
Construction
Aluminum/PC
Opening Angle (º)
120
Facility
IP65
IK Protection Index
IK08
Strain
190-260VAC
Estimated life (H)
100000
Dimable
Yes
Equivalence (W)
480
Isolation class
I
Work frequency (Hz)
50/ 60
Start time (s)
0.1
Energy class
F
Certificates
CE/ROHS/ISO9001
Bush
Terminal
Temperature range (ºC)
-20 +65
Lighting cycles
100000
Diffuser
Milky
Energy consumption (kWh/1000h)
90.0
Weight (gr)
4100
Flicker
0.47
Half -year useful life (at 3 h/day)
91.32
Half -Year Useful Life (5 h/day)
54.79
Half -year useful life (at 8 h/day)
34.24
Directional
Non-Directional
Single/range CCT
Only
Single CCT
6000
INDEX R9
4
Minimum cri range
95
Maximum cri range
23
Chromaticity x
0.304
Chromaticity y
0.312
Applicable standards
EN 55015:2006; EN 61547:2009; EN 61000-3-2:2006; EN 61000-3-3:2008; IEC 62321:2008

Characteristics

Product code
1916-HVSL90W-C-CW
Luminous efficacy (LM/W)
100
Light temperature
Cold White
Kelvin º
6000
Power (W)
90.0
Luminosity (LM)
9000
Measures (mm)
505x216x73
High
100.0
Long
423.0
Broad
258.0
Number and type of LEDs
Philips Led
CRI
80
Power factor (PF)
0.99
Construction
Aluminum/PC
Opening Angle (º)
120
Facility
IP65
IK Protection Index
IK08
Strain
190-260VAC
Estimated life (H)
100000
Dimable
Yes
Equivalence (W)
480
Isolation class
I
Work frequency (Hz)
50/ 60
Start time (s)
0.1
Energy class
F
Certificates
CE/ROHS/ISO9001
Bush
Terminal
Temperature range (ºC)
-20 +65
Lighting cycles
100000
Diffuser
Milky
Energy consumption (kWh/1000h)
90.0
Weight (gr)
4100
Flicker
0.47
Half -year useful life (at 3 h/day)
91.32
Half -Year Useful Life (5 h/day)
54.79
Half -year useful life (at 8 h/day)
34.24
Directional
Non-Directional
Single/range CCT
Only
Single CCT
6000
INDEX R9
4
Minimum cri range
95
Maximum cri range
23
Chromaticity x
0.304
Chromaticity y
0.312
Applicable standards
EN 55015:2006; EN 61547:2009; EN 61000-3-2:2006; EN 61000-3-3:2008; IEC 62321:2008

Description

Lumileds 3030 IP65 LED streetlight for public and street lighting. It offers instant on and great power, being the ideal replacement for old discharge streetlights, improving the quality of light and notably reducing its energy consumption.

Its Lumileds light source produces a brightness of 9000 lumens. The light it emits is bright and of quality and is distributed in an opening angle of 60*145º. It is the perfect replacement to replace the old discharge lamps, improving visibility on any type of road and significantly reducing electricity consumption.

Made of die-cast aluminium, the LED public lighting luminaire with 90W of power has an IP65 protection factor that makes it weather resistant and an anti-corrosion treatment, both chemical and mechanical, resistant to UV rays that further improves its durability. Its useful life is 50,000 hours.

Updating public lighting with LED lighting not only reduces energy consumption and maintenance costs as they are more durable than traditional products, but also that we also obtain better quality lighting with instant on, to highlight some more advantages.

Triac light intensity regulation 30%-100%

* Base fixing diameter: Ø60mm

Documents

Installation_manual
