LED Track Light 30W 2,700Lm CRI90 6000ºK Three-phase 40,000H [HO-FC-3F-30W-B-CW]

LED Track Light 30W 2,700Lm CRI90 6000ºK Three-phase 40,000H [HO-FC-3F-30W-B-CW]

For additional amounts the delivery period is 60 days As of the order date
  • Brand:GreenIce
  • SkuHO-FC-3F-30W-B-CW
  • A 2021
Eprel file
Warranty
  • Warranty 3 years
  • Eye Care Eye Care
  • Tüv Süd TUV SUD
  • 38 º Opening
23,34€
23,34€ Infinity%
Tax included. The Shipping expenses They are calculated on the payment screen.

Stock available

Warranty
  • Warranty 3 years
  • Eye Care Eye Care
  • Tüv Süd TUV SUD
  • 38 º Opening
Are you a professional customer?

We have published a new website only for professionals.

Go to Professional Area
Advantages of buying in Greenice
  • Guaranteed minimum price
  • Free returns up to 60 days
  • Free shipping From € 21.95
  • Until 10 years guarantee
(HO-FC-3F-30W-B-CW_padreImg_ho_fc_3f_30w_b_cw_0.jpeg)
Cool White
Stock available
Free shipping
23,34€
23,34€ Infinity%

Accessories

  • (JL-CON---T-B_padreImg_jl_con_t_b_0.jpeg) (JL-CON---T-B_padreImg_jl_con_t_b_1.jpeg)

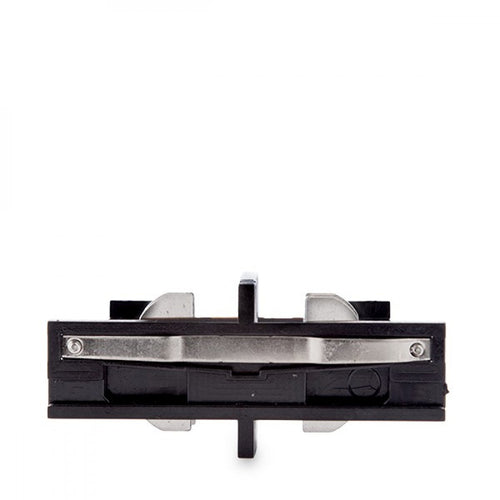

    Straight Connector 3-Phase Track Black

    GreenIce

    Straight Connector 3-Phase Track Black

    2,99€
    2,99€ Infinity%
  • (JL-CON-+-T-B_padreImg_jl_con_t_b_0.jpeg) (JL-CON-+-T-B_padreImg_jl_con_t_b_1.jpeg)

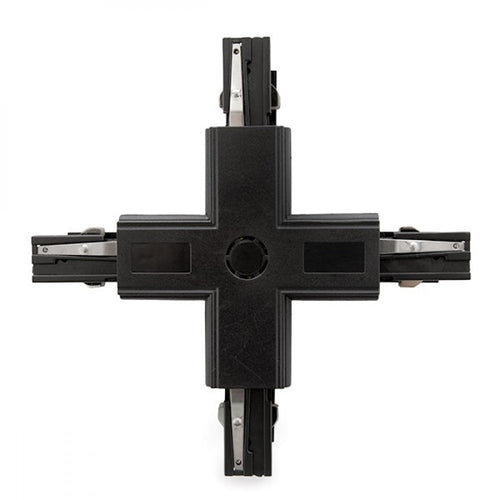

    + Connector 3-Phase Track Black

    GreenIce

    + Connector 3-Phase Track Black

    5,21€
    5,21€ Infinity%
  • (JL-CON-T-T-B_padreImg_jl_con_t_t_b_0.jpeg) (JL-CON-T-T-B_padreImg_jl_con_t_t_b_1.jpeg)

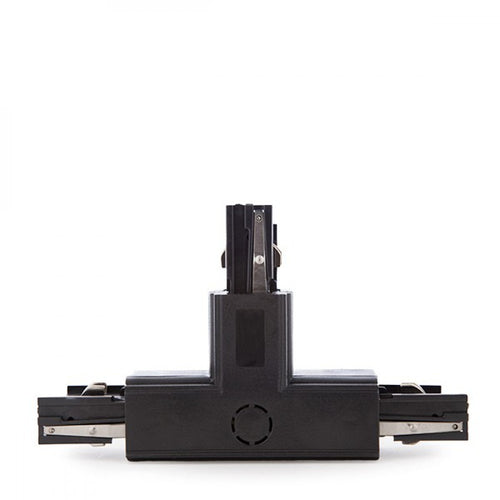

    Connector 3-Phase Track Black

    GreenIce

    Connector 3-Phase Track Black

    3,16€
    3,16€ Infinity%
  • (JL-CARRIL-T-B_padreImg_jl_carril_t_b_0.jpeg) (JL-CARRIL-T-B_padreImg_jl_carril_t_b_1.jpeg)

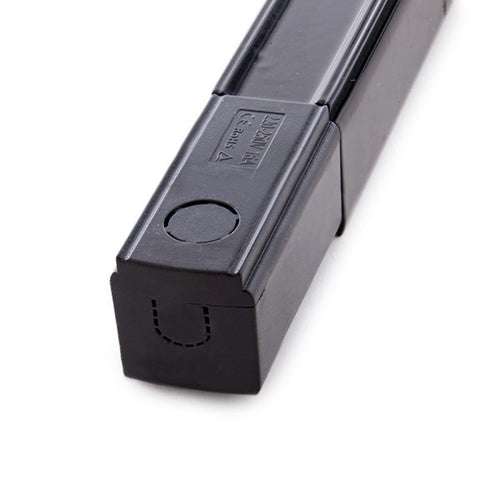

    3-Phase Track 1M Black

    GreenIce

    3-Phase Track 1M Black

    17,01€
    17,01€ Infinity%
  • (JL-CON-L-T-B_padreImg_jl_con_l_t_b_0.jpeg) (JL-CON-L-T-B_padreImg_jl_con_l_t_b_1.jpeg)

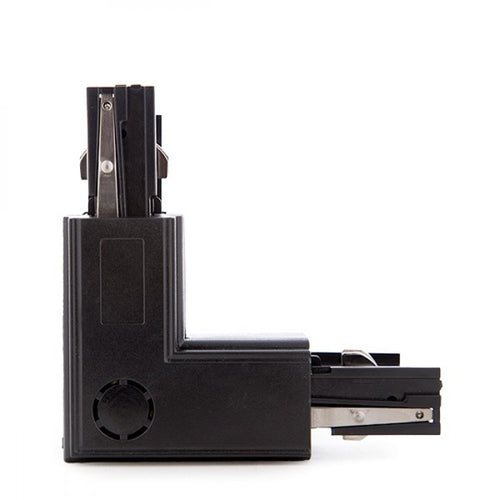

    L Connector 3-Phase Track Black

    GreenIce

    L Connector 3-Phase Track Black

    3,10€
    3,10€ Infinity%
  • (HO-LM3220_padreImg_ho_lm3220_0.jpeg) (HO-LM3220_padreImg_ho_lm3220_1.jpeg)

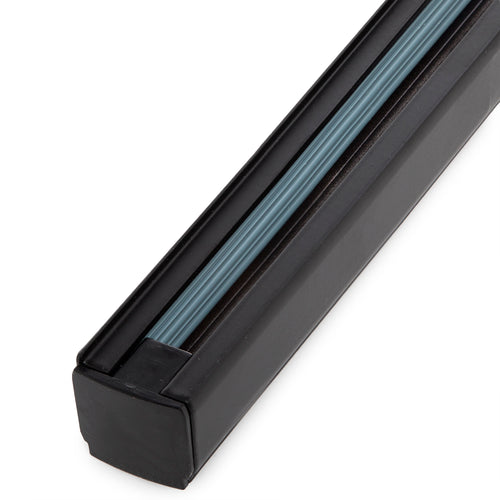

    3-Phase Track LED Spotlights Black 2M

    GreenIce

    3-Phase Track LED Spotlights Black 2M

    32,93€
    32,93€ Infinity%

Technical file

Product code
HO-FC-3F-30W-B-CW
Luminous efficacy (LM/W)
90
Light temperature
Cold White
Kelvin º
6000
Power (W)
30.0
Luminosity (LM)
2700
Measures (mm)
Ø90x220x170
High
170.0
Long
220.0
Diameter
90
Number and type of LEDs
COB
CRI
90
UGR
◄17
Power factor (PF)
0.95
Construction
Aluminum/PC
Opening Angle (º)
38
Facility
IP20
Strain
220-240 V AC
Estimated life (H)
40000
Dimable
No
Equivalence (W)
200
Isolation class
II
Work frequency (Hz)
50/ 60
Start time (s)
0.1
Energy class
F
Certificates
CE/ROHS/ISO9001
Bush
Terminal
Temperature range (ºC)
-20 +40
Lighting cycles
100000
Diffuser
Transparent
Energy consumption (kWh/1000h)
30.0
Weight (gr)
500
Flicker
0.92
Half -year useful life (at 3 h/day)
36.52
Half -Year Useful Life (5 h/day)
21.91
Half -year useful life (at 8 h/day)
13.69
Directional
Directional
Single/range CCT
Only
Single CCT
6000
INDEX R9
32
Minimum cri range
94
Maximum cri range
1
Chromaticity x
0.321
Chromaticity y
0.348
Driver output
DC24-36V
Applicable standards
EN 55015:2006; EN 61547:2009; EN 61000-3-2:2006; EN61000-3-3:2008; EN 60598-2-1:1989; EN 60598-1:2008; EN 61347-1:2008; EN 61347-2-13:2006; EN 62031:2008; EN 62471:2008; EN 62493:2010

Characteristics

Product code
HO-FC-3F-30W-B-CW
Luminous efficacy (LM/W)
90
Light temperature
Cold White
Kelvin º
6000
Power (W)
30.0
Luminosity (LM)
2700
Measures (mm)
Ø90x220x170
High
170.0
Long
220.0
Diameter
90
Number and type of LEDs
COB
CRI
90
UGR
◄17
Power factor (PF)
0.95
Construction
Aluminum/PC
Opening Angle (º)
38
Facility
IP20
Strain
220-240 V AC
Estimated life (H)
40000
Dimable
No
Equivalence (W)
200
Isolation class
II
Work frequency (Hz)
50/ 60
Start time (s)
0.1
Energy class
F
Certificates
CE/ROHS/ISO9001
Bush
Terminal
Temperature range (ºC)
-20 +40
Lighting cycles
100000
Diffuser
Transparent
Energy consumption (kWh/1000h)
30.0
Weight (gr)
500
Flicker
0.92
Half -year useful life (at 3 h/day)
36.52
Half -Year Useful Life (5 h/day)
21.91
Half -year useful life (at 8 h/day)
13.69
Directional
Directional
Single/range CCT
Only
Single CCT
6000
INDEX R9
32
Minimum cri range
94
Maximum cri range
1
Chromaticity x
0.321
Chromaticity y
0.348
Driver output
DC24-36V
Applicable standards
EN 55015:2006; EN 61547:2009; EN 61000-3-2:2006; EN61000-3-3:2008; EN 60598-2-1:1989; EN 60598-1:2008; EN 61347-1:2008; EN 61347-2-13:2006; EN 62031:2008; EN 62471:2008; EN 62493:2010

Description

The 30W Black LED Spotlight for Three-Phase Track provides versatile lighting that is perfect for ever-changing spaces, where it is necessary to highlight decorative elements or the products on display.

Includes a light source with COB SANAN technology that has a performance of 90lm/W. Provides, at an angle of 60º, a high-quality light that ensures color reproduction in a very natural way. This type of light perfectly complements the general lighting of any space.

< p>It is made of quality materials such as aluminum and incorporates high-performance components. It has a long useful life of 30,000 hours, ten times longer than that of a conventional spotlight.

Its installation on the three-phase track is very simple and allows the luminaire to be moved on the track. This allows having a very flexible lighting system that adapts to any situation.

Its use is mainly in the tertiary sector in spaces such as shops, exhibition halls, commercial galleries, hotels, etc. etc. Places that require a versatile accent light that adapts to the layout of the products on display.

In these types of spaces where activity is carried out for many hours, LED lighting provides a considerable savings in terms of energy consumption and helps to minimize maintenance costs.

Available in cold white, neutral white or warm white in our online lighting store.
