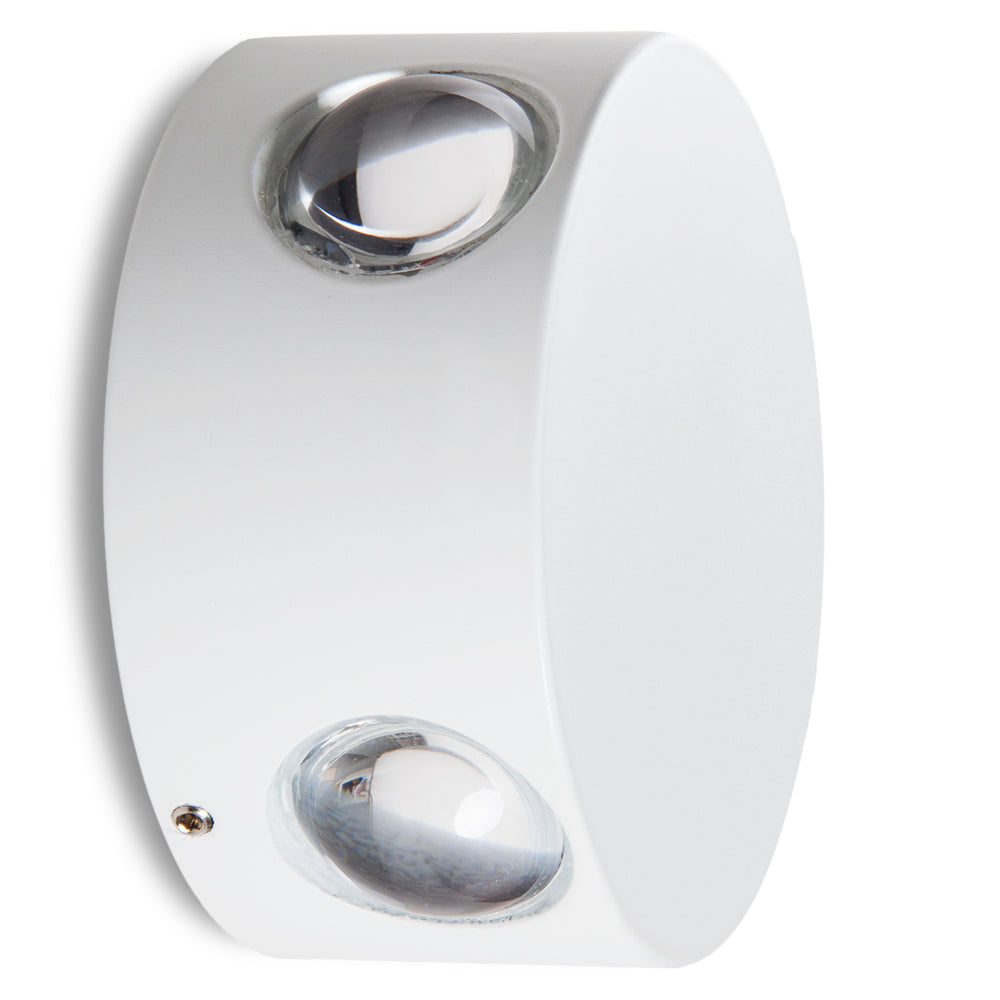

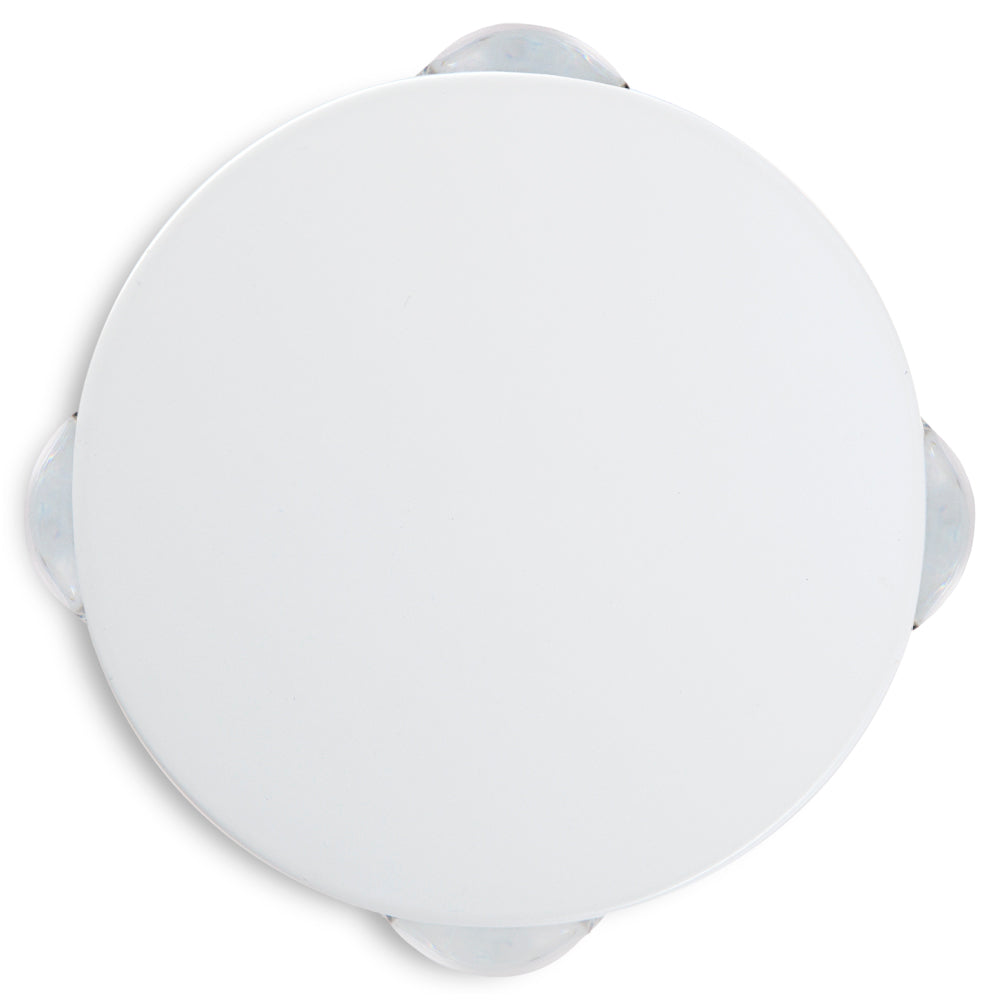

LED wall light 4W 259Lm 2700ºK Anna IP65 40,000H [TH-819-WW]

LED wall light 4W 259Lm 2700ºK Anna IP65 40,000H [TH-819-WW]

For additional amounts the delivery period is 60 days As of the order date
  • Brand:GreenIce
  • SkuTH-819-WW
Eprel file
Warranty
  • Warranty 3 years
  • 120 º Opening
16,14€
16,14€ Infinity%
Tax included. The Shipping expenses They are calculated on the payment screen.

Stock available

Warranty
  • Warranty 3 years
  • 120 º Opening
Are you a professional customer?

We have published a new website only for professionals.

Go to Professional Area
Advantages of buying in Greenice
  • Guaranteed minimum price
  • Free returns up to 60 days
  • Free shipping From € 21.95
  • Until 10 years guarantee
(TH-819-WW_padreImg_th_819_ww_0.jpeg)
Warm White
Stock available
Free shipping
16,14€
16,14€ Infinity%

Accessories

  • (GH-90555501_padreImg_gh_90555501_0.jpeg)

    Switch 10A 250V IP54 Gray

    GreenIce

    Switch 10A 250V IP54 Gray

    4,95€
    4,95€ Infinity%

Technical file

Product code
TH-819-WW
Luminous efficacy (LM/W)
64
Light temperature
NW
Kelvin º
2700
Power (W)
4.0
Luminosity (LM)
259
Measures (mm)
Ø90x42
Broad
42.0
Diameter
90
Number and type of LEDs
SMD2835
CRI
80
Power factor (PF)
0.98
Construction
Aluminum
Opening Angle (º)
120
Facility
IP65
IK Protection Index
IK07
Strain
185-265V
Estimated life (H)
40000
Dimable
No
Equivalence (W)
35
Isolation class
I
Work frequency (Hz)
50/ 60
Start time (s)
0.1
Energy class
G
Certificates
CE/ROHS/ISO9001
Bush
Terminal
Temperature range (ºC)
-20 +65
Lighting cycles
80000
Diffuser
Milky
Energy consumption (kWh/1000h)
4.0
Weight (gr)
640
Flicker
0.95
Half -year useful life (at 3 h/day)
36.52
Half -Year Useful Life (5 h/day)
21.91
Half -year useful life (at 8 h/day)
13.69
Directional
Non-Directional
Single/range CCT
Only
Single CCT
2700
INDEX R9
12
Minimum cri range
95
Maximum cri range
49
Chromaticity x
0.44
Chromaticity y
0.403
Applicable standards
EN 60598-1:2008; EN 60598-2-2:2012: EN 62493:2010

Characteristics

Product code
TH-819-WW
Luminous efficacy (LM/W)
64
Light temperature
NW
Kelvin º
2700
Power (W)
4.0
Luminosity (LM)
259
Measures (mm)
Ø90x42
Broad
42.0
Diameter
90
Number and type of LEDs
SMD2835
CRI
80
Power factor (PF)
0.98
Construction
Aluminum
Opening Angle (º)
120
Facility
IP65
IK Protection Index
IK07
Strain
185-265V
Estimated life (H)
40000
Dimable
No
Equivalence (W)
35
Isolation class
I
Work frequency (Hz)
50/ 60
Start time (s)
0.1
Energy class
G
Certificates
CE/ROHS/ISO9001
Bush
Terminal
Temperature range (ºC)
-20 +65
Lighting cycles
80000
Diffuser
Milky
Energy consumption (kWh/1000h)
4.0
Weight (gr)
640
Flicker
0.95
Half -year useful life (at 3 h/day)
36.52
Half -Year Useful Life (5 h/day)
21.91
Half -year useful life (at 8 h/day)
13.69
Directional
Non-Directional
Single/range CCT
Only
Single CCT
2700
INDEX R9
12
Minimum cri range
95
Maximum cri range
49
Chromaticity x
0.44
Chromaticity y
0.403
Applicable standards
EN 60598-1:2008; EN 60598-2-2:2012: EN 62493:2010

Description

The LED wall light for exterior Ø90mm, and a thickness of 42mm to be installed on the wall by means of 2 fastening holes, offers solutions for exterior and interior environments for both industrial and residential use . It can be installed directly to outlets supplied by the electrical network (185-265VAC) with a service frequency of 50/60Hz.

It has a high efficiency (90 Lm/W) consuming 4W by means of SMD2835 type LEDs and managing to provide a luminous flux of 360Lm uniformly distributed by 4 prismatic optics from which a color rendering index of 80 is obtained.Its consumption represents a value of 4kWh/1000h , reducing the amount of energy billed and the emissions of polluting gases into the atmosphere. The luminaire has an IP65 degree of protection (valid for dust and humidity outdoors), it is also robust enough to withstand the necessary mechanical efforts.

This wall light is a highly decorative and versatile element that it will suit any style. The high quality finish and its IP65 protection factor make this Wall Lamp resistant to dust and splashes of water. Therefore, we can install it in a large number of spaces such as balconies, canopies or covered outdoor passageways.

It can be fixed to any type of surface by screwing the Wall Lamp to any wall. In order to maintain IP65 protection, the customer must ensure that all supplied components are fixed and secured correctly.

Although it is designed for use in outdoor spaces, the elegant design of this Wall Lamp by LED wall makes it an LED lighting element that can be used in less common environments such as halls, stairs and even bathrooms, either at home or in commercial spaces such as restaurants and hotels. It is made of high-quality materials such as aluminum and has a useful life of 30,000 hours, ten times more than a conventional wall light.

This wall light is available in warm white (3000°K) . The indicated color temperature may suffer fluctuations corresponding to a tolerance of 7%.
