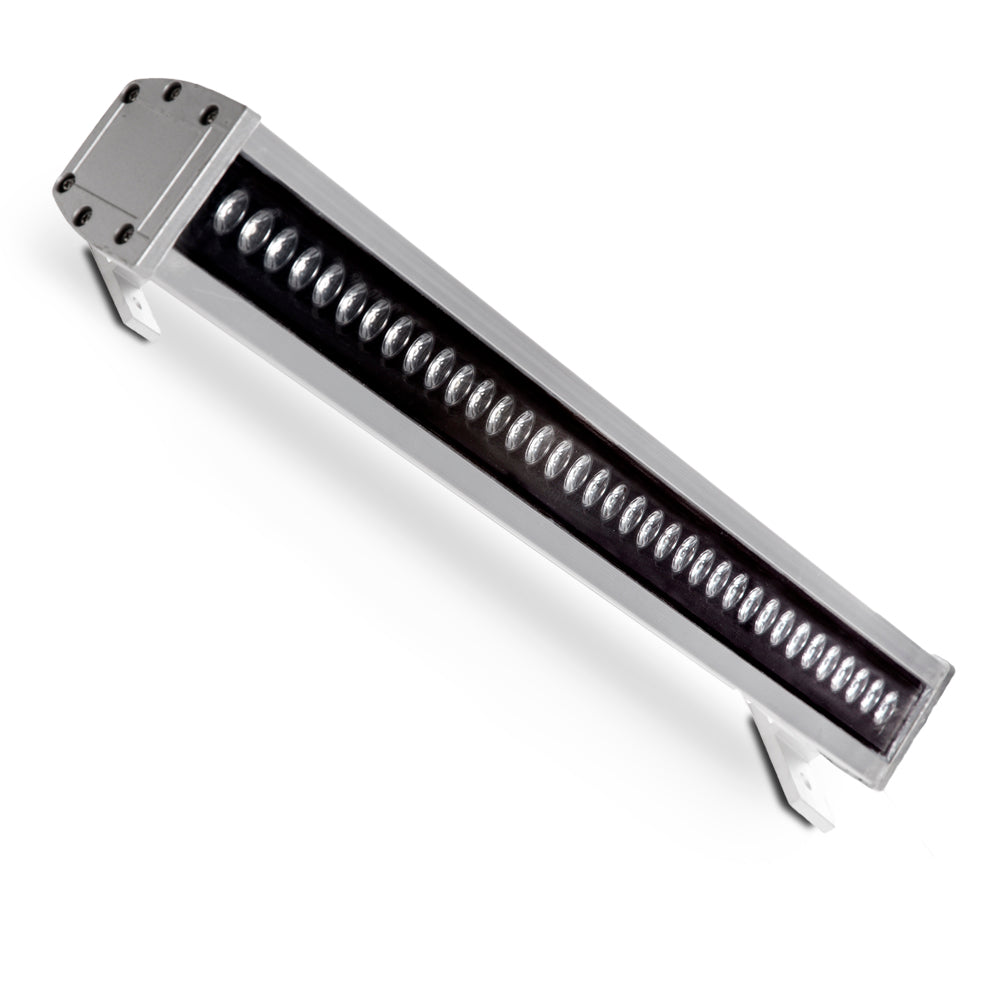

LED Wall Washer 36W 2754Lm 4200ºK IP65 40,000H [PL623027-W]

LED Wall Washer 36W 2754Lm 4200ºK IP65 40,000H [PL623027-W]

For additional amounts the delivery period is 60 days As of the order date
  • Brand:GreenIce
  • SkuPL623027-W
  • A 2021
Eprel file
Warranty
  • Warranty 3 years
  • 120 º Opening
53,79€
53,79€ Infinity%
Tax included. The Shipping expenses They are calculated on the payment screen.

Stock available

Warranty
  • Warranty 3 years
  • 120 º Opening
Are you a professional customer?

We have published a new website only for professionals.

Go to Professional Area
Advantages of buying in Greenice
  • Guaranteed minimum price
  • Free returns up to 60 days
  • Free shipping From € 21.95
  • Until 10 years guarantee
(PL623027-B_padreImg_pl623027_b_0.jpeg)
Daylight
Stock available
Free shipping
53,79€
53,79€ Infinity%

Technical file

Product code
PL623027-W
Luminous efficacy (LM/W)
76
Light temperature
Natural White
Kelvin º
4200
Power (W)
36.0
Luminosity (LM)
2754
Measures (mm)
996x77x68
High
77.0
Long
996.0
Broad
68.0
Number and type of LEDs
Epistar Led
CRI
80
Power factor (PF)
0.99
Construction
Aluminum/Glass
Opening Angle (º)
120
Facility
IP65
IK Protection Index
IK08
Strain
100-240VAC
Estimated life (H)
40000
Dimable
No
Equivalence (W)
190
Isolation class
I
Work frequency (Hz)
50/ 60
Start time (s)
0.2
Energy class
G
Certificates
CE/ROHS/ISO9001
Bush
Terminal
Temperature range (ºC)
-20 +65
Lighting cycles
100000
Diffuser
Milky
Energy consumption (kWh/1000h)
36.0
Weight (gr)
1300
Flicker
0.97
Half -year useful life (at 3 h/day)
36.52
Half -Year Useful Life (5 h/day)
21.91
Half -year useful life (at 8 h/day)
13.69
Directional
Non-Directional
Single/range CCT
Only
Single CCT
4200
INDEX R9
3
Minimum cri range
97
Maximum cri range
3
Chromaticity x
0.377
Chromaticity y
0.381
Driver output
DC24-38V
Applicable standards
IEC 62321:2008;EN 55015:2006;EN 61000-3-2:2006;EN 61000-3-3:2008;EN 61547:2009;EN 60598-1:2008; EN 61347-1:2008; EN 61347-2-13:2006; EN 62031:2008

Characteristics

Product code
PL623027-W
Luminous efficacy (LM/W)
76
Light temperature
Natural White
Kelvin º
4200
Power (W)
36.0
Luminosity (LM)
2754
Measures (mm)
996x77x68
High
77.0
Long
996.0
Broad
68.0
Number and type of LEDs
Epistar Led
CRI
80
Power factor (PF)
0.99
Construction
Aluminum/Glass
Opening Angle (º)
120
Facility
IP65
IK Protection Index
IK08
Strain
100-240VAC
Estimated life (H)
40000
Dimable
No
Equivalence (W)
190
Isolation class
I
Work frequency (Hz)
50/ 60
Start time (s)
0.2
Energy class
G
Certificates
CE/ROHS/ISO9001
Bush
Terminal
Temperature range (ºC)
-20 +65
Lighting cycles
100000
Diffuser
Milky
Energy consumption (kWh/1000h)
36.0
Weight (gr)
1300
Flicker
0.97
Half -year useful life (at 3 h/day)
36.52
Half -Year Useful Life (5 h/day)
21.91
Half -year useful life (at 8 h/day)
13.69
Directional
Non-Directional
Single/range CCT
Only
Single CCT
4200
INDEX R9
3
Minimum cri range
97
Maximum cri range
3
Chromaticity x
0.377
Chromaticity y
0.381
Driver output
DC24-38V
Applicable standards
IEC 62321:2008;EN 55015:2006;EN 61000-3-2:2006;EN 61000-3-3:2008;EN 61547:2009;EN 60598-1:2008; EN 61347-1:2008; EN 61347-2-13:2006; EN 62031:2008

Description

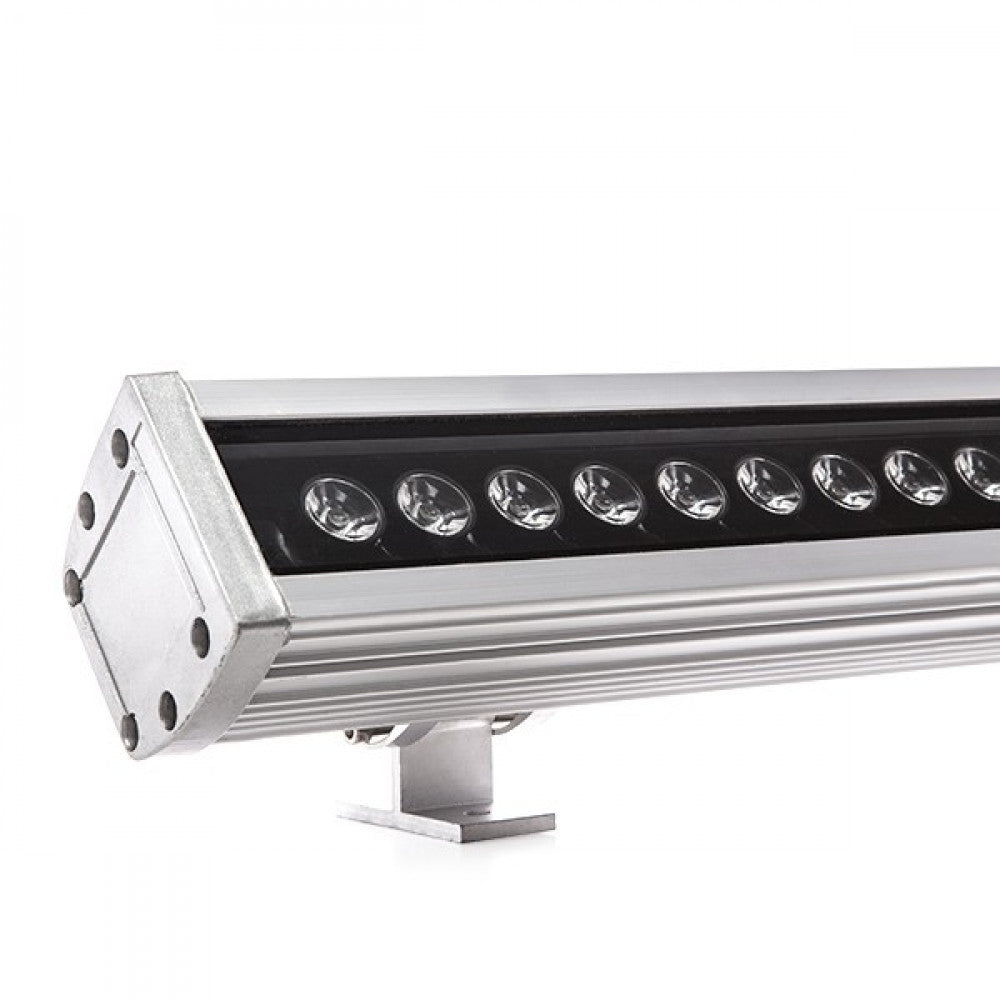

The LED Wall Washer mounts an optic specially designed for diffuse lighting.Its driver is integrated inside the Linear Washer. It works directly at 100-240V, so it is powered by connecting it directly to the electrical network.

It has a high efficacy (90 Lm/W) consuming 36W through 36 high-power LEDs, with an opening angle of 60°, obtaining a color rendering index of 80. its consumption represents a value of 36kWh/1000h, reducing the amount of energy invoiced and the emissions of polluting gases into the atmosphere. This floodlight offers instant start-up, has an IP65 degree of protection (valid for dust and humidity outdoors), as well as being robust enough for the required mechanical demands. Made of aluminum with a gray finish and high-resistance anti-explosion glass.

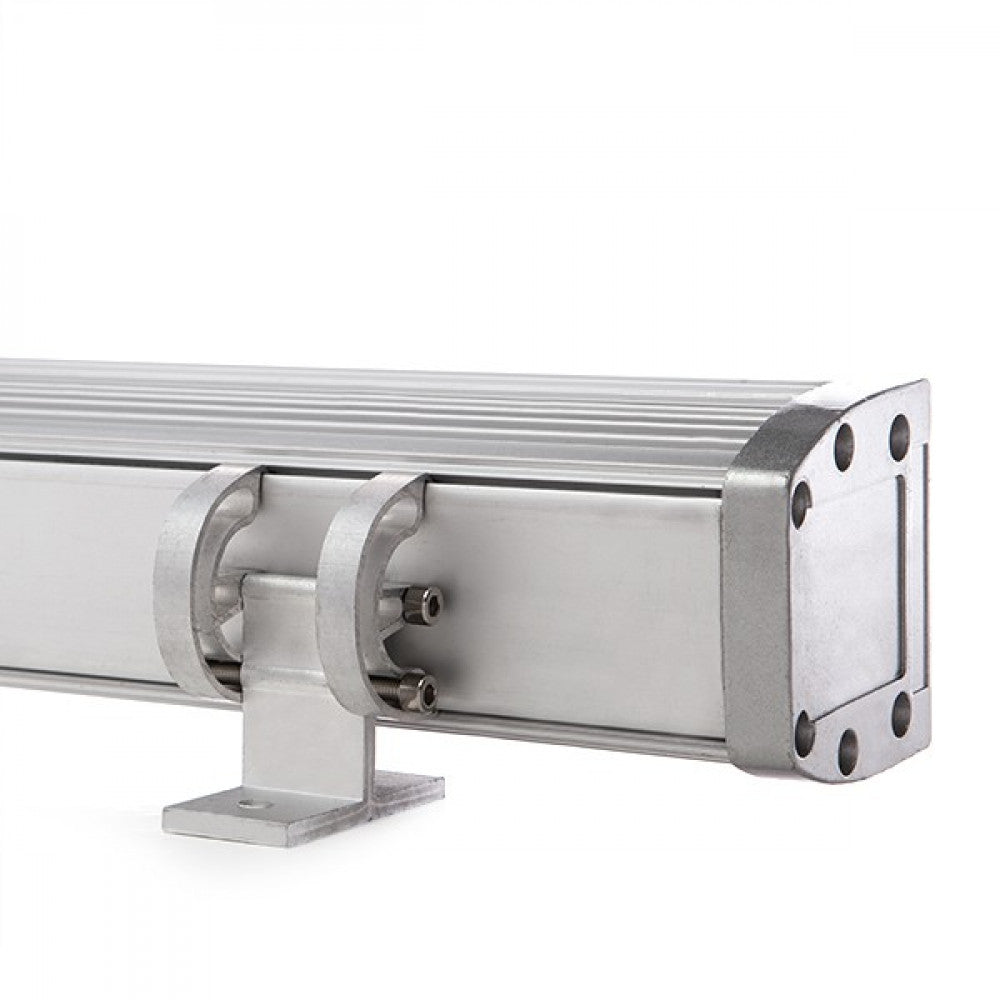

LED floodlights are widely used to project light on walls, facades, gardens, stages, walls, museums, exhibitions< /strong>. It can be installed as a wall light, on the ceiling or even on the ground thanks to its adjustable support.

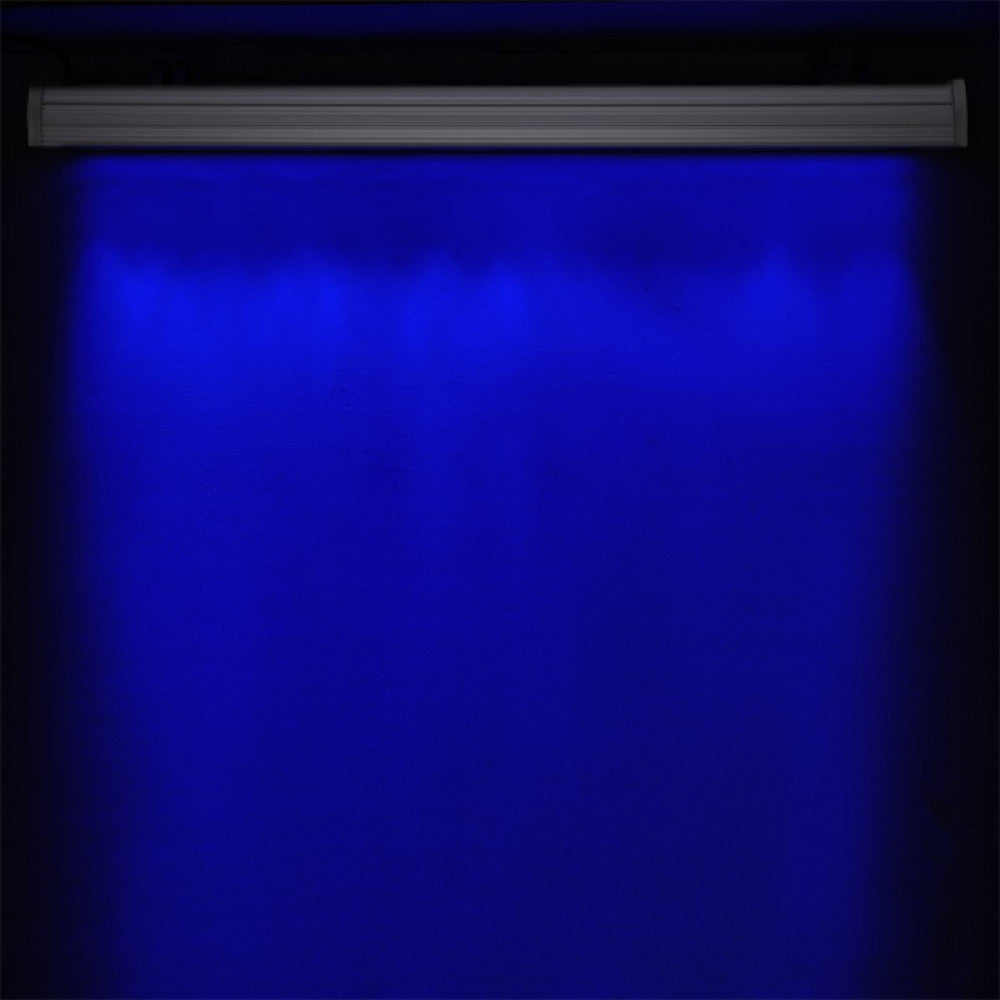

The washer is available in sequential RGB, blue, green, red, natural white (4200 °K) and warm white (3000°K). The indicated color temperature may suffer fluctuations corresponding to a tolerance of 7%.
