Module 12W 1.200Lm 6000ºK 24 LEDs Ø65Mm 50.000H [CH-PCBA12W-CW]

Module 12W 1.200Lm 6000ºK 24 LEDs Ø65Mm 50.000H [CH-PCBA12W-CW]

See questions and answers

For additional amounts the delivery period is 30 days As of the order date
  • Brand:GreenIce
  • SkuCH-PCBA12W-CW
  • AA 2021
Eprel file
Warranty
  • Warranty 3 years
  • 120 º Opening
Documents
2,94€
2,94€ Infinity%
Tax included. The Shipping expenses They are calculated on the payment screen.

Available

Warranty
  • Warranty 3 years
  • 120 º Opening
Documents
¿Eres Cliente Profesional?

Hemos publicado una nueva web solo para Profesionales.

ir a Área Profesional
VENTAJAS DE COMPRAR EN GREENICE
  • Precio Mínimo Garantizado
  • Devoluciones Gratis hasta en 60 días
  • Envío Gratis desde 21,95€
  • Hasta 10 años de Garantía
(CH-PCBA12W-CW_padreImg_ch_pcba12w_cw_0.jpeg)
Cool White
Available
Free shipping
2,94€
2,94€ Infinity%

Accessories

  • (DR-PR-ND-10W_padreImg_dr_pr_nd_10w_0.jpeg) (DR-PR-ND-10W_padreImg_dr_pr_nd_10w_1.jpeg)

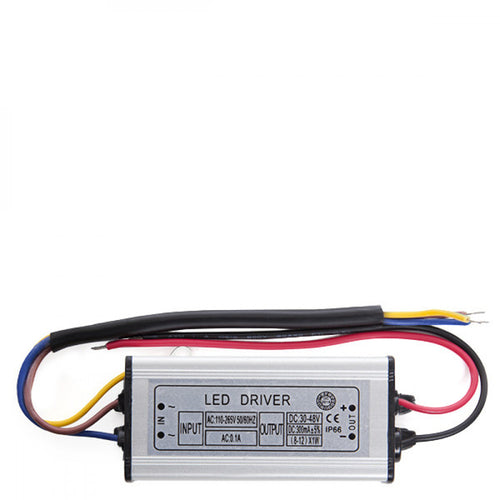

    Driver Non Dimmable LED Floodlight 10W

    GreenIce

    Driver Non Dimmable LED Floodlight 10W

    4,36€
    4,36€ Infinity%
  • (DR-PR-ND-20W_padreImg_dr_pr_nd_20w_0.jpeg) (DR-PR-ND-20W_padreImg_dr_pr_nd_20w_1.jpeg)

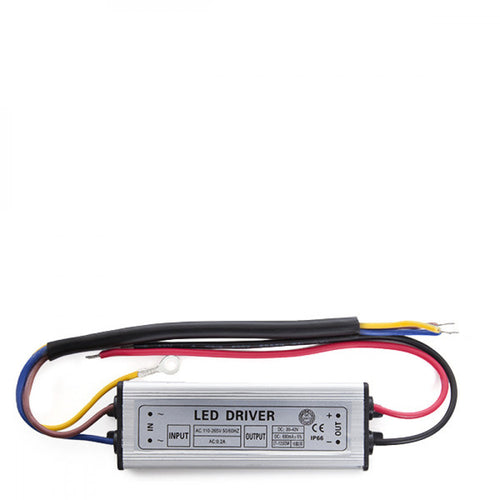

    Driver Non Dimmable LED Floodlight 20W

    GreenIce

    Driver Non Dimmable LED Floodlight 20W

    7,75€
    7,75€ Infinity%

Technical file

Product code
CH-PCBA12W-CW
Light temperature
Cold
Kelvin º
6000
Power (W)
12.0
Luminosity (LM)
1200
Luminous efficacy (LM/W)
100
LED efficacy
110
Type of LEDs
SMD5630
Measures (mm)
Ø65
Diameter
65
CRI
80
Construction
Aluminum
Opening Angle (º)
120
Facility
IP20
Strain
28-34V
Estimated life (H)
50000
Dimable
Yes
Work frequency (Hz)
50/ 60
Energy class
F
Certificates
CE/ROHS/ISO9001
Bush
Terminal
Temperature range (ºC)
-20 +40
Energy consumption (kWh/1000h)
12.0
Weight (gr)
12
Flicker
0.85
Half -year useful life (at 3 h/day)
45.66
Half -Year Useful Life (5 h/day)
27.39
Half -year useful life (at 8 h/day)
17.12
Directional
Non-Directional
Single/range CCT
Only
Single CCT
6000
INDEX R9
15
Minimum cri range
83
Maximum cri range
4
Chromaticity x
0.304
Chromaticity y
0.312
Applicable standards
EN55015:2006;EN6147:2009;EN61000-3-2:2006;EN6100-3-3:2008

Características

Product code
CH-PCBA12W-CW
Light temperature
Cold
Kelvin º
6000
Power (W)
12.0
Luminosity (LM)
1200
Luminous efficacy (LM/W)
100
LED efficacy
110
Type of LEDs
SMD5630
Measures (mm)
Ø65
Diameter
65
CRI
80
Construction
Aluminum
Opening Angle (º)
120
Facility
IP20
Strain
28-34V
Estimated life (H)
50000
Dimable
Yes
Work frequency (Hz)
50/ 60
Energy class
F
Certificates
CE/ROHS/ISO9001
Bush
Terminal
Temperature range (ºC)
-20 +40
Energy consumption (kWh/1000h)
12.0
Weight (gr)
12
Flicker
0.85
Half -year useful life (at 3 h/day)
45.66
Half -Year Useful Life (5 h/day)
27.39
Half -year useful life (at 8 h/day)
17.12
Directional
Non-Directional
Single/range CCT
Only
Single CCT
6000
INDEX R9
15
Minimum cri range
83
Maximum cri range
4
Chromaticity x
0.304
Chromaticity y
0.312
Applicable standards
EN55015:2006;EN6147:2009;EN61000-3-2:2006;EN6100-3-3:2008

Descripción

The LED Modules are usually used as a direct replacement for light bulbs.

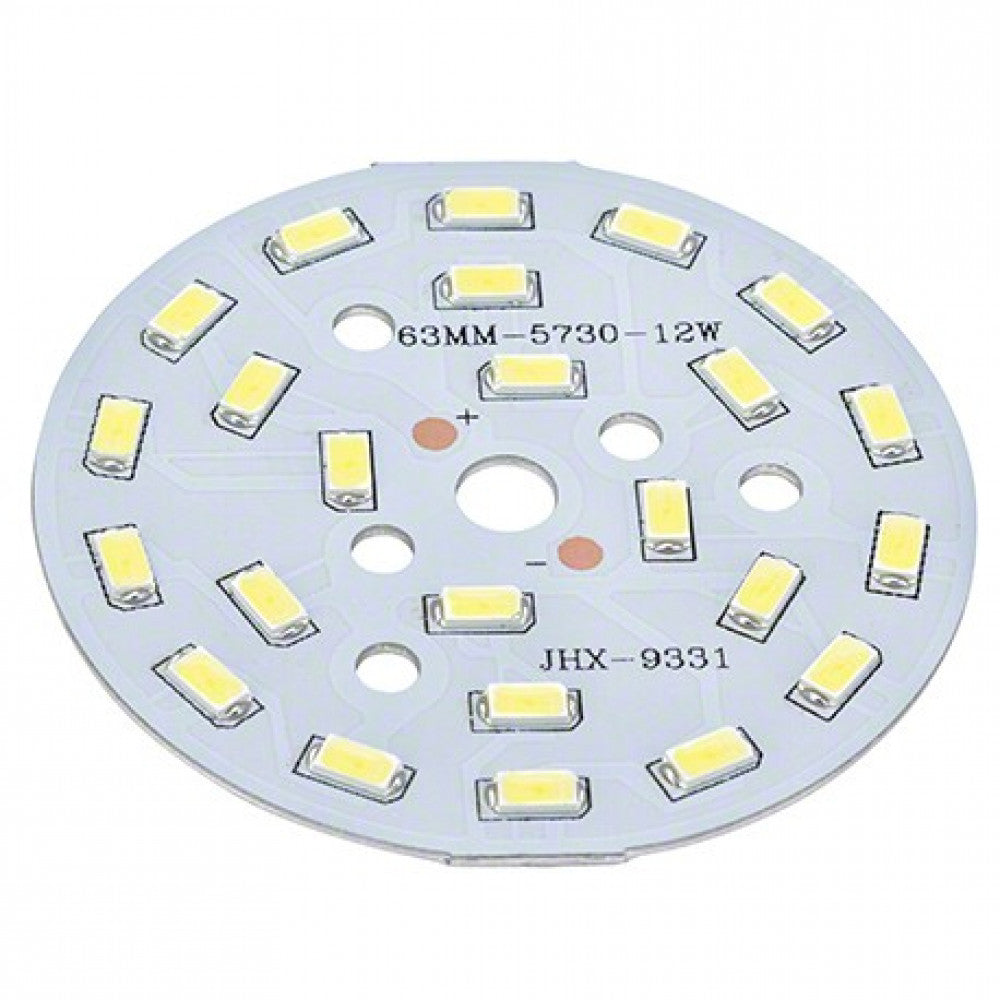

This module has 24 high power SMD5630 LEDs. They are mounted on a 65mm circular aluminum plate, 1, 2mm thick. This plate collaborates with the dissipation of the temperature.

For its correct dissipation, it is necessary to place another dissipating body.
