Module 7W 700Lm 6000ºK 15 LEDs Ø50Mm 50.000H [CH-PCBA7W-CW]

Module 7W 700Lm 6000ºK 15 LEDs Ø50Mm 50.000H [CH-PCBA7W-CW]

For additional amounts the delivery period is 30 days As of the order date
  • Brand:GreenIce
  • SkuCH-PCBA7W-CW
  • AA 2021
Eprel file
Warranty
  • Warranty 3 years
  • 120 º Opening
Documents
1,92€
1,92€ Infinity%
Tax included. The Shipping expenses They are calculated on the payment screen.

Stock available

Warranty
  • Warranty 3 years
  • 120 º Opening
Documents
Are you a professional customer?

We have published a new website only for professionals.

Go to Professional Area
Advantages of buying in Greenice
  • Guaranteed minimum price
  • Free returns up to 60 days
  • Free shipping From € 21.95
  • Until 10 years guarantee
(CH-PCBA7W-CW_padreImg_ch_pcba7w_cw_0.jpeg)
Cool White
Stock available
Free shipping
1,92€
1,92€ Infinity%

Accessories

  • (CH-DRIVER117_padreImg_ch_driver117_0.jpeg) (CH-DRIVER117_padreImg_ch_driver117_1.jpeg)

    LED Driver Integrated 25-36W 75-130V 280-300Ma

    GreenIce

    LED Driver Integrated 25-36W 75-130V 280-300Ma

    14,05€
    14,05€ Infinity%
  • (CH-DRIVER113_padreImg_ch_driver113_0.jpeg) (CH-DRIVER113_padreImg_ch_driver113_1.jpeg)

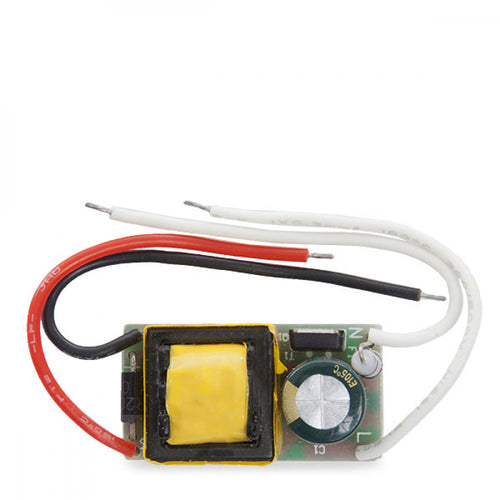

    LED Driver Integrated 6-10W 18-32V 280-300Ma

    GreenIce

    LED Driver Integrated 6-10W 18-32V 280-300Ma

    5,17€
    5,17€ Infinity%

Technical file

Product code
CH-PCBA7W-CW
Luminous efficacy (LM/W)
100
Light temperature
Cold
Kelvin º
6000
Power (W)
7.0
Luminosity (LM)
700
Measures (mm)
Ø50
Diameter
50
Number and type of LEDs
SMD5630
CRI
80
Construction
Aluminum
Opening Angle (º)
120
Facility
IP20
Strain
20-24V
Estimated life (H)
50000
Dimable
Yes
Work frequency (Hz)
50/ 60
Energy class
F
Certificates
CE/ROHS/ISO9001
Bush
Terminal
Temperature range (ºC)
-20 +40
Energy consumption (kWh/1000h)
7.0
Weight (gr)
60
Flicker
0.85
Half -year useful life (at 3 h/day)
45.66
Half -Year Useful Life (5 h/day)
27.39
Half -year useful life (at 8 h/day)
17.12
Directional
Non-Directional
Single/range CCT
Only
Single CCT
6000
INDEX R9
15
Minimum cri range
83
Maximum cri range
4
Chromaticity x
0.304
Chromaticity y
0.312
Applicable standards
EN55015:2006;EN6147:2009;EN61000-3-2:2006;EN6100-3-3:2008

Characteristics

Product code
CH-PCBA7W-CW
Luminous efficacy (LM/W)
100
Light temperature
Cold
Kelvin º
6000
Power (W)
7.0
Luminosity (LM)
700
Measures (mm)
Ø50
Diameter
50
Number and type of LEDs
SMD5630
CRI
80
Construction
Aluminum
Opening Angle (º)
120
Facility
IP20
Strain
20-24V
Estimated life (H)
50000
Dimable
Yes
Work frequency (Hz)
50/ 60
Energy class
F
Certificates
CE/ROHS/ISO9001
Bush
Terminal
Temperature range (ºC)
-20 +40
Energy consumption (kWh/1000h)
7.0
Weight (gr)
60
Flicker
0.85
Half -year useful life (at 3 h/day)
45.66
Half -Year Useful Life (5 h/day)
27.39
Half -year useful life (at 8 h/day)
17.12
Directional
Non-Directional
Single/range CCT
Only
Single CCT
6000
INDEX R9
15
Minimum cri range
83
Maximum cri range
4
Chromaticity x
0.304
Chromaticity y
0.312
Applicable standards
EN55015:2006;EN6147:2009;EN61000-3-2:2006;EN6100-3-3:2008

Description

The LED Modules are usually used as a direct replacement for light bulbs.

This module has 15 high power SMD5630 LEDs. They are mounted on a 50mm circular aluminum plate, 1, 2mm thick. This plate collaborates with the dissipation of the temperature.

For its correct dissipation, it is necessary to place another dissipating body.
