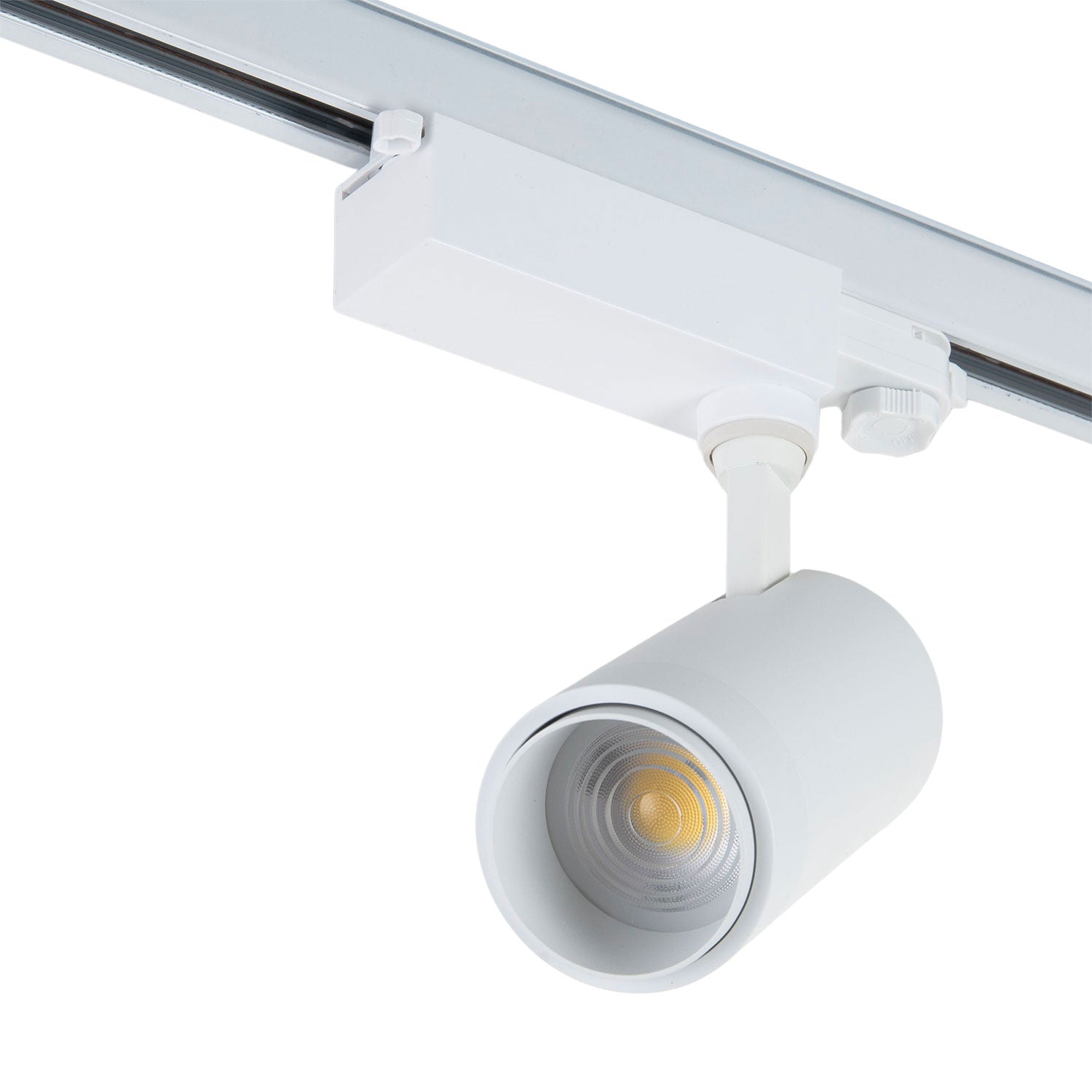

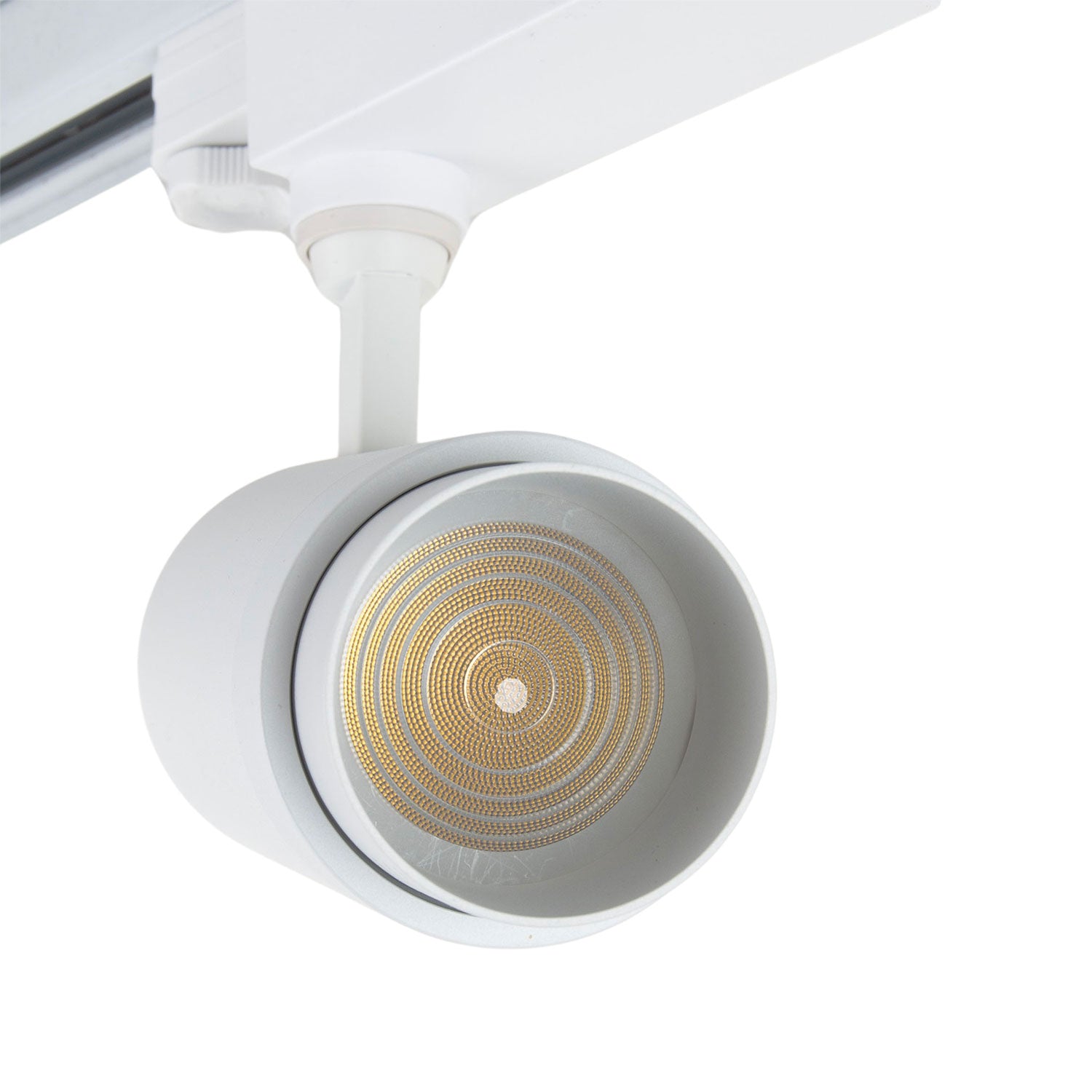

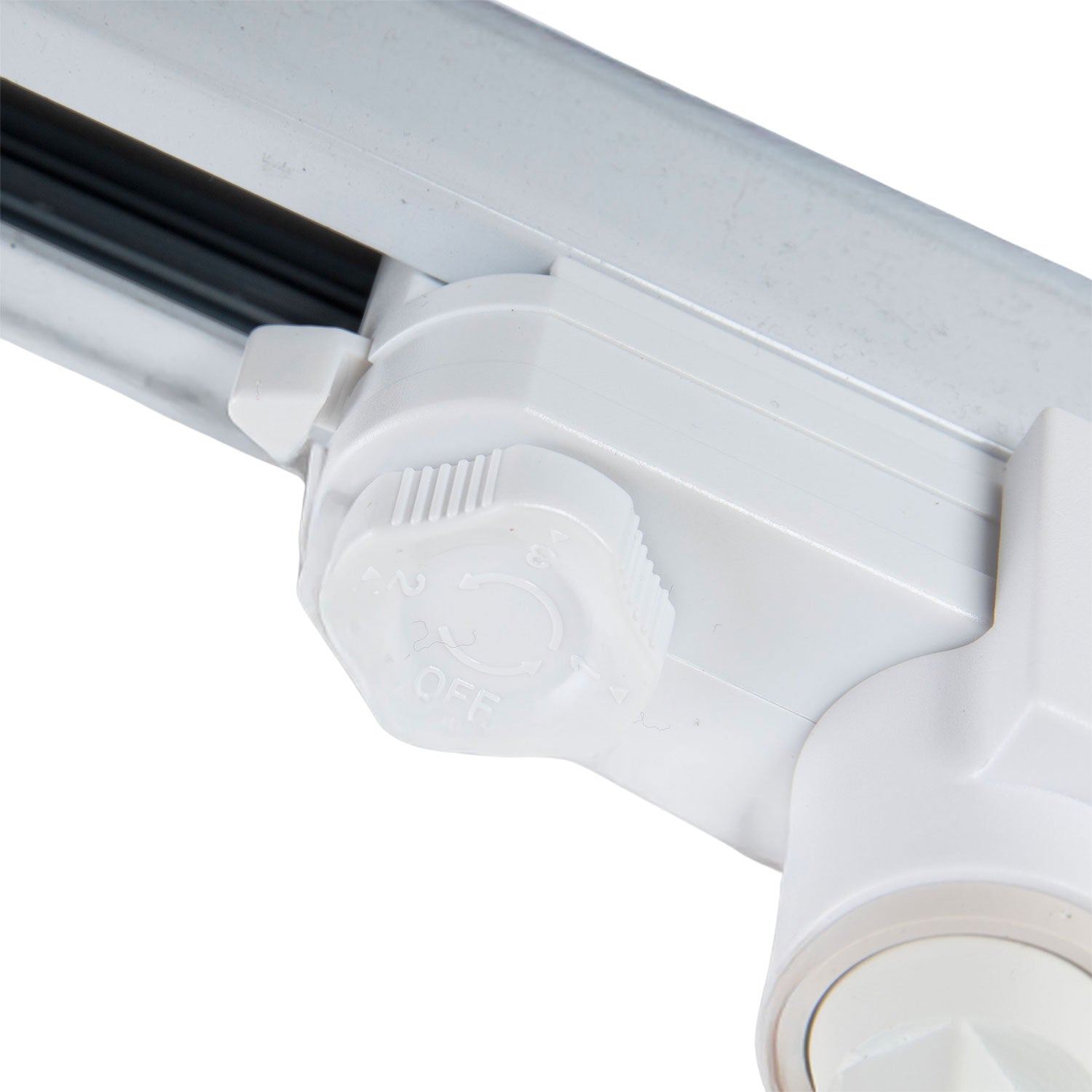

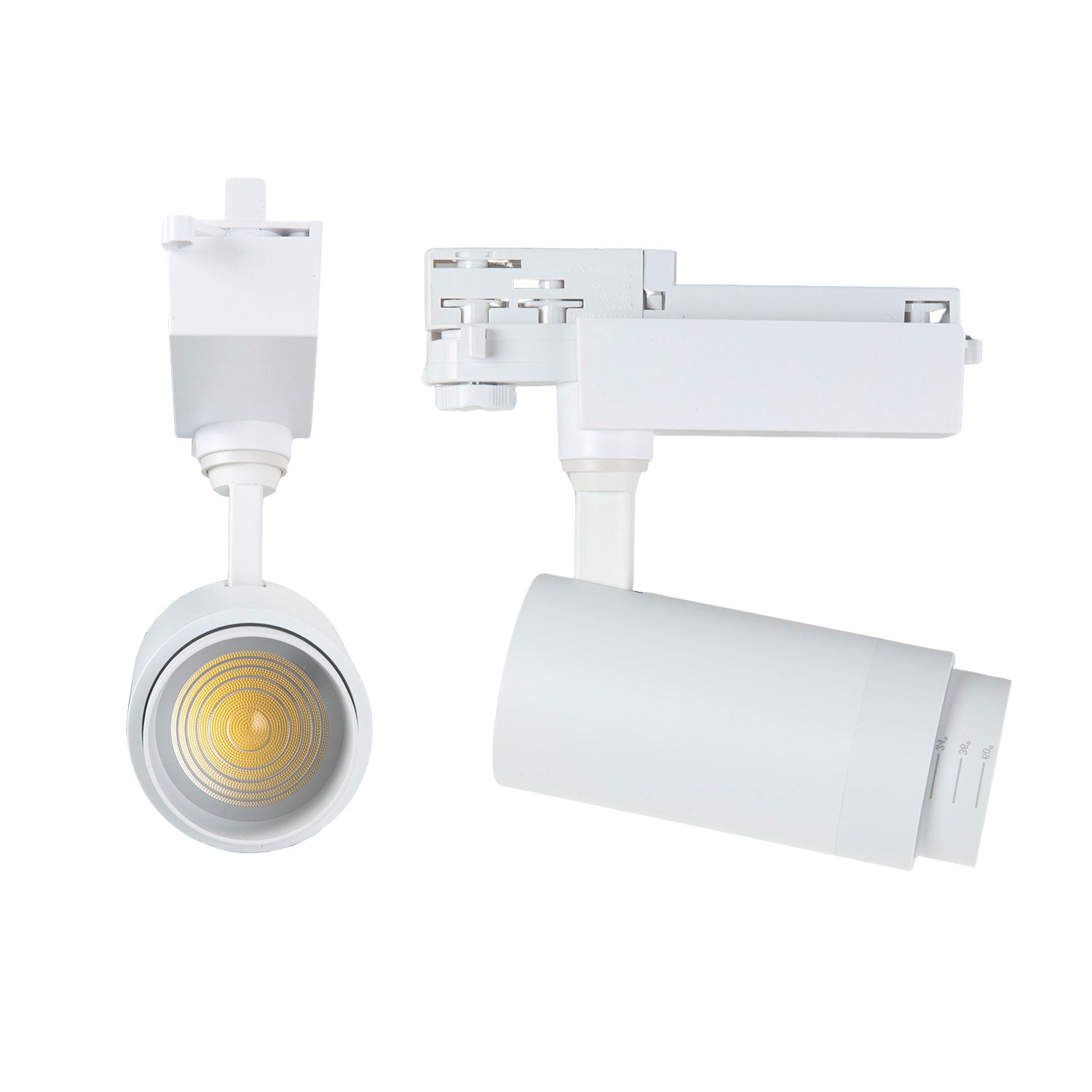

Multi-Angle LED Track Spotlight 30W 2700Lm CRI38 3CCT Three-Phase 40,000H [1916-TRL30W-W]

Multi-Angle LED Track Spotlight 30W 2700Lm CRI38 3CCT Three-Phase 40,000H [1916-TRL30W-W]

See questions and answers

For additional amounts the delivery period is 60 days As of the order date
  • Brand:Kimera / Philips Led
  • Sku1916-TRL30W-W
  • A 2021
Eprel file
Warranty
  • Warranty 3 years
  • Eye Care Eye Care
  • Tüv Süd TUV SUD
  • 15-60 º Opening
29,70€
29,70€ Infinity%
Tax included. The Shipping expenses They are calculated on the payment screen.

Stock available

Warranty
  • Warranty 3 years
  • Eye Care Eye Care
  • Tüv Süd TUV SUD
  • 15-60 º Opening
Are you a professional customer?

We have published a new website only for professionals.

Go to Professional Area
Advantages of buying in Greenice
  • Guaranteed minimum price
  • Free returns up to 60 days
  • Free shipping From € 21.95
  • Until 10 years guarantee
(1916-TRL30W-W_padreImg_1916_trl30w_w_0.jpeg)
CCT
Stock available
Free shipping
29,70€
29,70€ Infinity%

Accessories

  • (LM-LM3209-EM_padreImg_lm_lm3209_em_0.jpeg)

    1M Three-Phase Rail for Embedding [LM-LM3209-EM]

    GreenIce

    1M Three-Phase Rail for Embedding [LM-LM3209-EM]

    19,15€
    19,15€ Infinity%
  • (LM-LM3209_padreImg_lm_lm3209_0.jpeg) (LM-LM3209_padreImg_lm_lm3209_1.jpeg)

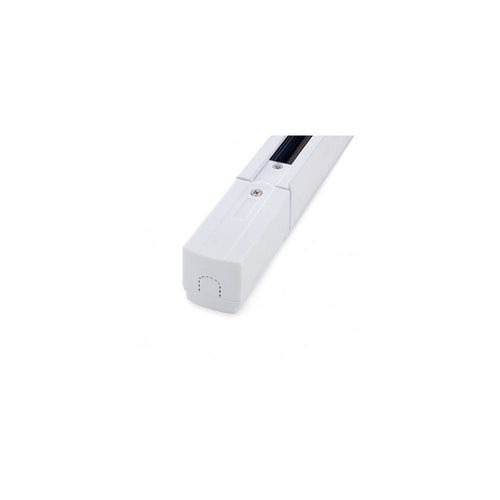

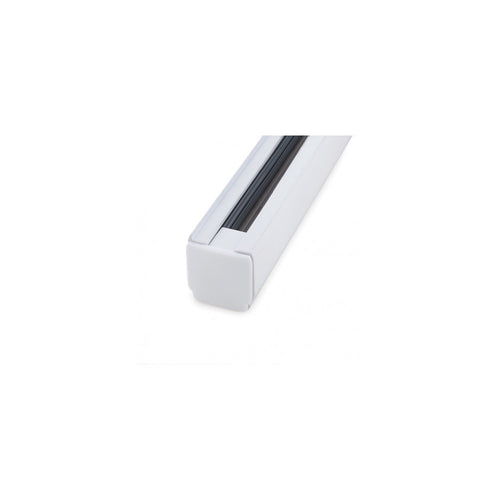

    3-Phase Track 2M

    GreenIce

    3-Phase Track 2M

    36,27€
    36,27€ Infinity%

Technical file

Product code
1916-TRL30W-W

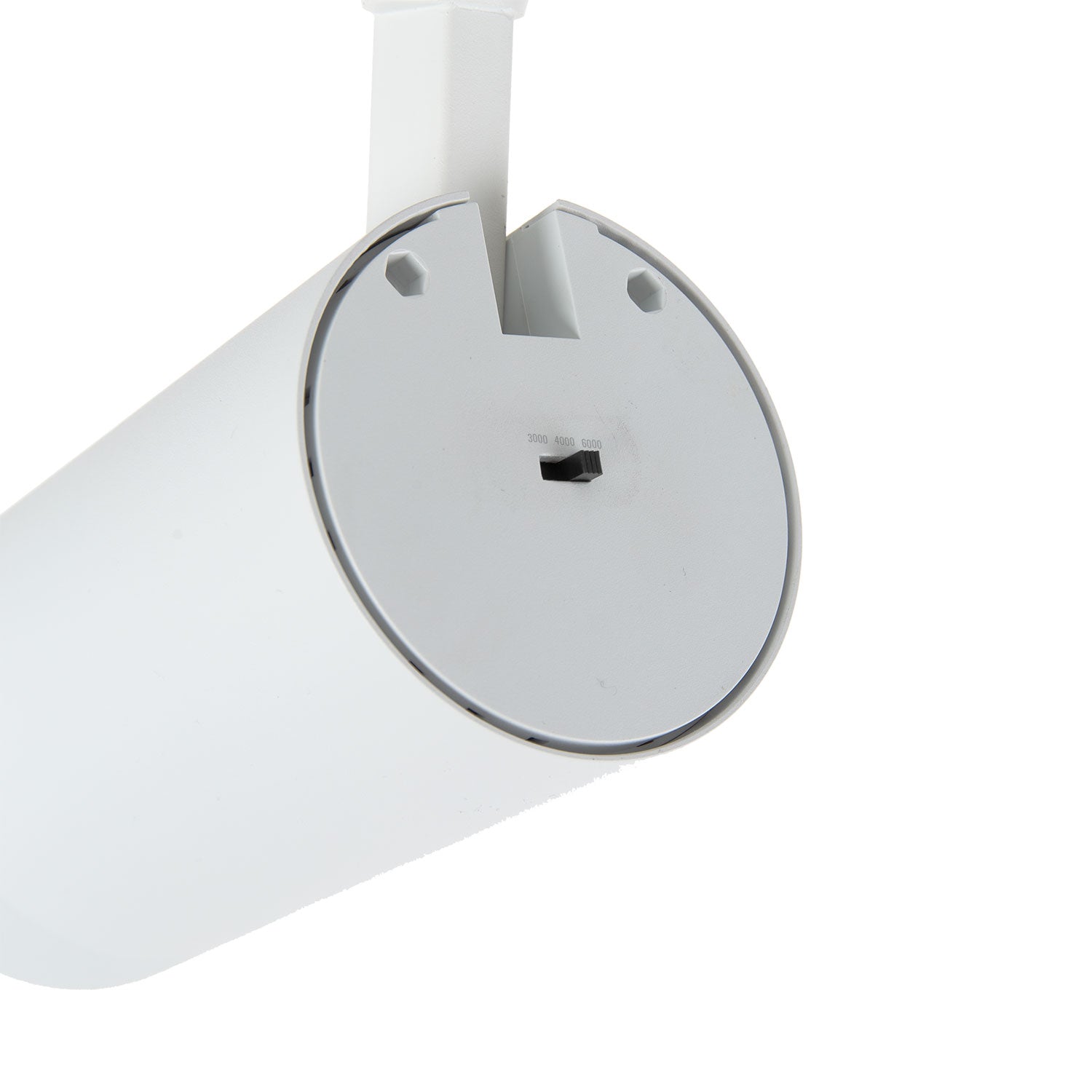

Light temperature
3CCT
Power (W)
30.0
Luminosity (LM)
2700
Luminous efficacy (LM/W)
90
LED efficacy
99
Type of LEDs
Philips Led
Number of LEDs
1
Measures (mm)
88x148x153
High
148.0
Long
88.0
Broad
153.0
CRI
90
UGR
◄17
Power factor (PF)
0.9
Construction
Aluminum/ PC

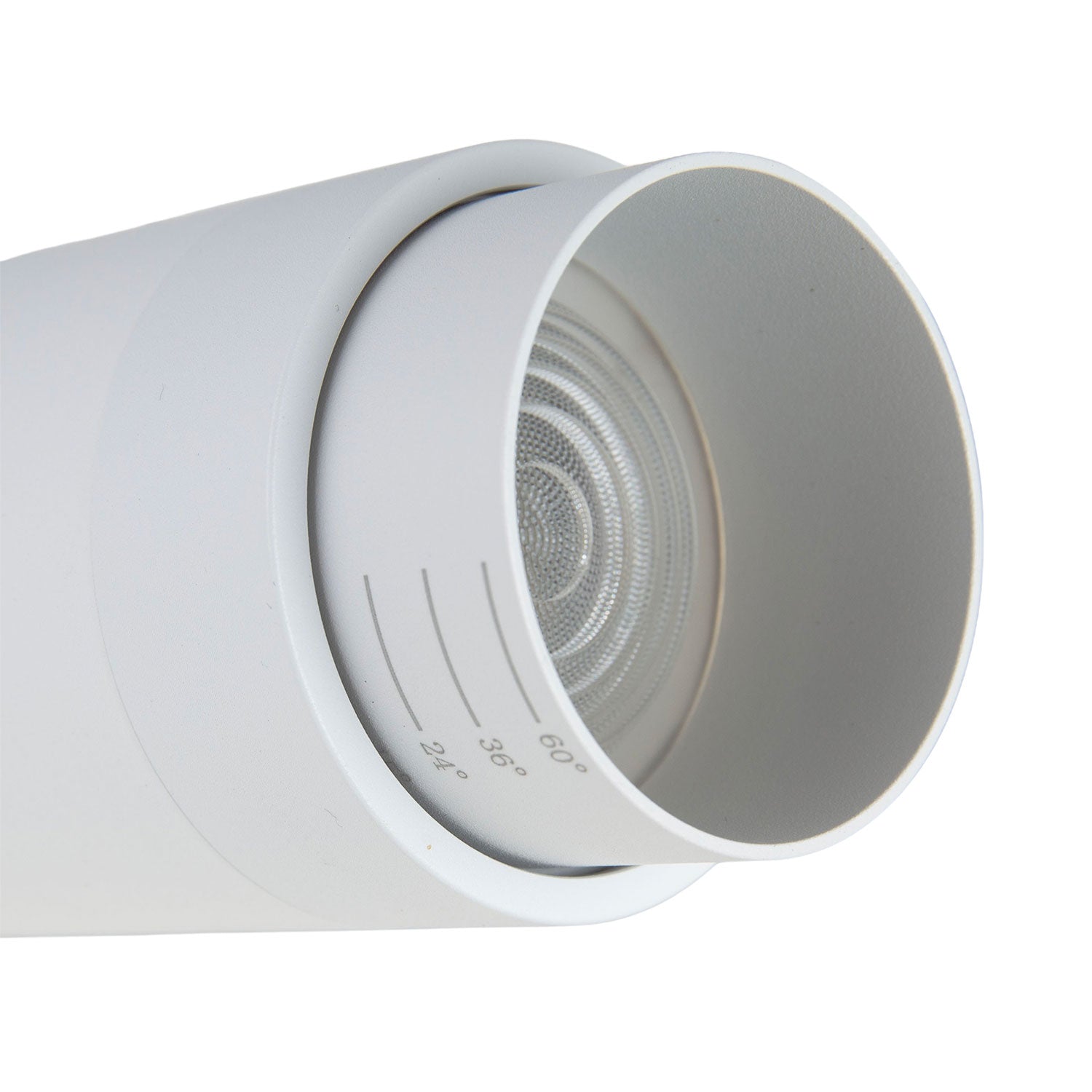

Opening Angle (º)
15-60
Facility
IP20
Strain
190-260V
Driver output
DC72-96V
Estimated life (H)
40000
Dimable
Yeah
Equivalence (W)
80
Isolation class
II
Work frequency (Hz)
50/ 60
Start time (s)
0.1
Energy class
F
Certificates
CE/ROHS/ISO9001
Bush
Terminal Block
Temperature range (ºC)
-20 +40
Lighting cycles
100000
Energy consumption (kWh/1000h)
30.0
Weight (gr)
700
Flicker
0.95
Half -year useful life (at 3 h/day)
36.52
Half -Year Useful Life (5 h/day)
21.91
Half -year useful life (at 8 h/day)
13.69
Directional
Directional
Single/range CCT
Range
INDEX R9
27
Minimum cri range
95
Maximum cri range
1
Chromaticity x
0.323
Chromaticity y
0.352
Minimum CCT range
3000
Maximum cri range
5000
Applicable standards
EN 55015:2006; EN 61547:2009; EN 61000-3-2:2006; EN61000-3-3:2008; EN 60598-2-1:1989; EN 60598-1:2008; EN 61347-1:2008; EN 61347-2-13:2006; EN 62031:2008; EN 62471:2008; EN 62493:2010
