Technical file
Product code
WR-AYRR-12-CW
Luminous efficacy (LM/W)
100
Light temperature
Cold White
Kelvin º
6000
Power (W)
12.0
Luminosity (LM)
1204
Measures (mm)
Ø170x20
High
20.0
Diameter
170
Number and type of LEDs
OSRAM
CRI
81
UGR
19
Power factor (PF)
0.9
Construction
Aluminum
Opening Angle (º)
120
Facility
IP20
Strain
230VAC
Estimated life (H)
30000
Isolation class
II
Work frequency (Hz)
50-60
Start time (s)
0.1
Energy class
F
Bush
Terminal
Temperature range (ºC)
-40+60
Diffuser
Transparent
Energy consumption (kWh/1000h)
12.0
Weight (gr)
260
Flicker
0.4
Half -year useful life (at 3 h/day)
27.39
Half -Year Useful Life (5 h/day)
16.43
Half -year useful life (at 8 h/day)
10.27
Single CCT
6000
Minimum cri range
95
Maximum cri range
1
Chromaticity x
0.313
Chromaticity y
0.324
Applicable standards
EN 55015:2013; EN 61547:2009; EN 61000-3-2:2014; EN 61000-3-3:2013
Description

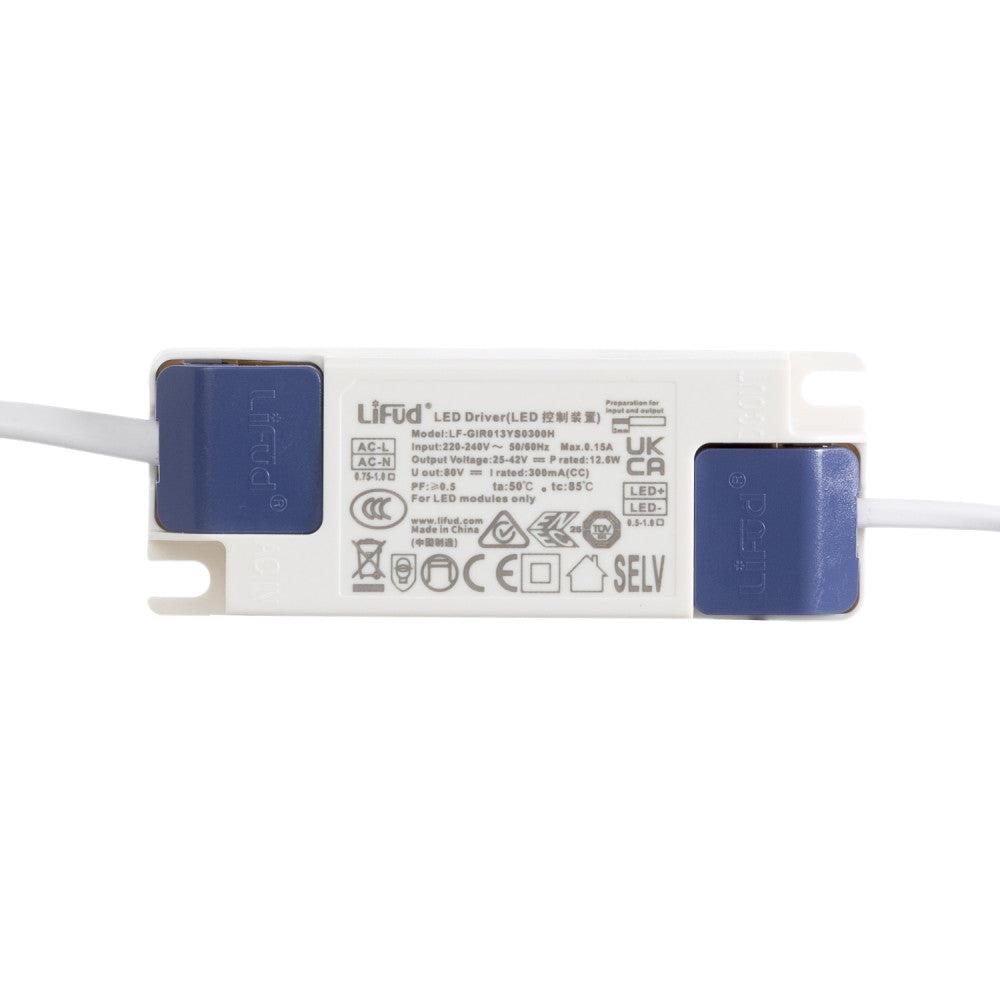

The circular LED board with LIFUD FICKER FREE driver offers solutions for offices, factories, supermarkets, stores and for residential use. It can be installed directly to power outlets supplied by the electrical network (85-265VAC) with a service frequency of 50/60Hz.
It has a high efficiency (100 Lm/W) consuming 12W through SMD2835 type LEDs and managing to provide a luminous flux of 1200Lm distributed evenly by an opalized plastic diffuser from which a color rendering index of 80 is obtained. It provides equivalent lighting to an 80W incandescent bulb, its consumption represents a value of 12kWh/1000h, reducing the amount of energy billed and emissions of polluting gases into the atmosphere.
White finish built with aluminum. The plate has an IP20 protection degree (valid for dust and humidity indoors), in addition to being robust enough for the required mechanical demands.
This plate is available in cold white 6000ºK. The indicated color temperature may vary within a tolerance of 7%.
LED downlights are ideal for general lighting in spaces that require high performance and long periods of continuous lighting. And that is why they include a high-quality aluminum heatsink, which helps ensure that the heat emission of the LED luminaire is minimal. Furthermore, they are very easy to install and, being so thin, they can be placed in low-height false ceilings where more voluminous solutions could not be used.
EN 55015:2013; EN 61547:2009; EN 61000-3-2:2014; EN 61000-3-3:2013
Description
Description
The circular LED board with LIFUD FICKER FREE driver offers solutions for offices, factories, supermarkets, stores and for residential use. It can be installed directly to power outlets supplied by the electrical network (85-265VAC) with a service frequency of 50/60Hz.
It has a high efficiency (100 Lm/W) consuming 12W through SMD2835 type LEDs and managing to provide a luminous flux of 1200Lm distributed evenly by an opalized plastic diffuser from which a color rendering index of 80 is obtained. It provides equivalent lighting to an 80W incandescent bulb, its consumption represents a value of 12kWh/1000h, reducing the amount of energy billed and emissions of polluting gases into the atmosphere.
White finish built with aluminum. The plate has an IP20 protection degree (valid for dust and humidity indoors), in addition to being robust enough for the required mechanical demands.
This plate is available in cold white 6000ºK. The indicated color temperature may vary within a tolerance of 7%.
LED downlights are ideal for general lighting in spaces that require high performance and long periods of continuous lighting. And that is why they include a high-quality aluminum heatsink, which helps ensure that the heat emission of the LED luminaire is minimal. Furthermore, they are very easy to install and, being so thin, they can be placed in low-height false ceilings where more voluminous solutions could not be used.
