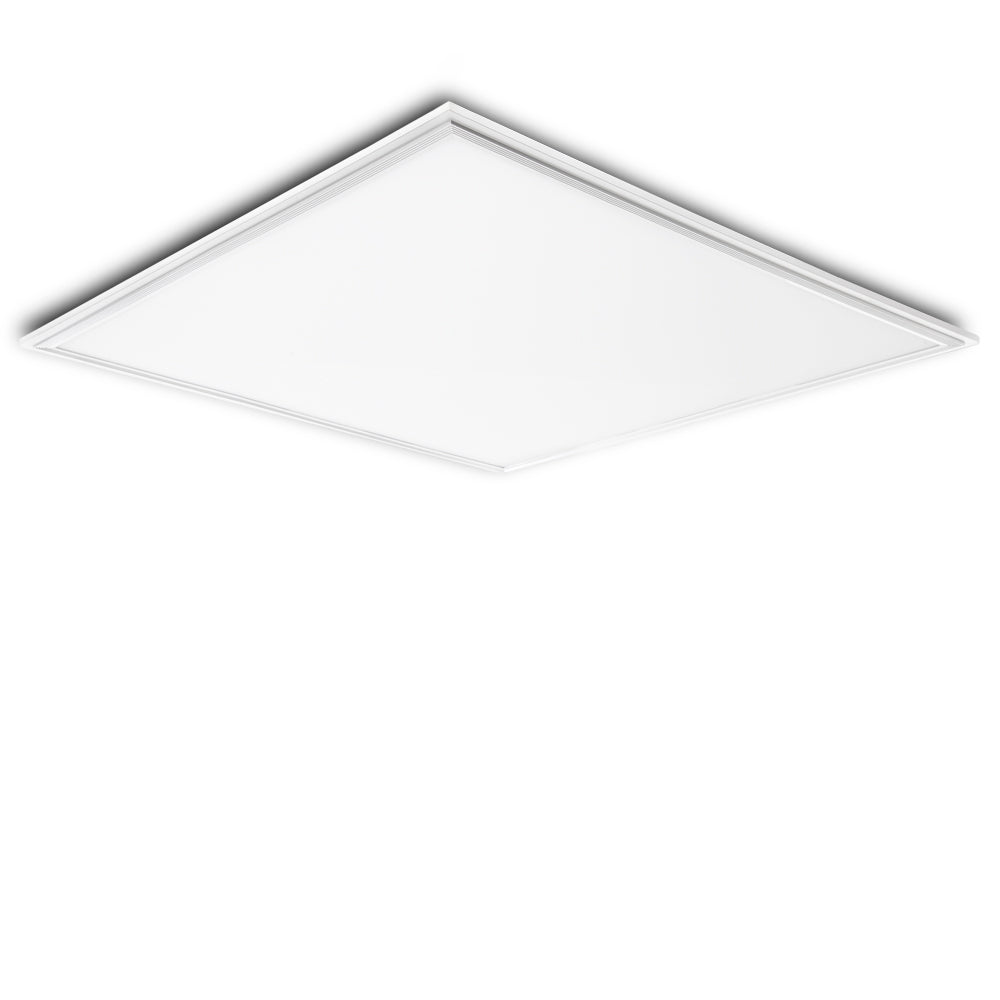

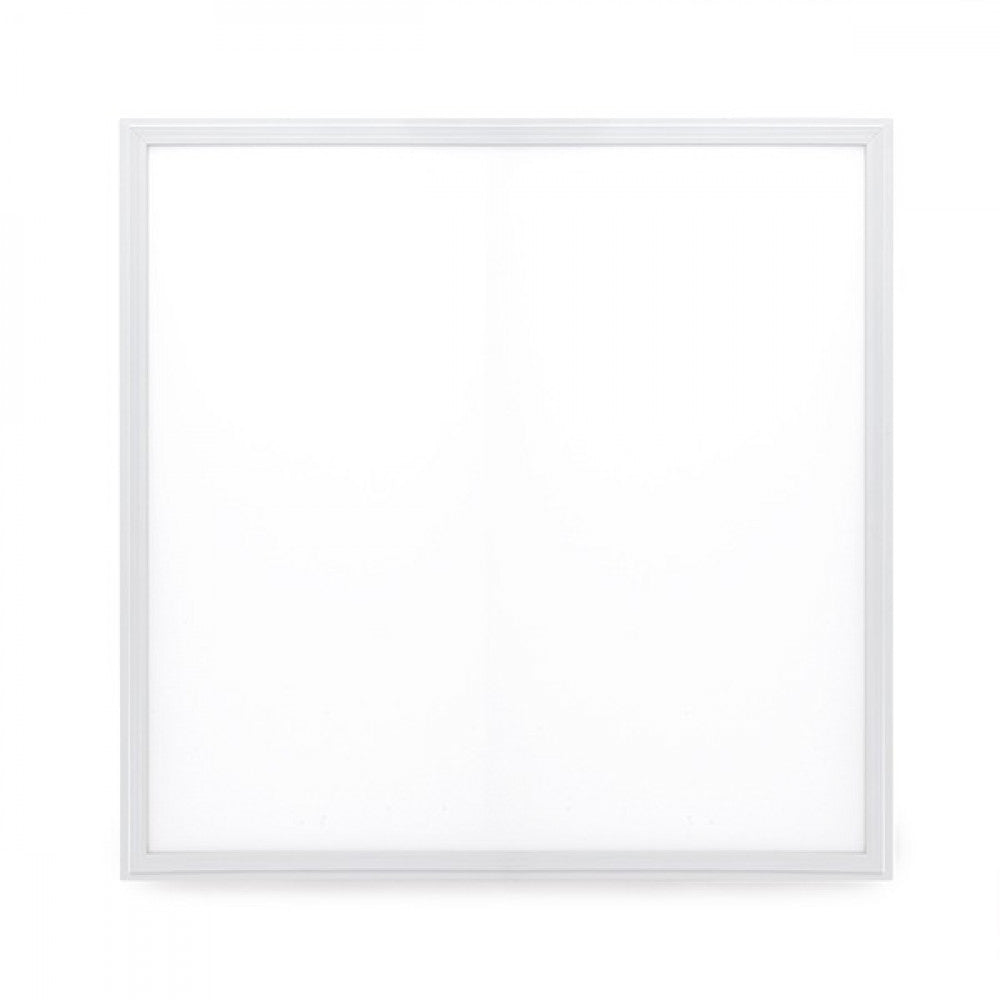

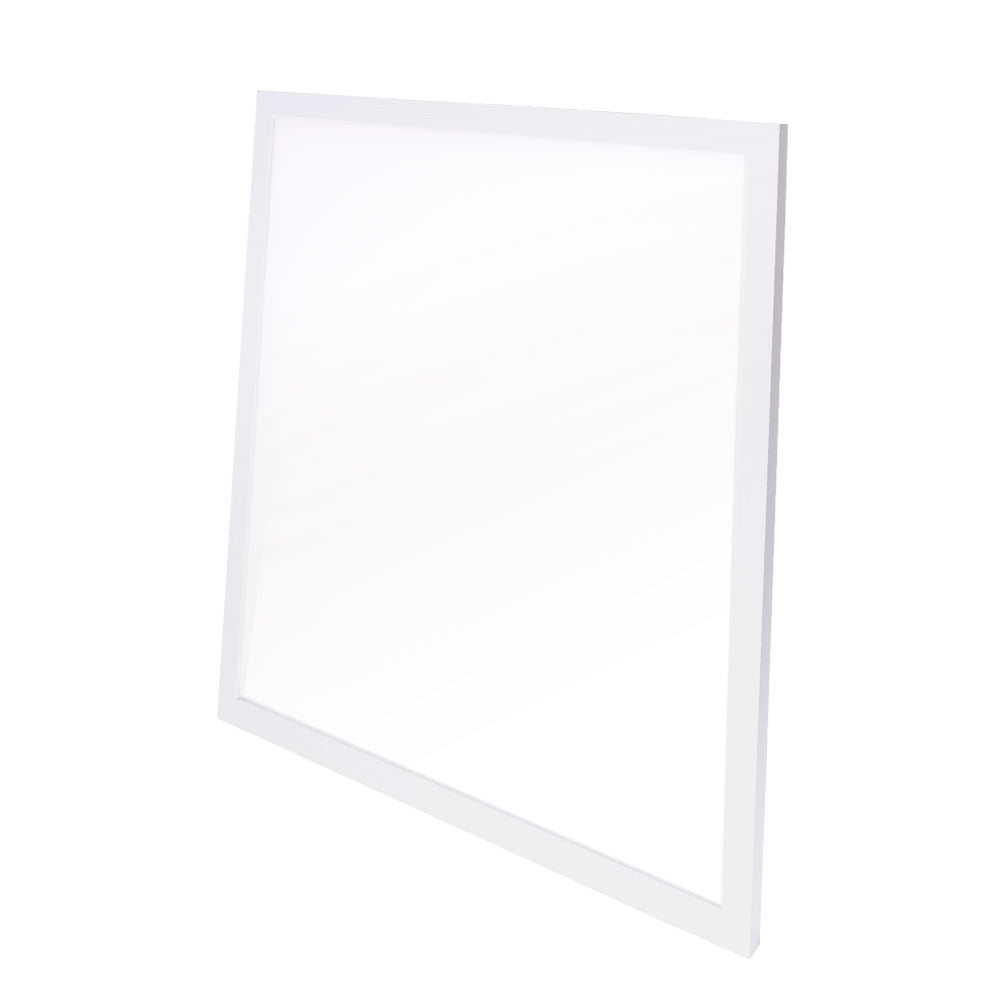

Superslim LED Panel 36W 3,623Lm 6000ºK 60x60Cm UGR19 White Frame 40,000H [HO-PANMB59559536W-CW]

Superslim LED Panel 36W 3,623Lm 6000ºK 60x60Cm UGR19 White Frame 40,000H [HO-PANMB59559536W-CW]

For additional amounts the delivery period is 60 days As of the order date
  • Brand:GreenIce / Samsung Led
  • SkuHO-PANMB59559536W-CW
  • AA 2021
Eprel file
Warranty
  • Warranty 5 years
  • Eye Care Eye Care
  • Tüv Süd TUV SUD
  • 120 º Opening
25,66€
25,66€ Infinity%
Tax included. The Shipping expenses They are calculated on the payment screen.

Stock available

Warranty
  • Warranty 5 years
  • Eye Care Eye Care
  • Tüv Süd TUV SUD
  • 120 º Opening
Are you a professional customer?

We have published a new website only for professionals.

Go to Professional Area
Advantages of buying in Greenice
  • Guaranteed minimum price
  • Free returns up to 60 days
  • Free shipping From € 21.95
  • Until 10 years guarantee
(HO-PANMB59559536W-CW_padreImg_ho_panmb59559536w_cw_0.jpeg)
Cool White
Stock available
Free shipping
25,66€
25,66€ Infinity%

Accessories

  • (GR-DRDIM-36W_padreImg_gr_drdim_36w_0.jpeg) (GR-DRDIM-36W_padreImg_gr_drdim_36w_1.jpeg)

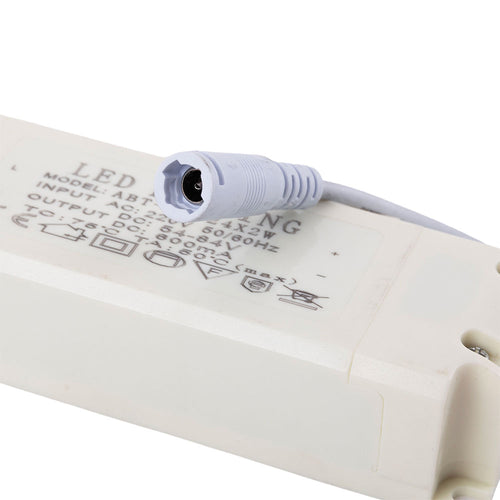

    Driver Dimmable LED Panel 36W

    GreenIce

    Driver Dimmable LED Panel 36W

    10,68€
    10,68€ Infinity%
  • (HZ-KITUSPENSION_padreImg_hz_kituspension_0.jpeg)

    Suspension Kit 970Mm LED Panels

    GreenIce

    Suspension Kit 970Mm LED Panels

    3,11€
    3,11€ Infinity%
  • (GR-DALI-36W_padreImg_gr_dali_36w_0.jpeg) (GR-DALI-36W_padreImg_gr_dali_36w_1.jpeg)

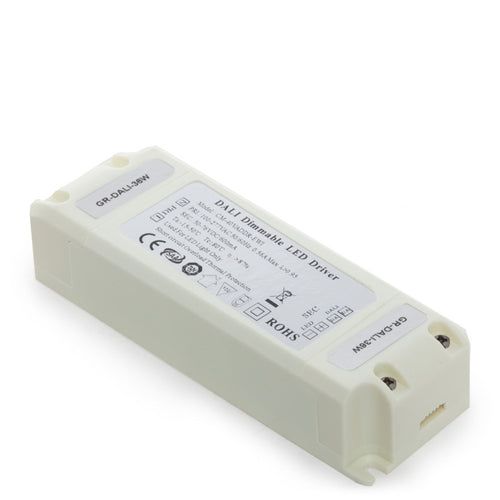

    Driver Adjustable DALI 36W

    GreenIce

    Driver Adjustable DALI 36W

    36,50€
    36,50€ Infinity%
  • (HO-HP-ND-36W_padreImg_ho_hp_nd_36w_0.jpeg) (HO-HP-ND-36W_padreImg_ho_hp_nd_36w_1.jpeg)

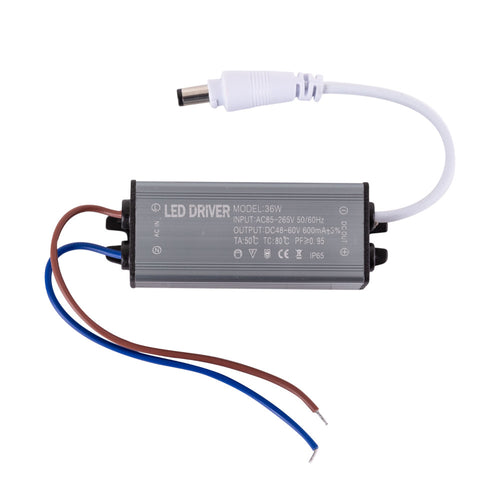

    Driver Non Dimmable 0.95 F.P. 50.000H LED Panel 36W

    GreenIce

    Driver Non Dimmable 0.95 F.P. 50.000H LED Panel 36W

    8,60€
    8,60€ Infinity%
  • (SB-BS041_padreImg_sb_bs041_0.jpeg) (SB-BS041_padreImg_sb_bs041_1.jpeg)

    Motion Sensor Recessed 360º ►1200/300W

    GreenIce

    Motion Sensor Recessed 360º ►1200/300W

    9,50€
    9,50€ Infinity%
  • (GR-DRDIM0-10V-36W_padreImg_gr_drdim0_10v_36w_0.jpeg) (GR-DRDIM0-10V-36W_padreImg_gr_drdim0_10v_36w_1.jpeg)

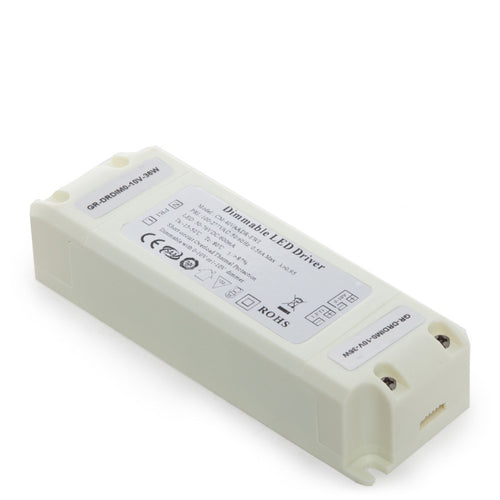

    Driver Adjustable 0-10V Ceiling Light / LED Panel 36W

    GreenIce

    Driver Adjustable 0-10V Ceiling Light / LED Panel 36W

    13,15€
    13,15€ Infinity%
  • (KD-LEDDIM-CREM_padreImg_kd_leddim_crem_0.jpeg) (KD-LEDDIM-CREM_padreImg_kd_leddim_crem_1.jpeg)

    Dimmer LEDs 90-240VAC 0-100% 200W Remote Control

    GreenIce

    Dimmer LEDs 90-240VAC 0-100% 200W Remote Control

    25,06€
    25,06€ Infinity%
  • (HO-KIT-MONSUP_padreImg_ho_kit_monsup_0.jpeg) (HO-KIT-MONSUP_padreImg_ho_kit_monsup_1.jpeg)

    Surface Mounting Kit for LED Panels

    GreenIce

    Surface Mounting Kit for LED Panels

    3,32€
    3,32€ Infinity%
  • (NE-M-P-600600_padreImg_ne_m_p_600600_0.jpeg) (NE-M-P-600600_padreImg_ne_m_p_600600_1.jpeg)

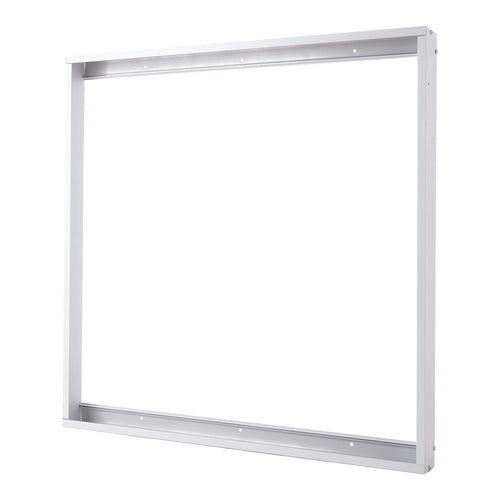

    Mounting Frame Surface Mounted LED Panel 60x60Cm

    GreenIce

    Mounting Frame Surface Mounted LED Panel 60x60Cm

    9,96€
    9,96€ Infinity%

Technical file

Product code
HO-PANMB59559536W-CW
Luminous efficacy (LM/W)
100
Light temperature
Cold White
Kelvin º
6000
Power (W)
36.0
Luminosity (LM)
3623
Measures (mm)
595x595x12
High
12.0
Long
595.0
Broad
595.0
Number and type of LEDs
Samsung Led
CRI
80
UGR
◄19
Power factor (PF)
0.99
Construction
Aluminum/PC
Opening Angle (º)
120
Facility
IP20
Strain
85-265VAC
Estimated life (H)
40000
Dimable
No
Equivalence (W)
190
Isolation class
II
Work frequency (Hz)
50/ 60
Start time (s)
0.2
Energy class
F
Certificates
CE/ROHS/ISO9001
Bush
Terminal
Temperature range (ºC)
-20 +40
Lighting cycles
100000
Diffuser
Microprismatic
Energy consumption (kWh/1000h)
36.0
Weight (gr)
2300
Flicker
0.95
Half -year useful life (at 3 h/day)
36.52
Half -Year Useful Life (5 h/day)
21.91
Half -year useful life (at 8 h/day)
13.69
Directional
Non-Directional
Single/range CCT
Only
Single CCT
6000
INDEX R9
22
Minimum cri range
92
Maximum cri range
11
Chromaticity x
0.306
Chromaticity y
0.327
Additional information
Possibility of dimming by purchasing an adjustable controller in the Accessories tab. Does not include suspension accessories
Driver output
DC38V-62V 600MA
Applicable standards
EN 55015:2013;EN 61547:2009:EN 61000-3-2:2006;EN 61000-3-3:2013;EN 61000-4-2:2009;EN 61000-4-3:2006;EN 61000-4-4:2004;EN 61000-4-5:2006; EN 61000-4-6:2009; EN 61000-4-8:2010; EN 61000-4-11:2004;1194/2012/EU;874/2012/EU;EN 60598-1:2008;EN 60598-2-2:2012

Characteristics

Product code
HO-PANMB59559536W-CW
Luminous efficacy (LM/W)
100
Light temperature
Cold White
Kelvin º
6000
Power (W)
36.0
Luminosity (LM)
3623
Measures (mm)
595x595x12
High
12.0
Long
595.0
Broad
595.0
Number and type of LEDs
Samsung Led
CRI
80
UGR
◄19
Power factor (PF)
0.99
Construction
Aluminum/PC
Opening Angle (º)
120
Facility
IP20
Strain
85-265VAC
Estimated life (H)
40000
Dimable
No
Equivalence (W)
190
Isolation class
II
Work frequency (Hz)
50/ 60
Start time (s)
0.2
Energy class
F
Certificates
CE/ROHS/ISO9001
Bush
Terminal
Temperature range (ºC)
-20 +40
Lighting cycles
100000
Diffuser
Microprismatic
Energy consumption (kWh/1000h)
36.0
Weight (gr)
2300
Flicker
0.95
Half -year useful life (at 3 h/day)
36.52
Half -Year Useful Life (5 h/day)
21.91
Half -year useful life (at 8 h/day)
13.69
Directional
Non-Directional
Single/range CCT
Only
Single CCT
6000
INDEX R9
22
Minimum cri range
92
Maximum cri range
11
Chromaticity x
0.306
Chromaticity y
0.327
Additional information
Possibility of dimming by purchasing an adjustable controller in the Accessories tab. Does not include suspension accessories
Driver output
DC38V-62V 600MA
Applicable standards
EN 55015:2013;EN 61547:2009:EN 61000-3-2:2006;EN 61000-3-3:2013;EN 61000-4-2:2009;EN 61000-4-3:2006;EN 61000-4-4:2004;EN 61000-4-5:2006; EN 61000-4-6:2009; EN 61000-4-8:2010; EN 61000-4-11:2004;1194/2012/EU;874/2012/EU;EN 60598-1:2008;EN 60598-2-2:2012

Description

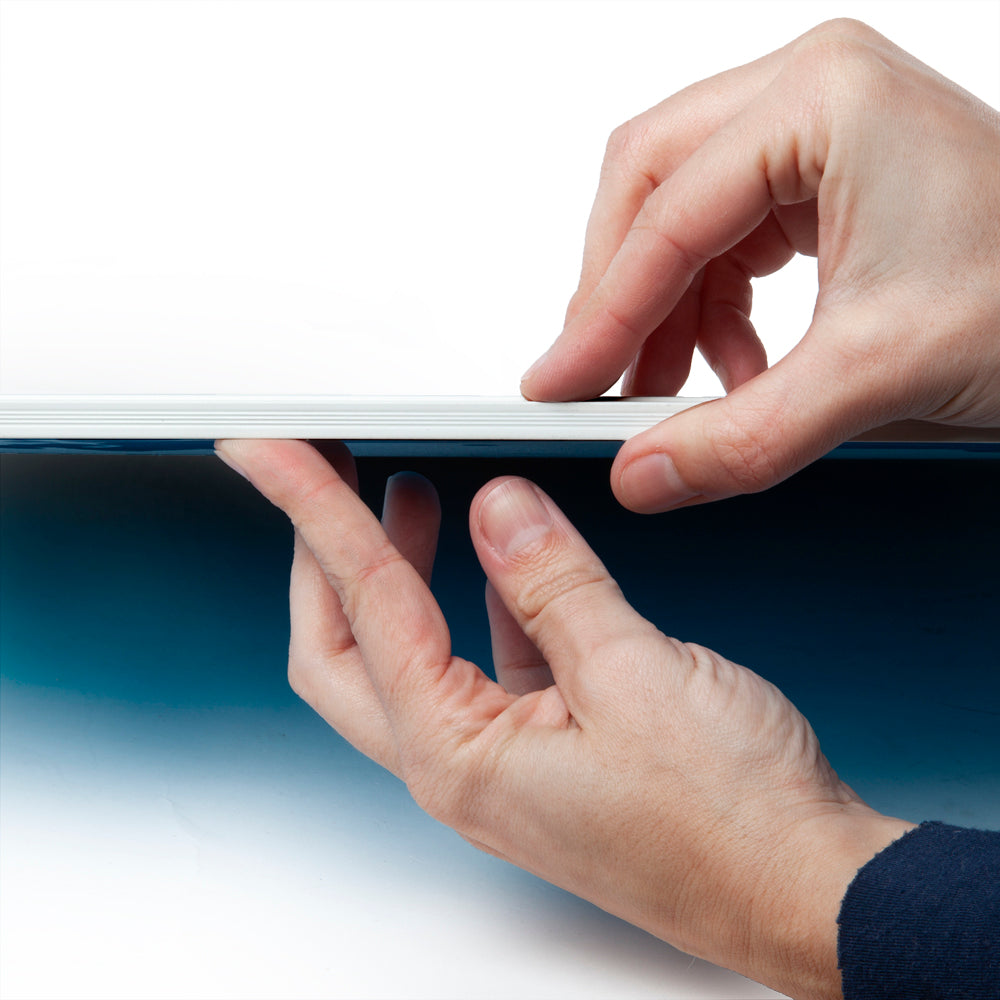

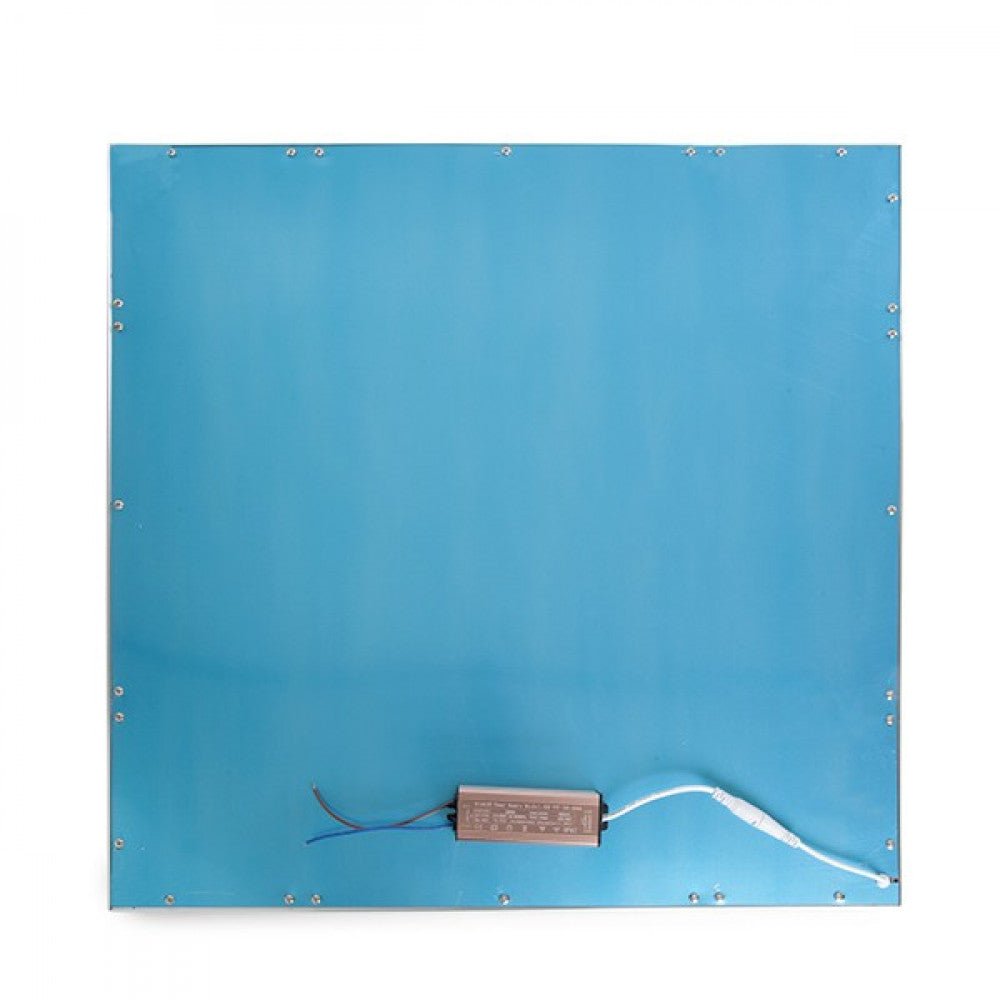

The 60x60cm square LED panel has an elegant finish, a white lacquered aluminum frame and an ultra-thin design of only 12mm.With a immediate start-up, without noise and without flickering, this LED Panel is perfect for places where you want to maximize the illuminated space, projecting light uniformly and without glare.

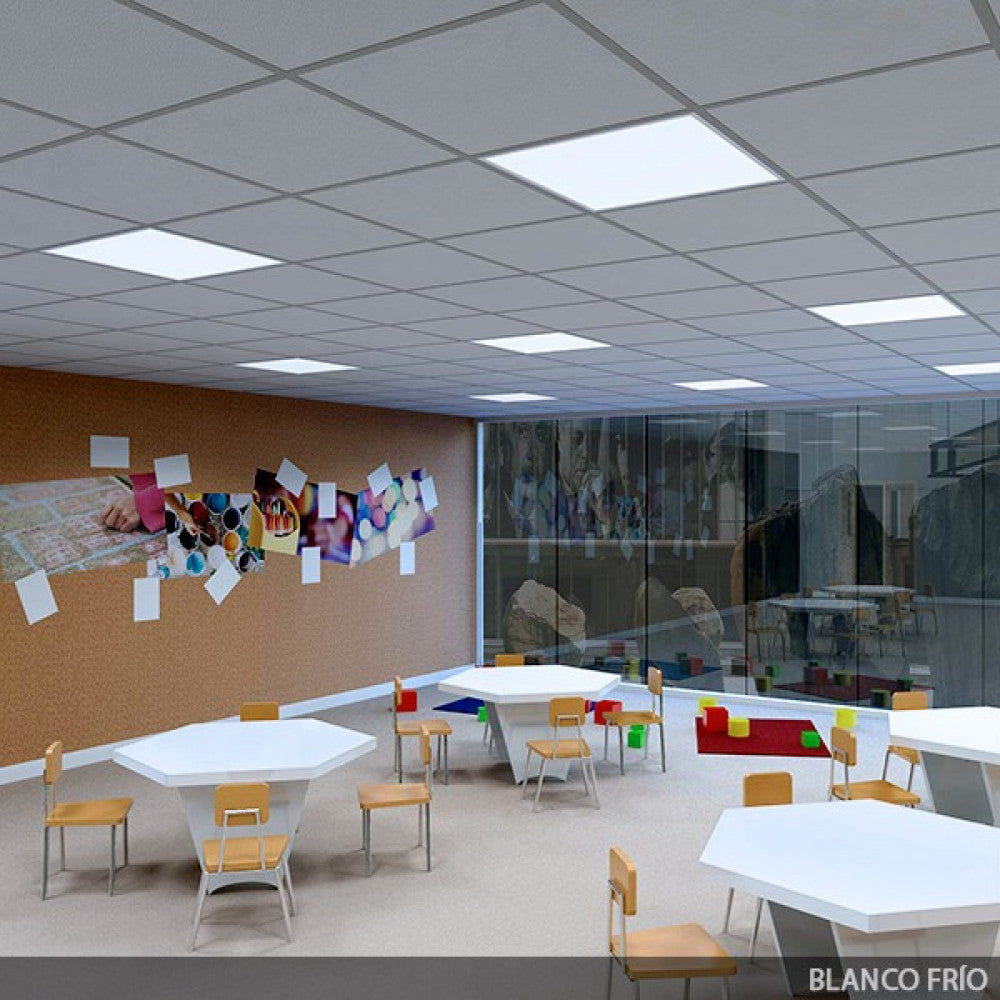

It offers solutions for offices, factories, supermarkets , stores and for residential use, due to its design and elegant finish, it represents an efficient alternative for the most demanding designers. It can be installed directly to the sockets supplied by the electrical network (85-265VAC) with a service frequency of 50/60Hz . It has a high efficacy (100 Lm/W) consuming 36W through 320 SMD3014 type LEDs and managing to provide a luminous flux of 3623Lm distributed evenly through an opalized plastic diffuser from which a color rendering index of 80 is obtained. It provides lighting equivalent to a 200W incandescent bulb, its consumption represents a value of 36kWh/1000h, reducing the amount of energy billed and the emissions of polluting gases into the atmosphere.

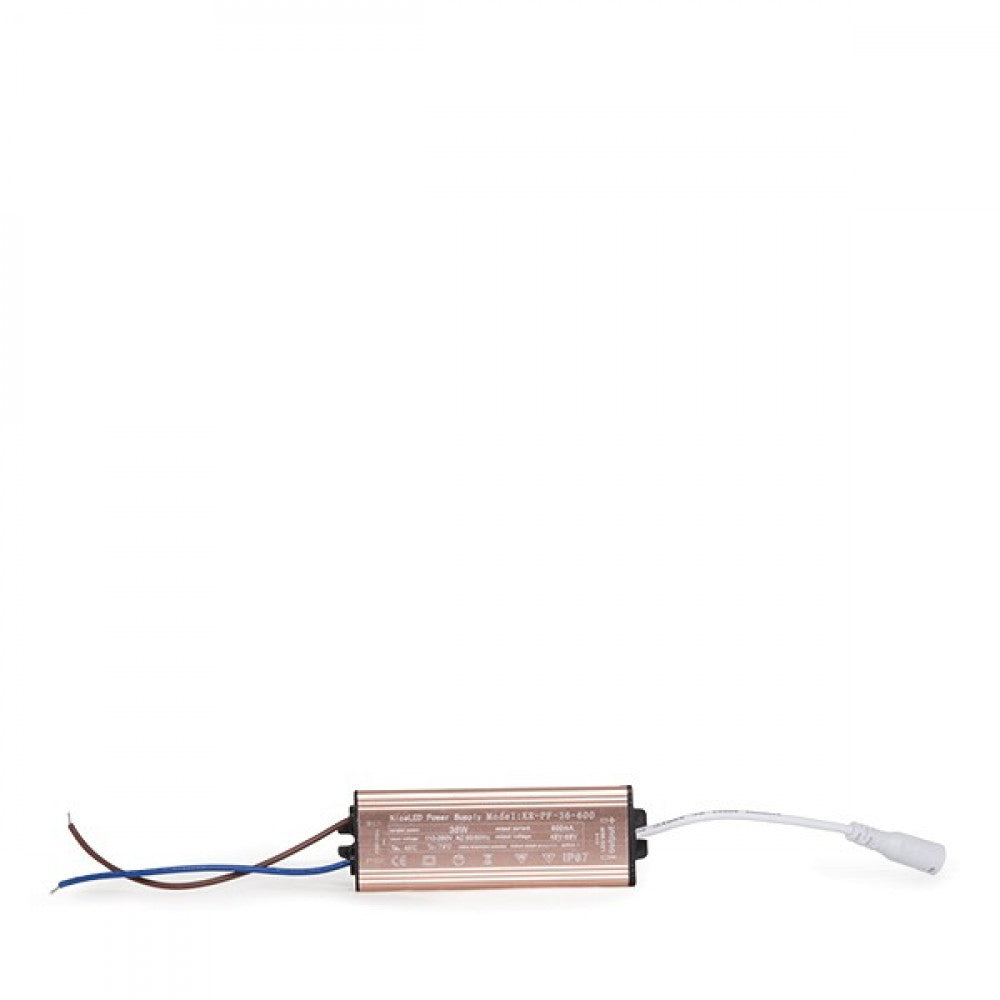

This panel It is powered by a non-dimmable driver included in the package that must be connected directly to the network, with an output connector compatible with panel connection (36-66VDC, 600mA), the necessary accessories for installation are optionally available of the surface panel.

White finish built with aluminum. The panel has an IP25 degree of protection (valid for dust and humidity indoors), in addition to being robust enough for the required mechanical demands.

These extra-flat LED screens consume up to 55% less and they do not require any type of maintenance, with which we avoid substitutions of primers or reactances. And having the advantage of being a much lighter and more manageable product.

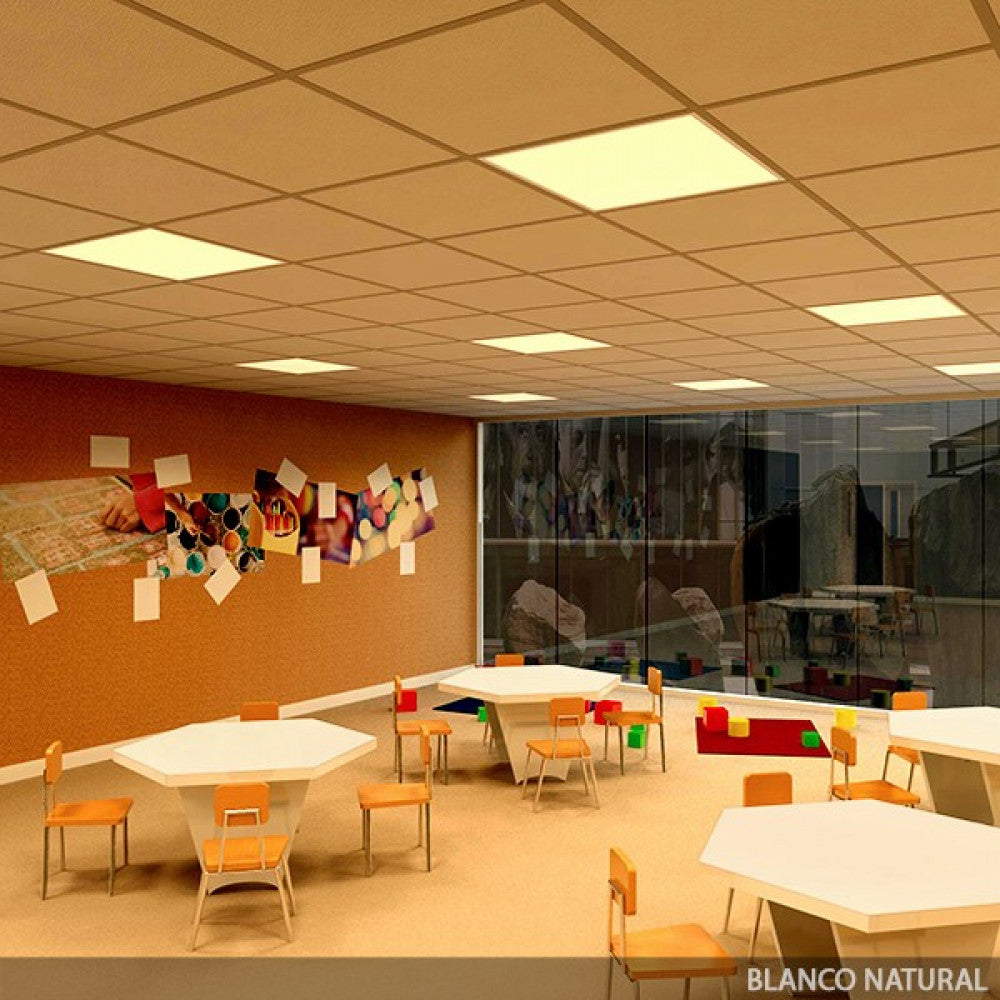

The led panel can be used supported on Armstrong false ceiling, on plasterboard with the help of the fastening clips for led panels, with which we can embed said panel in the ceiling, or with suspension kits for led panels. These kits are made up of four tensors, one in each corner, allowing us to achieve the desired height or inclination to give the perfect touch to our decoration.

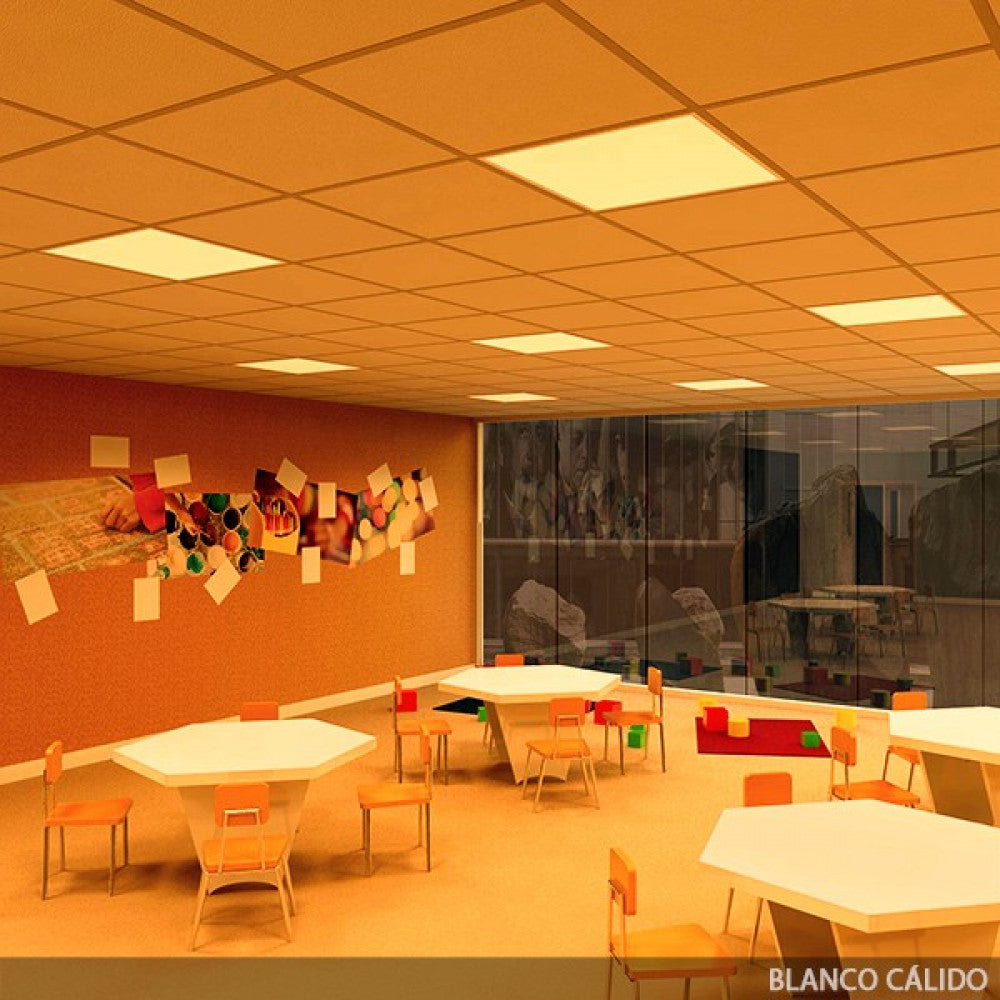

This panel is available in natural white (4200°K ), cold white (6000°K) and warm white (3000°K). The indicated color temperature may suffer fluctuations corresponding to a tolerance of 7%.
