Superslim LED Panel 40W 4000Lm 6000ºK 120x30Cm White Frame Driver Lifud 40,000H [HO-LM5264-CW]

Superslim LED Panel 40W 4000Lm 6000ºK 120x30Cm White Frame Driver Lifud 40,000H [HO-LM5264-CW]

See questions and answers

For additional amounts the delivery period is 60 days As of the order date
  • Brand:GreenIce  / Lifud Driver
  • SkuHO-LM5264-CW
  • AA 2021
Eprel file
Warranty
  • Warranty 3 years
  • 120 º Opening
21,35€
21,35€ Infinity%
Tax included. The Shipping expenses They are calculated on the payment screen.

Stock available

Warranty
  • Warranty 3 years
  • 120 º Opening
Are you a professional customer?

We have published a new website only for professionals.

Go to Professional Area
Advantages of buying in Greenice
  • Guaranteed minimum price
  • Free returns up to 60 days
  • Free shipping From € 21.95
  • Until 10 years guarantee
(HO-LM5264-W_padreImg_ho_lm5264_w_0.jpeg)
Cool White
Stock available
Free shipping
21,35€
21,35€ Infinity%

Accessories

  • (CPS-LF-GSD040YA-40_padreImg_cps_lf_gsd040ya_40_0.jpeg) (CPS-LF-GSD040YA-40_padreImg_cps_lf_gsd040ya_40_1.jpeg)

    Driver LIFUD 40W AC220-240V 5 en 1 DIM (Dali/Push/0-10V/PWM/RX) Flicker Free + DIP

    Lifud Driver

    Driver LIFUD 40W AC220-240V 5 en 1 DIM (Dali/Push/0-10V/PWM/RX) Flicker Free + DIP

    27,28€
    27,28€ Infinity%
  • (CPS-LF-AAD040_padreImg_cps_lf_aad040_0.jpeg)

    Driver Lifud Adjustable DALI 40W In: 220-240V Out: 9-42VDC Flicker Free DIP Switch

    Lifud Driver

    Driver Lifud Adjustable DALI 40W In: 220-240V Out: 9-42VDC Flicker Free DIP Switch

    16,48€
    16,48€ Infinity%
  • (HZ-KITUSPENSION_padreImg_hz_kituspension_0.jpeg)

    Suspension Kit 970Mm LED Panels

    GreenIce

    Suspension Kit 970Mm LED Panels

    3,04€
    3,04€ Infinity%
  • (SB-BS041_padreImg_sb_bs041_0.jpeg) (SB-BS041_padreImg_sb_bs041_1.jpeg)

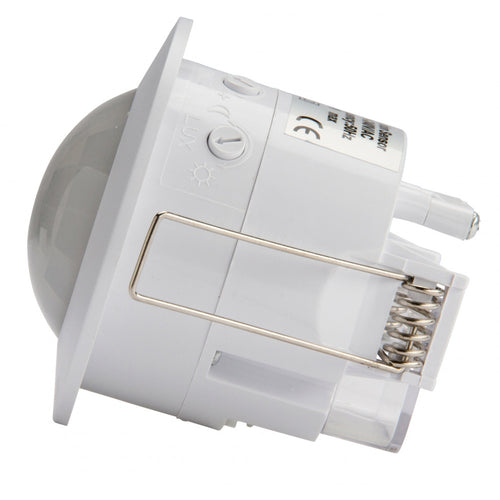

    Motion Sensor Recessed 360º ►1200/300W

    GreenIce

    Motion Sensor Recessed 360º ►1200/300W

    8,82€
    8,82€ Infinity%
  • (CPS-LF-AAA040_padreImg_cps_lf_aaa040_0.jpeg)

    Driver LIFUD Adjustable 0-10V 40W In: 220-240V Out: 9-42VDC Flicker Free DIP Switch

    Lifud Driver

    Driver LIFUD Adjustable 0-10V 40W In: 220-240V Out: 9-42VDC Flicker Free DIP Switch

    16,98€
    16,98€ Infinity%
  • (HO-KIT-MONSUP_padreImg_ho_kit_monsup_0.jpeg) (HO-KIT-MONSUP_padreImg_ho_kit_monsup_1.jpeg)

    Surface Mounting Kit for LED Panels

    GreenIce

    Surface Mounting Kit for LED Panels

    3,83€
    3,83€ Infinity%
  • (HO-CLIP-PAN-4_padreImg_ho_clip_pan_4_0.jpeg) (HO-CLIP-PAN-4_padreImg_ho_clip_pan_4_1.jpeg)

    Set of 4 Clips for LED Panel Mounting

    GreenIce

    Set of 4 Clips for LED Panel Mounting

    1,42€
    1,42€ Infinity%
  • (NE-M-P-1200300_padreImg_ne_m_p_1200300_0.jpeg) (NE-M-P-1200300_padreImg_ne_m_p_1200300_1.jpeg)

    Mounting Frame Surface Mounted LED Panel 120x30Cm

    GreenIce

    Mounting Frame Surface Mounted LED Panel 120x30Cm

    12,63€
    12,63€ Infinity%
  • (HO-AF-1200x300_padreImg_ho_af_1200x300_0.jpeg) (HO-AF-1200x300_padreImg_ho_af_1200x300_1.jpeg)

    Frame Aluminum LED Panel 120x30Cm

    GreenIce

    Frame Aluminum LED Panel 120x30Cm

    10,75€
    10,75€ Infinity%

Technical file

Product code
HO-LM5264-CW
Luminous efficacy (LM/W)
100
Light temperature
Cold white
Kelvin º
6000
Power (W)
40.0
Luminosity (LM)
4000
Measures (mm)
1195x295x30
High
30.0
Long
1195.0
Broad
295.0
Number and type of LEDs
Samsung Led
CRI
80
UGR
◄19
Power factor (PF)
0.99
Construction
Aluminum/PC
Opening Angle (º)
120
Facility
IP20
Strain
170-265V AC
Estimated life (H)
40000
Dimable
No
Equivalence (W)
215
Isolation class
II
Work frequency (Hz)
50/ 60
Start time (s)
0.1
Energy class
F
Certificates
CE/ROHS/ISO9001
Bush
Terminal
Temperature range (ºC)
-20 +40
Lighting cycles
100000
Diffuser
Microprismatic
Energy consumption (kWh/1000h)
40.0
Weight (gr)
2000
Flicker
0.84
Half -year useful life (at 3 h/day)
36.52
Half -Year Useful Life (5 h/day)
21.91
Half -year useful life (at 8 h/day)
13.69
Directional
Non-Directional
Single/range CCT
Only
Single CCT
6000
INDEX R9
18
Minimum cri range
88
Maximum cri range
16
Chromaticity x
0.311
Chromaticity y
0.332
Driver output
30-42V 1050mA
Applicable standards
EN 55015:2013;EN 61547:2009:EN 61000-3-2:2006;EN 61000-3-3:2013;EN 61000-4-2:2009;EN 61000-4-3:2006;EN 61000-4-4:2004;EN 61000-4-5:2006; EN 61000-4-6:2009; EN 61000-4-8:2010; EN 61000-4-11:2004;1194/2012/EU;874/2012/EU;EN 60598-1:2008;EN 60598-2-2:2012

Characteristics

Product code
HO-LM5264-CW
Luminous efficacy (LM/W)
100
Light temperature
Cold white
Kelvin º
6000
Power (W)
40.0
Luminosity (LM)
4000
Measures (mm)
1195x295x30
High
30.0
Long
1195.0
Broad
295.0
Number and type of LEDs
Samsung Led
CRI
80
UGR
◄19
Power factor (PF)
0.99
Construction
Aluminum/PC
Opening Angle (º)
120
Facility
IP20
Strain
170-265V AC
Estimated life (H)
40000
Dimable
No
Equivalence (W)
215
Isolation class
II
Work frequency (Hz)
50/ 60
Start time (s)
0.1
Energy class
F
Certificates
CE/ROHS/ISO9001
Bush
Terminal
Temperature range (ºC)
-20 +40
Lighting cycles
100000
Diffuser
Microprismatic
Energy consumption (kWh/1000h)
40.0
Weight (gr)
2000
Flicker
0.84
Half -year useful life (at 3 h/day)
36.52
Half -Year Useful Life (5 h/day)
21.91
Half -year useful life (at 8 h/day)
13.69
Directional
Non-Directional
Single/range CCT
Only
Single CCT
6000
INDEX R9
18
Minimum cri range
88
Maximum cri range
16
Chromaticity x
0.311
Chromaticity y
0.332
Driver output
30-42V 1050mA
Applicable standards
EN 55015:2013;EN 61547:2009:EN 61000-3-2:2006;EN 61000-3-3:2013;EN 61000-4-2:2009;EN 61000-4-3:2006;EN 61000-4-4:2004;EN 61000-4-5:2006; EN 61000-4-6:2009; EN 61000-4-8:2010; EN 61000-4-11:2004;1194/2012/EU;874/2012/EU;EN 60598-1:2008;EN 60598-2-2:2012

Description

The 120x30Cm rectangular LED panel, has an elegant finish, white lacquered aluminum frame. With an immediate start, without noise and without flickering, this LED Panel is perfect for places in where you want to maximize the illuminated space, projecting light uniformly and without glare.

It offers solutions for offices, factories, supermarkets, shops and for residential use, due to its design and elegant finish it represents an efficient alternative for the most demanding designers. It can be installed directly to outlets supplied by the electrical network (170-265VAC) with a service frequency of 50/60Hz.

It has a high efficiency (95 Lm/W) consuming 40W through SMD2835 type LEDs and managing to provide a luminous flux of 2800Lm uniformly distributed through an opal plastic diffuser from which a color rendering index of 80 is obtained. It provides lighting equivalent to a 200W incandescent bulb, its consumption represents a value of 40kWh/1000h, reducing the amount of energy billed and the emissions of polluting gases into the atmosphere.

The panel has a degree of protection IP40 (valid for dust and humidity indoors), as well as being robust enough for the required mechanical demands.

These extra-flat LED screens consume up to 55% less and do not require any type of maintenance, thus avoiding replacements fattening tors or reactances. And having the advantage of being a much lighter and more manageable product.

The led panel can be used supported on Armstrong false ceiling, on plasterboard with the help of the fastening clips for led panels, with which we can embed said panel in the ceiling, or with suspension kits for led panels. These kits are made up of four tensors, one in each corner, allowing us to achieve the desired height or inclination to give the perfect touch to our decoration.

This panel is available in natural white (4200°K ), cold white (6000°K).The indicated color temperature may suffer fluctuations corresponding to a tolerance of 7%.
