Superslim LED Panel 40W 4,500Lm 6000ºK 60x60Cm UGR19 40,000H [HO-PL-595-40-CW]

Superslim LED Panel 40W 4,500Lm 6000ºK 60x60Cm UGR19 40,000H [HO-PL-595-40-CW]

For additional amounts the delivery period is 60 days As of the order date
  • Brand:GreenIce / Samsung Led
  • SkuHO-PL-595-40-CW
  • AA 2021
Eprel file
Warranty
  • Warranty 5 years
  • Eye Care Eye Care
  • Tüv Süd TUV SUD
  • 120 º Opening
29,45€
29,45€ Infinity%
Tax included. The Shipping expenses They are calculated on the payment screen.

Stock available

Warranty
  • Warranty 5 years
  • Eye Care Eye Care
  • Tüv Süd TUV SUD
  • 120 º Opening
Are you a professional customer?

We have published a new website only for professionals.

Go to Professional Area
Advantages of buying in Greenice
  • Guaranteed minimum price
  • Free returns up to 60 days
  • Free shipping From € 21.95
  • Until 10 years guarantee
(HO-PL-595-40-CW_padreImg_ho_pl_595_40_cw_0.jpeg)
Cool White
Stock available
Free shipping
29,45€
29,45€ Infinity%

Accessories

  • (HO-AF-600x600_padreImg_ho_af_600x600_0.jpeg) (HO-AF-600x600_padreImg_ho_af_600x600_1.jpeg)

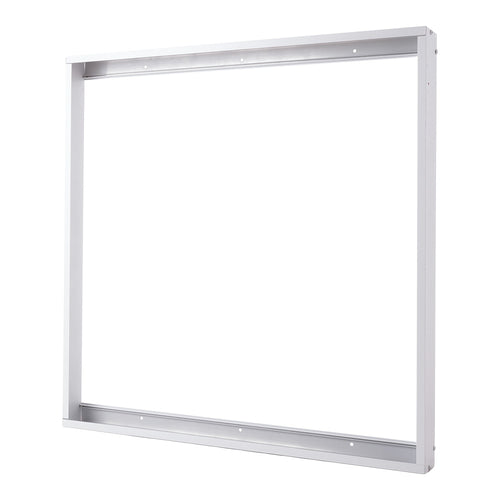

    Frame Aluminum LED Panel 60x60Cm

    GreenIce

    Frame Aluminum LED Panel 60x60Cm

    8,97€
    8,97€ Infinity%
  • (HZ-KITUSPENSION_padreImg_hz_kituspension_0.jpeg)

    Suspension Kit 970Mm LED Panels

    GreenIce

    Suspension Kit 970Mm LED Panels

    3,11€
    3,11€ Infinity%
  • (OL-LCM-40_padreImg_ol_lcm_40_0.jpeg) (OL-LCM-40_padreImg_ol_lcm_40_1.jpeg)

    Driver Meanwell Downlights 40W Smart Adjustable0-10V IP20

    MEANWELL

    Driver Meanwell Downlights 40W Smart Adjustable0-10V IP20

    43,38€
    43,38€ Infinity%
  • (HO-PCTMBW0P0_padreImg_ho_pctmbw0p0_0.jpeg) (HO-PCTMBW0P0_padreImg_ho_pctmbw0p0_1.jpeg)

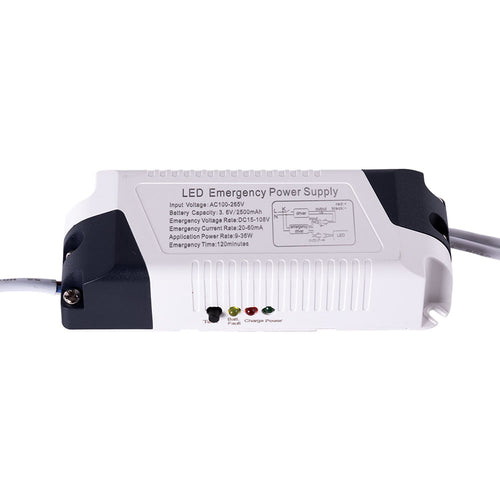

    Driver Emergency LED Panel ► 120Min

    GreenIce

    Driver Emergency LED Panel ► 120Min

    19,67€
    19,67€ Infinity%
  • (SB-BS041_padreImg_sb_bs041_0.jpeg) (SB-BS041_padreImg_sb_bs041_1.jpeg)

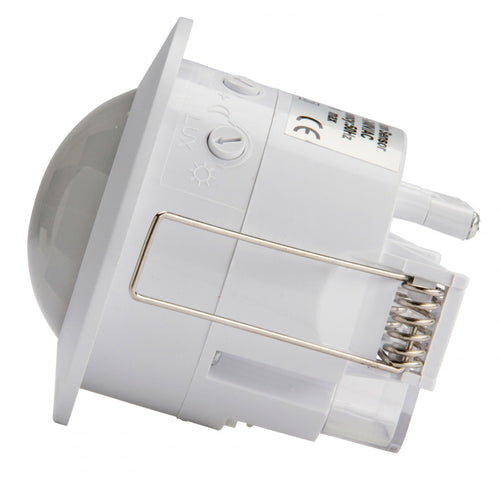

    Motion Sensor Recessed 360º ►1200/300W

    GreenIce

    Motion Sensor Recessed 360º ►1200/300W

    9,53€
    9,53€ Infinity%
  • (HO-CLIP-PAN-4_padreImg_ho_clip_pan_4_0.jpeg) (HO-CLIP-PAN-4_padreImg_ho_clip_pan_4_1.jpeg)

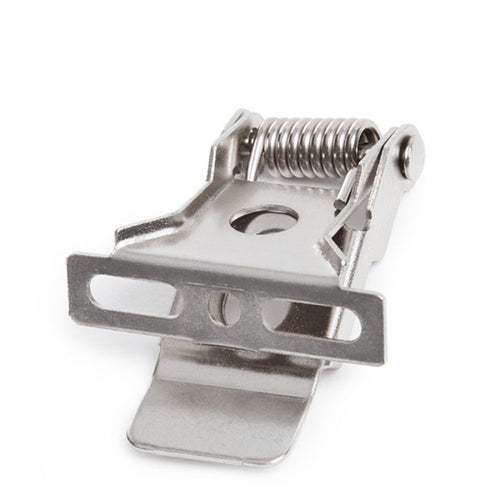

    Set of 4 Clips for LED Panel Mounting

    GreenIce

    Set of 4 Clips for LED Panel Mounting

    1,33€
    1,33€ Infinity%
  • (HO-HP-ND-42W_padreImg_ho_hp_nd_42w_0.jpeg) (HO-HP-ND-42W_padreImg_ho_hp_nd_42w_1.jpeg)

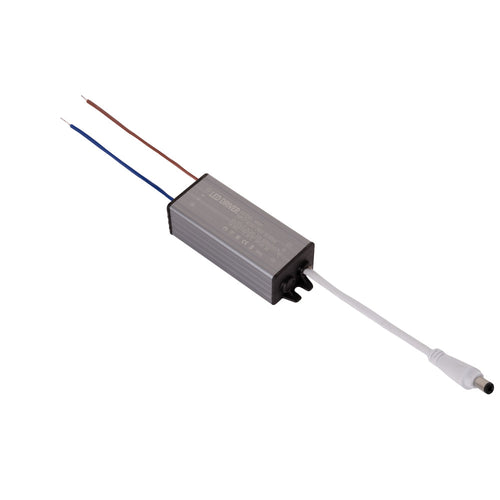

    Driver Non Dimmable 0.95 F.P. 50.000H LED Panel 42W

    GreenIce

    Driver Non Dimmable 0.95 F.P. 50.000H LED Panel 42W

    12,54€
    12,54€ Infinity%
  • (GR-DALI-40W_padreImg_gr_dali_40w_0.jpeg) (GR-DALI-40W_padreImg_gr_dali_40w_1.jpeg)

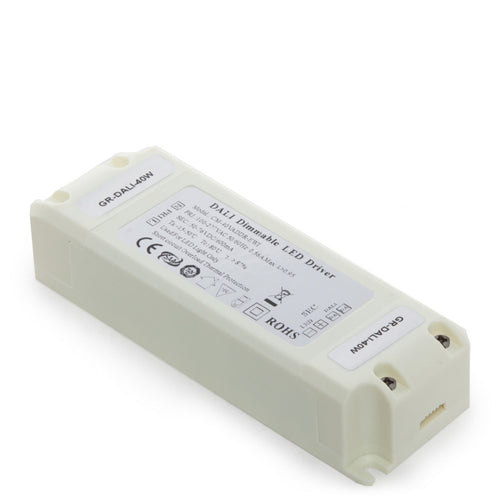

    Driver Adjustable DALI 40W

    GreenIce

    Driver Adjustable DALI 40W

    36,55€
    36,55€ Infinity%
  • (GR-DRDIM0-10V-40W_padreImg_gr_drdim0_10v_40w_0.jpeg) (GR-DRDIM0-10V-40W_padreImg_gr_drdim0_10v_40w_1.jpeg)

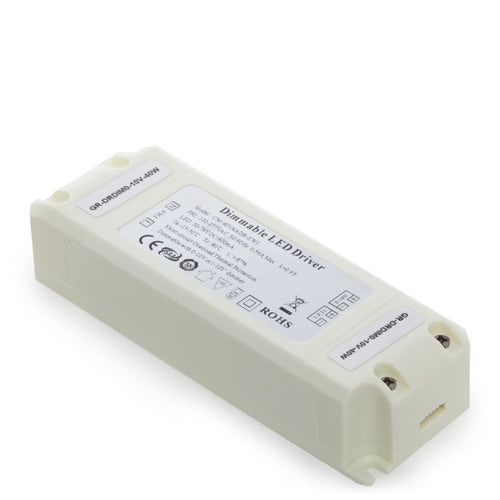

    Driver Adjustable 0-10V LED Panel 40W

    GreenIce

    Driver Adjustable 0-10V LED Panel 40W

    13,18€
    13,18€ Infinity%
  • (HO-KIT-MONSUP_padreImg_ho_kit_monsup_0.jpeg) (HO-KIT-MONSUP_padreImg_ho_kit_monsup_1.jpeg)

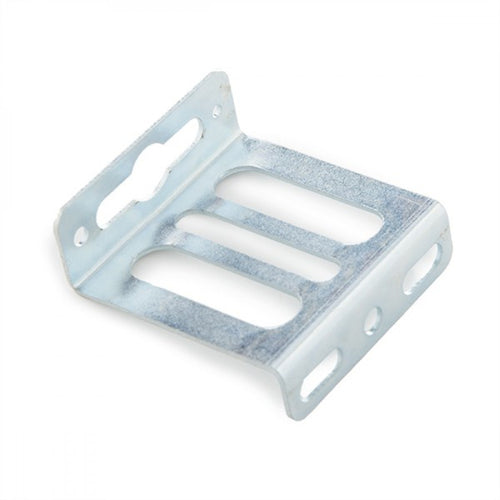

    Surface Mounting Kit for LED Panels

    GreenIce

    Surface Mounting Kit for LED Panels

    3,33€
    3,33€ Infinity%

Technical file

Product code
HO-PL-595-40-CW
Luminous efficacy (LM/W)
112
Light temperature
Cold White
Kelvin º
6000
Power (W)
40.0
Luminosity (LM)
4500
Measures (mm)
595x10x595
High
10.0
Long
595.0
Broad
595.0
Number and type of LEDs
Samsung Led
CRI
80
UGR
◄19
Power factor (PF)
0.99
Construction
Aluminum/PC
Opening Angle (º)
120
Facility
IP20
Strain
85-265VAC
Estimated life (H)
40000
Dimable
No
Equivalence (W)
215
Isolation class
II
Work frequency (Hz)
50/ 60
Start time (s)
0.2
Energy class
E
Certificates
CE/ROHS/ISO9001
Bush
Terminal
Temperature range (ºC)
-20 +40
Lighting cycles
100000
Diffuser
Microprismatic
Energy consumption (kWh/1000h)
40.0
Weight (gr)
1900
Flicker
0.96
Half -year useful life (at 3 h/day)
36.52
Half -Year Useful Life (5 h/day)
21.91
Half -year useful life (at 8 h/day)
13.69
Directional
Non-Directional
Single/range CCT
Only
Single CCT
6000
INDEX R9
18
Minimum cri range
95
Maximum cri range
1
Chromaticity x
0.313
Chromaticity y
0.334
Additional information
Possibility of dimming by purchasing an adjustable controller in the Accessories tab. Does not include suspension accessories
Driver output
DC38V-62V 600MA
Applicable standards
EN 55015:2013;EN 61547:2009:EN 61000-3-2:2006;EN 61000-3-3:2013;EN 61000-4-2:2009;EN 61000-4-3:2006;EN 61000-4-4:2004;EN 61000-4-5:2006; EN 61000-4-6:2009; EN 61000-4-8:2010; EN 61000-4-11:2004;1194/2012/EU;874/2012/EU;EN 60598-1:2008;EN 60598-2-2:2012

Characteristics

Product code
HO-PL-595-40-CW
Luminous efficacy (LM/W)
112
Light temperature
Cold White
Kelvin º
6000
Power (W)
40.0
Luminosity (LM)
4500
Measures (mm)
595x10x595
High
10.0
Long
595.0
Broad
595.0
Number and type of LEDs
Samsung Led
CRI
80
UGR
◄19
Power factor (PF)
0.99
Construction
Aluminum/PC
Opening Angle (º)
120
Facility
IP20
Strain
85-265VAC
Estimated life (H)
40000
Dimable
No
Equivalence (W)
215
Isolation class
II
Work frequency (Hz)
50/ 60
Start time (s)
0.2
Energy class
E
Certificates
CE/ROHS/ISO9001
Bush
Terminal
Temperature range (ºC)
-20 +40
Lighting cycles
100000
Diffuser
Microprismatic
Energy consumption (kWh/1000h)
40.0
Weight (gr)
1900
Flicker
0.96
Half -year useful life (at 3 h/day)
36.52
Half -Year Useful Life (5 h/day)
21.91
Half -year useful life (at 8 h/day)
13.69
Directional
Non-Directional
Single/range CCT
Only
Single CCT
6000
INDEX R9
18
Minimum cri range
95
Maximum cri range
1
Chromaticity x
0.313
Chromaticity y
0.334
Additional information
Possibility of dimming by purchasing an adjustable controller in the Accessories tab. Does not include suspension accessories
Driver output
DC38V-62V 600MA
Applicable standards
EN 55015:2013;EN 61547:2009:EN 61000-3-2:2006;EN 61000-3-3:2013;EN 61000-4-2:2009;EN 61000-4-3:2006;EN 61000-4-4:2004;EN 61000-4-5:2006; EN 61000-4-6:2009; EN 61000-4-8:2010; EN 61000-4-11:2004;1194/2012/EU;874/2012/EU;EN 60598-1:2008;EN 60598-2-2:2012

Description

The 60x60cm square LED panel has an elegant finish, a white lacquered aluminum frame and an ultra-thin design of only 12mm. immediate start-up, without noise and without flickering, this LED Panel is perfect for places where you want to maximize the illuminated space, projecting light uniformly and without glare.

It offers solutions for offices, factories, supermarkets , stores and for residential use, due to its design and elegant finish, it represents an efficient alternative for the most demanding designers. It can be installed directly to the power outlets supplied by the electrical network (85-265VAC) with a service frequency of 50/60Hz.

It has a high efficiency (112.5 Lm/ W) consuming 40W through 240 SMD4014 type LEDs and managing to provide a luminous flux of 4500Lm uniformly distributed through an opal plastic diffuser from which a color rendering index of 80 is obtained. It provides lighting equivalent to an incandescent light bulb of 220W, its consumption represents a value of 40kWh/1000h, reducing the amount of energy billed and the emissions of polluting gases into the atmosphere.

This panel is powered by a non-dimmable driver included in the package that It must be connected directly to the network, with an output connector compatible with the connection of the panel (55-86VDC, 600mA), the necessary accessories for the installation of the panel on the surface are optionally offered. White finish built with aluminum. The panel has a IP25 degree of protection (valid for dust and humidity indoors), in addition to being robust enough for the required mechanical demands.

These extra-flat LED screens consume up to 55% less and they do not require any type of maintenance, with which we avoid substitutions of primers or reactances. And having the advantage of being a much lighter and more manageable product.

The led panel can be used supported on Armstrong false ceiling, on plasterboard with the help of the fastening clips for led panels, with which we can embed said panel in the ceiling, or with suspension kits for led panels. These kits are made up of four tensors, one in each corner, allowing us to achieve the desired height or inclination to give the perfect touch to our decoration.

This panel is available in cool white (6000°K ) and natural white (4000ºK). The indicated color temperature may suffer fluctuations corresponding to a tolerance of 7%.
