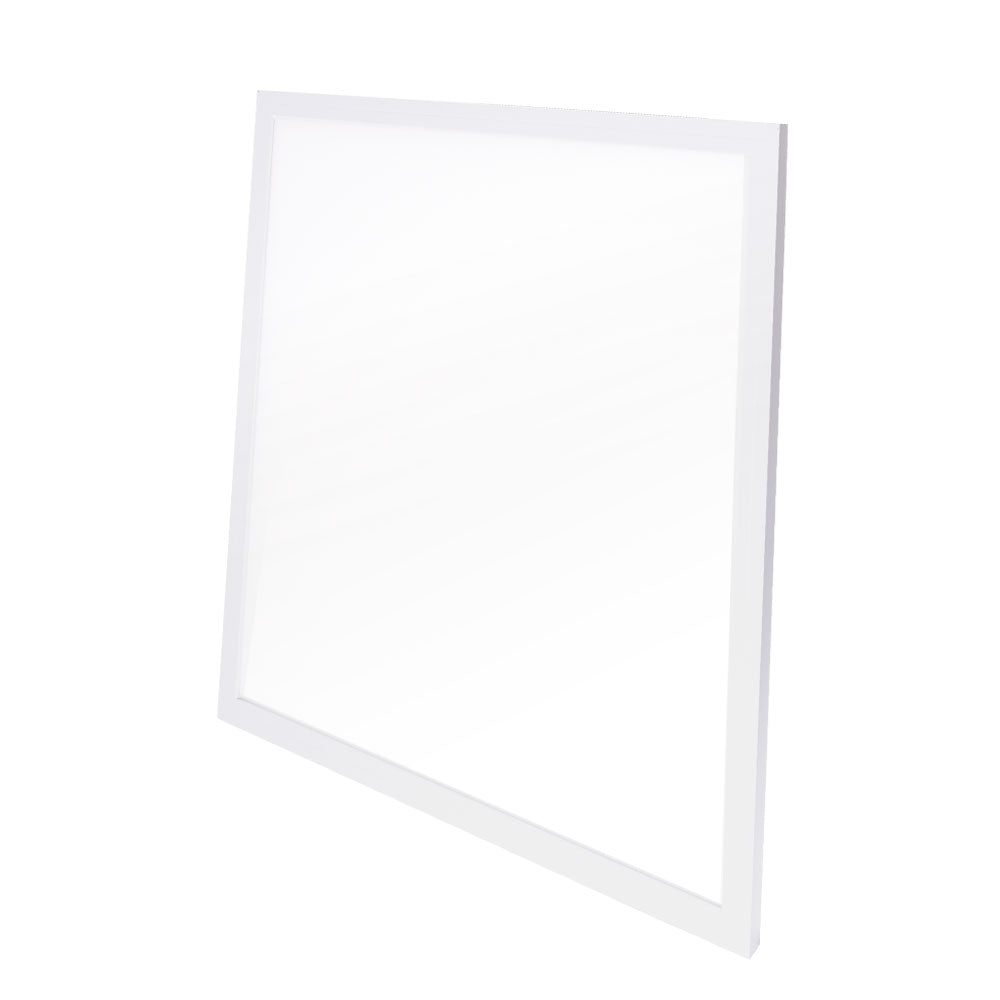

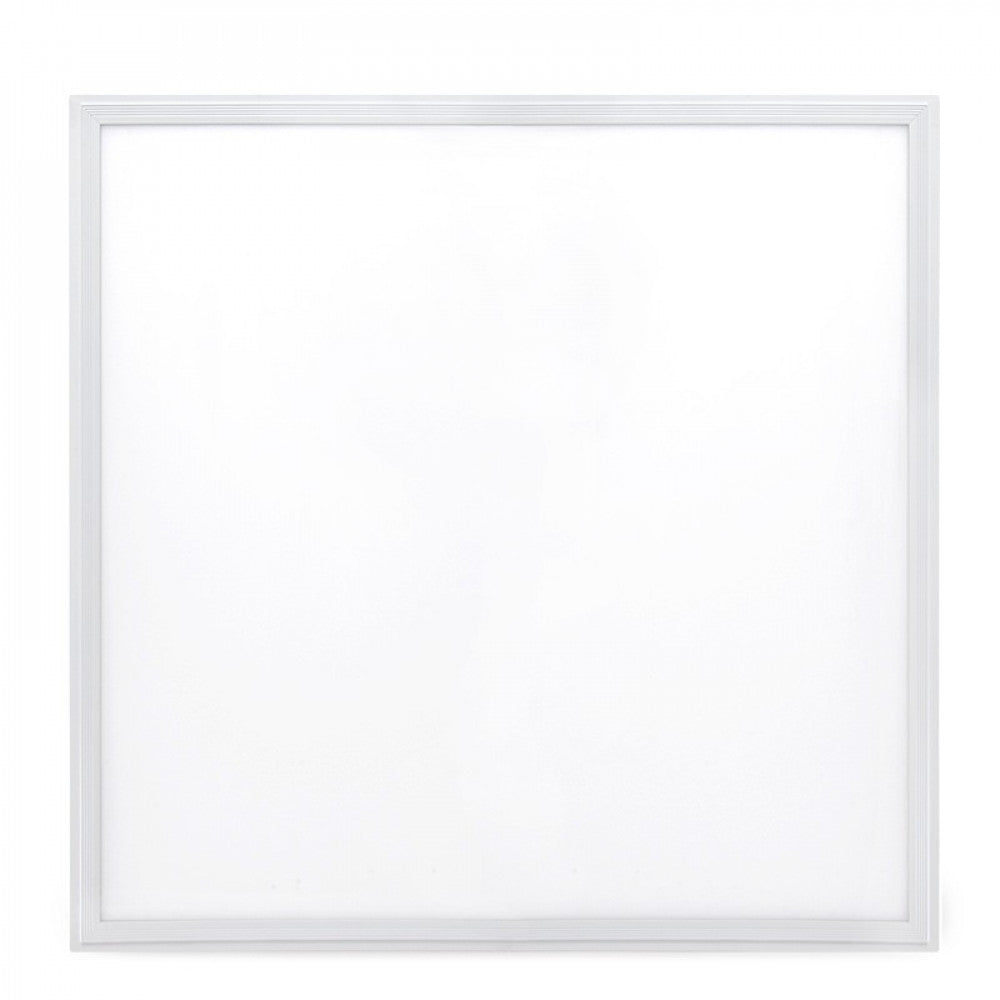

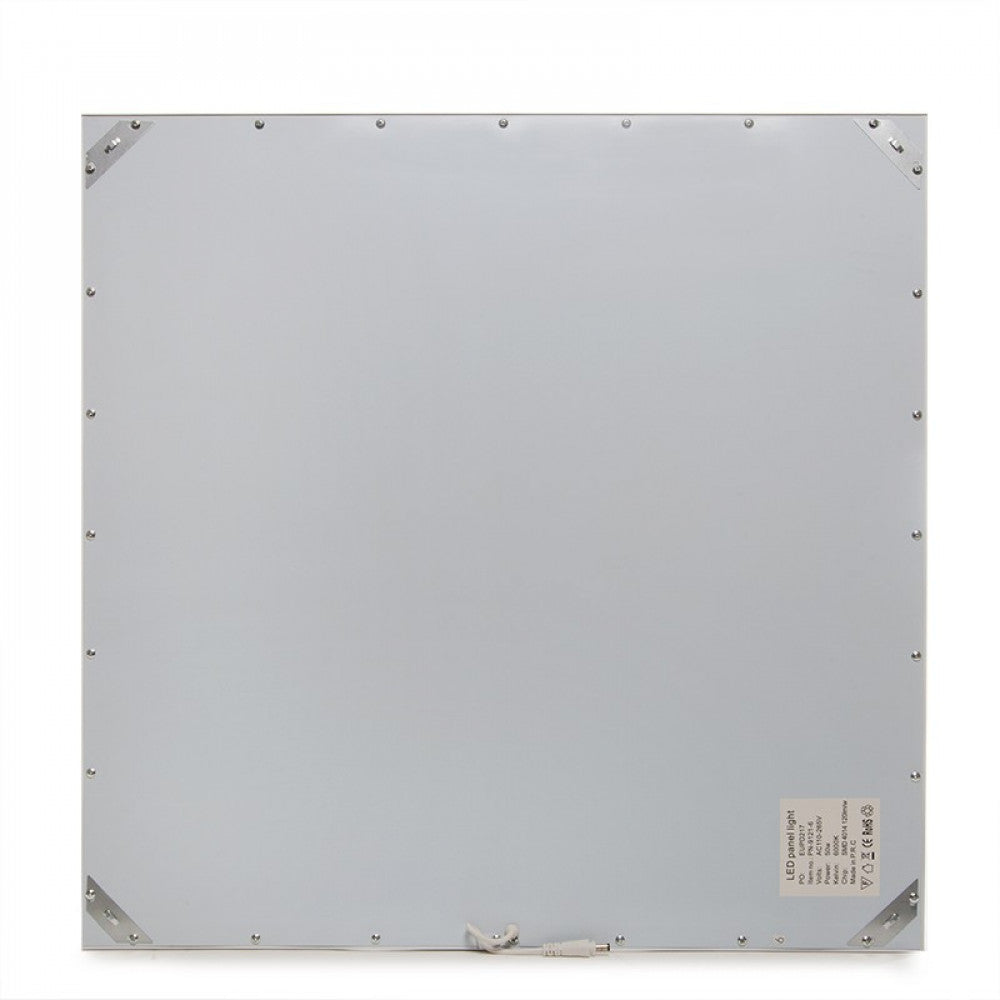

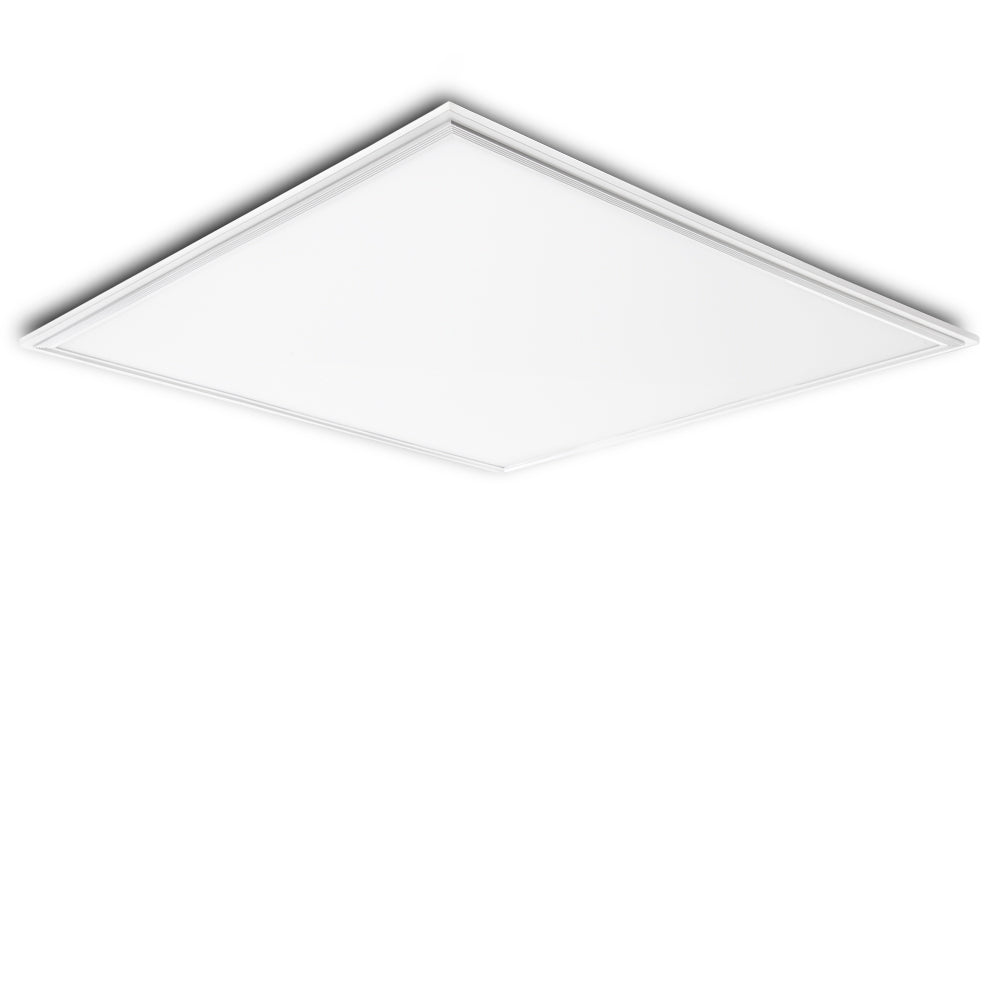

Superslim LED Panel 48W 4,800Lm 6000ºK 60x60Cm UGR19 40,000H [HO-PL-595-48-CW]

Superslim LED Panel 48W 4,800Lm 6000ºK 60x60Cm UGR19 40,000H [HO-PL-595-48-CW]

For additional amounts the delivery period is 60 days As of the order date
  • Brand:GreenIce / Samsung Led
  • SkuHO-PL-595-48-CW
  • AA 2021
Eprel file
Warranty
  • Warranty 5 years
  • Eye Care Eye Care
  • Tüv Süd TUV SUD
  • 120 º Opening
30,44€
30,44€ Infinity%
Tax included. The Shipping expenses They are calculated on the payment screen.

Stock available

Warranty
  • Warranty 5 years
  • Eye Care Eye Care
  • Tüv Süd TUV SUD
  • 120 º Opening
Are you a professional customer?

We have published a new website only for professionals.

Go to Professional Area
Advantages of buying in Greenice
  • Guaranteed minimum price
  • Free returns up to 60 days
  • Free shipping From € 21.95
  • Until 10 years guarantee
(HO-PL-595-48-CW_padreImg_ho_pl_595_48_cw_0.jpeg)
Cool White
Stock available
Free shipping
30,44€
30,44€ Infinity%

Accessories

  • (GR-DRDIM0-10V-48W_padreImg_gr_drdim0_10v_48w_0.jpeg) (GR-DRDIM0-10V-48W_padreImg_gr_drdim0_10v_48w_1.jpeg)

    Driver Adjustable 0-10V Ceiling Light / LED Panel 48W

    GreenIce

    Driver Adjustable 0-10V Ceiling Light / LED Panel 48W

    12,40€
    12,40€ Infinity%
  • (HZ-KITUSPENSION_padreImg_hz_kituspension_0.jpeg)

    Suspension Kit 970Mm LED Panels

    GreenIce

    Suspension Kit 970Mm LED Panels

    3,09€
    3,09€ Infinity%
  • (HO-AF-600x600_padreImg_ho_af_600x600_0.jpeg) (HO-AF-600x600_padreImg_ho_af_600x600_1.jpeg)

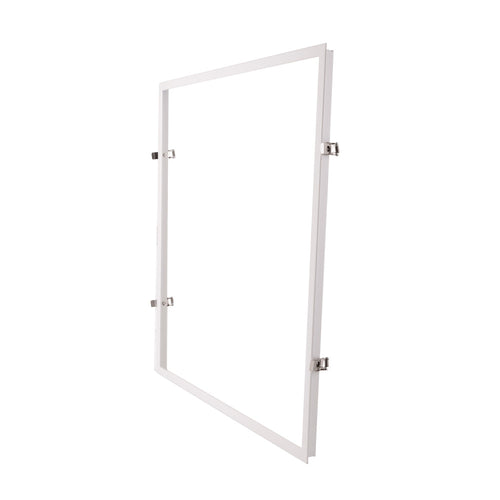

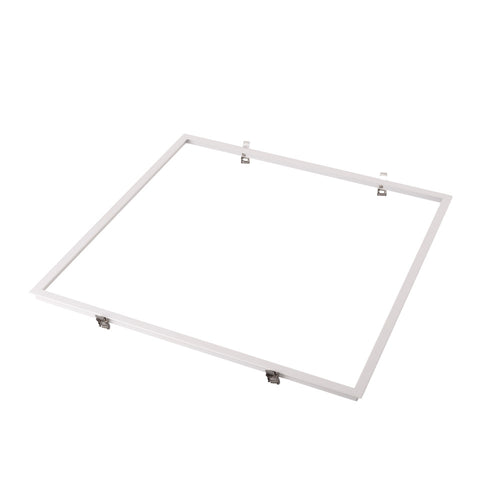

    Frame Aluminum LED Panel 60x60Cm

    GreenIce

    Frame Aluminum LED Panel 60x60Cm

    8,88€
    8,88€ Infinity%
  • (SB-BS041_padreImg_sb_bs041_0.jpeg) (SB-BS041_padreImg_sb_bs041_1.jpeg)

    Motion Sensor Recessed 360º ►1200/300W

    GreenIce

    Motion Sensor Recessed 360º ►1200/300W

    9,44€
    9,44€ Infinity%
  • (HO-KIT-MONSUP_padreImg_ho_kit_monsup_0.jpeg) (HO-KIT-MONSUP_padreImg_ho_kit_monsup_1.jpeg)

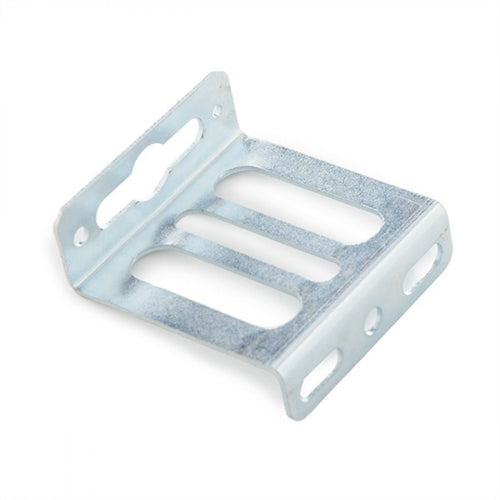

    Surface Mounting Kit for LED Panels

    GreenIce

    Surface Mounting Kit for LED Panels

    3,31€
    3,31€ Infinity%
  • (HO-CLIP-PAN-4_padreImg_ho_clip_pan_4_0.jpeg) (HO-CLIP-PAN-4_padreImg_ho_clip_pan_4_1.jpeg)

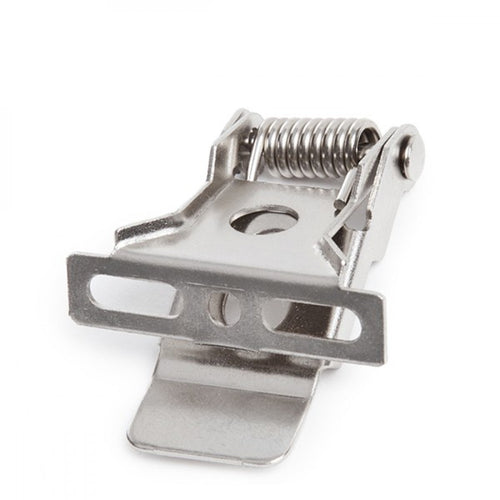

    Set of 4 Clips for LED Panel Mounting

    GreenIce

    Set of 4 Clips for LED Panel Mounting

    1,32€
    1,32€ Infinity%
  • (NE-M-P-600600_padreImg_ne_m_p_600600_0.jpeg) (NE-M-P-600600_padreImg_ne_m_p_600600_1.jpeg)

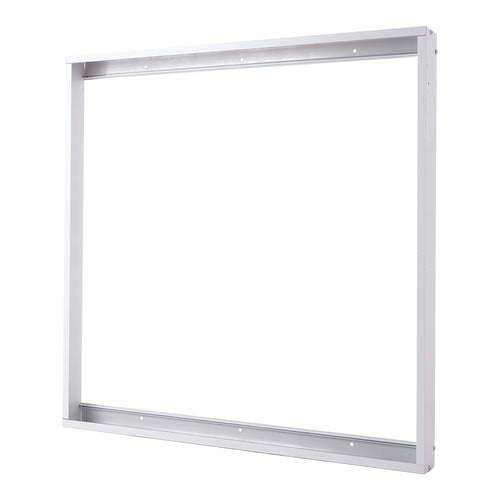

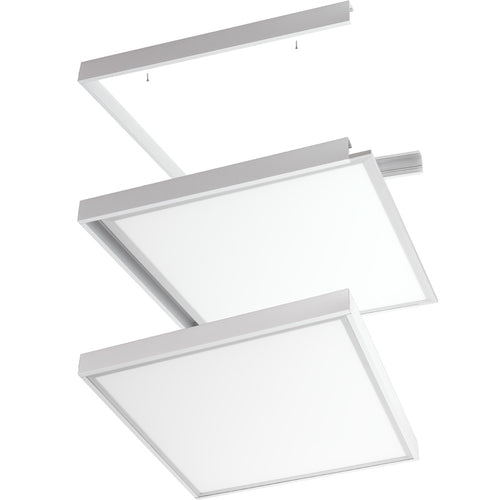

    Mounting Frame Surface Mounted LED Panel 60x60Cm

    GreenIce

    Mounting Frame Surface Mounted LED Panel 60x60Cm

    9,88€
    9,88€ Infinity%
  • (GR-DALI-48W_padreImg_gr_dali_48w_0.jpeg) (GR-DALI-48W_padreImg_gr_dali_48w_1.jpeg)

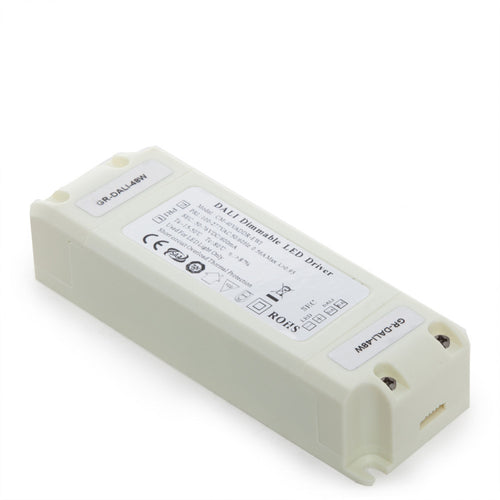

    Driver Adjustable DALI 48W

    GreenIce

    Driver Adjustable DALI 48W

    30,63€
    30,63€ Infinity%

Technical file

Product code
HO-PL-595-48-CW
Luminous efficacy (LM/W)
100
Light temperature
Cold white
Kelvin º
6000
Power (W)
48.0
Luminosity (LM)
4800
Measures (mm)
595x12x595
High
12.0
Long
595.0
Broad
595.0
Number and type of LEDs
Samsung Led
CRI
80
UGR
◄19
Power factor (PF)
0.99
Construction
Aluminum/PC
Opening Angle (º)
120
Facility
IP20
Strain
85-265VAC
Estimated life (H)
40000
Dimable
No
Equivalence (W)
260
Isolation class
II
Work frequency (Hz)
50/ 60
Start time (s)
0.1
Energy class
F
Certificates
CE/ROHS/ISO9001
Bush
Terminal
Temperature range (ºC)
-20 +40
Lighting cycles
100000
Diffuser
Microprismatic
Energy consumption (kWh/1000h)
48.0
Weight (gr)
1900
Flicker
0.93
Half -year useful life (at 3 h/day)
36.52
Half -Year Useful Life (5 h/day)
21.91
Half -year useful life (at 8 h/day)
13.69
Directional
Non-Directional
Single/range CCT
Only
Single CCT
6000
INDEX R9
14
Minimum cri range
95
Maximum cri range
11
Chromaticity x
0.305
Chromaticity y
0.324
Additional information
Possibility of dimming by purchasing an adjustable controller in the Accessories tab. Does not include suspension accessories

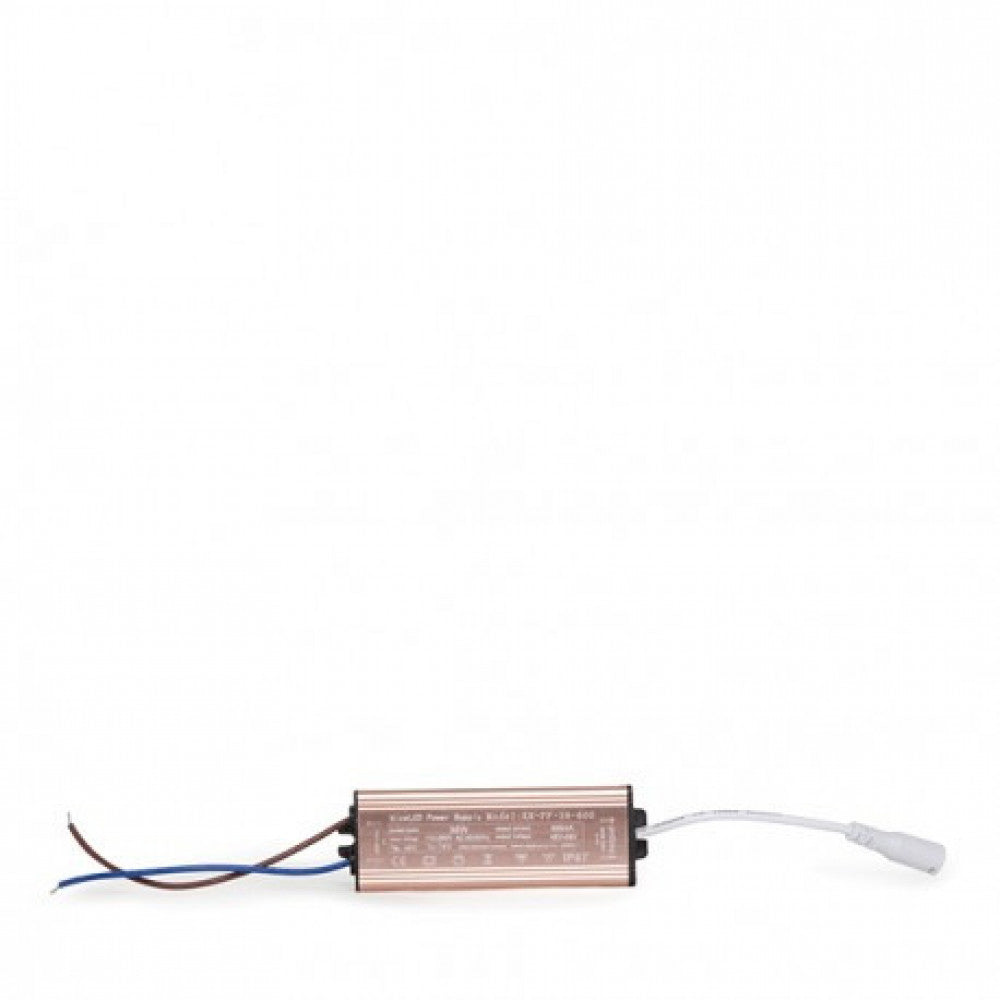

Driver output
DC55V-86V 600MA
Applicable standards
EN 55015:2013;EN 61547:2009:EN 61000-3-2:2006;EN 61000-3-3:2013;EN 61000-4-2:2009;EN 61000-4-3:2006;EN 61000-4-4:2004;EN 61000-4-5:2006; EN 61000-4-6:2009; EN 61000-4-8:2010; EN 61000-4-11:2004;1194/2012/EU;874/2012/EU;EN 60598-1:2008;EN 60598-2-2:2012

Characteristics

Product code
HO-PL-595-48-CW
Luminous efficacy (LM/W)
100
Light temperature
Cold white
Kelvin º
6000
Power (W)
48.0
Luminosity (LM)
4800
Measures (mm)
595x12x595
High
12.0
Long
595.0
Broad
595.0
Number and type of LEDs
Samsung Led
CRI
80
UGR
◄19
Power factor (PF)
0.99
Construction
Aluminum/PC
Opening Angle (º)
120
Facility
IP20
Strain
85-265VAC
Estimated life (H)
40000
Dimable
No
Equivalence (W)
260
Isolation class
II
Work frequency (Hz)
50/ 60
Start time (s)
0.1
Energy class
F
Certificates
CE/ROHS/ISO9001
Bush
Terminal
Temperature range (ºC)
-20 +40
Lighting cycles
100000
Diffuser
Microprismatic
Energy consumption (kWh/1000h)
48.0
Weight (gr)
1900
Flicker
0.93
Half -year useful life (at 3 h/day)
36.52
Half -Year Useful Life (5 h/day)
21.91
Half -year useful life (at 8 h/day)
13.69
Directional
Non-Directional
Single/range CCT
Only
Single CCT
6000
INDEX R9
14
Minimum cri range
95
Maximum cri range
11
Chromaticity x
0.305
Chromaticity y
0.324
Additional information
Possibility of dimming by purchasing an adjustable controller in the Accessories tab. Does not include suspension accessories
Driver output
DC55V-86V 600MA
Applicable standards
EN 55015:2013;EN 61547:2009:EN 61000-3-2:2006;EN 61000-3-3:2013;EN 61000-4-2:2009;EN 61000-4-3:2006;EN 61000-4-4:2004;EN 61000-4-5:2006; EN 61000-4-6:2009; EN 61000-4-8:2010; EN 61000-4-11:2004;1194/2012/EU;874/2012/EU;EN 60598-1:2008;EN 60598-2-2:2012

Description

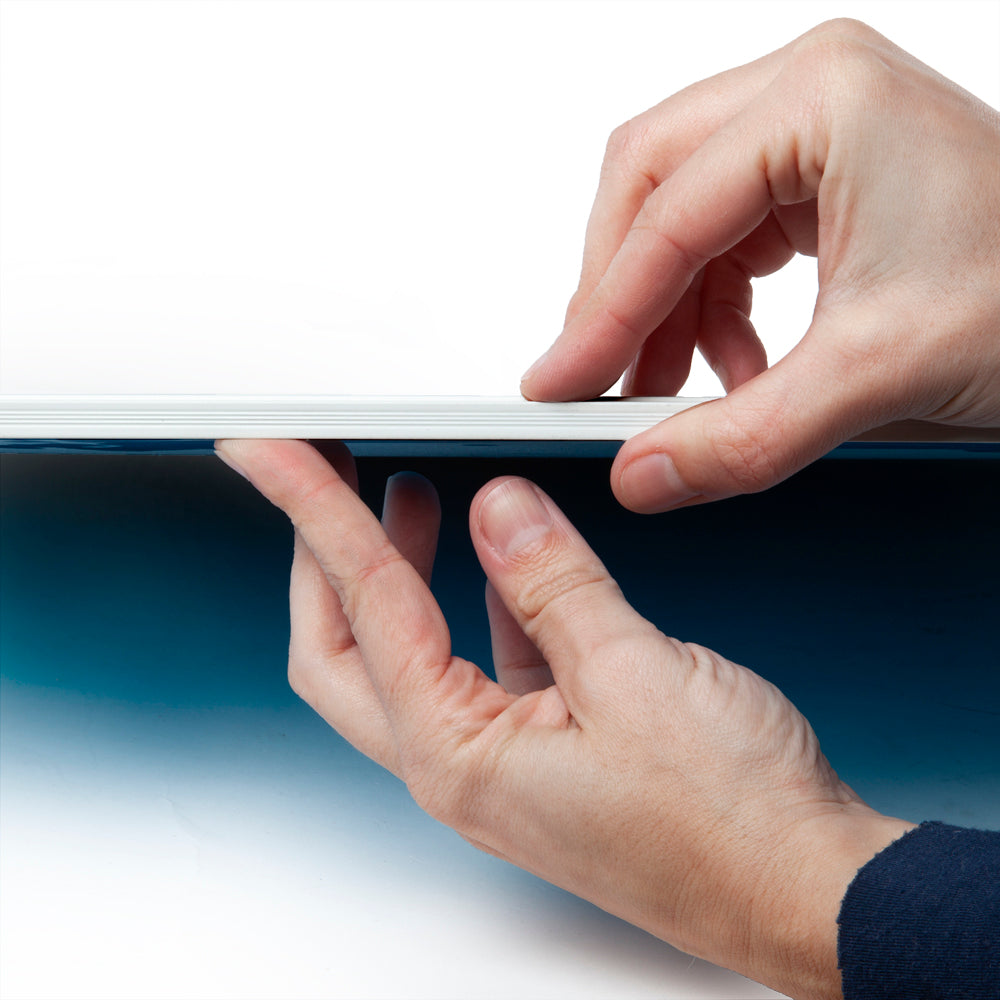

The 595x595mm LED Panel has an elegant finish, a white lacquered aluminum frame and an ultra-thin design of only 10mm. With an immediate start-up, without noise and flicker-free, this LED Panel is perfect for places where you want to maximize the illuminated space, projecting light evenly and without glare.

It offers a uniform distribution of light, the LED chips generate high quality lighting and ensure maximum visual comfort and perfect color reproduction (CRI80). All this with significant energy savings.

This LED panel is the ideal choice if you are looking for a panel with good performance and minimum consumption. It is widely used in offices, shopping malls, hospitals, warehouses, restaurants, supermarkets, museums, etc., as well as in homes and residences. In addition to the practical advantages, the good aesthetic result obtained by installing these must also be considered. very fine design luminaires.

Body and frame: sheet steel body and aluminum frame. Diffuser: extruded opalescent technopolymer with a high transmission ratio.Glare factor UGR (Unified Glare Rating): UGR&lt19.

Installation of LED panels

Its height of less than 2 centimeters and its modern design allow this panel to be installed on any surface without standing out from the environment. There are several installation options:

  • In the false ceiling, integrated between the plates
  • With a rail system
  • Hanging from the ceiling by means of pendants steel

This panel is available in natural white (4200°K) and cold white (6000°K). The indicated color temperature may suffer fluctuations corresponding to a tolerance of 7%.

"
