T8 LED Tube 18W 1,800Lm 6000ºK 120Cm Dimmable 40,000H [GR-T8DIM18W-O-CW]

T8 LED Tube 18W 1,800Lm 6000ºK 120Cm Dimmable 40,000H [GR-T8DIM18W-O-CW]

See questions and answers

For additional amounts the delivery period is 60 days As of the order date
  • Brand:GreenIce / Epistar Led
  • SkuHO-T8DIM18W-O-CW
  • AA 2021
Eprel file
Warranty
  • Warranty 3 years
  • Eye Care Eye Care
  • 120 º Opening
13,99€
13,99€ Infinity%
Tax included. The Shipping expenses They are calculated on the payment screen.

Available

Warranty
  • Warranty 3 years
  • Eye Care Eye Care
  • 120 º Opening
Are you a professional customer?

We have published a new website only for professionals.

Go to Professional Area
Advantages of buying in Greenice
  • Guaranteed minimum price
  • Free returns up to 60 days
  • Free shipping From € 21.95
  • Until 10 years guarantee
(HO-T8DIM18W-O-CW_padreImg_ho_t8dim18w_o_cw_0.jpeg)
Cool White
Available
Free shipping
13,99€
13,99€ Infinity%

Accessories

  • (GH-90963602_padreImg_gh_90963602_0.jpeg) (GH-90963602_padreImg_gh_90963602_1.jpeg)

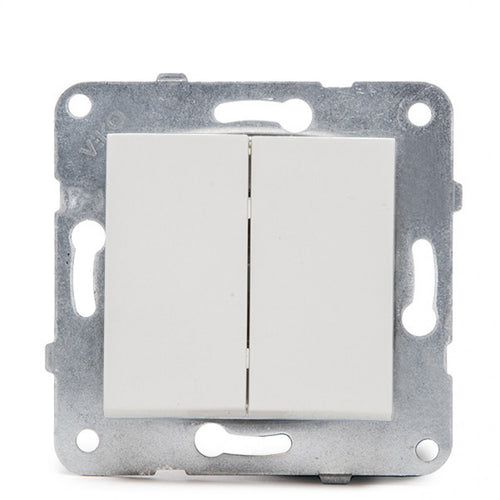

    Switch Double Panasonic Karre 10A 250V/Metal Frame With Claws/Key White

    PANASONIC

    Switch Double Panasonic Karre 10A 250V/Metal Frame With Claws/Key White

    3,15€
    3,15€ Infinity%
  • (GH-90963601_padreImg_gh_90963601_0.jpeg) (GH-90963601_padreImg_gh_90963601_1.jpeg)

    Switch Panasonic Karre 10A 250V/Metal Frame With Claws/Key White

    PANASONIC

    Switch Panasonic Karre 10A 250V/Metal Frame With Claws/Key White

    4,37€
    4,37€ Infinity%
  • (KD-LEDDIM-CREM_padreImg_kd_leddim_crem_0.jpeg) (KD-LEDDIM-CREM_padreImg_kd_leddim_crem_1.jpeg)

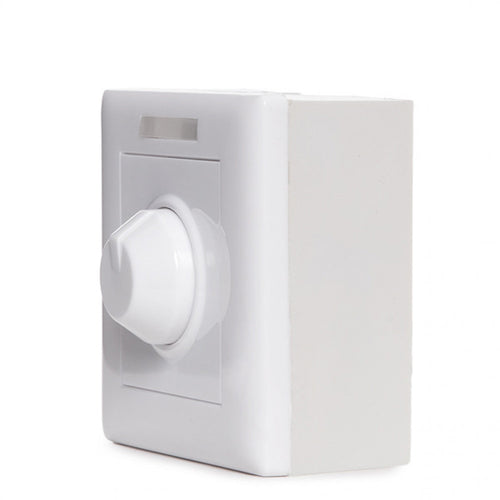

    Dimmer LEDs 90-240VAC 0-100% 200W Remote Control

    GreenIce

    Dimmer LEDs 90-240VAC 0-100% 200W Remote Control

    18,34€
    18,34€ Infinity%
  • (GH-90963604_padreImg_gh_90963604_0.jpeg) (GH-90963604_padreImg_gh_90963604_1.jpeg)

    Commutator Panasonic Karre 10A 250V/Metal Frame With Claws/Key White

    PANASONIC

    Commutator Panasonic Karre 10A 250V/Metal Frame With Claws/Key White

    5,12€
    5,12€ Infinity%

Technical file

Product code
HO-T8DIM18W-O-CW
Luminous efficacy (LM/W)
100
Light temperature
Cold white
Kelvin º
6000
Power (W)
18.0
Luminosity (LM)
1800
Measures (mm)
1200Ø26
Long
1200.0
Diameter
Ø26
Number and type of LEDs
Epistar Led
CRI
80
Power factor (PF)
0.99
Construction
Aluminum/PC
Opening Angle (º)
120
Facility
IP20
Strain
85-265VAC
Estimated life (H)
40000
Dimable
Yes
Equivalence (W)
120
Work frequency (Hz)
50/ 60
Start time (s)
0.2
Energy class
F
Certificates
CE/ROHS/ISO9001
Bush
T8
Temperature range (ºC)
-40 +60
Lighting cycles
100000
Diffuser
Milky
Energy consumption (kWh/1000h)
18.0
Weight (gr)
300
Flicker
0.76
Half -year useful life (at 3 h/day)
36.52
Half -Year Useful Life (5 h/day)
21.91
Half -year useful life (at 8 h/day)
13.69
Directional
Non-Directional
Single CCT
6000
INDEX R9
26
Minimum cri range
98
Maximum cri range
6
Chromaticity x
0.442
Chromaticity y
0.406
Additional information
Detailed instructions in the "Documents" tab
Connection
2XX
Driver output
DC24V-72V 240MA
Applicable standards
EN 55015:2006; EN 61547:2009; EN 61000:2008; EN 60598:2008; EN 62471:2008

Characteristics

Product code
HO-T8DIM18W-O-CW
Luminous efficacy (LM/W)
100
Light temperature
Cold white
Kelvin º
6000
Power (W)
18.0
Luminosity (LM)
1800
Measures (mm)
1200Ø26
Long
1200.0
Diameter
Ø26
Number and type of LEDs
Epistar Led
CRI
80
Power factor (PF)
0.99
Construction
Aluminum/PC
Opening Angle (º)
120
Facility
IP20
Strain
85-265VAC
Estimated life (H)
40000
Dimable
Yes
Equivalence (W)
120
Work frequency (Hz)
50/ 60
Start time (s)
0.2
Energy class
F
Certificates
CE/ROHS/ISO9001
Bush
T8
Temperature range (ºC)
-40 +60
Lighting cycles
100000
Diffuser
Milky
Energy consumption (kWh/1000h)
18.0
Weight (gr)
300
Flicker
0.76
Half -year useful life (at 3 h/day)
36.52
Half -Year Useful Life (5 h/day)
21.91
Half -year useful life (at 8 h/day)
13.69
Directional
Non-Directional
Single CCT
6000
INDEX R9
26
Minimum cri range
98
Maximum cri range
6
Chromaticity x
0.442
Chromaticity y
0.406
Additional information
Detailed instructions in the "Documents" tab
Connection
2XX
Driver output
DC24V-72V 240MA
Applicable standards
EN 55015:2006; EN 61547:2009; EN 61000:2008; EN 60598:2008; EN 62471:2008

Description

The LED Tube is made with an aluminum body that offers greater rigidity and better heat dissipation, making it suitable for continuous lighting. with an opening angle of 120º and a polycarbonate cover opal.Incorporates SMD2835 chip, emits less heat, increases useful life with continuous lighting.

Benefits of an LED tube:

  • The main advantage is energy savings, of more than 50%. It should be noted that the consumption of a conventional tube, apart from its own consumption, requires a ballast whose consumption ranges between 3 and 8 Watts per tube. Another fundamental advantage is the saving in maintenance (replacement of primers, ballasts, and tubes...) since the LED tube does not need ballasts or primers.
  • Hours of life: LED tubes last longer 30,000 hours, compared to 10,000 hours for a good fluorescent tube
  • Resistance: LED tubes can withstand shocks or vibrations much more than fluorescent tubes. In fact, they are removable and repairable, something impossible for fluorescent tubes.
  • Consumption: LED tubes consume up to 50% less than fluorescent tubes. A 90cm T8-18W fluorescent tube with ballast and starter can consume twice its rated power due to ballast. We are talking about a consumption of 36W compared to the 8 or 12 W of the consumption of the 60Cm T8 LED tube.
  • Started: The LED tubes are instant start and do not affect their hours of life. In change, a fluorescent tube takes time to start and the number of daily starts affects its life.
  • Environment: LED tubes do not need any gas to light up , fluorescent tubes are made with mercury vapor and mercury compounds, they are highly dangerous chemicals for human health and the environment.

Installation instructions for led tubes :

  • Step 1: Disconnect the electrical current.
  • Step 2: Remove the conventional fluorescent tube.
  • Step 3: Unscrew and remove the primer, then disconnect the wires from the ballast.
  • Step 4: Connect the phase to one end of the tube and the neutral to the other end of the tube.
  • Step 5: Place the new LED tube and connect the electrical current.

Where is it convenient to install LED tubes?

The Led tubes are normally installed in those places with a lot of s lighting hours: Parking lighting, hotel lighting, university and college lighting, office lighting, shopping center lighting.

For long periods of lighting, it is recommended to use LED tubes with a body of aluminum since they dissipate heat much better.

Documents

Installation_manual
Technical_drawings
