Circular LED Downlight Spotlight 12W 1,200Lm 6000ºK Bridgelux UGR19 50,000H [HO-DL-BRI-12W-CW]

Circular LED Downlight Spotlight 12W 1,200Lm 6000ºK Bridgelux UGR19 50,000H [HO-DL-BRI-12W-CW]

See questions and answers

For additional amounts the delivery period is 60 days As of the order date
  • Brand:GreenIce / Bridgelux Led
  • SkuHO-DL-BRI-12W-CW
  • AA 2021
Eprel file
Warranty
  • Warranty 3 years
  • Eye Care Eye Care
  • Tüv Süd TUV SUD
  • 120 º Opening
Documents
5,70€
5,70€ Infinity%
Tax included. The Shipping expenses They are calculated on the payment screen.

There are few

Warranty
  • Warranty 3 years
  • Eye Care Eye Care
  • Tüv Süd TUV SUD
  • 120 º Opening
Documents
¿Eres Cliente Profesional?

Hemos publicado una nueva web solo para Profesionales.

ir a Área Profesional
VENTAJAS DE COMPRAR EN GREENICE
  • Precio Mínimo Garantizado
  • Devoluciones Gratis hasta en 60 días
  • Envío Gratis desde 21,95€
  • Hasta 10 años de Garantía
(HO-DL-BRI-12W-CW_padreImg_ho_dl_bri_12w_cw_0.jpeg)
Cool White
There are few
Free shipping
5,70€
5,70€ Infinity%

Accessories

  • (SB-BS031B_padreImg_sb_bs031b_0.jpeg) (SB-BS031B_padreImg_sb_bs031b_1.jpeg)

    Motion Sensor Recessed 160º ►600W/200W

    GreenIce

    Motion Sensor Recessed 160º ►600W/200W

    4,44€
    4,44€ Infinity%
  • (GH-90963604_padreImg_gh_90963604_0.jpeg) (GH-90963604_padreImg_gh_90963604_1.jpeg)

    Commutator Panasonic Karre 10A 250V/Metal Frame With Claws/Key White

    PANASONIC

    Commutator Panasonic Karre 10A 250V/Metal Frame With Claws/Key White

    5,21€
    5,21€ Infinity%
  • (DR-P-ND-25W_padreImg_dr_p_nd_25w_0.jpeg) (DR-P-ND-25W_padreImg_dr_p_nd_25w_1.jpeg)

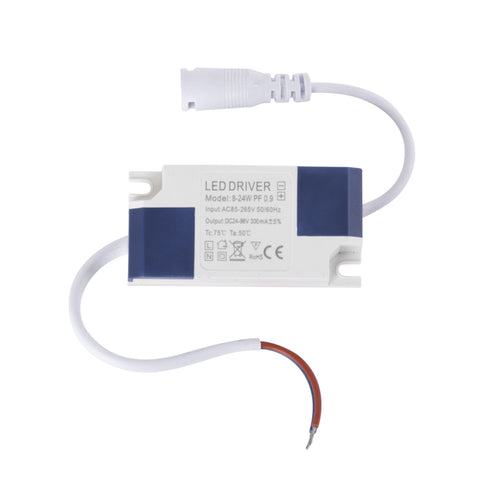

    Driver Non Dimmable Slimline Downlights 25W

    GreenIce

    Driver Non Dimmable Slimline Downlights 25W

    3,35€
    3,35€ Infinity%

Technical file

Product code
HO-DL-BRI-12W-CW
Light temperature
Cold white
Kelvin º
6000
Power (W)
12.0
Luminosity (LM)
1200
Luminous efficacy (LM/W)
100
LED efficacy
110
Type of LEDs
Bridgelux Led
Measures (mm)
Ø115
Roof cut (mm)
Ø90
Diameter
115
CRI
80
UGR
◄19
Diffuser
Microprismatic
Power factor (PF)
0.99
Construction
Aluminum/PC
Opening Angle (º)
120
Facility
IP20
Strain
85-265VAC
Driver output
DC24-48V
Estimated life (H)
50000
Dimable
No
Equivalence (W)
80
Isolation class
II
Work frequency (Hz)
50/ 60
Start time (s)
0.1
Energy class
F
Certificates
CE/ROHS/ISO9001
Bush
Terminal
Temperature range (ºC)
-20 +40
Lighting cycles
100000
Energy consumption (kWh/1000h)
12.0
Weight (gr)
250
Flicker
0.61
Half -year useful life (at 3 h/day)
45.66
Half -Year Useful Life (5 h/day)
27.39
Half -year useful life (at 8 h/day)
17.12
Directional
Non-Directional
Single/range CCT
Only
Single CCT
6000
INDEX R9
28
Minimum cri range
94
Maximum cri range
19
Chromaticity x
0.322
Chromaticity y
0.35
Applicable standards
EN 55015:2009;EN 61547:2009:EN 61000-3-2:2006;EN 61000-3-3:2008;EN 60598-2-2:2012;EN 60598-1:2009;EN 1122B:2001

Características

Product code
HO-DL-BRI-12W-CW
Light temperature
Cold white
Kelvin º
6000
Power (W)
12.0
Luminosity (LM)
1200
Luminous efficacy (LM/W)
100
LED efficacy
110
Type of LEDs
Bridgelux Led
Measures (mm)
Ø115
Roof cut (mm)
Ø90
Diameter
115
CRI
80
UGR
◄19
Diffuser
Microprismatic
Power factor (PF)
0.99
Construction
Aluminum/PC
Opening Angle (º)
120
Facility
IP20
Strain
85-265VAC
Driver output
DC24-48V
Estimated life (H)
50000
Dimable
No
Equivalence (W)
80
Isolation class
II
Work frequency (Hz)
50/ 60
Start time (s)
0.1
Energy class
F
Certificates
CE/ROHS/ISO9001
Bush
Terminal
Temperature range (ºC)
-20 +40
Lighting cycles
100000
Energy consumption (kWh/1000h)
12.0
Weight (gr)
250
Flicker
0.61
Half -year useful life (at 3 h/day)
45.66
Half -Year Useful Life (5 h/day)
27.39
Half -year useful life (at 8 h/day)
17.12
Directional
Non-Directional
Single/range CCT
Only
Single CCT
6000
INDEX R9
28
Minimum cri range
94
Maximum cri range
19
Chromaticity x
0.322
Chromaticity y
0.35
Applicable standards
EN 55015:2009;EN 61547:2009:EN 61000-3-2:2006;EN 61000-3-3:2008;EN 60598-2-2:2012;EN 60598-1:2009;EN 1122B:2001

Descripción

The Bridgelux Circular COB LED Downlight Spotlight allows light distribution with excellent properties. This spotlight is comparable to traditional halogen spotlights up to 100W, with ultra-low power consumption, optimal optical and safety properties and extra-long life.

Its useful life is estimated at 50,000 hours, therefore, it has a 10 times longer useful life than a conventional bulb. It supports multi-voltage 85-265V AC at a frequency of 50-60Hz.

It is made of high-quality materials such as aluminium, which ensures the durability of the spotlight. Provided with an opal diffuser, it offers uniform lighting without annoying reflections. In addition, it has the CE, RoHS and TUV certificates, which are synonymous with quality and safety.

The Downlight spotlight has a high color rendering index (CRI 80 ) and thus ensures distortion-free color reproduction. This factor is key in commercial environments and spaces where products are displayed in general, such as supermarkets, shops, shopping centers, museums, dealerships, restaurants, etc.
