Driver Meanwell Downlights 40W Smart Adjustable0-10V IP20

Driver Meanwell Downlights 40W Smart Adjustable0-10V IP20

For additional amounts the delivery period is 5 days As of the order date
  • Brand:GreenIce / MEANWELL
  • SkuOL-LCM-40
Warranty
  • Warranty 5 years
  • Tüv Süd TUV SUD
Documents
43,38€
43,38€ Infinity%
Tax included. The Shipping expenses They are calculated on the payment screen.

Available

Warranty
  • Warranty 5 years
  • Tüv Süd TUV SUD
Documents
Are you a professional customer?

We have published a new website only for professionals.

Go to Professional Area
Advantages of buying in Greenice
  • Guaranteed minimum price
  • Free returns up to 60 days
  • Free shipping From € 21.95
  • Until 10 years guarantee
(OL-LCM-40_padreImg_ol_lcm_40_0.jpeg)
##
Available
Free shipping
43,38€
43,38€ Infinity%

Accessories

  • (HO-PL-595-40-CW_padreImg_ho_pl_595_40_cw_0.jpeg) (HO-PL-595-40-CW_padreImg_ho_pl_595_40_cw_1.jpeg)

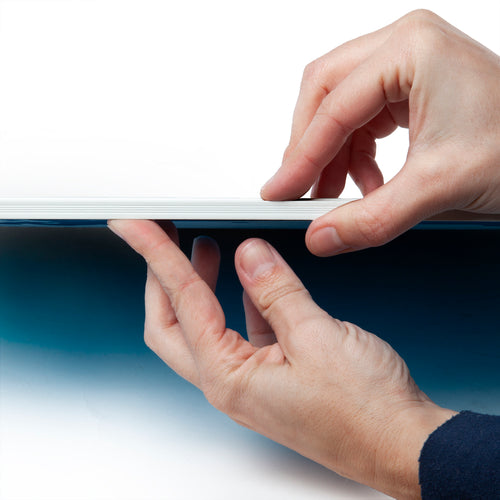

    Superslim LED Panel 40W 4,500Lm 6000ºK 60x60Cm UGR19 40,000H [HO-PL-595-40-CW]

    Samsung Led

    Superslim LED Panel 40W 4,500Lm 6000ºK 60x60Cm UGR19 40,000H [HO-PL-595-40-CW]

    29,52€
    29,52€ Infinity%
    See product
  • (TB-DIM-0-10V-MD_padreImg_tb_dim_0_10v_md_0.jpeg) (TB-DIM-0-10V-MD_padreImg_tb_dim_0_10v_md_1.jpeg)

    Dimmer/Remote Control Distancia 0-10V 10A 800W

    GreenIce

    Dimmer/Remote Control Distancia 0-10V 10A 800W

    27,82€
    27,82€ Infinity%

Technical file

Product code
OL-LCM-40
Measures (mm)
123, 5x81, 5x23
High
82.0
Long
124.0
Broad
23.0
Construction
PVC/ ABS
Facility
IP20
Strain
180-295Vca
Dimable
Yes
Work frequency (Hz)
47-63
Certificates
CE/ROHS/ISO9001
Temperature range (ºC)
-30+90
Weight (gr)
290
Additional information
Detailed instructions in "Documents" tab.

Characteristics

Product code
OL-LCM-40
Measures (mm)
123, 5x81, 5x23
High
82.0
Long
124.0
Broad
23.0
Construction
PVC/ ABS
Facility
IP20
Strain
180-295Vca
Dimable
Yes
Work frequency (Hz)
47-63
Certificates
CE/ROHS/ISO9001
Temperature range (ºC)
-30+90
Weight (gr)
290
Additional information
Detailed instructions in "Documents" tab.

Description

This source is designed to work directly with LEDs (LED plates or COBs), not with LED strips. They must be equipment that is powered by constant current. This source has an auxiliary output of 12V/50mA.

This source works in Constant Current mode when we connect the LEDs directly that have a voltage within the Output Voltage Range in Constant Current mode and a working current equal to the output current. Be sure to set the desired output current using the current selector. For more information, see the technical sheet in the attached section.

With a plastic casing designed for LED and architectural lighting applications. Suitable for interior lighting, offices and LED panels. Low ripple current, flicker-free.

Input for temperature protection of the LED modules. The driver has an input to connect an NTC sensor (negative coefficient resistance) that allows us to reduce the output current in case of excess temperature in the LED modules. If we are not going to use this protection input, we can use it to connect a fixed resistance and adjust the output current to lower intermediate values of up to 56% lower than the value selected with the DIP-Switch. For example, if we want a current of 630mA we can adjust the output with the jumpers at 700mA and connect a 34kOhm resistor. For more information, consult the technical sheet in the "Attachments" tab and you can use the Excel file to calculate the value of the resistance.

It can be regulated with active or passive regulators of 0-10V or 1-10V , 10V PWM signal from 100Hz to 3KHz or by resistance from 0 to 100KOhms. Will not work with phase cut Triac dimmers. (Not to be confused with TRIACs, phase cut dimmers. This driver cannot be dimmed with a Triac). With active potentiometers that can give 0V, it allows turning off the output without the need for a switch. With 1-10V regulators we can only reach 10% regulation without turning off the output.

Compatible with any 0-10V or 1-10V regulator on the market, both active and passive.
