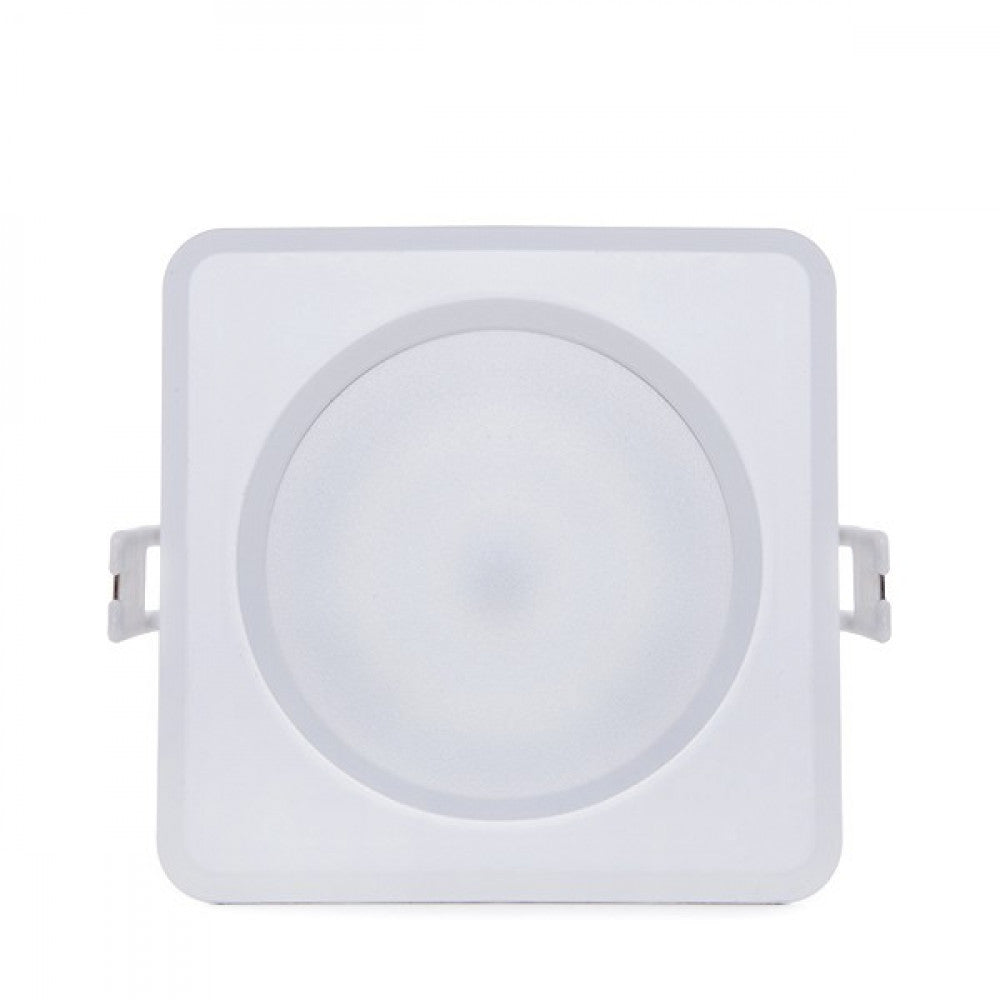

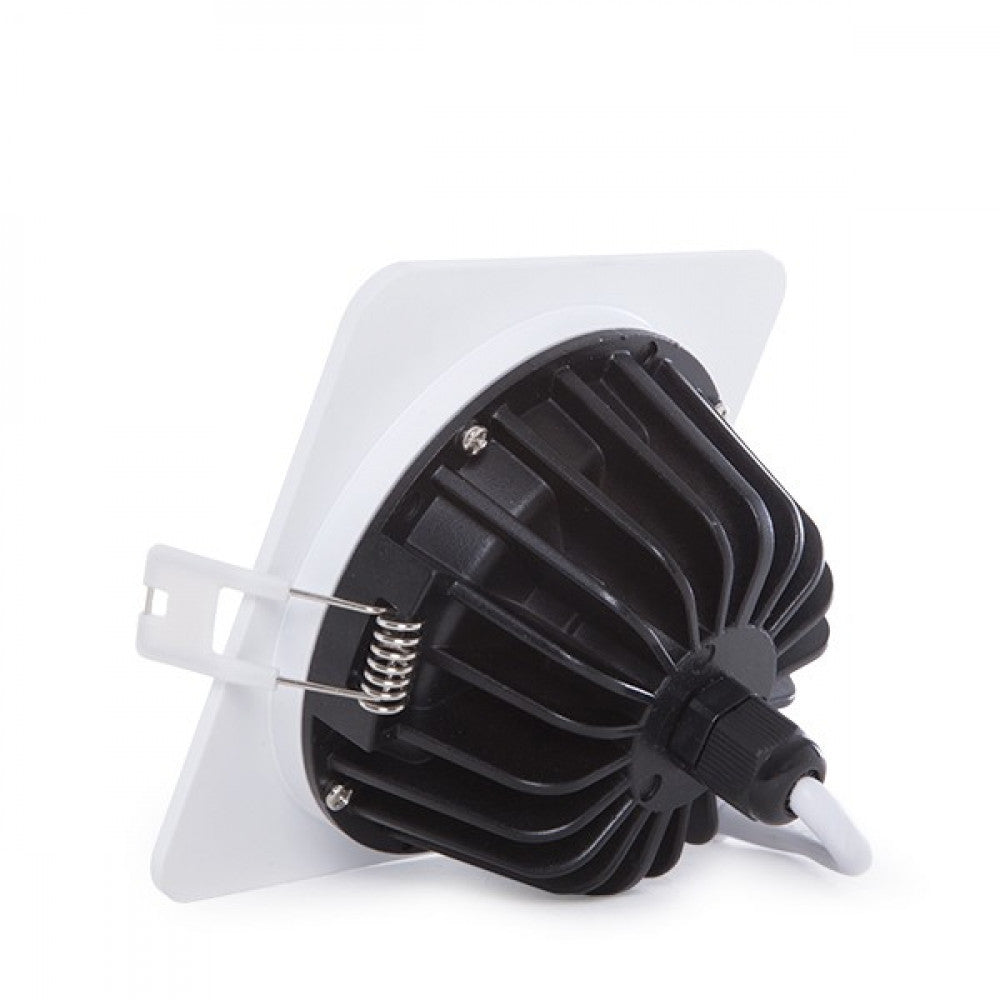

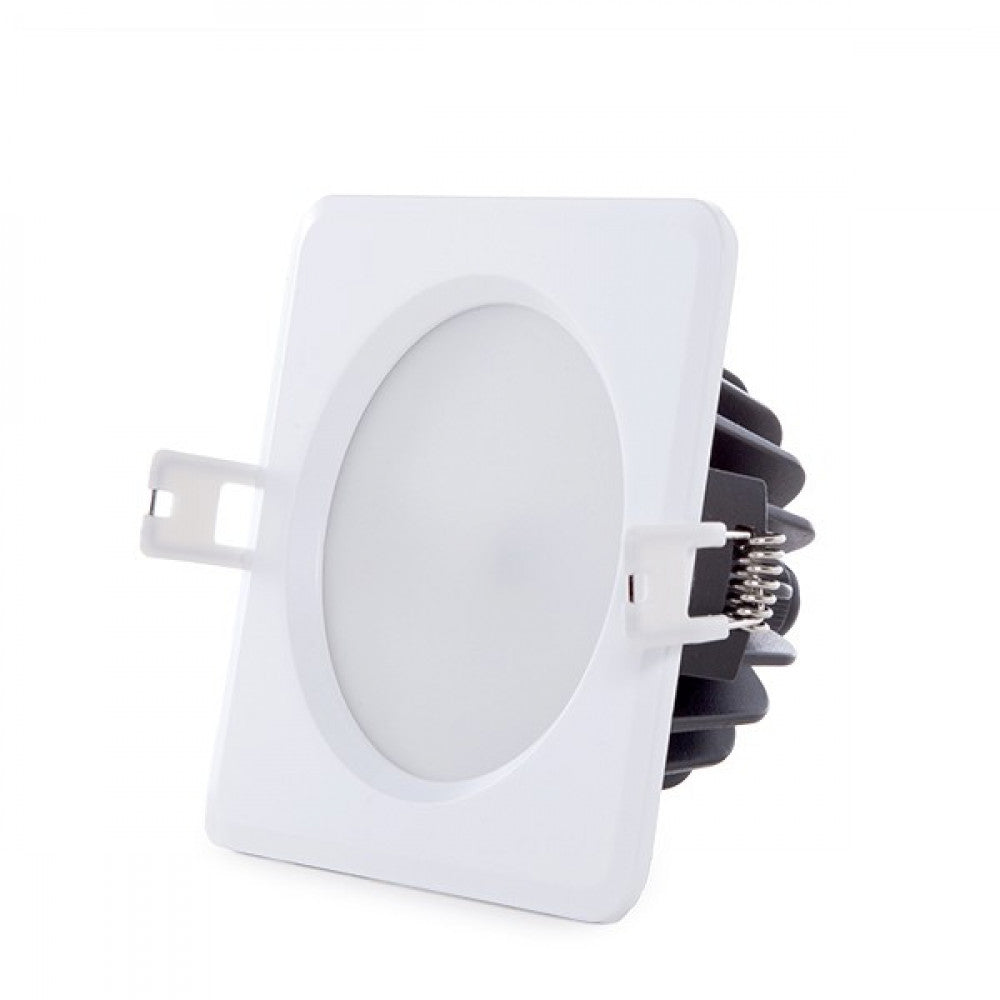

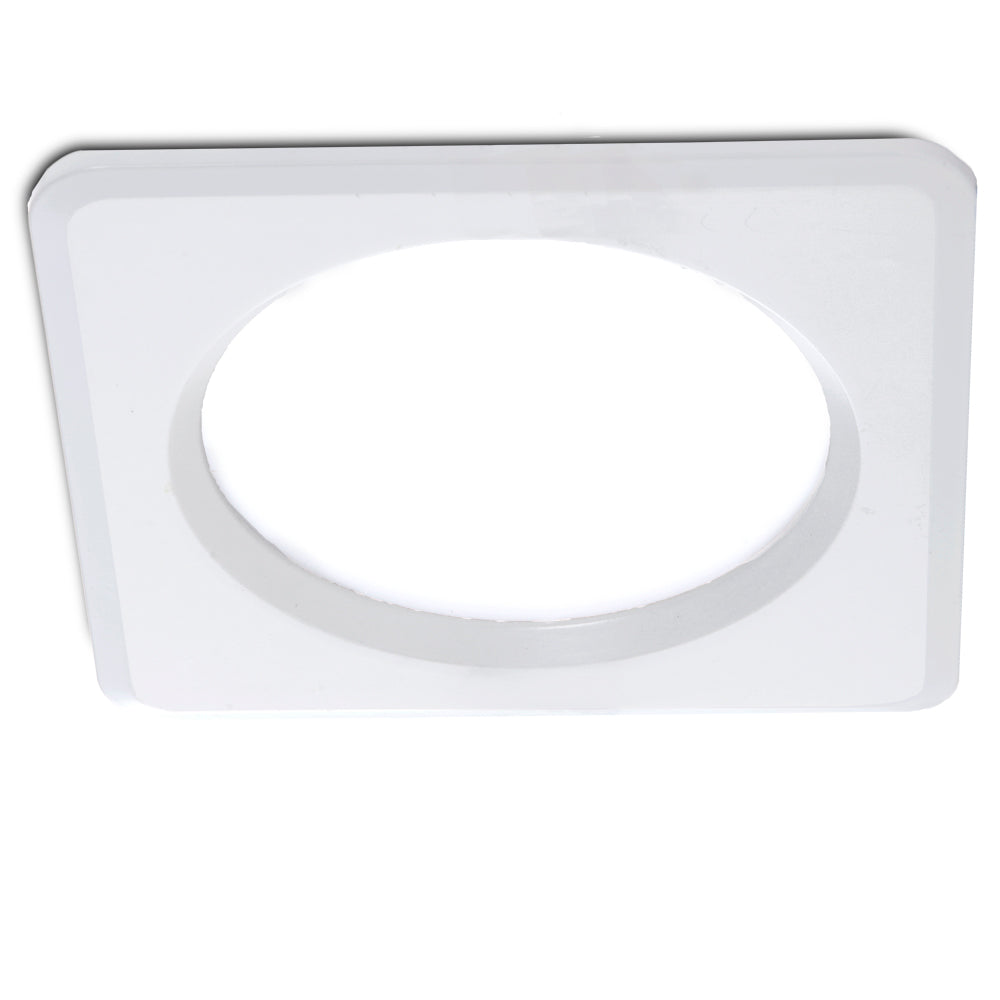

LED Downlight Spotlight 15W 1,350Lm 6000ºK IP65 Bathrooms/Kitchens 50,000H [SL-DLFS04-15W-CW]

LED Downlight Spotlight 15W 1,350Lm 6000ºK IP65 Bathrooms/Kitchens 50,000H [SL-DLFS04-15W-CW]

See questions and answers

For additional amounts the delivery period is 60 days As of the order date
  • Brand:GreenIce / Epistar Led
  • SkuSL-DLFS04-15W-CW
  • A 2021
Eprel file
Warranty
  • Warranty 3 years
  • Eye Care Eye Care
  • 120 º Opening
12,07€
12,07€ Infinity%
Tax included. The Shipping expenses They are calculated on the payment screen.

There are few

Warranty
  • Warranty 3 years
  • Eye Care Eye Care
  • 120 º Opening
¿Eres Cliente Profesional?

Hemos publicado una nueva web solo para Profesionales.

ir a Área Profesional
VENTAJAS DE COMPRAR EN GREENICE
  • Precio Mínimo Garantizado
  • Devoluciones Gratis hasta en 60 días
  • Envío Gratis desde 21,95€
  • Hasta 10 años de Garantía
(SL-DLFS04-15W-CW_padreImg_sl_dlfs04_15w_cw_0.jpeg)
Cool White
There are few
Free shipping
12,07€
12,07€ Infinity%

Accessories

  • (GH-90963601_padreImg_gh_90963601_0.jpeg) (GH-90963601_padreImg_gh_90963601_1.jpeg)

    Switch Panasonic Karre 10A 250V/Metal Frame With Claws/Key White

    PANASONIC

    Switch Panasonic Karre 10A 250V/Metal Frame With Claws/Key White

    4,44€
    4,44€ Infinity%
  • (SB-BS031B_padreImg_sb_bs031b_0.jpeg) (SB-BS031B_padreImg_sb_bs031b_1.jpeg)

    Motion Sensor Recessed 160º ►600W/200W

    GreenIce

    Motion Sensor Recessed 160º ►600W/200W

    4,45€
    4,45€ Infinity%

Technical file

Product code
SL-DLFS04-15W-CW
Light temperature
Cold white
Kelvin º
6000
Power (W)
15.0
Luminosity (LM)
1350
Luminous efficacy (LM/W)
90
LED efficacy
99
Type of LEDs
Epistar Led
Measures (mm)
108x108
Roof cut (mm)
Ø92
Long
108.0
Broad
108.0
CRI
80
Diffuser
Milky
Power factor (PF)
0.98
Construction
Aluminum/PC
Opening Angle (º)
120
Facility
IP65
Strain
85-265VAC
Driver output
DC72-96V
Estimated life (H)
50000
Dimable
No
Equivalence (W)
100
Isolation class
II
Work frequency (Hz)
50/ 60
Start time (s)
0.1
Energy class
F
Certificates
CE/ROHS/ISO9001
Bush
Terminal
Temperature range (ºC)
-20 +60
Lighting cycles
100000
Energy consumption (kWh/1000h)
15.0
Weight (gr)
480
Flicker
0.43
Half -year useful life (at 3 h/day)
45.66
Half -Year Useful Life (5 h/day)
27.39
Half -year useful life (at 8 h/day)
17.12
Directional
Non-Directional
Single/range CCT
Only
Single CCT
6000
INDEX R9
24
Minimum cri range
95
Maximum cri range
22
Chromaticity x
0.313
Chromaticity y
0.337
Applicable standards
EN 55015:2009;EN 61547:2009:EN 61000-3-2:2006;EN 61000-3-3:2008;EN 60598-2-2:2012;EN 60598-1:2009;EN 1122B:2001

Características

Product code
SL-DLFS04-15W-CW
Light temperature
Cold white
Kelvin º
6000
Power (W)
15.0
Luminosity (LM)
1350
Luminous efficacy (LM/W)
90
LED efficacy
99
Type of LEDs
Epistar Led
Measures (mm)
108x108
Roof cut (mm)
Ø92
Long
108.0
Broad
108.0
CRI
80
Diffuser
Milky
Power factor (PF)
0.98
Construction
Aluminum/PC
Opening Angle (º)
120
Facility
IP65
Strain
85-265VAC
Driver output
DC72-96V
Estimated life (H)
50000
Dimable
No
Equivalence (W)
100
Isolation class
II
Work frequency (Hz)
50/ 60
Start time (s)
0.1
Energy class
F
Certificates
CE/ROHS/ISO9001
Bush
Terminal
Temperature range (ºC)
-20 +60
Lighting cycles
100000
Energy consumption (kWh/1000h)
15.0
Weight (gr)
480
Flicker
0.43
Half -year useful life (at 3 h/day)
45.66
Half -Year Useful Life (5 h/day)
27.39
Half -year useful life (at 8 h/day)
17.12
Directional
Non-Directional
Single/range CCT
Only
Single CCT
6000
INDEX R9
24
Minimum cri range
95
Maximum cri range
22
Chromaticity x
0.313
Chromaticity y
0.337
Applicable standards
EN 55015:2009;EN 61547:2009:EN 61000-3-2:2006;EN 61000-3-3:2008;EN 60598-2-2:2012;EN 60598-1:2009;EN 1122B:2001

Descripción

The 108x108mm square LED Downlight, with a 51mm thickness and 92mm cut, offers solutions for interiors and exteriors. -265VAC) with a service frequency of 50/60Hz.

It has a high efficiency (90 Lm/W) consuming 15W through LEDs, providing a luminous flux of 1350Lm distributed uniformly by a diffuser of opalized plastic from which a color rendering index of 80 is obtained. It provides lighting equivalent to a 100W incandescent bulb, its consumption represents a value of 15kWh/1000h, reducing the amount of energy billed and the emissions of polluting gases into the atmosphere.
