1 3

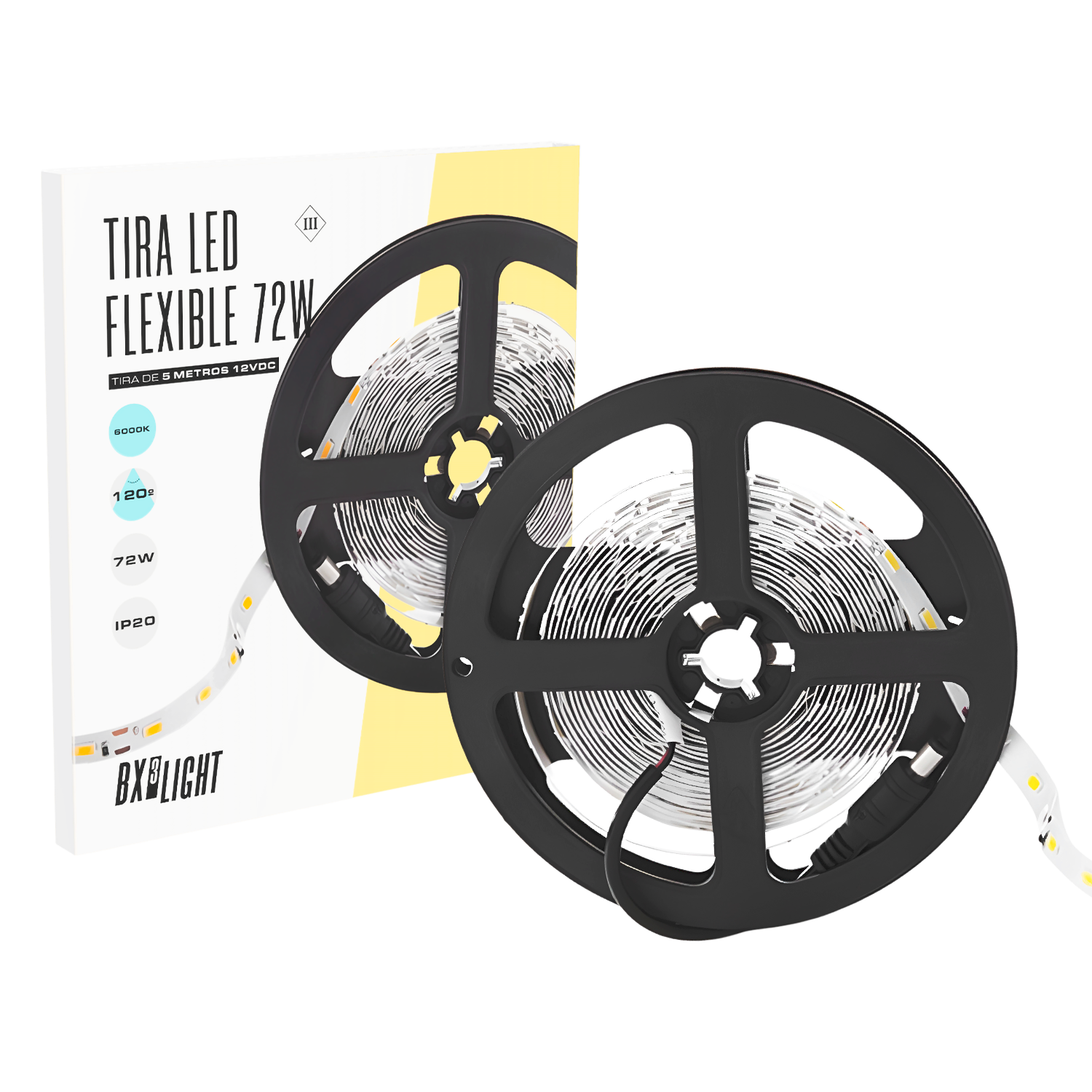

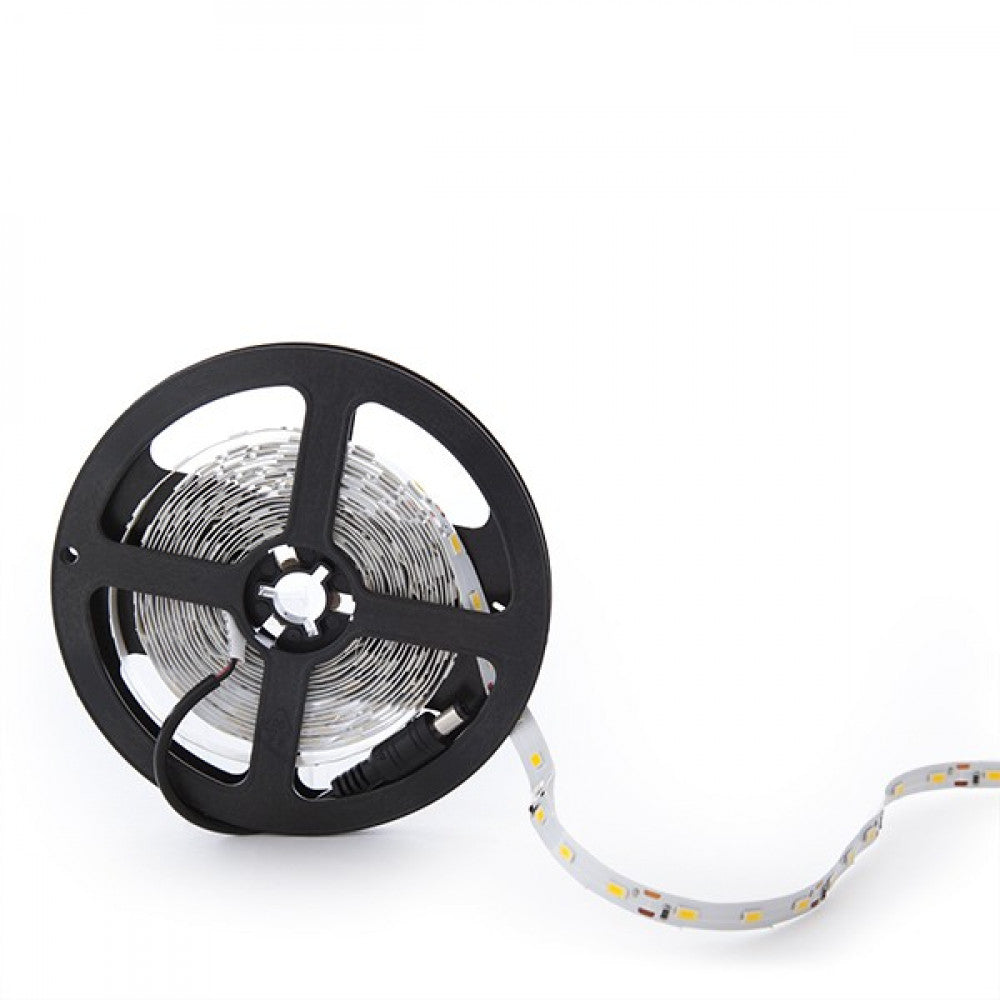

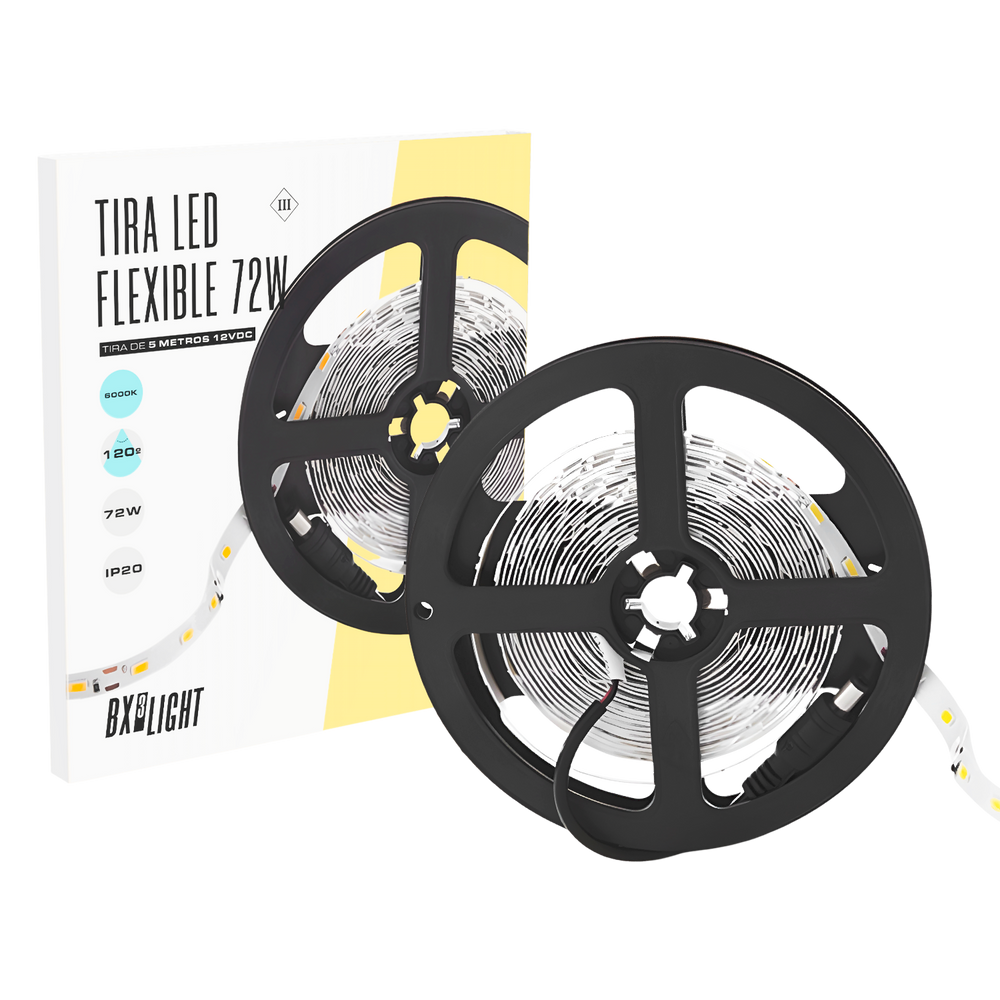

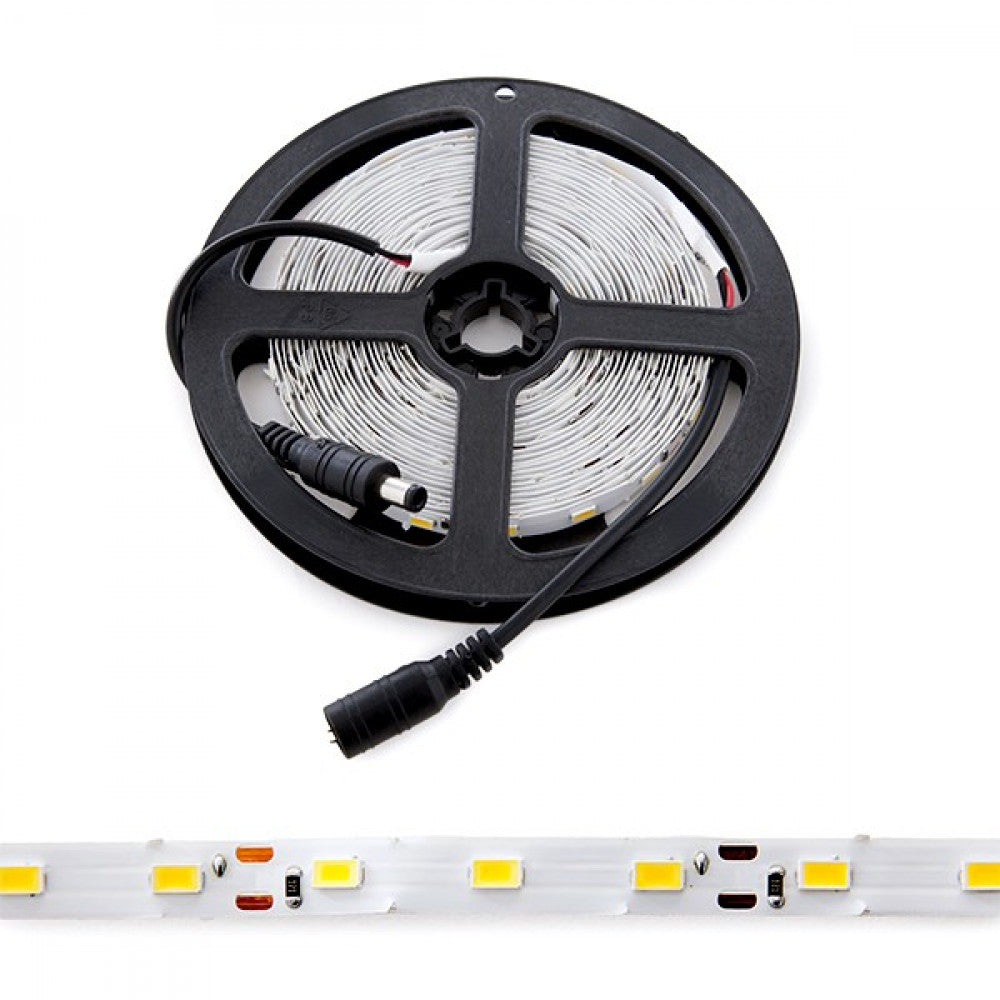

Strip of 300 LEDs 72W 3,780Lm CRI85 6000ºK SMD5050 12VDC x5M 40,000H [BX3-219009W]

Strip of 300 LEDs 72W 3,780Lm CRI85 6000ºK SMD5050 12VDC x5M 40,000H [BX3-219009W]

See questions and answers

For additional amounts the delivery period is 25 days As of the order date
  • Brand:BX3 LIGHT
  • SkuBX3-219009W
Eprel file
Warranty
  • Warranty 3 years
  • 120 º Opening
8,96€
8,96€ Infinity%
Tax included. The Shipping expenses They are calculated on the payment screen.

Stock available

Warranty
  • Warranty 3 years
  • 120 º Opening
Are you a professional customer?

We have published a new website only for professionals.

Go to Professional Area
Advantages of buying in Greenice
  • Guaranteed minimum price
  • Free returns up to 60 days
  • Free shipping From € 21.95
  • Until 10 years guarantee
(BX3-219009W_padreImg_bx3_219009w_0.png)
Cool White
Stock available
Free shipping
8,96€
8,96€ Infinity%

Accessories

  • (LL-38-0640-20_padreImg_ll_38_0640_20_0.png) (LL-38-0640-20_padreImg_ll_38_0640_20_1.png)

    KIMERA-"ARRE" Silver Anodized Aluminum Profile with Opal Diffuser, End Caps and Mounting Clips 2.02M

    KIMERA

    KIMERA-"ARRE" Silver Anodized Aluminum Profile with Opal Diffuser, End Caps and Mounting Clips 2.02M

    5,76€
    5,76€ Infinity%
  • (SU-A1707_B_padreImg_su_a1707_b_0.png) (SU-A1707_B_padreImg_su_a1707_b_1.jpeg)

    Black Aluminum Profile for LED Strip - Opal Diffuser

    GreenIce

    Black Aluminum Profile for LED Strip - Opal Diffuser

    6,07€
    6,07€ Infinity%
  • (LL-38-0611-20_padreImg_ll_38_0611_20_0.png) (LL-38-0611-20_padreImg_ll_38_0611_20_1.png)

    KIMERA-"ARRE" Black Anodized Aluminum Profile with Opal Diffuser, End Caps and Mounting Clips 2.02M

    KIMERA

    KIMERA-"ARRE" Black Anodized Aluminum Profile with Opal Diffuser, End Caps and Mounting Clips 2.02M

    6,02€
    6,02€ Infinity%
  • (LL-38-0150-20_padreImg_ll_38_0150_20_0.jpeg) (LL-38-0150-20_padreImg_ll_38_0150_20_1.jpeg)

    KIMERA-SELDE Anodized Silver Aluminum Profile with Opal Diffuser and End Caps 2.02M

    KIMERA

    KIMERA-SELDE Anodized Silver Aluminum Profile with Opal Diffuser and End Caps 2.02M

    5,72€
    5,72€ Infinity%

Technical file

Product code
BX3-219009W
Light temperature
Cold White
Kelvin º
6000
Power (W)
72.0
Luminosity (LM)
3780
Luminous efficacy (LM/W)
52
LED efficacy
57
Type of LEDs
SMD 5050
Measures (mm)
10x5000
Long
5000.0
Broad
10.0
CRI
85
Diffuser
Transparent
Power factor (PF)
0.8
Construction
PCB/3M Tape
Opening Angle (º)
120
Facility
IP25
Strain
12VDC
Estimated life (H)
40000
Dimable
Forks
Isolation class
III
Work frequency (Hz)
50/ 60
Start time (s)
0.1
Energy class
G
Certificates
CE,RoHS, ISO9001
Bush
Terminal Block
Temperature range (ºC)
-20 +40
Lighting cycles
100000
Energy consumption (kWh/1000h)
72.0
Weight (gr)
100
Half -year useful life (at 3 h/day)
36.52
Half -Year Useful Life (5 h/day)
21.91
Half -year useful life (at 8 h/day)
13.69
Directional
Non-Directional
Single CCT
6000
INDEX R9
10
Minimum cri range
85
Maximum cri range
19
Chromaticity x
0.304
Chromaticity y
0.312
Número unidades caja exterior
100.0
Applicable standards
EN 55015:2006; EN 61547:2009; EN 61000-3-2:2006; EN 61000-3-3:2008; EPA 3050B:1996; EN 1122B:2001; EPA 3052:1996; EPA 3060A:1996; EPA 7196A:1992; EPA 3540C:1996; EPA 8270D:2007; IEC 62321:2008

Characteristics

Product code
BX3-219009W
Light temperature
Cold White
Kelvin º
6000
Power (W)
72.0
Luminosity (LM)
3780
Luminous efficacy (LM/W)
52
LED efficacy
57
Type of LEDs
SMD 5050
Measures (mm)
10x5000
Long
5000.0
Broad
10.0
CRI
85
Diffuser
Transparent
Power factor (PF)
0.8
Construction
PCB/3M Tape
Opening Angle (º)
120
Facility
IP25
Strain
12VDC
Estimated life (H)
40000
Dimable
Forks
Isolation class
III
Work frequency (Hz)
50/ 60
Start time (s)
0.1
Energy class
G
Certificates
CE,RoHS, ISO9001
Bush
Terminal Block
Temperature range (ºC)
-20 +40
Lighting cycles
100000
Energy consumption (kWh/1000h)
72.0
Weight (gr)
100
Half -year useful life (at 3 h/day)
36.52
Half -Year Useful Life (5 h/day)
21.91
Half -year useful life (at 8 h/day)
13.69
Directional
Non-Directional
Single CCT
6000
INDEX R9
10
Minimum cri range
85
Maximum cri range
19
Chromaticity x
0.304
Chromaticity y
0.312
Número unidades caja exterior
100.0
Applicable standards
EN 55015:2006; EN 61547:2009; EN 61000-3-2:2006; EN 61000-3-3:2008; EPA 3050B:1996; EN 1122B:2001; EPA 3052:1996; EPA 3060A:1996; EPA 7196A:1992; EPA 3540C:1996; EPA 8270D:2007; IEC 62321:2008

Description

The BX3 Light 72W 6000K 12VDC 5m Flexible LED Strip is a flexible linear LED lighting solution designed for indoor applications requiring high luminous power and energy efficiency in continuous or decorative spaces.

Technical characteristics

  • Rated power: 72 W
  • Luminous flux: approx. 3,780 lm (total luminous flux of the roll)
  • Color temperature: 6,000 K (cool white)
  • Supply voltage: 12 V DC
  • Protection rating: IP20 (indoor environments)
  • Length: 5 m
  • LED type: SMD5050, beam angle ~120°
  • Estimated lifespan: 40,000 h

Design and performance

This flexible LED strip combines a lightweight and adaptable structure with high luminous power, ideal for continuous lighting on ceilings, furniture, shelves, or architectural elements. Its design allows for custom cutting (according to cutting points) to adapt to the specific needs of the project. Thanks to its 12V DC mounting, it is compatible with standard low-voltage transformers and drivers, facilitating its integration into domestic or commercial installations. Recommended applications: Interior lighting in shops and window displays; Indirect lighting on walls or ceilings; Ambient lighting in offices, living rooms, or transit areas; Decorative and functional lighting projects. Main advantages: High brightness in continuous format thanks to 72W of power.

  • Cool white color temperature (6000 K) for greater visual perception in large spaces.
  • Long lifespan and good luminous efficiency.
  • Flexible design to adapt to various surface types and configurations.

    • Documents

    Installation_manual
    Spanish_technical_data
    English_technical_data
    Eu_certificates
    Technical_drawings
