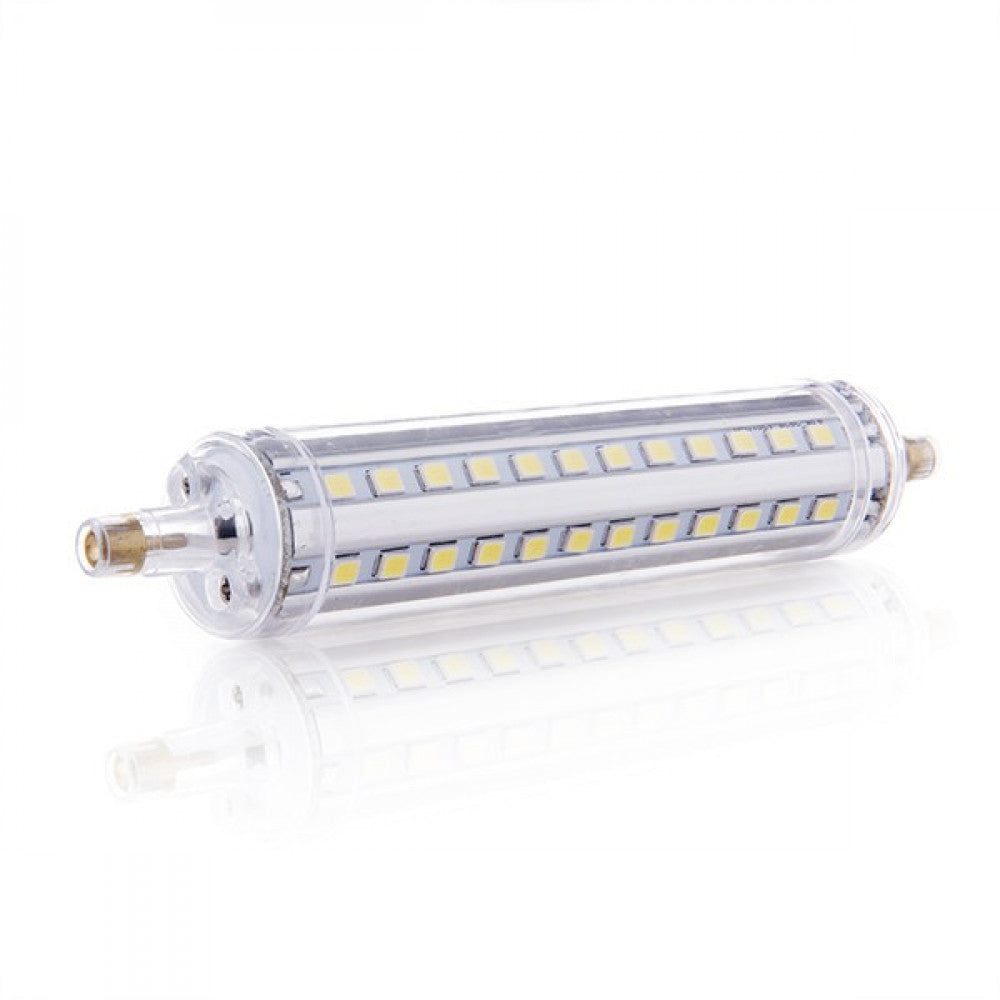

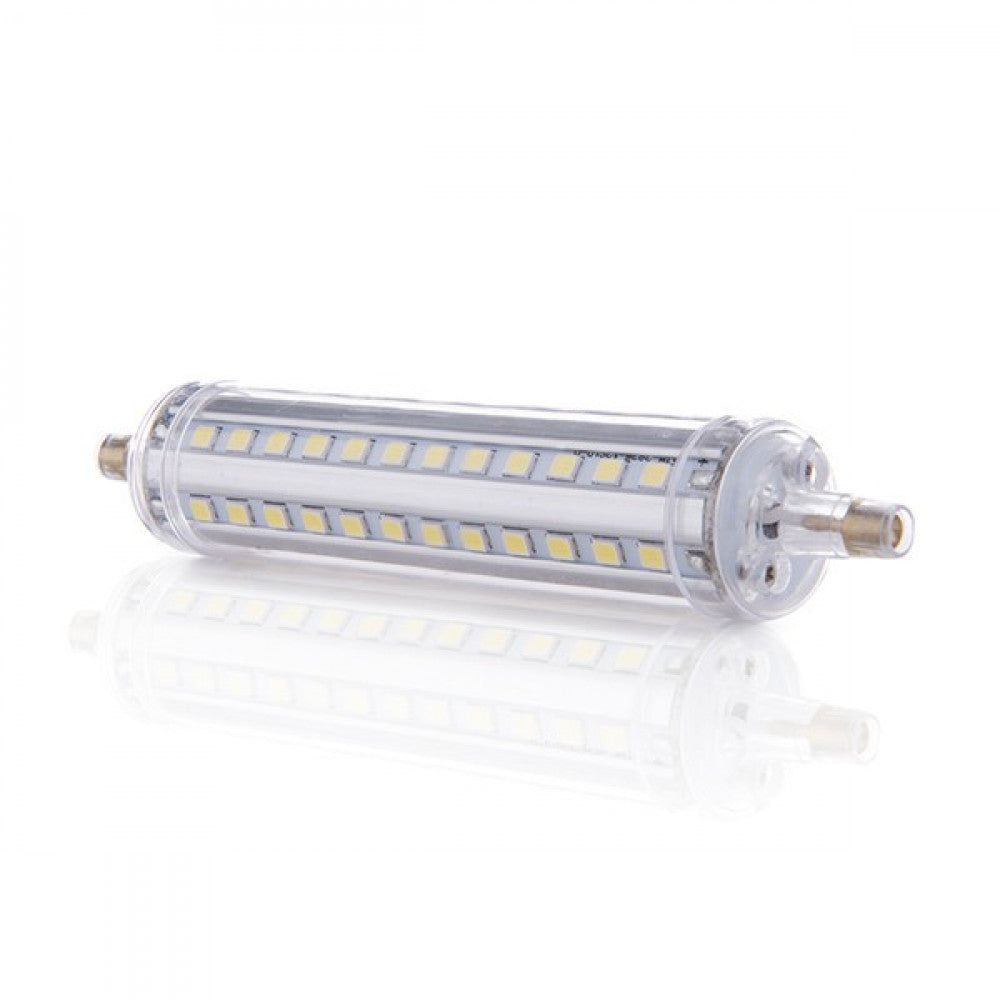

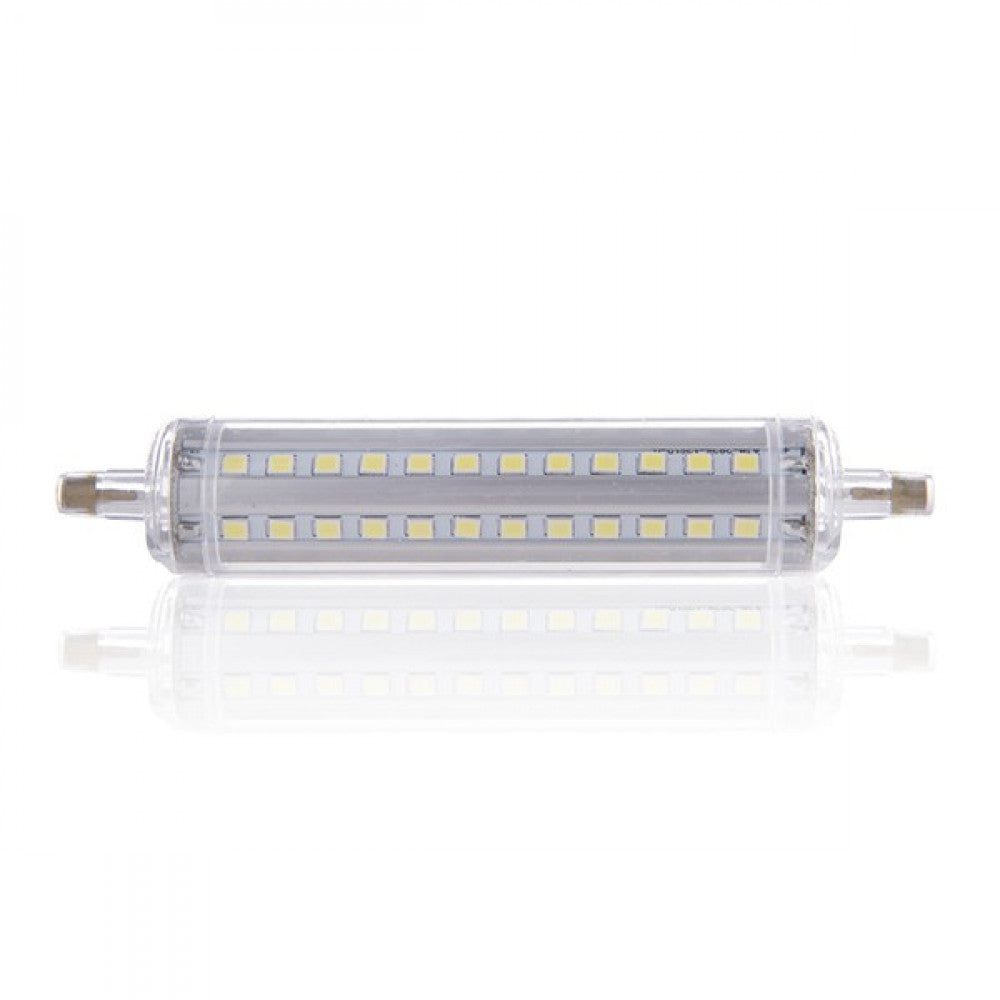

LED Bulb R7S 10W 1,150Lm 6000ºK 118Mm 360º Dimable 50,000H [AJM-R7S-10WDIM-CW]

LED Bulb R7S 10W 1,150Lm 6000ºK 118Mm 360º Dimable 50,000H [AJM-R7S-10WDIM-CW]

For additional amounts the delivery period is 60 days As of the order date
  • Brand:GreenIce
  • SkuAJM-R7S-10WDIM-CW
  • AA 2021
Eprel file
Warranty
  • Warranty 3 years
  • 360 º Opening
£11.00
£14.00 £11.00 -21%
Tax included. The Shipping expenses They are calculated on the payment screen.

Stock available

Warranty
  • Warranty 3 years
  • 360 º Opening
Are you a professional customer?

We have published a new website only for professionals.

Go to Professional Area
Advantages of buying in Greenice
  • Guaranteed minimum price
  • Free returns up to 60 days
  • Free shipping From € 21.95
  • Until 10 years guarantee
-21.43%(AJM-R7S-10WDIM-CW_padreImg_ajm_r7s_10wdim_cw_0.jpeg)
Cool White
Stock available
Free shipping
£11.00
£14.00 £11.00 -21%

Technical file

Product code
AJM-R7S-10WDIM-CW
Luminous efficacy (LM/W)
115
Light temperature
Cold White
Kelvin º
6000
Power (W)
10.0
Luminosity (LM)
1150
Measures (mm)
Ø22X118
Long
118.0
Diameter
22
Number and type of LEDs
SMD2835
CRI
80
Power factor (PF)
0.9
Construction
Aluminum/PC
Opening Angle (º)
360
Facility
IP20
Strain
85-265VAC
Estimated life (H)
50000
Dimable
Yes
Equivalence (W)
90
Work frequency (Hz)
50/ 60
Start time (s)
0.1
Energy class
E
Certificates
CE/ROHS/ISO9001
Bush
R7S
Temperature range (ºC)
-20 +40
Lighting cycles
100000
Diffuser
Transparent
Energy consumption (kWh/1000h)
10.0
Weight (gr)
45
Flicker
0.54
Half -year useful life (at 3 h/day)
45.66
Half -Year Useful Life (5 h/day)
27.39
Half -year useful life (at 8 h/day)
17.12
Directional
Non-Directional
Single/range CCT
Only
Single CCT
6000
INDEX R9
28
Minimum cri range
90
Maximum cri range
2
Chromaticity x
0.346
Chromaticity y
0.328
Driver output
45-84V
Applicable standards
EN 55015:2009;EN 61547:2009:EN 61000-3-2:2006;EN 61000-3-3:2008;EN 60968:1999

Characteristics

Product code
AJM-R7S-10WDIM-CW
Luminous efficacy (LM/W)
115
Light temperature
Cold White
Kelvin º
6000
Power (W)
10.0
Luminosity (LM)
1150
Measures (mm)
Ø22X118
Long
118.0
Diameter
22
Number and type of LEDs
SMD2835
CRI
80
Power factor (PF)
0.9
Construction
Aluminum/PC
Opening Angle (º)
360
Facility
IP20
Strain
85-265VAC
Estimated life (H)
50000
Dimable
Yes
Equivalence (W)
90
Work frequency (Hz)
50/ 60
Start time (s)
0.1
Energy class
E
Certificates
CE/ROHS/ISO9001
Bush
R7S
Temperature range (ºC)
-20 +40
Lighting cycles
100000
Diffuser
Transparent
Energy consumption (kWh/1000h)
10.0
Weight (gr)
45
Flicker
0.54
Half -year useful life (at 3 h/day)
45.66
Half -Year Useful Life (5 h/day)
27.39
Half -year useful life (at 8 h/day)
17.12
Directional
Non-Directional
Single/range CCT
Only
Single CCT
6000
INDEX R9
28
Minimum cri range
90
Maximum cri range
2
Chromaticity x
0.346
Chromaticity y
0.328
Driver output
45-84V
Applicable standards
EN 55015:2009;EN 61547:2009:EN 61000-3-2:2006;EN 61000-3-3:2008;EN 60968:1999

Description

The R7S DIMABLE LED Lamp is used as a replacement for linear halogens and luminaires that have R7S connectors. This lamp offers a very wide 360º projection angle and great light output with minimum consumption and minimum heat emission.

The new micro-LED luminaires use the new SMD2835 technology. Heat sink with a unique and exclusive design that guarantees a constant lamp temperature. great resistance to shocks and vibrations.

Ecological product, without heavy metals and without infrared or ultraviolet emissions. Dimable 0-100%.

IMPORTANT NOTICE:Do not use in appliques hermetically sealed.
