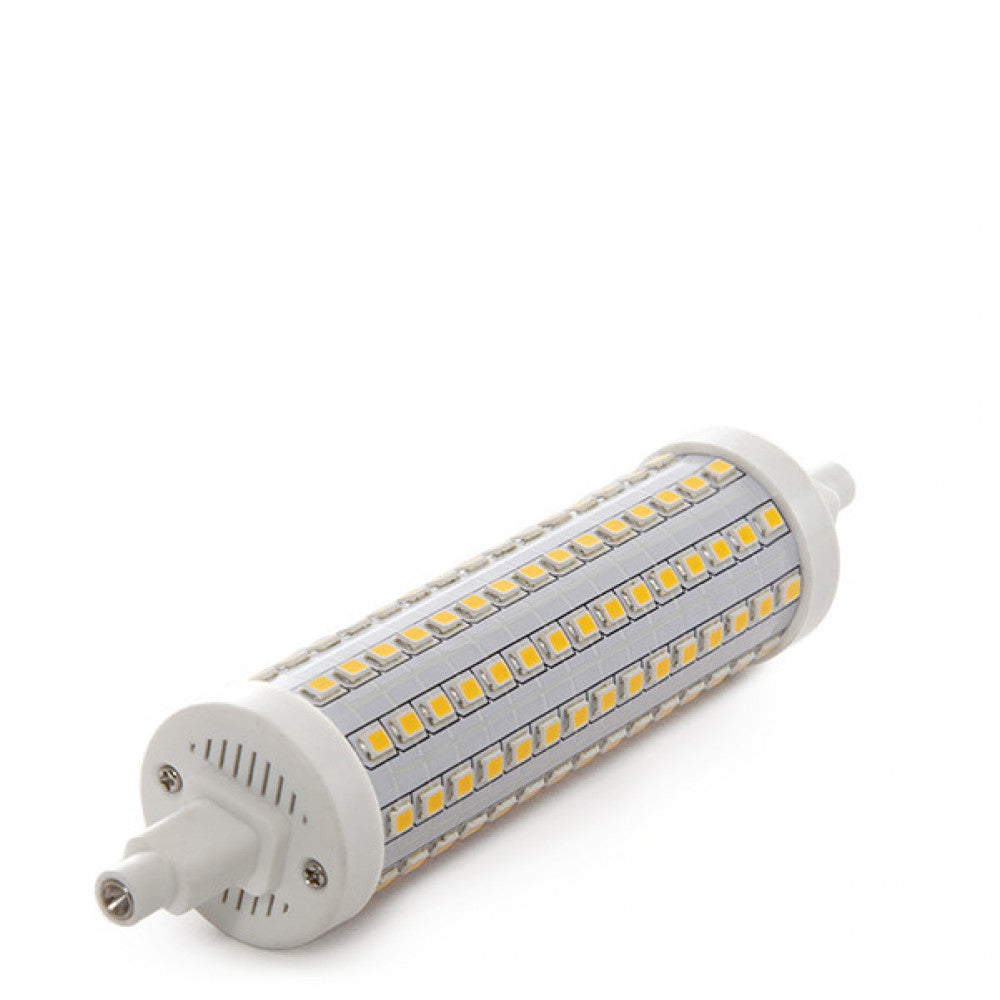

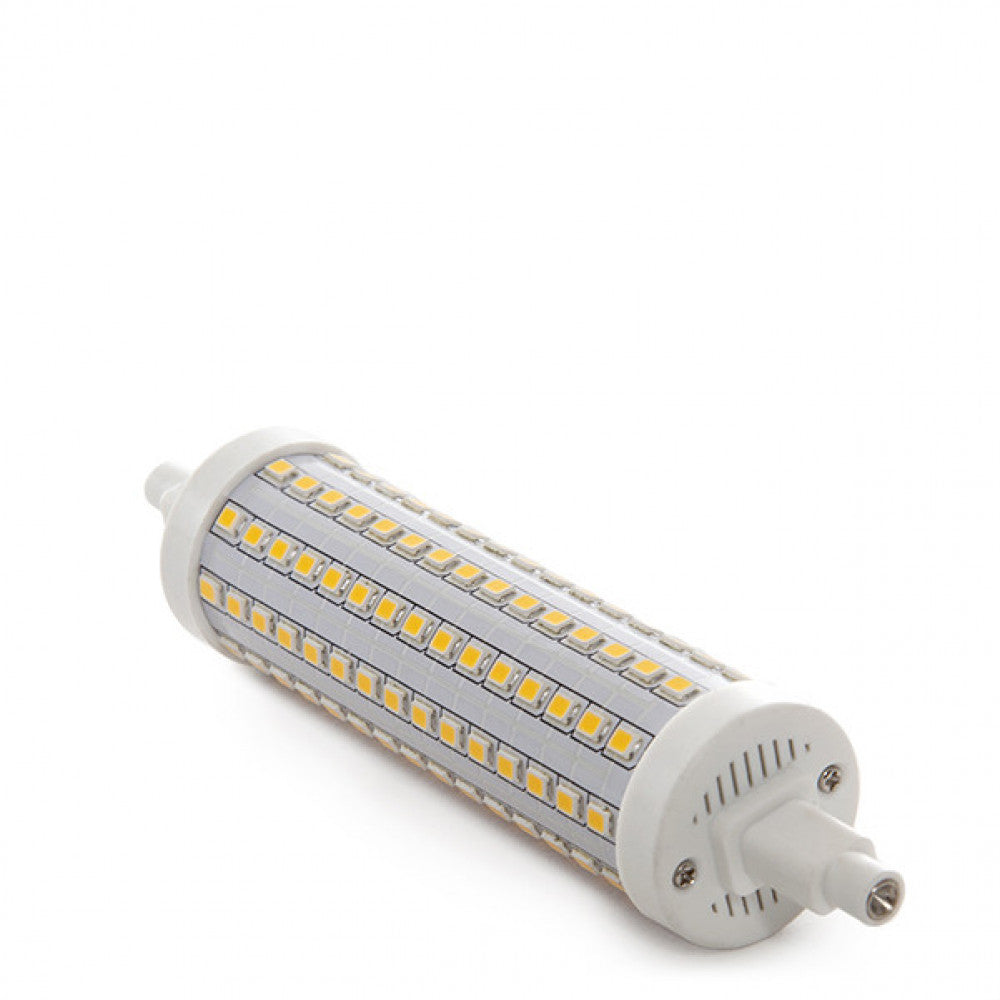

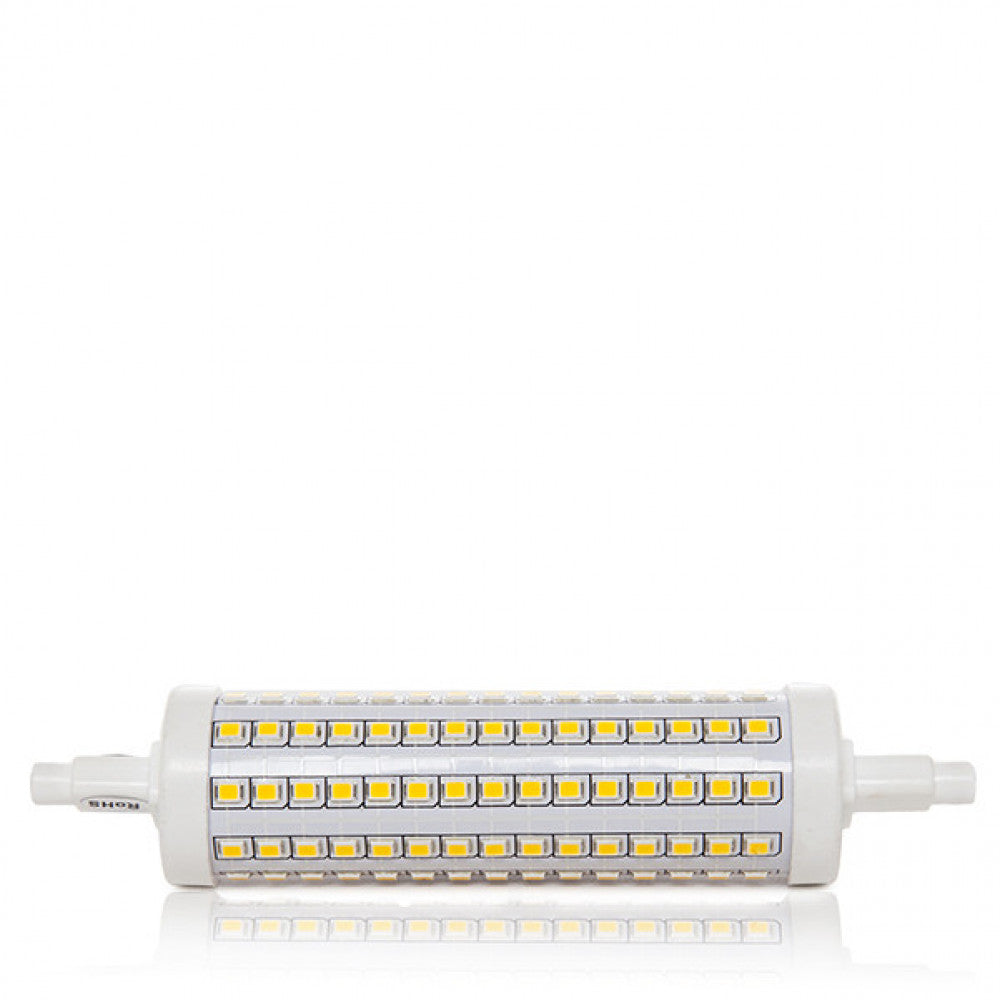

LED Bulb R7S 14W 1,400Lm 6000ºK 135Mm 360º 40,000H [TI-R7S-360-14W-135-CW]

LED Bulb R7S 14W 1,400Lm 6000ºK 135Mm 360º 40,000H [TI-R7S-360-14W-135-CW]

See questions and answers

For additional amounts the delivery period is 60 days As of the order date
  • Brand:GreenIce
  • SkuTI-R7S-360-14W-135CW
Eprel file
Warranty
  • Warranty 3 years
  • 360 º Opening
£3.72
£3.72 £3.72 %
Tax included. The Shipping expenses They are calculated on the payment screen.

Exhausted

Warranty
  • Warranty 3 years
  • 360 º Opening
Are you a professional customer?

We have published a new website only for professionals.

Go to Professional Area
Advantages of buying in Greenice
  • Guaranteed minimum price
  • Free returns up to 60 days
  • Free shipping From € 21.95
  • Until 10 years guarantee
(TI-R7S-360-14W-135CW_padreImg_ti_r7s_360_14w_135cw_0.jpeg)
Cool White
Exhausted
Free shipping
£3.72
£3.72 £3.72 %

Technical file

Product code
TI-R7S-360-14W-135-CW
Light temperature
Cold White
Kelvin º
6000
Power (W)
14.0
Luminosity (LM)
1400
Luminous efficacy (LM/W)
100
LED efficacy
110
Type of LEDs
Epistar2835
Measures (mm)
Ø29x135
CRI
80
Diffuser
Transparent
Power factor (PF)
0.9
Construction
Aluminum/ PC
Opening Angle (º)
360
Facility
IP20
Strain
85-265VAC
Driver output
DC12-48V
Estimated life (H)
40000
Dimable
No
Equivalence (W)
90
Work frequency (Hz)
50/ 60
Start time (s)
0.1
Energy class
F
Certificates
CE/ROHS/ISO9001
Bush
R7S
Temperature range (ºC)
-20 +40
Lighting cycles
100000
Energy consumption (kWh/1000h)
14.0
Weight (gr)
70
Flicker
0.75
Half -year useful life (at 3 h/day)
36.52
Half -Year Useful Life (5 h/day)
21.91
Half -year useful life (at 8 h/day)
13.69
Directional
Non-Directional
Single/range CCT
Only
Single CCT
6000
INDEX R9
24
Minimum cri range
95
Maximum cri range
7
Chromaticity x
0.311
Chromaticity y
0.326
Applicable standards
EN 55015:2009;EN 61547:2009:EN 61000-3-2:2006;EN 61000-3-3:2008;EN 60968:1999

Opiniones

Characteristics

Product code
TI-R7S-360-14W-135-CW
Light temperature
Cold White
Kelvin º
6000
Power (W)
14.0
Luminosity (LM)
1400
Luminous efficacy (LM/W)
100
LED efficacy
110
Type of LEDs
Epistar2835
Measures (mm)
Ø29x135
CRI
80
Diffuser
Transparent
Power factor (PF)
0.9
Construction
Aluminum/ PC
Opening Angle (º)
360
Facility
IP20
Strain
85-265VAC
Driver output
DC12-48V
Estimated life (H)
40000
Dimable
No
Equivalence (W)
90
Work frequency (Hz)
50/ 60
Start time (s)
0.1
Energy class
F
Certificates
CE/ROHS/ISO9001
Bush
R7S
Temperature range (ºC)
-20 +40
Lighting cycles
100000
Energy consumption (kWh/1000h)
14.0
Weight (gr)
70
Flicker
0.75
Half -year useful life (at 3 h/day)
36.52
Half -Year Useful Life (5 h/day)
21.91
Half -year useful life (at 8 h/day)
13.69
Directional
Non-Directional
Single/range CCT
Only
Single CCT
6000
INDEX R9
24
Minimum cri range
95
Maximum cri range
7
Chromaticity x
0.311
Chromaticity y
0.326
Applicable standards
EN 55015:2009;EN 61547:2009:EN 61000-3-2:2006;EN 61000-3-3:2008;EN 60968:1999

Description

The R7S LED Lamp is used as a replacement for linear halogen lamps and luminaires that have R7S connectors.This lamp offers a very wide 360º projection angle and great power light with minimum consumption and minimum heat emission.

The new micro-LED luminaires use the new SMD2835 technology. Heat sink with a unique and exclusive design that guarantees a constant lamp temperature. It has great resistance to shocks and vibrations.

Ecological product, without heavy metals and without infrared or ultraviolet emissions.

IMPORTANT NOTICE:Do not use in hermetically sealed fixtures closed.

Documents

Installation_manual

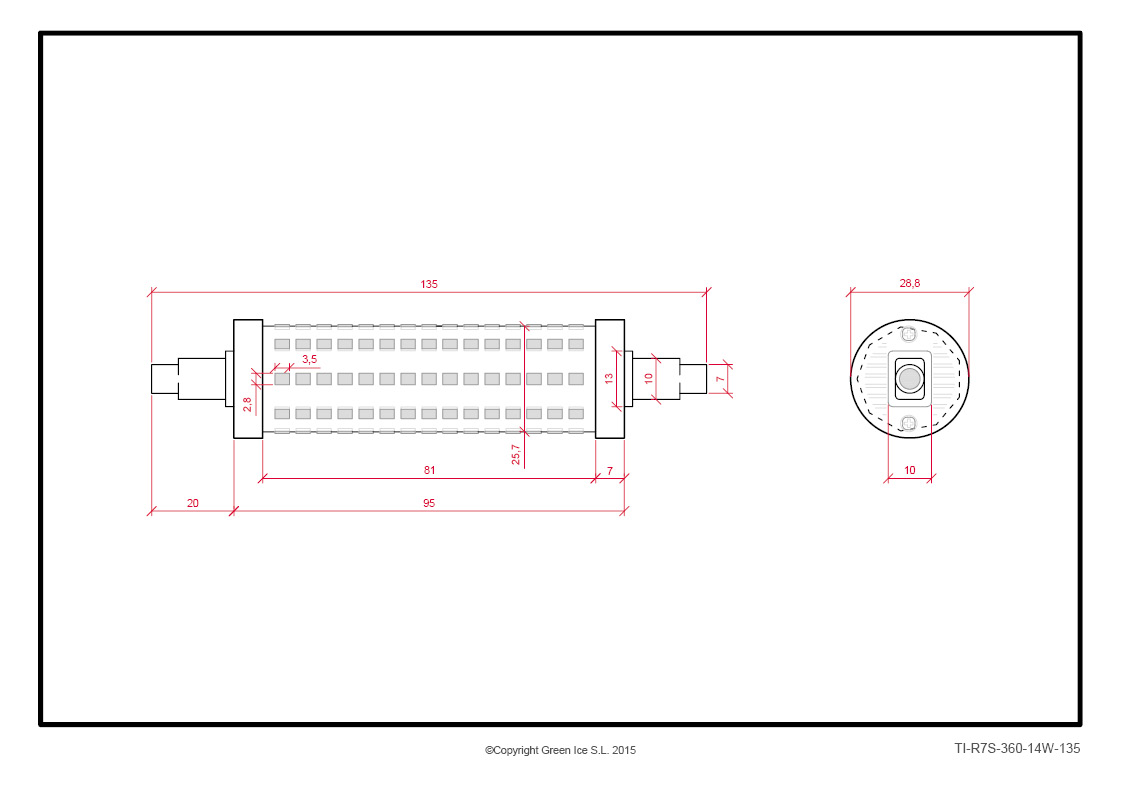

Technical_drawings
