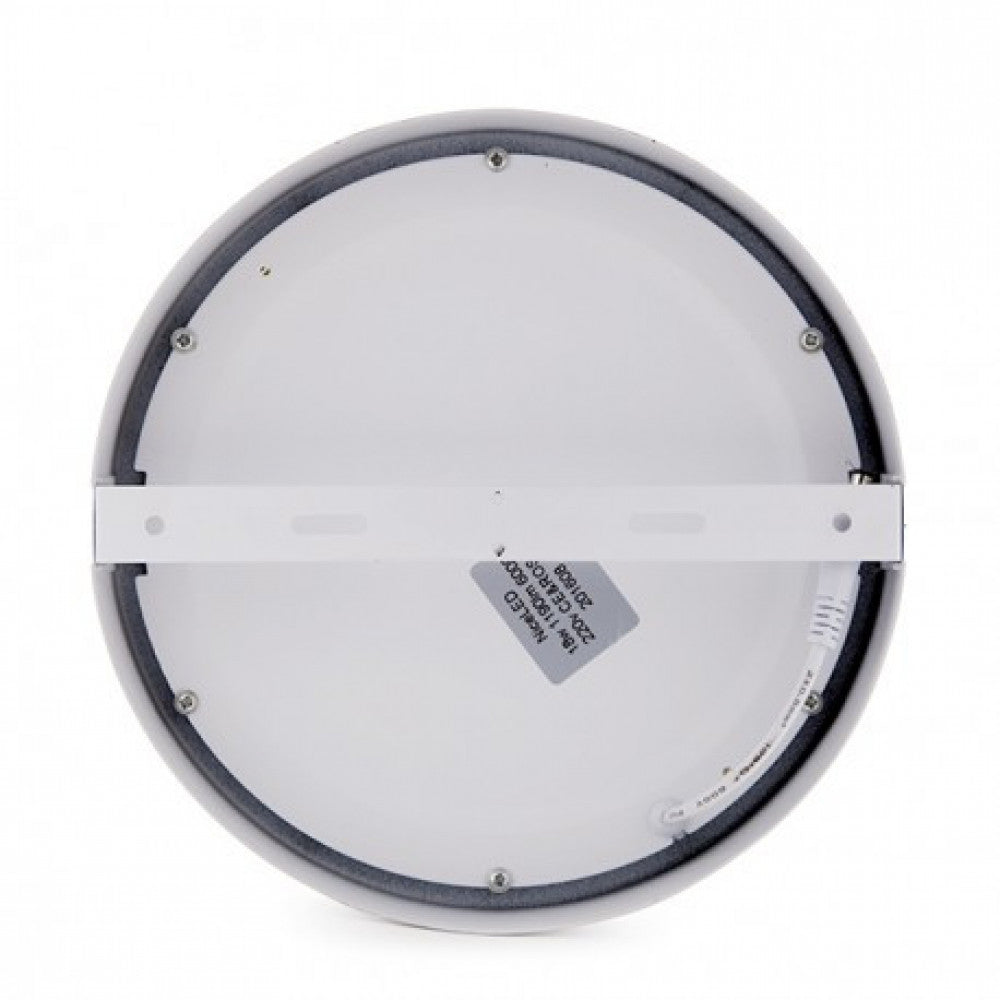

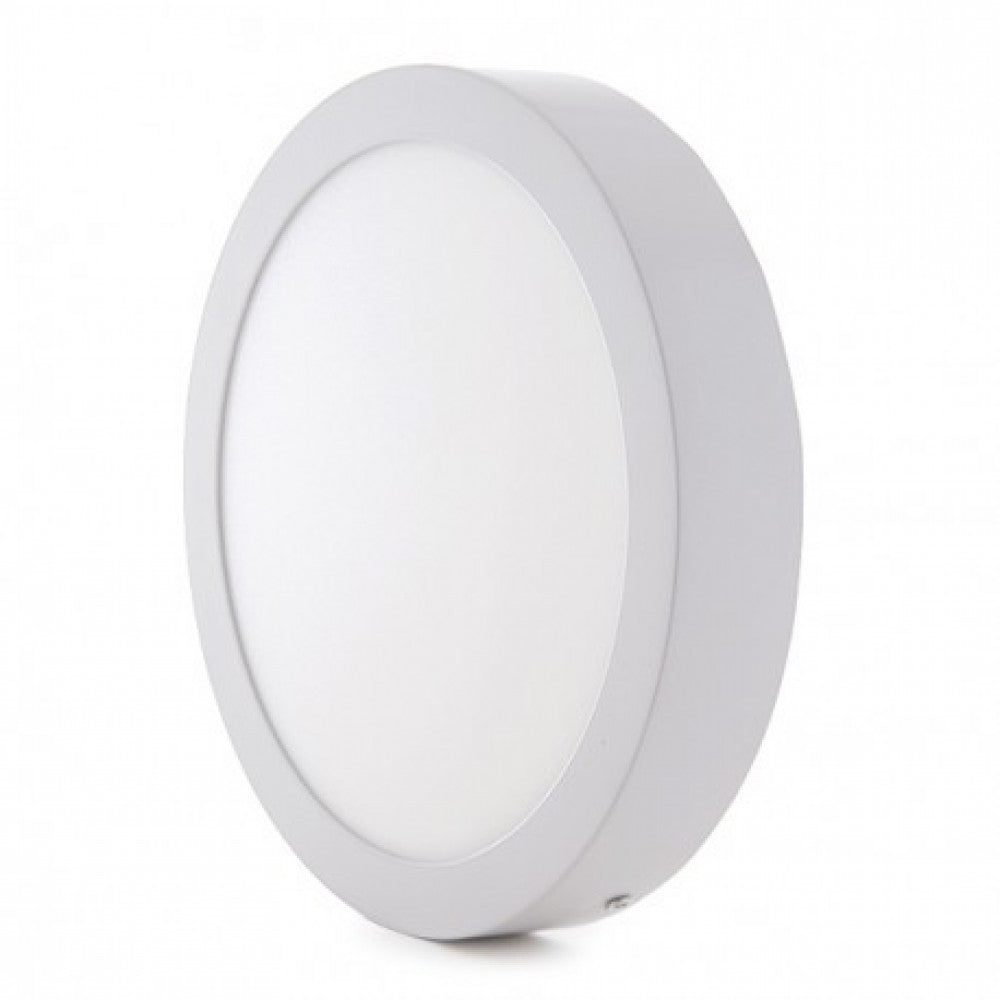

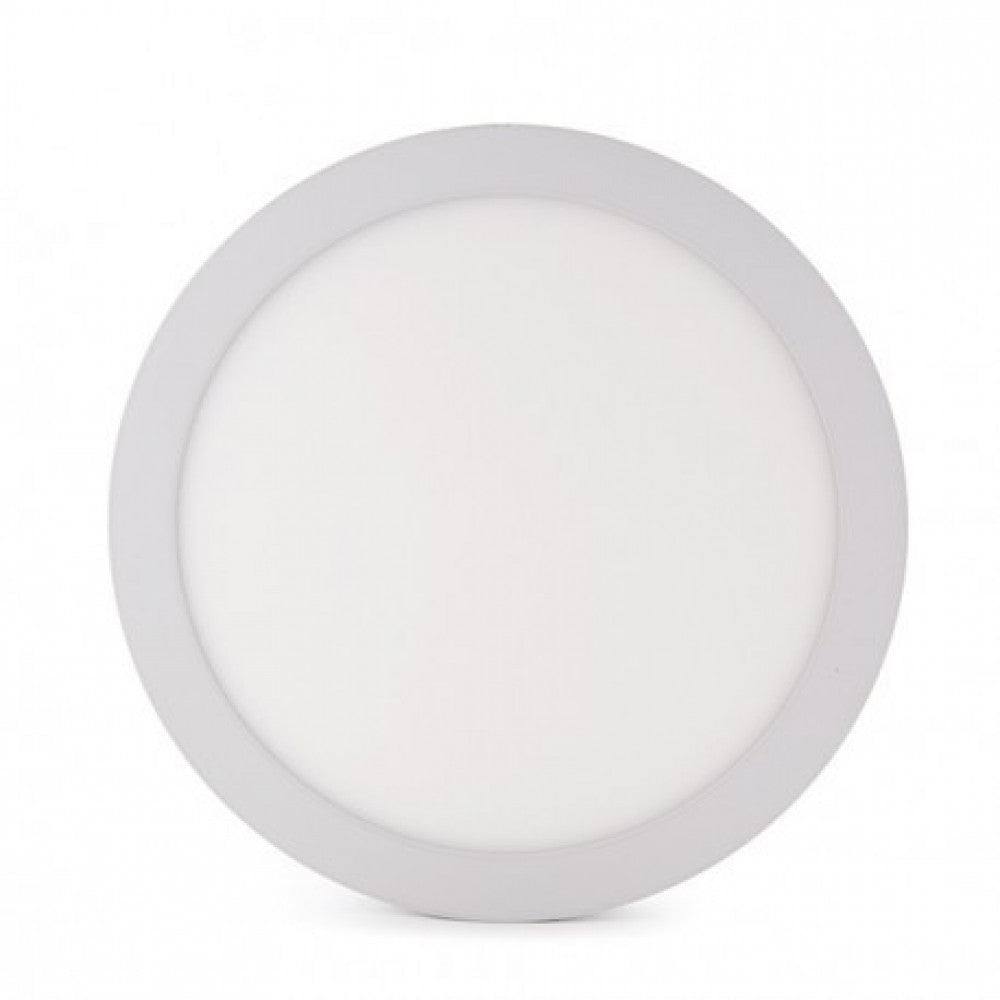

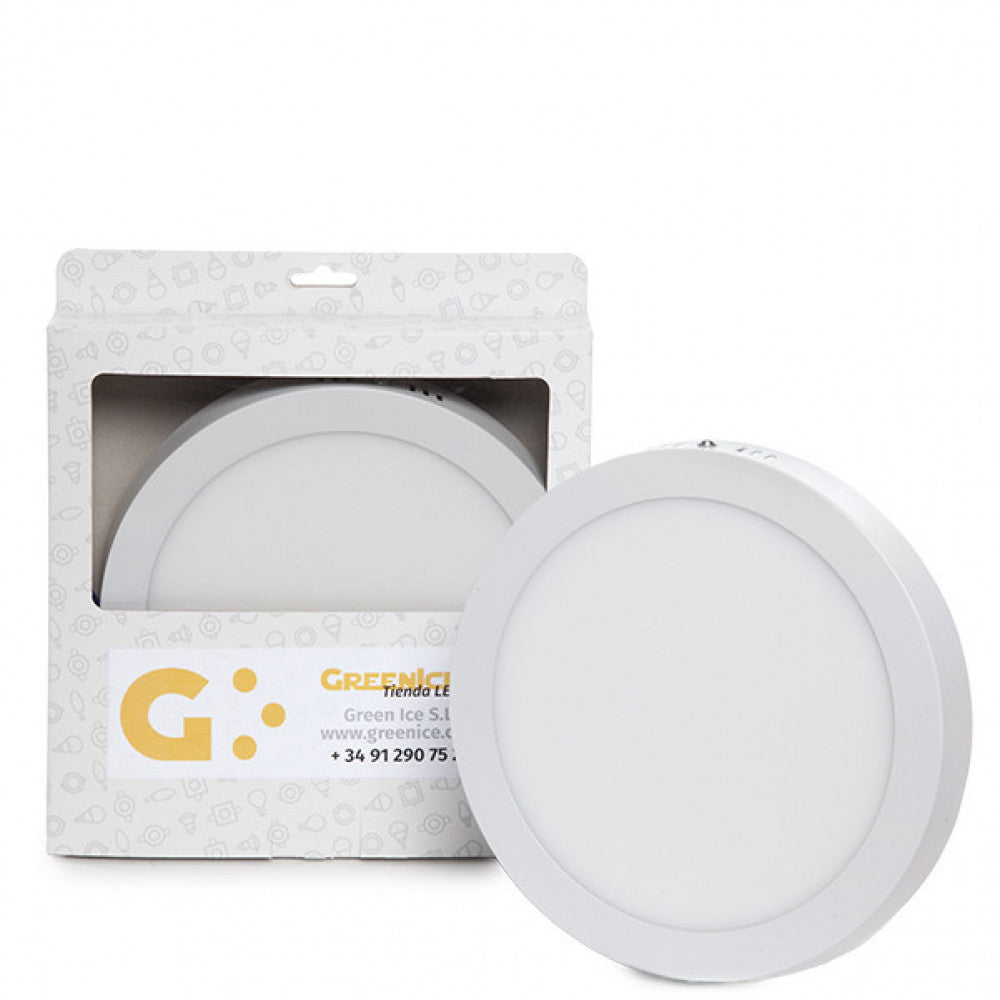

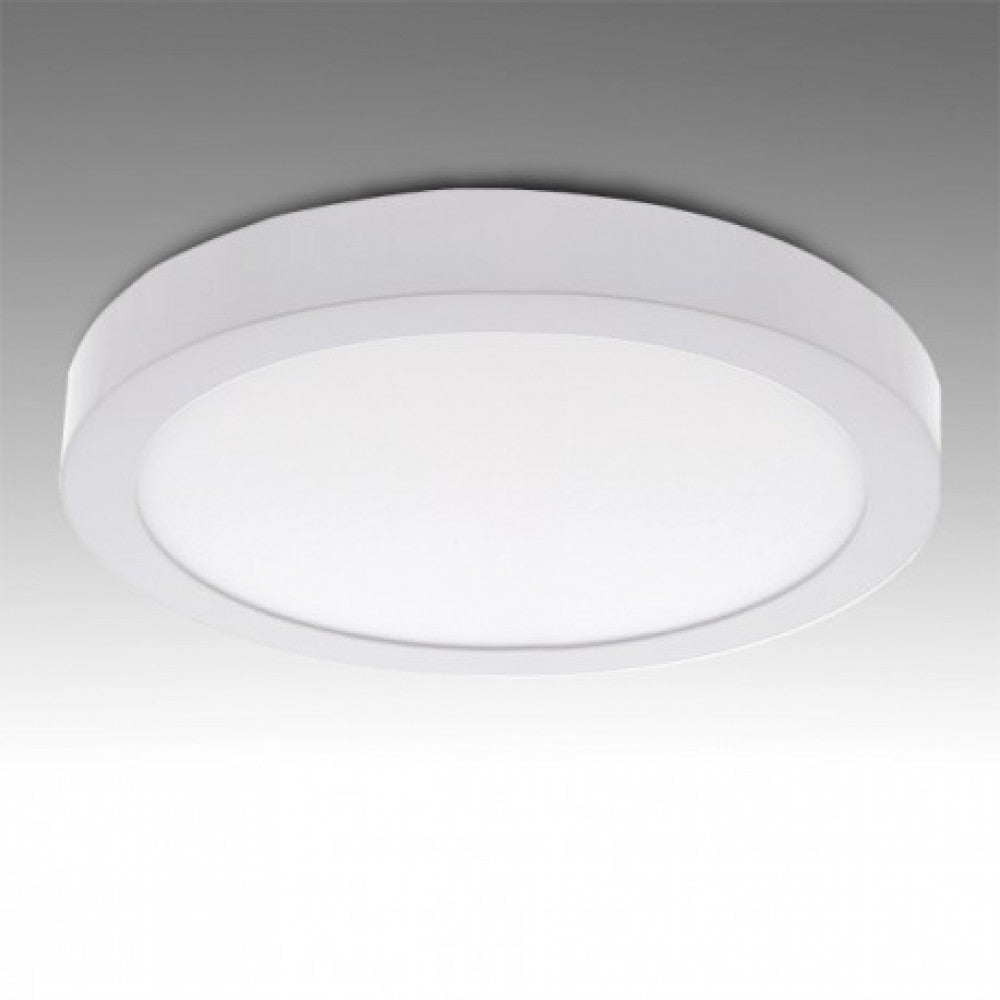

LED Ceiling Light 18W 1190Lm 6000ºK Circular Custom Case 40,000H [JL-JM18WR-CW-EP01]

LED Ceiling Light 18W 1190Lm 6000ºK Circular Custom Case 40,000H [JL-JM18WR-CW-EP01]

For additional amounts the delivery period is 8 days As of the order date
  • Brand:GreenIce
  • SkuJL-JM18WR-CW-EP01
Warranty
  • Warranty 3 years
  • 120 º Opening
Documents
£7.00
£9.00 £7.00 -22%
Tax included. The Shipping expenses They are calculated on the payment screen.

Stock available

Warranty
  • Warranty 3 years
  • 120 º Opening
Documents
Are you a professional customer?

We have published a new website only for professionals.

Go to Professional Area
Advantages of buying in Greenice
  • Guaranteed minimum price
  • Free returns up to 60 days
  • Free shipping From € 21.95
  • Until 10 years guarantee
-22.22%(JL-JM18WR-CW-EP01_padreImg_jl_jm18wr_cw_ep01_0.jpeg)
Cool White
Stock available
Free shipping
£7.00
£9.00 £7.00 -22%

Accessories

  • (GH-90963602_padreImg_gh_90963602_0.jpeg) (GH-90963602_padreImg_gh_90963602_1.jpeg)

    Switch Double Panasonic Karre 10A 250V/Metal Frame With Claws/Key White

    PANASONIC

    Switch Double Panasonic Karre 10A 250V/Metal Frame With Claws/Key White

    £4.00
    £4.00 £4.00 %
  • (DR-FD-ND-18W_padreImg_dr_fd_nd_18w_0.jpeg) (DR-FD-ND-18W_padreImg_dr_fd_nd_18w_1.jpeg)

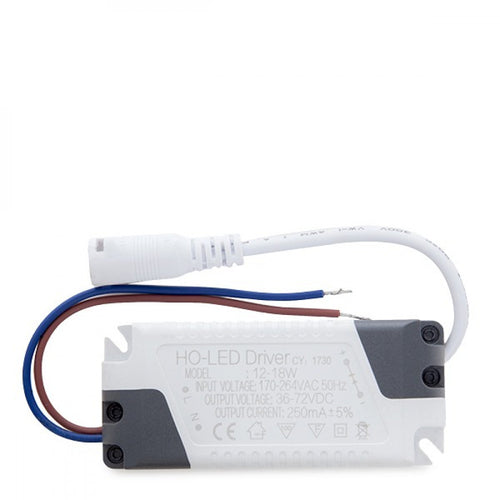

    Driver Non Dimmable Downlight LED 18W

    Offer
    GreenIce

    Driver Non Dimmable Downlight LED 18W

    £3.00
    £6.00 £3.00 -50%
    Offer
  • (SB-BS039_padreImg_sb_bs039_0.jpeg) (SB-BS039_padreImg_sb_bs039_1.jpeg)

    Motion Sensor Surface Mounted 180º IP44 ►1200/300W [SB-BS039]

    Offer
    GreenIce

    Motion Sensor Surface Mounted 180º IP44 ►1200/300W [SB-BS039]

    £8.00
    £14.00 £8.00 -42%
    Offer
  • (GH-90963601_padreImg_gh_90963601_0.jpeg) (GH-90963601_padreImg_gh_90963601_1.jpeg)

    Switch Panasonic Karre 10A 250V/Metal Frame With Claws/Key White

    PANASONIC

    Switch Panasonic Karre 10A 250V/Metal Frame With Claws/Key White

    £5.00
    £5.00 £5.00 %
  • (GR-DRDIM-18W_padreImg_gr_drdim_18w_0.jpeg) (GR-DRDIM-18W_padreImg_gr_drdim_18w_1.jpeg)

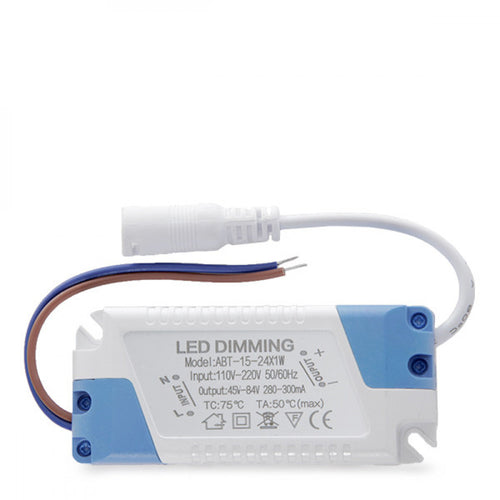

    Driver Dimmable Slimline Downlights 18W

    Offer
    GreenIce

    Driver Dimmable Slimline Downlights 18W

    £7.00
    £10.00 £7.00 -30%
    Offer
  • (SB-BS031B_padreImg_sb_bs031b_0.jpeg) (SB-BS031B_padreImg_sb_bs031b_1.jpeg)

    Motion Sensor Recessed 160º ►600W/200W

    Offer
    GreenIce

    Motion Sensor Recessed 160º ►600W/200W

    £4.00
    £6.00 £4.00 -33%
    Offer
  • (GH-90963604_padreImg_gh_90963604_0.jpeg) (GH-90963604_padreImg_gh_90963604_1.jpeg)

    Commutator Panasonic Karre 10A 250V/Metal Frame With Claws/Key White

    PANASONIC

    Commutator Panasonic Karre 10A 250V/Metal Frame With Claws/Key White

    £6.00
    £6.00 £6.00 %

Technical file

Product code
JL-JM18WR-CW-EP01
Luminous efficacy (LM/W)
66
Light temperature
Cold White
Kelvin º
6000
Power (W)
18.0
Luminosity (LM)
1190
Measures (mm)
Ø210x27
High
27.0
Diameter
210
Number and type of LEDs
Osram Led
CRI
80
Power factor (PF)
0.98
Construction
Aluminum/PC
Opening Angle (º)
120
Facility
IP20
Strain
85-265VAC
Estimated life (H)
40000
Dimable
No
Equivalence (W)
120
Isolation class
II
Work frequency (Hz)
50/ 60
Start time (s)
0.2
Energy class
G
Certificates
CE/ROHS/ISO9001
Bush
Terminal
Temperature range (ºC)
-20 +40
Lighting cycles
100000
Diffuser
Milky
Energy consumption (kWh/1000h)
18.0
Weight (gr)
460
Flicker
0.9
Half -year useful life (at 3 h/day)
36.52
Half -Year Useful Life (5 h/day)
21.91
Half -year useful life (at 8 h/day)
13.69
Directional
Non-Directional
Single/range CCT
Only
Single CCT
6000
INDEX R9
26
Minimum cri range
88
Maximum cri range
26
Chromaticity x
0.317
Chromaticity y
0.335
Additional information
Possibility of dimming by purchasing a dimmable controller in the Accessories tab
Applicable standards
IEC 62321:2008;EN 55015:2006;EN 61000-3-2:2006;EN 61000-3-3:2008;EN 61547:2009;EN 60598-1:2008; EN 61347-1:2008; EN 61347-2-13:2006; EN 62031:2008

Characteristics

Product code
JL-JM18WR-CW-EP01
Luminous efficacy (LM/W)
66
Light temperature
Cold White
Kelvin º
6000
Power (W)
18.0
Luminosity (LM)
1190
Measures (mm)
Ø210x27
High
27.0
Diameter
210
Number and type of LEDs
Osram Led
CRI
80
Power factor (PF)
0.98
Construction
Aluminum/PC
Opening Angle (º)
120
Facility
IP20
Strain
85-265VAC
Estimated life (H)
40000
Dimable
No
Equivalence (W)
120
Isolation class
II
Work frequency (Hz)
50/ 60
Start time (s)
0.2
Energy class
G
Certificates
CE/ROHS/ISO9001
Bush
Terminal
Temperature range (ºC)
-20 +40
Lighting cycles
100000
Diffuser
Milky
Energy consumption (kWh/1000h)
18.0
Weight (gr)
460
Flicker
0.9
Half -year useful life (at 3 h/day)
36.52
Half -Year Useful Life (5 h/day)
21.91
Half -year useful life (at 8 h/day)
13.69
Directional
Non-Directional
Single/range CCT
Only
Single CCT
6000
INDEX R9
26
Minimum cri range
88
Maximum cri range
26
Chromaticity x
0.317
Chromaticity y
0.335
Additional information
Possibility of dimming by purchasing a dimmable controller in the Accessories tab
Applicable standards
IEC 62321:2008;EN 55015:2006;EN 61000-3-2:2006;EN 61000-3-3:2008;EN 61547:2009;EN 60598-1:2008; EN 61347-1:2008; EN 61347-2-13:2006; EN 62031:2008

Description

The 225mm diameter, 40mm thick circular LED ceiling light offers solutions for offices, factories, supermarkets, shops and for residential use. It can be installed directly to sockets current supplied by the electrical network (85-265VAC) with a service frequency of 50/60Hz.

It has a high efficiency (67 Lm/W) consuming 18W through SMD2835 type LEDs and managing to provide a luminous flux of 1190Lm uniformly distributed by an opal plastic diffuser from which a color rendering index of 80 is obtained. It provides lighting equivalent to a 100W incandescent bulb, its consumption represents a value of 18kWh/ 1000h, reducing the amount of energy billed and the emissions of polluting gases into the atmosphere.

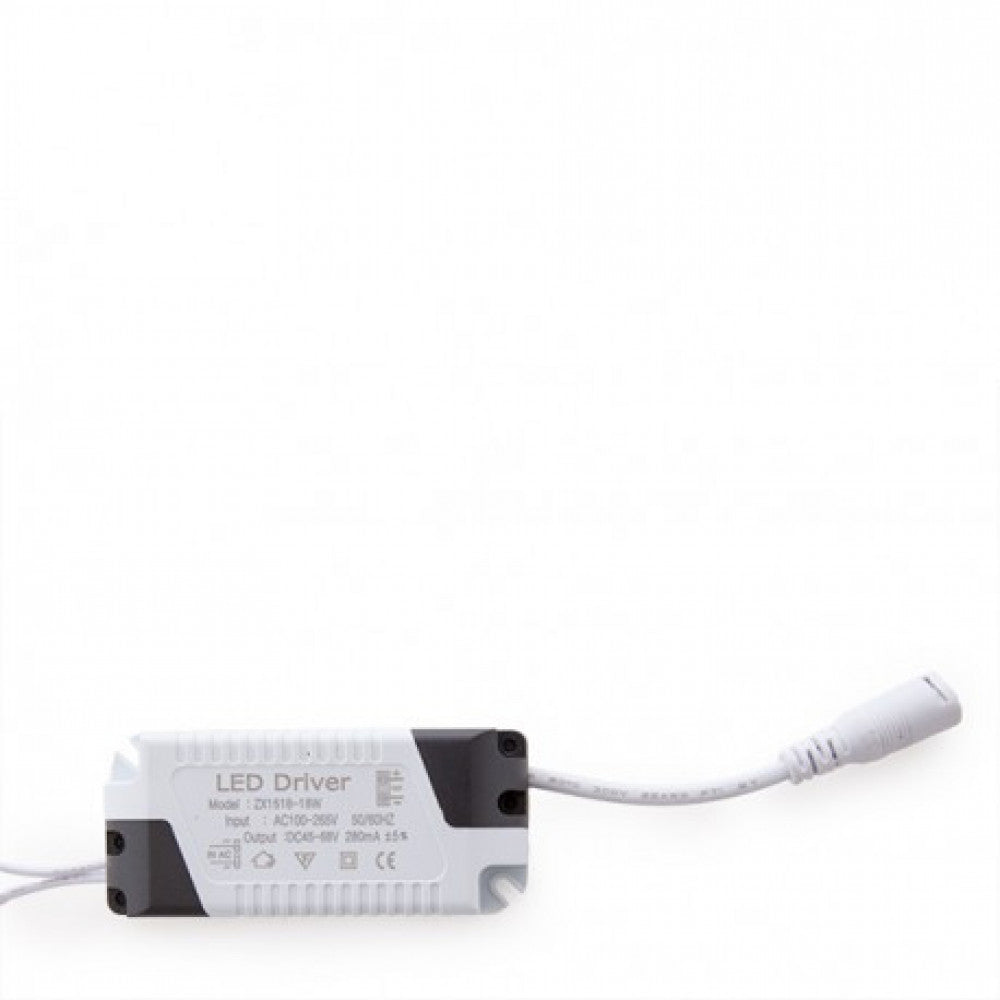

This luminaire is powered by a non-dimmable driver included in the package that must be connected directly to the network, with a connector output compatible with the connection of the plate (46-65VDC, 280mA), additionally the necessary accessories for the installation of the luminaire are included.

White finish made of aluminum.This surface ceiling light has a < strong>IP25 degree of protection (valid for dust and humidity indoors), as well as being robust enough for the required mechanical demands.

Ideal to replace traditional halogen lamps, reaching savings of up to 90% and conventional low-consumption downlights, reaching savings of up to 60%, thus achieving high energy efficiency.

Easy installation, long life of the LED luminaire, more of 30,000 hours and free of maintenance.

The perfect solution to create an elegant environment, in new construction or rehabilitation, to replace the current spotlights, for the home, offices, receptions, museums, bars, etc.

This luminaire is available in natural white (4200°K), cool white (6000°K) and warm white (3000°K). The indicated color temperature may suffer fluctuations corresponding to a tolerance of 7%.
