LED ceiling light 24W 1778Lm 3000ºK Square 40,000H [BX3-PLAF-R-24W-WW]

LED ceiling light 24W 1778Lm 3000ºK Square 40,000H [BX3-PLAF-R-24W-WW]

See questions and answers

For additional amounts the delivery period is 60 days As of the order date
  • Brand:BX3 LIGHT
  • SkuBX3-PLAF-R-24W-WW
  • A 2021
Eprel file
Warranty
  • Warranty 3 years
  • 120 º Opening
£12.83
£12.83 £12.83 %
Tax included. The Shipping expenses They are calculated on the payment screen.

Stock available

Warranty
  • Warranty 3 years
  • 120 º Opening
Are you a professional customer?

We have published a new website only for professionals.

Go to Professional Area
Advantages of buying in Greenice
  • Guaranteed minimum price
  • Free returns up to 60 days
  • Free shipping From € 21.95
  • Until 10 years guarantee
(BX3-PLAF-R-24W-CW_padreImg_bx3_plaf_r_24w_cw_0.png)
Warm White
Stock available
Free shipping
£12.83
£12.83 £12.83 %

Technical file

Product code
BX3-PLAF-R-24W-WW
Light temperature
Warm White
Kelvin º
3000
Power (W)
24.0
Luminosity (LM)
1778
Luminous efficacy (LM/W)
74
LED efficacy
81
Type of LEDs
Osram Led
Number of LEDs
120
Measures (mm)
297x297x37
High
37.0
Long
297.0
Broad
297.0
CRI
80
Diffuser
Opal
Power factor (PF)
0.99
Construction
Aluminum/PC
Opening Angle (º)
120
Facility
IP25
Strain
220-240v
Driver output
30-42 V
Estimated life (H)
40000
Dimable
No
Equivalence (W)
98
Isolation class
II
Work frequency (Hz)
50/ 60
Start time (s)
0.1
Energy class
F
Certificates
CE/ROHS/ISO9001
Bush
Terminal Block
Temperature range (ºC)
-20 +40
Lighting cycles
100000
Energy consumption (kWh/1000h)
24.0
Weight (gr)
870
Flicker
0.09
Half -year useful life (at 3 h/day)
36.52
Half -Year Useful Life (5 h/day)
21.91
Half -year useful life (at 8 h/day)
13.69
Directional
Non-Directional
Single/range CCT
Only
Single CCT
3000
INDEX R9
80
Minimum cri range
80
Maximum cri range
80
Chromaticity x
0.433
Chromaticity y
0.403
Número unidades caja exterior
20.0
Applicable standards
IEC 62321:2008;EN 55015:2006;EN 61000-3-2:2006;EN 61000-3-3:2008;EN 61547:2009;EN 60598-1:2008; EN 61347-1:2008; EN 61347-2-13:2006; EN 62031:2008

Characteristics

Product code
BX3-PLAF-R-24W-WW
Light temperature
Warm White
Kelvin º
3000
Power (W)
24.0
Luminosity (LM)
1778
Luminous efficacy (LM/W)
74
LED efficacy
81
Type of LEDs
Osram Led
Number of LEDs
120
Measures (mm)
297x297x37
High
37.0
Long
297.0
Broad
297.0
CRI
80
Diffuser
Opal
Power factor (PF)
0.99
Construction
Aluminum/PC
Opening Angle (º)
120
Facility
IP25
Strain
220-240v
Driver output
30-42 V
Estimated life (H)
40000
Dimable
No
Equivalence (W)
98
Isolation class
II
Work frequency (Hz)
50/ 60
Start time (s)
0.1
Energy class
F
Certificates
CE/ROHS/ISO9001
Bush
Terminal Block
Temperature range (ºC)
-20 +40
Lighting cycles
100000
Energy consumption (kWh/1000h)
24.0
Weight (gr)
870
Flicker
0.09
Half -year useful life (at 3 h/day)
36.52
Half -Year Useful Life (5 h/day)
21.91
Half -year useful life (at 8 h/day)
13.69
Directional
Non-Directional
Single/range CCT
Only
Single CCT
3000
INDEX R9
80
Minimum cri range
80
Maximum cri range
80
Chromaticity x
0.433
Chromaticity y
0.403
Número unidades caja exterior
20.0
Applicable standards
IEC 62321:2008;EN 55015:2006;EN 61000-3-2:2006;EN 61000-3-3:2008;EN 61547:2009;EN 60598-1:2008; EN 61347-1:2008; EN 61347-2-13:2006; EN 62031:2008

Description

The BX3 LIGHT 24W Square LED Ceiling Light is an indoor luminaire designed to offer uniform and efficient lighting, combining modern design with low energy consumption and a long lifespan.

Its square shape provides a contemporary aesthetic ideal for residential and commercial spaces.

Technical Specifications:

  • Rated Power: 24W
  • Luminous Flux: 1,778 lumens
  • Shape: Square
  • Estimated Lifespan: 40,000 hours
  • LED Technology: High efficiency
  • Installation: Surface mount

Main features:

  • Homogeneous and comfortable lighting
  • Low energy consumption
  • Modern and discreet design
  • Low heat emission
  • Ideal for kitchens, hallways, offices, shops and interior spaces

Manufactured under the quality standards of BX3 LIGHT, it guarantees light stability, energy efficiency and long durability in interior lighting applications.

Documents

Installation_manual
Spanish_technical_data
English_technical_data
Eu_certificates

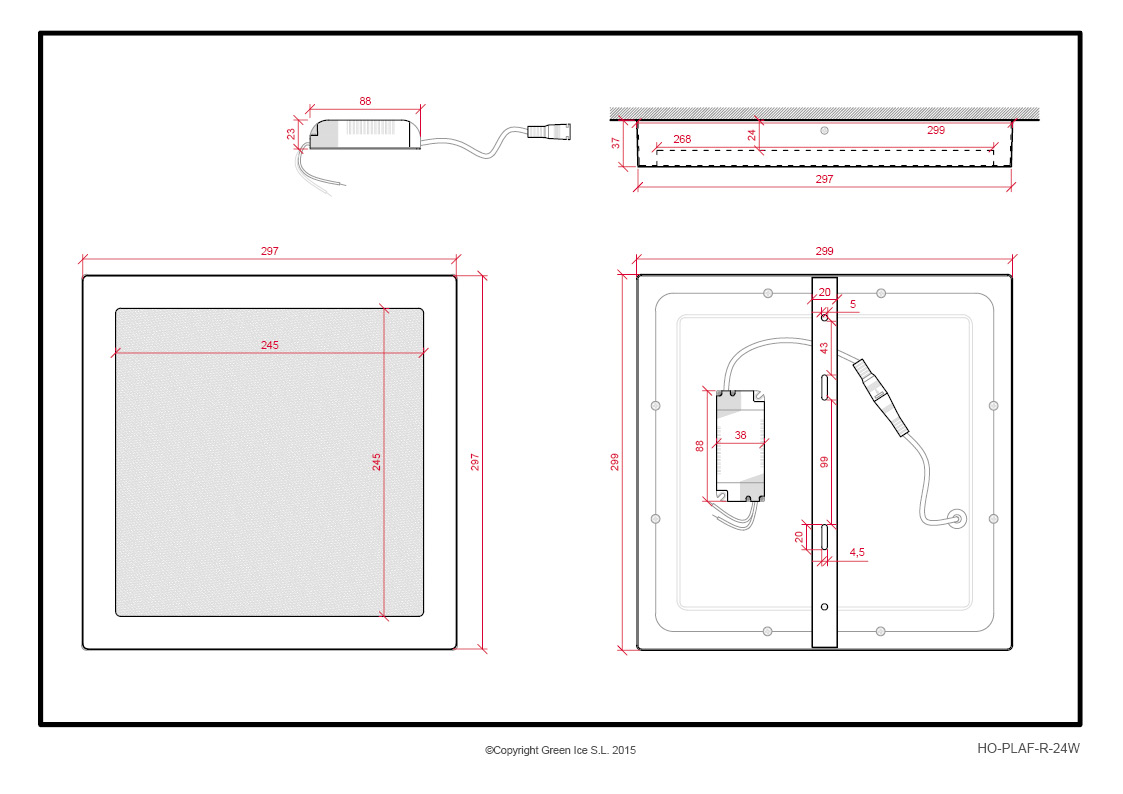

Technical_drawings
