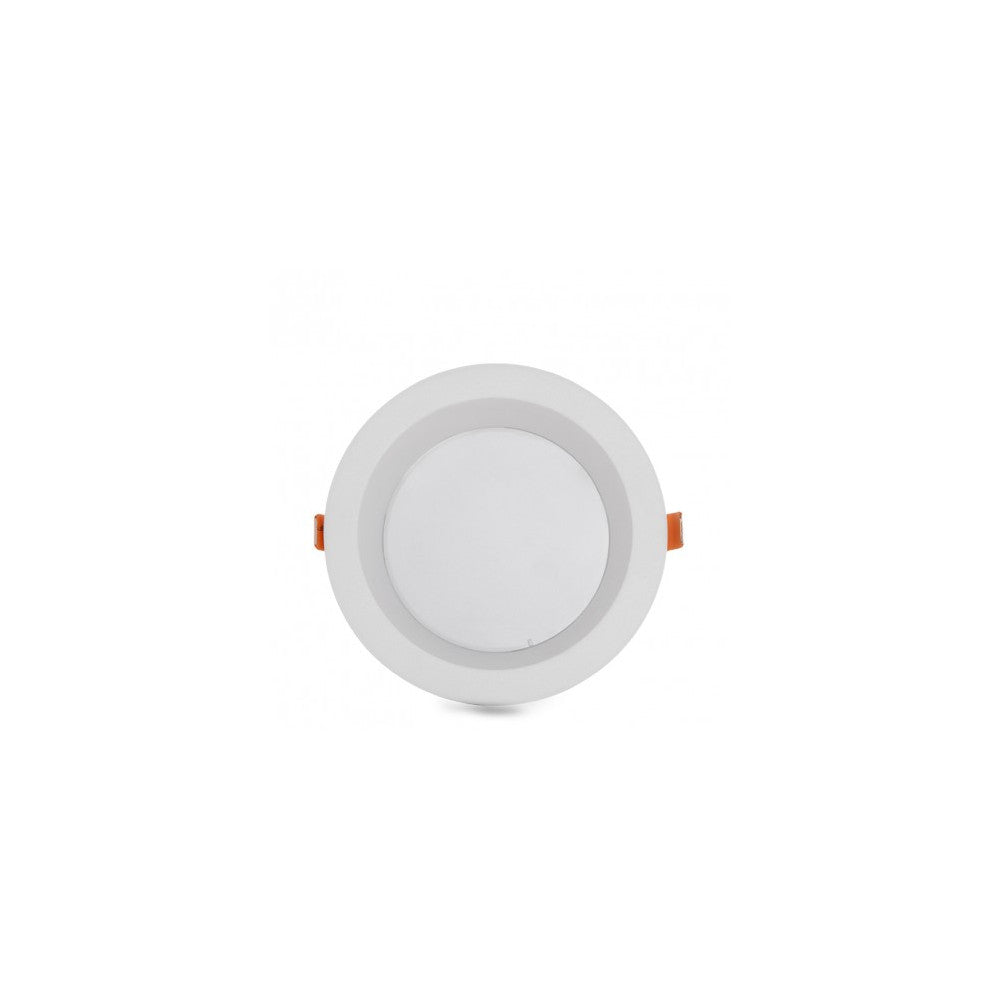

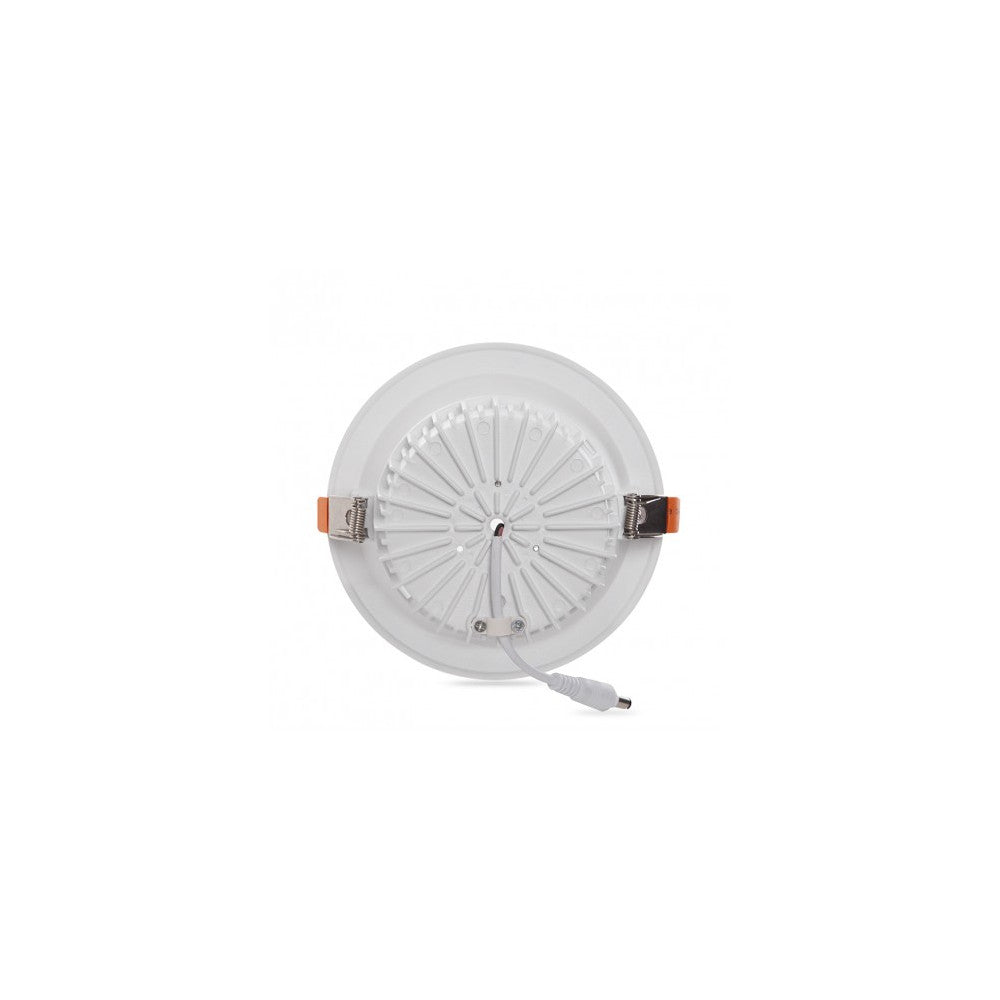

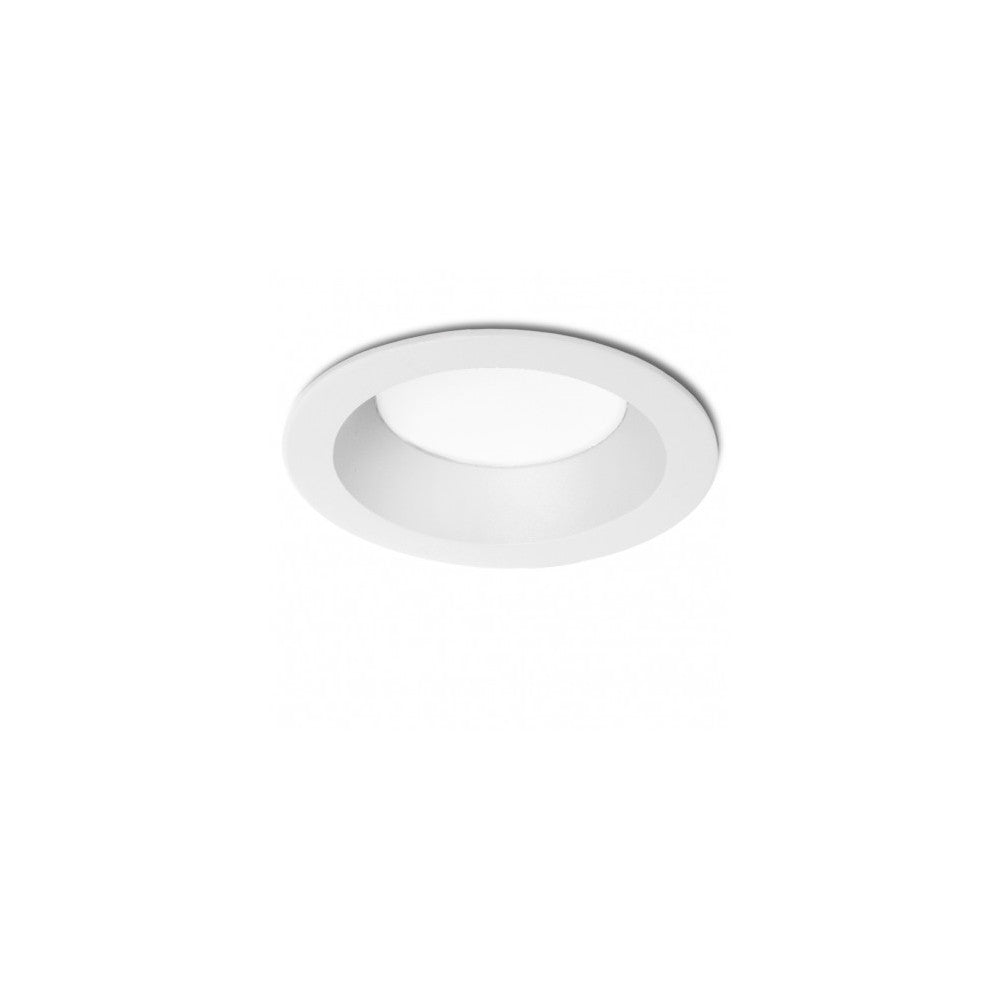

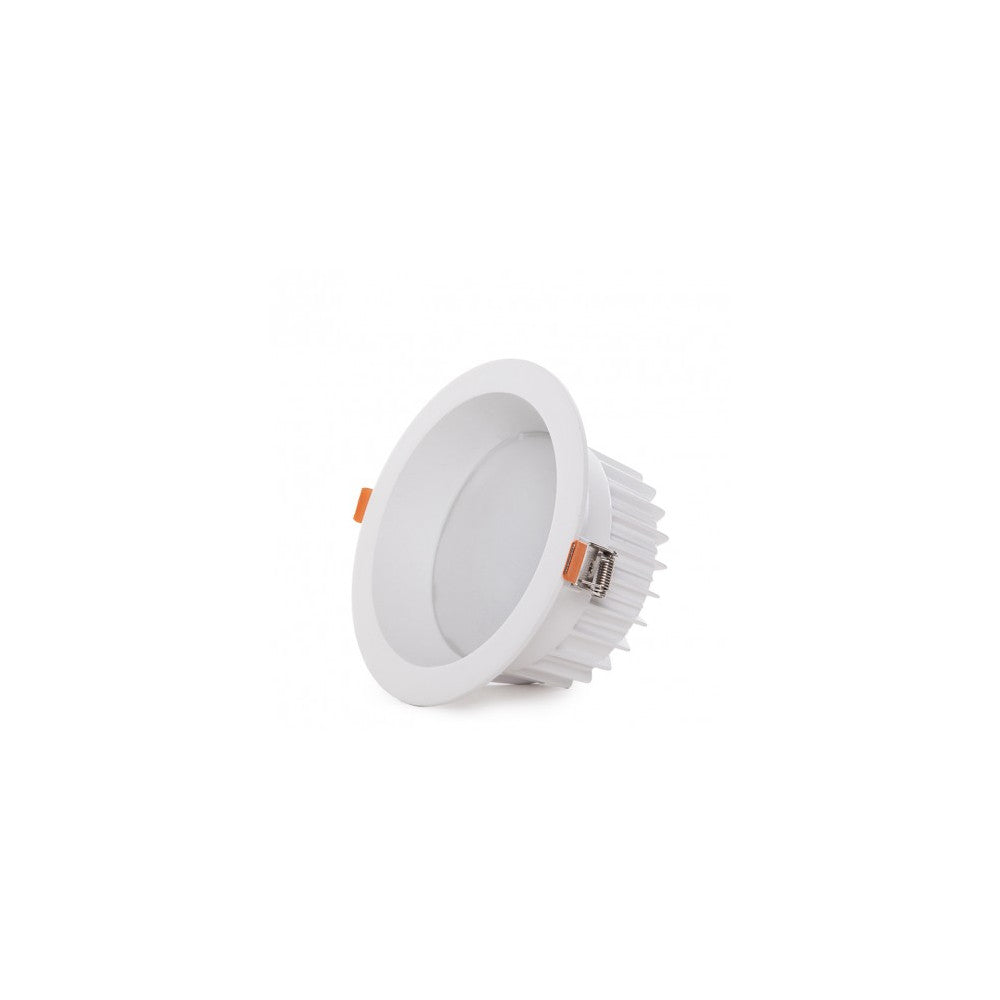

LED Circular Downlight Spotlight 15W 1,350Lm 6000ºK PRO UGR19 50,000H [HO-DL-SAM1-15W-CW]

LED Circular Downlight Spotlight 15W 1,350Lm 6000ºK PRO UGR19 50,000H [HO-DL-SAM1-15W-CW]

See questions and answers

For additional amounts the delivery period is 60 days As of the order date
  • Brand:GreenIce / Samsung Led
  • SkuHO-DL-SAM1-15W-CW
  • A 2021
Eprel file
Warranty
  • Warranty 3 years
  • Eye Care Eye Care
  • Tüv Süd TUV SUD
  • 120 º Opening
£6.00
£14.00 £6.00 -57%
Tax included. The Shipping expenses They are calculated on the payment screen.

There are few

Warranty
  • Warranty 3 years
  • Eye Care Eye Care
  • Tüv Süd TUV SUD
  • 120 º Opening
Are you a professional customer?

We have published a new website only for professionals.

Go to Professional Area
Advantages of buying in Greenice
  • Guaranteed minimum price
  • Free returns up to 60 days
  • Free shipping From € 21.95
  • Until 10 years guarantee
-57.14%(HO-DL-SAM1-15W-CW_padreImg_ho_dl_sam1_15w_cw_0.jpeg)
Cool White
There are few
Free shipping
£6.00
£14.00 £6.00 -57%

Accessories

  • (SB-BS039_padreImg_sb_bs039_0.jpeg) (SB-BS039_padreImg_sb_bs039_1.jpeg)

    Motion Sensor Surface Mounted 180º IP44 ►1200/300W [SB-BS039]

    Offer
    GreenIce

    Motion Sensor Surface Mounted 180º IP44 ►1200/300W [SB-BS039]

    £8.00
    £15.00 £8.00 -46%
    Offer
  • (SB-BS031B_padreImg_sb_bs031b_0.jpeg) (SB-BS031B_padreImg_sb_bs031b_1.jpeg)

    Motion Sensor Recessed 160º ►600W/200W

    Offer
    GreenIce

    Motion Sensor Recessed 160º ►600W/200W

    £5.00
    £13.00 £5.00 -61%
    Offer

Technical file

Product code
HO-DL-SAM1-15W-CW
Luminous efficacy (LM/W)
90
Light temperature
Cold white
Kelvin º
6000
Power (W)
15.0
Luminosity (LM)
1350
Measures (mm)
Ø124x55
Roof cut (mm)
Ø114
High
55.0
Diameter
124
Number and type of LEDs
Bridgelux Led
CRI
80
UGR
◄19
Power factor (PF)
0.99
Construction
Aluminum/PC
Opening Angle (º)
120
Facility
IP20
Strain
85-265VAC
Estimated life (H)
50000
Dimable
No
Equivalence (W)
100
Isolation class
II
Work frequency (Hz)
50/ 60
Start time (s)
0.1
Energy class
F
Certificates
CE/ROHS/ISO9001
Bush
Terminal
Temperature range (ºC)
-20 +40
Lighting cycles
100000
Diffuser
Microprismatic
Energy consumption (kWh/1000h)
15.0
Weight (gr)
250
Flicker
0.5
Half -year useful life (at 3 h/day)
45.66
Half -Year Useful Life (5 h/day)
27.39
Half -year useful life (at 8 h/day)
17.12
Directional
Non-Directional
Single/range CCT
Only
Single CCT
6000
INDEX R9
24
Minimum cri range
95
Maximum cri range
13
Chromaticity x
0.323
Chromaticity y
0.352
Driver output
DC12-24V
Applicable standards
EN 55015:2009;EN 61547:2009:EN 61000-3-2:2006;EN 61000-3-3:2008;EN 60598-2-2:2012;EN 60598-1:2009;EN 1122B:2001

Characteristics

Product code
HO-DL-SAM1-15W-CW
Luminous efficacy (LM/W)
90
Light temperature
Cold white
Kelvin º
6000
Power (W)
15.0
Luminosity (LM)
1350
Measures (mm)
Ø124x55
Roof cut (mm)
Ø114
High
55.0
Diameter
124
Number and type of LEDs
Bridgelux Led
CRI
80
UGR
◄19
Power factor (PF)
0.99
Construction
Aluminum/PC
Opening Angle (º)
120
Facility
IP20
Strain
85-265VAC
Estimated life (H)
50000
Dimable
No
Equivalence (W)
100
Isolation class
II
Work frequency (Hz)
50/ 60
Start time (s)
0.1
Energy class
F
Certificates
CE/ROHS/ISO9001
Bush
Terminal
Temperature range (ºC)
-20 +40
Lighting cycles
100000
Diffuser
Microprismatic
Energy consumption (kWh/1000h)
15.0
Weight (gr)
250
Flicker
0.5
Half -year useful life (at 3 h/day)
45.66
Half -Year Useful Life (5 h/day)
27.39
Half -year useful life (at 8 h/day)
17.12
Directional
Non-Directional
Single/range CCT
Only
Single CCT
6000
INDEX R9
24
Minimum cri range
95
Maximum cri range
13
Chromaticity x
0.323
Chromaticity y
0.352
Driver output
DC12-24V
Applicable standards
EN 55015:2009;EN 61547:2009:EN 61000-3-2:2006;EN 61000-3-3:2008;EN 60598-2-2:2012;EN 60598-1:2009;EN 1122B:2001

Description

The Samsung LED Downlight offers solutions for offices, factories, supermarkets, shops and for residential use. It can be installed directly to outlets supplied by the electrical network (86-265VAC) with a service frequency of 50/60Hz.

It has a high efficiency (90 Lm/W) consuming 15W through state-of-the-art Samsung LEDs It provides lighting equivalent to a 130W incandescent bulb, its consumption represents a value of 15kWh/1000h, reducing the amount of energy billed and the emissions of polluting gases to the atmosphere.

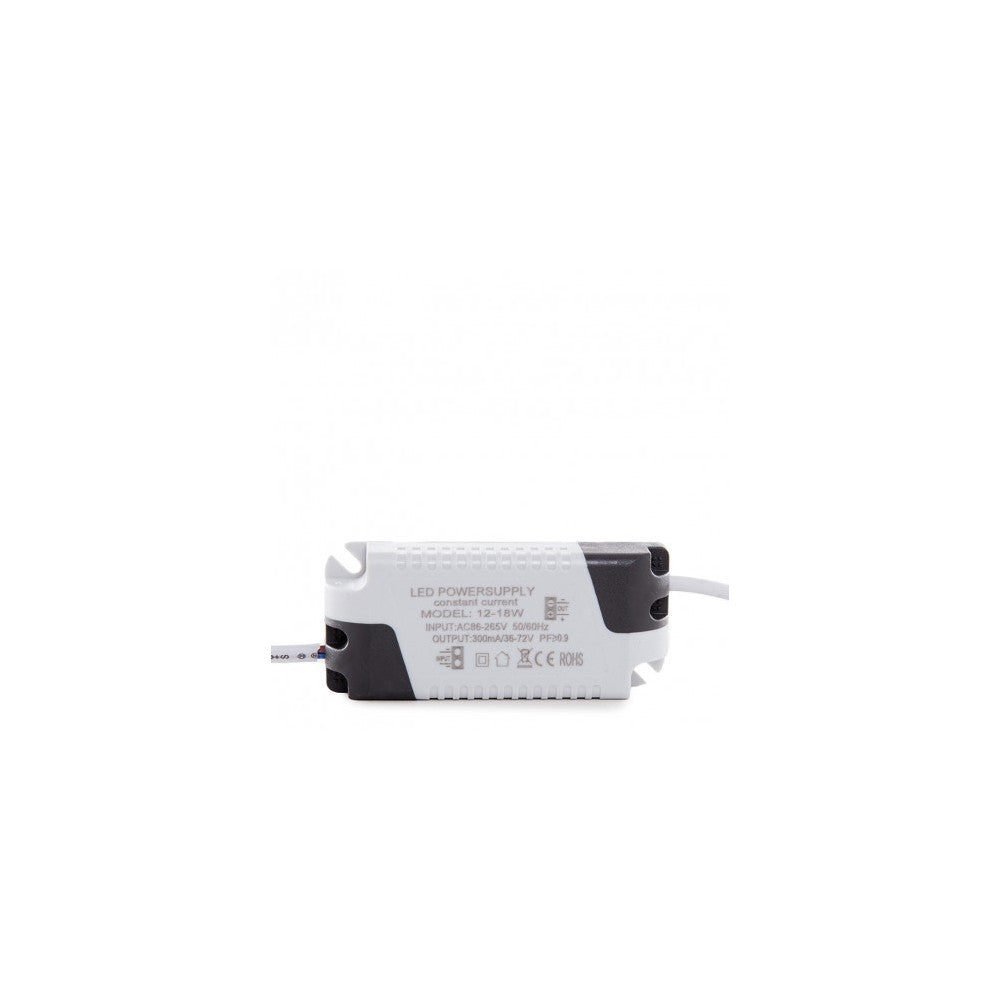

This downlight is powered by a non-dimmable driver included in the package that must be connected directly to the network, with an output connector compatible with the connection of the downlight, additionally the necessary accessories are included for downlight installation. White finish built with aluminum and polycarbonate. The Downlight has an IP20 degree of protection (valid for dust and humidity indoors), in addition to being robust enough for the required mechanical demands.

It is made of high-quality materials such as aluminium, which ensures the durability of the spotlight. It offers uniform lighting without annoying reflections. In addition, it has the CE, RoHS and TUV certificates, which are synonymous with quality and safety.

The Downlight spotlight has a high color rendering index (CRI 80 ) and, therefore, ensures color reproduction without distortion. This factor is key in commercial environments and spaces where products are displayed in general such as supermarkets, shops, shopping malls, museums, dealerships, restaurants , etc.

This Downlight is available in natural white (4200°K), cool white (6000°K) and warm white (3000°K). The indicated color temperature may suffer fluctuations corresponding to a tolerance of 7%.
