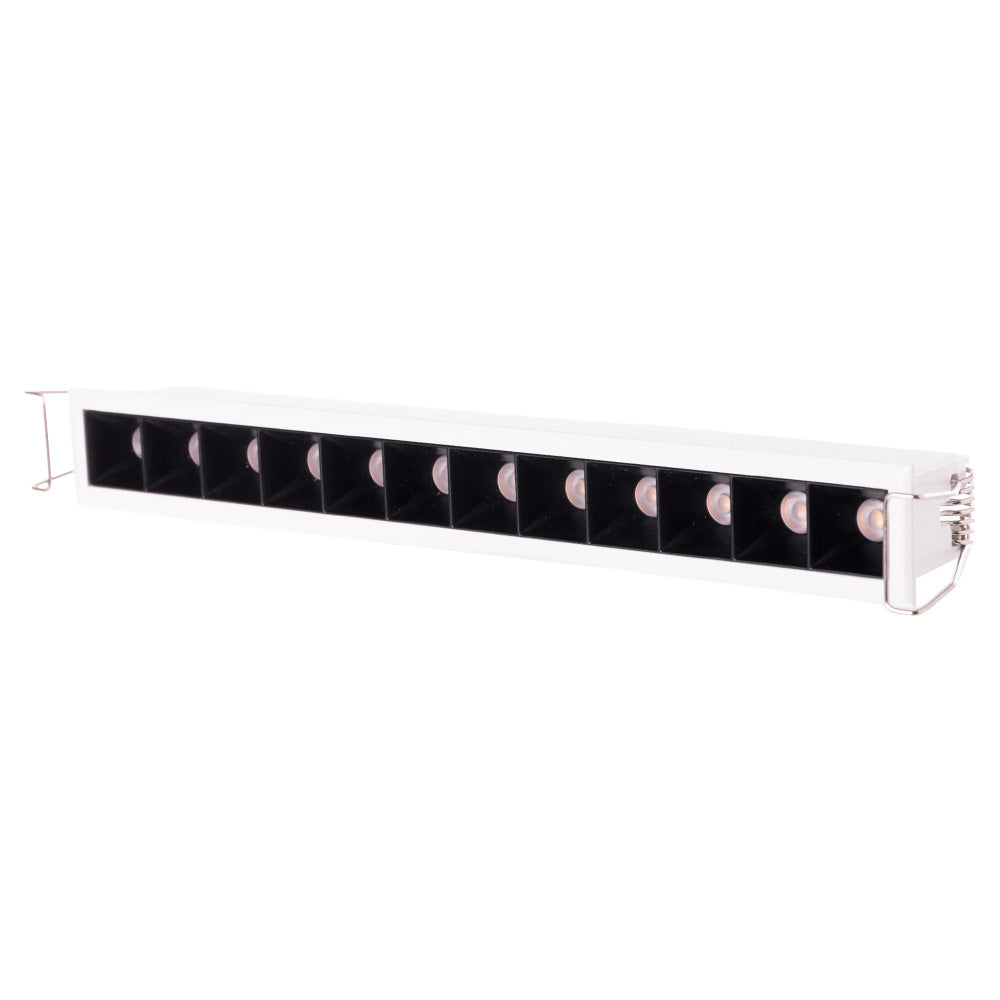

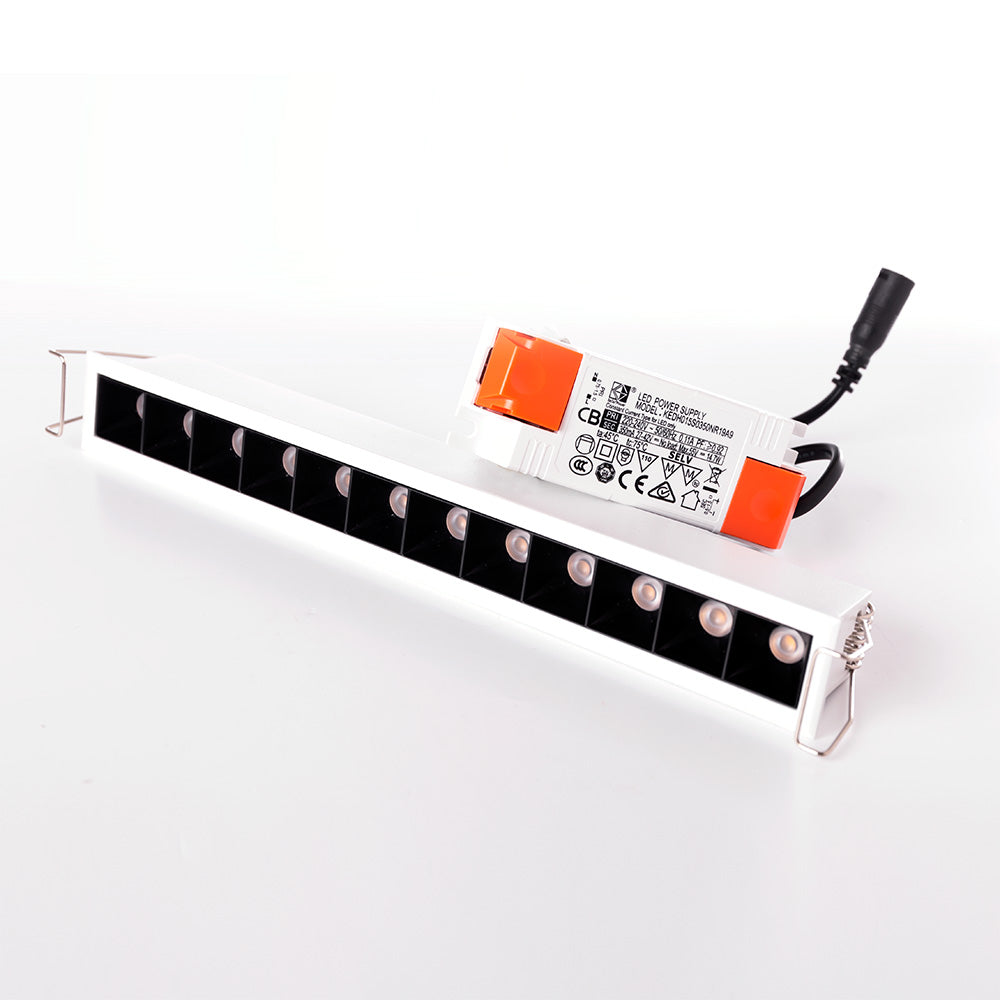

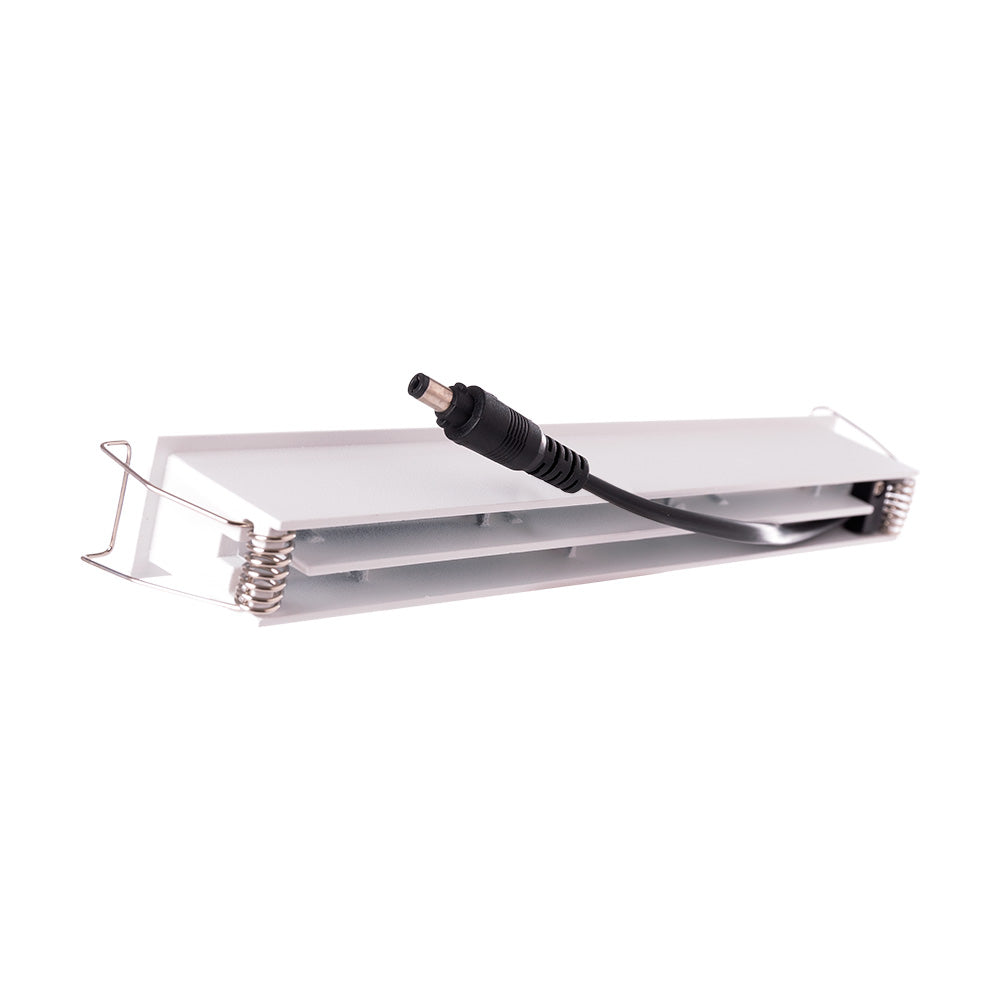

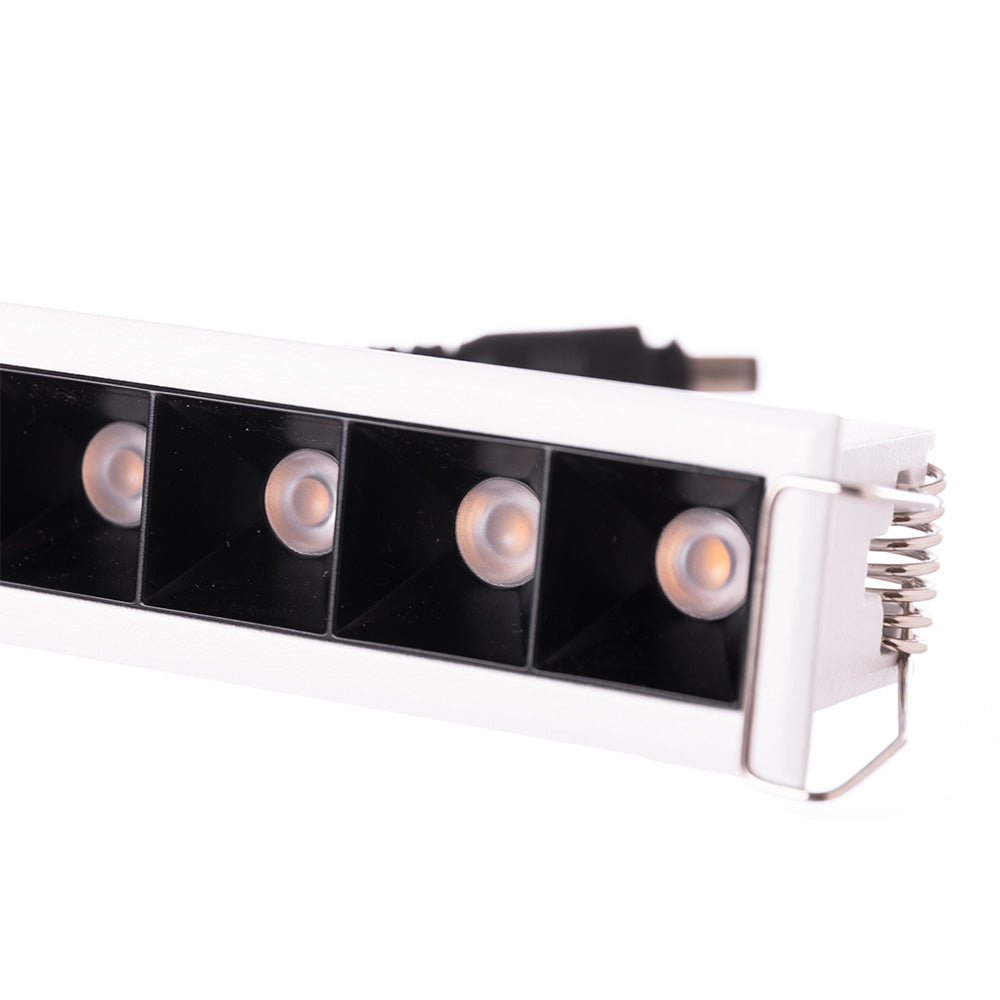

LED Downlight Spotlight 15W 1,147.5Lm 4200ºK Rectangular PRO SMD3030 40,000H [JW-15W-MW]

LED Downlight Spotlight 15W 1,147.5Lm 4200ºK Rectangular PRO SMD3030 40,000H [JW-15W-MW]

See questions and answers

For additional amounts the delivery period is 60 days As of the order date
  • Brand:Kimera / Osram Led
  • SkuJW-15W-M-W
  • A 2021
Eprel file
Warranty
  • Warranty 3 years
  • Eye Care Eye Care
  • 38 º Opening
£34.00
£36.00 £34.00 -5%
Tax included. The Shipping expenses They are calculated on the payment screen.

Stock available

Warranty
  • Warranty 3 years
  • Eye Care Eye Care
  • 38 º Opening
Are you a professional customer?

We have published a new website only for professionals.

Go to Professional Area
Advantages of buying in Greenice
  • Guaranteed minimum price
  • Free returns up to 60 days
  • Free shipping From € 21.95
  • Until 10 years guarantee
-5.56%(JW-15W-M-W_padreImg_jw_15w_m_w_0.jpeg)
Daylight
Stock available
Free shipping
£34.00
£36.00 £34.00 -5%

Accessories

  • (GH-90963601_padreImg_gh_90963601_0.jpeg) (GH-90963601_padreImg_gh_90963601_1.jpeg)

    Switch Panasonic Karre 10A 250V/Metal Frame With Claws/Key White

    PANASONIC

    Switch Panasonic Karre 10A 250V/Metal Frame With Claws/Key White

    £5.00
    £5.00 £5.00 %
  • (SB-BS031B_padreImg_sb_bs031b_0.jpeg) (SB-BS031B_padreImg_sb_bs031b_1.jpeg)

    Motion Sensor Recessed 160º ►600W/200W

    Offer
    GreenIce

    Motion Sensor Recessed 160º ►600W/200W

    £5.00
    £14.00 £5.00 -64%
    Offer

Technical file

Product code
JW-15W-M-W
Light temperature
CW
Kelvin º
4200
Power (W)
15.0
Luminosity (LM)
1147
Luminous efficacy (LM/W)
76
LED efficacy
83
Type of LEDs
Osram Led
Number of LEDs
12
Measures (mm)
239,5x30,5x35,6
Roof cut (mm)
235x26
High
36.0
Long
240.0
Broad
30.5
CRI
90
UGR
◄17
Diffuser
Microprismatic
Power factor (PF)
0.8
Construction
Aluminum/ PC
Opening Angle (º)
38
Facility
IP20
Strain
220-240V AC
Estimated life (H)
50000
Dimable
No
Equivalence (W)
80
Isolation class
II
Work frequency (Hz)
50/ 60
Start time (s)
0.1
Energy class
G
Certificates
CE/ROHS/ISO9001
Bush
Terminal Block
Temperature range (ºC)
-20 +40
Lighting cycles
100000
Energy consumption (kWh/1000h)
15.0
Weight (gr)
880
Flicker
0.89
Half -year useful life (at 3 h/day)
45.66
Half -Year Useful Life (5 h/day)
27.39
Half -year useful life (at 8 h/day)
17.12
Directional
Non-Directional
Single/range CCT
Only
Single CCT
4200
INDEX R9
1
Minimum cri range
85
Maximum cri range
22
Chromaticity x
0.304
Chromaticity y
0.312
Applicable standards
EN 55015:2009;EN 61547:2009:EN 61000-3-2:2006;EN 61000-3-3:2008;EN 60598-2-2:2012;EN 60598-1:2009;EN 1122B:2001

Characteristics

Product code
JW-15W-M-W
Light temperature
CW
Kelvin º
4200
Power (W)
15.0
Luminosity (LM)
1147
Luminous efficacy (LM/W)
76
LED efficacy
83
Type of LEDs
Osram Led
Number of LEDs
12
Measures (mm)
239,5x30,5x35,6
Roof cut (mm)
235x26
High
36.0
Long
240.0
Broad
30.5
CRI
90
UGR
◄17
Diffuser
Microprismatic
Power factor (PF)
0.8
Construction
Aluminum/ PC
Opening Angle (º)
38
Facility
IP20
Strain
220-240V AC
Estimated life (H)
50000
Dimable
No
Equivalence (W)
80
Isolation class
II
Work frequency (Hz)
50/ 60
Start time (s)
0.1
Energy class
G
Certificates
CE/ROHS/ISO9001
Bush
Terminal Block
Temperature range (ºC)
-20 +40
Lighting cycles
100000
Energy consumption (kWh/1000h)
15.0
Weight (gr)
880
Flicker
0.89
Half -year useful life (at 3 h/day)
45.66
Half -Year Useful Life (5 h/day)
27.39
Half -year useful life (at 8 h/day)
17.12
Directional
Non-Directional
Single/range CCT
Only
Single CCT
4200
INDEX R9
1
Minimum cri range
85
Maximum cri range
22
Chromaticity x
0.304
Chromaticity y
0.312
Applicable standards
EN 55015:2009;EN 61547:2009:EN 61000-3-2:2006;EN 61000-3-3:2008;EN 60598-2-2:2012;EN 60598-1:2009;EN 1122B:2001

Description

The OSRAM Square CRI90 No Flicker COB LED Downlight is a very versatile product that incorporates the highest quality LED technology. Its light beam is centered at an angle of 38º and has an anti-glare factor (UGR19).

Made of aluminum with a very elegant finish, it has an estimated useful life of 50,000 hours. Its installation is very simple and only requires a small cut in the surface where it will be embedded.

By choosing LED lighting, we not only choose to save on the electricity bill, but we also opted for a more ecological technology, of higher quality and with a duration ten times longer than that of traditional lighting systems.

All the features of this LED lighting product make it perform well. Ideal for use in interior spaces where the use of a large amount of light is not necessary. See use especially in passageways such as hallways, corridors or stairs.
