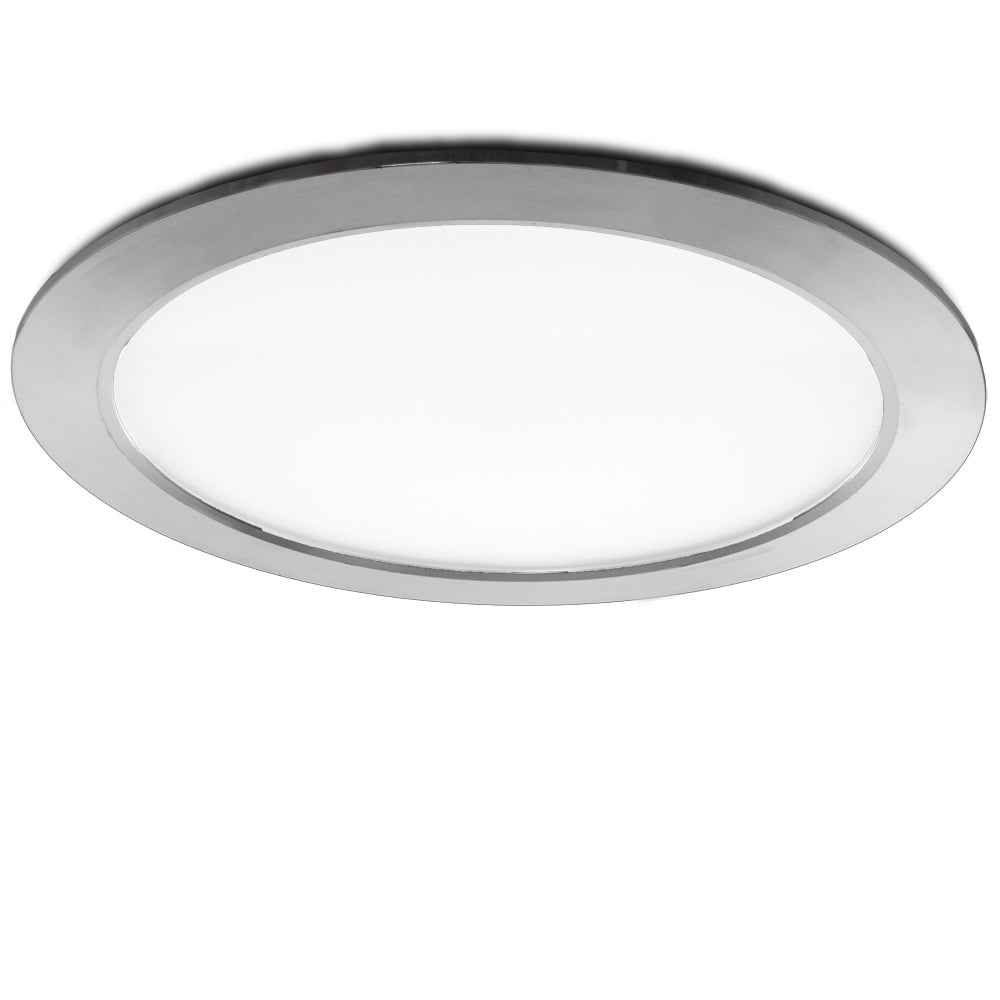

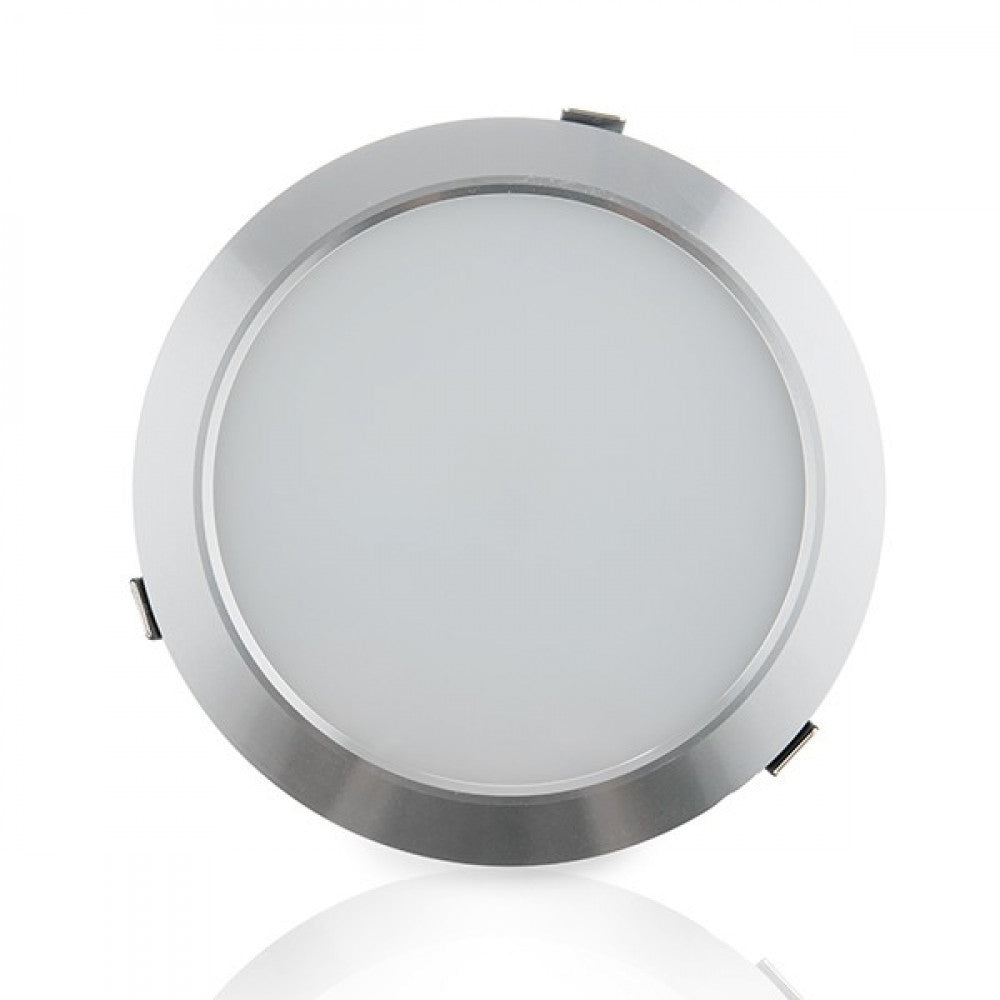

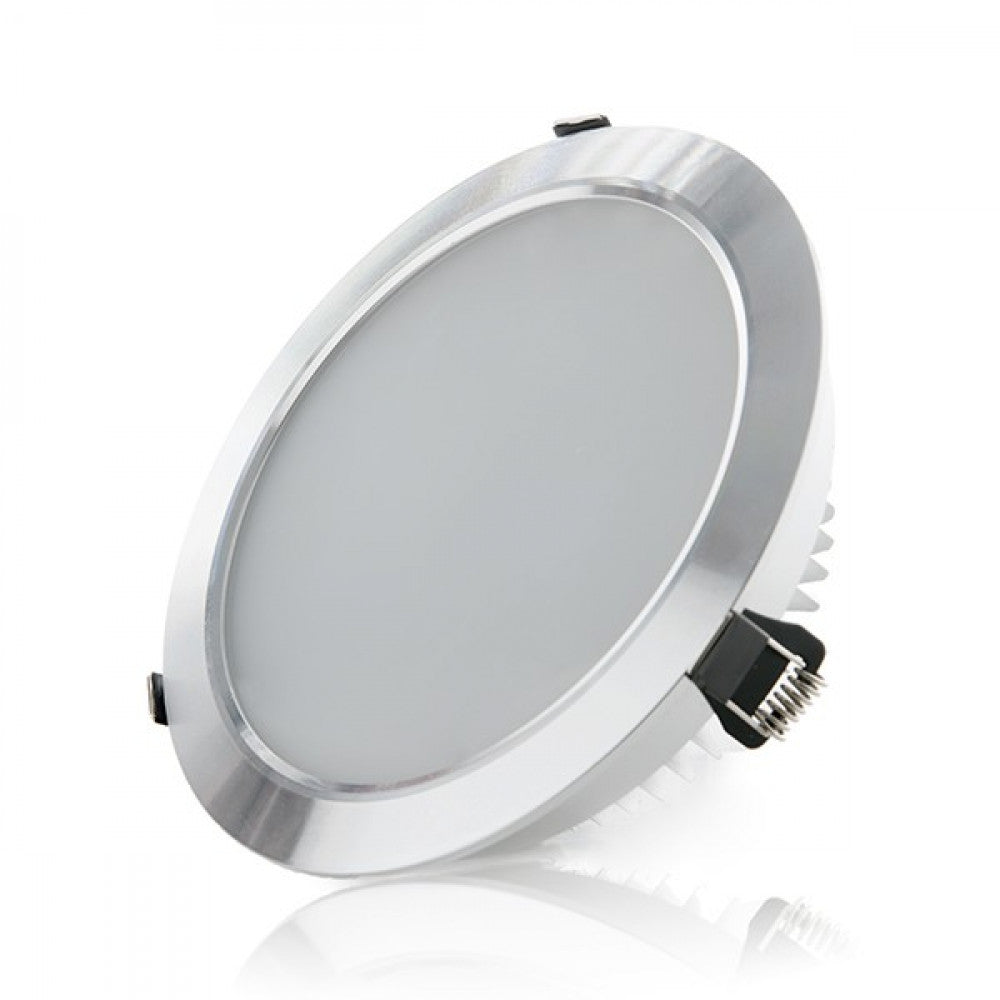

LED Downlight Spotlight 30W 2434Lm 2700ºK Circular 40,000H [YQ-TH013-30W-WW]

LED Downlight Spotlight 30W 2434Lm 2700ºK Circular 40,000H [YQ-TH013-30W-WW]

See questions and answers

For additional amounts the delivery period is 60 days As of the order date
  • Brand:GreenIce
  • SkuYQ-TH013-30W-WW
  • A 2021
Eprel file
Warranty
  • Warranty 3 years
  • 120 º Opening
£23.00
£30.00 £23.00 -23%
Tax included. The Shipping expenses They are calculated on the payment screen.

There are few

Warranty
  • Warranty 3 years
  • 120 º Opening
Are you a professional customer?

We have published a new website only for professionals.

Go to Professional Area
Advantages of buying in Greenice
  • Guaranteed minimum price
  • Free returns up to 60 days
  • Free shipping From € 21.95
  • Until 10 years guarantee
-23.33%(YQ-TH013-30W-CW_padreImg_yq_th013_30w_cw_0.jpeg)
Warm White
There are few
Free shipping
£23.00
£30.00 £23.00 -23%

Accessories

  • (SB-BS039_padreImg_sb_bs039_0.jpeg) (SB-BS039_padreImg_sb_bs039_1.jpeg)

    Motion Sensor Surface Mounted 180º IP44 ►1200/300W [SB-BS039]

    Offer
    GreenIce

    Motion Sensor Surface Mounted 180º IP44 ►1200/300W [SB-BS039]

    £9.00
    £16.00 £9.00 -43%
    Offer
  • (SB-BS031B_padreImg_sb_bs031b_0.jpeg) (SB-BS031B_padreImg_sb_bs031b_1.jpeg)

    Motion Sensor Recessed 160º ►600W/200W

    Offer
    GreenIce

    Motion Sensor Recessed 160º ►600W/200W

    £5.00
    £14.00 £5.00 -64%
    Offer

Technical file

Product code
YQ-TH013-30W-WW
Light temperature
Warm White
Kelvin º
2700
Power (W)
30.0
Luminosity (LM)
2433
Luminous efficacy (LM/W)
81
LED efficacy
89
Type of LEDs
Epistar Led
Measures (mm)
Ø159x56
Roof cut (mm)
Ø135
CRI
80
UGR
◄19
Diffuser
Microprismatic
Power factor (PF)
0.98
Construction
Aluminum/ PC
Opening Angle (º)
120
Facility
IP20
Strain
85-265VAC

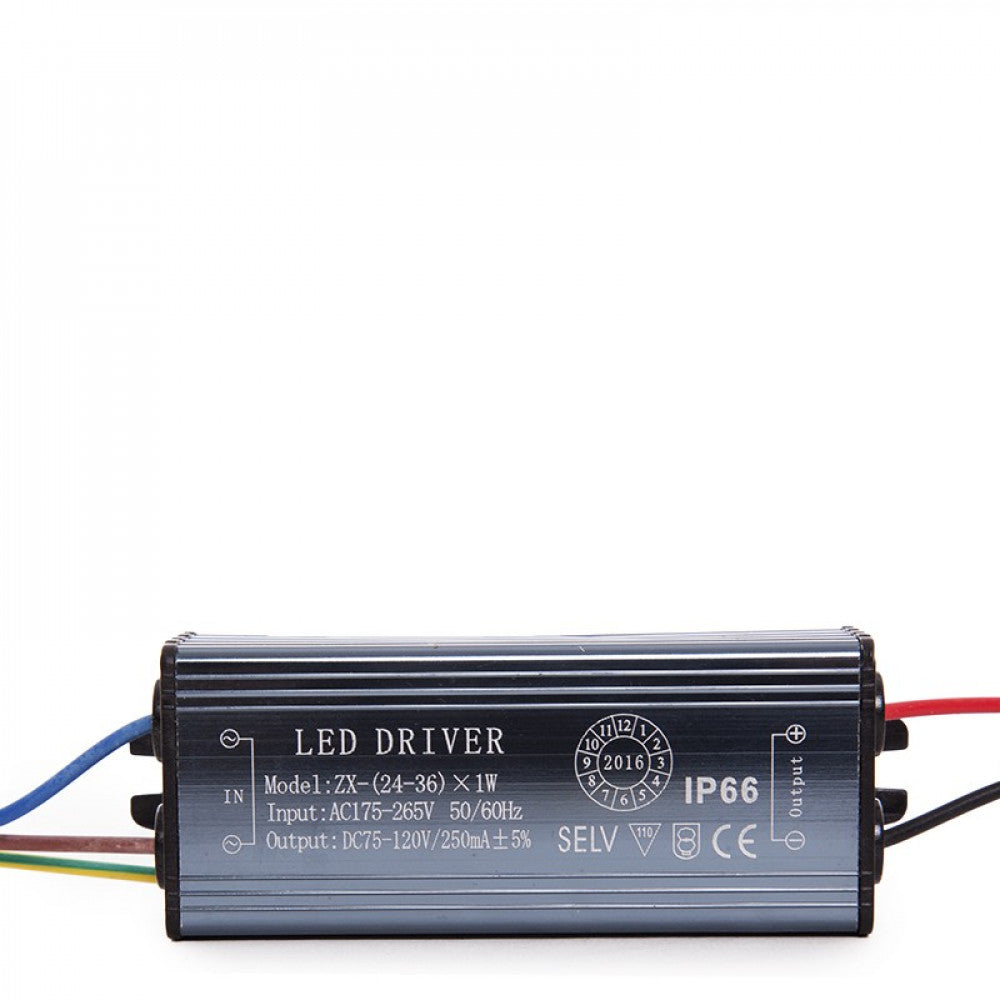

Driver output
DC24-36V
Estimated life (H)
40000
Dimable
No
Equivalence (W)
200
Isolation class
II
Work frequency (Hz)
50/ 60
Start time (s)
0.2
Energy class
G
Certificates
CE/ROHS/ISO9001
Bush
Terminal Block
Temperature range (ºC)
-20 +40
Lighting cycles
100000
Energy consumption (kWh/1000h)
30.0
Weight (gr)
600
Flicker
0.87
Half -year useful life (at 3 h/day)
36.52
Half -Year Useful Life (5 h/day)
21.91
Half -year useful life (at 8 h/day)
13.69
Directional
Non-Directional
Single/range CCT
Only
Single CCT
2700
INDEX R9
8
Minimum cri range
94
Maximum cri range
10
Chromaticity x
0.435
Chromaticity y
0.409
Applicable standards
EN 55015:2009;EN 61547:2009:EN 61000-3-2:2006;EN 61000-3-3:2008;EN 60598-2-2:2012;EN 60598-1:2009;EN 1122B:2001

Characteristics

Product code
YQ-TH013-30W-WW
Light temperature
Warm White
Kelvin º
2700
Power (W)
30.0
Luminosity (LM)
2433
Luminous efficacy (LM/W)
81
LED efficacy
89
Type of LEDs
Epistar Led
Measures (mm)
Ø159x56
Roof cut (mm)
Ø135
CRI
80
UGR
◄19
Diffuser
Microprismatic
Power factor (PF)
0.98
Construction
Aluminum/ PC
Opening Angle (º)
120
Facility
IP20
Strain
85-265VAC
Driver output
DC24-36V
Estimated life (H)
40000
Dimable
No
Equivalence (W)
200
Isolation class
II
Work frequency (Hz)
50/ 60
Start time (s)
0.2
Energy class
G
Certificates
CE/ROHS/ISO9001
Bush
Terminal Block
Temperature range (ºC)
-20 +40
Lighting cycles
100000
Energy consumption (kWh/1000h)
30.0
Weight (gr)
600
Flicker
0.87
Half -year useful life (at 3 h/day)
36.52
Half -Year Useful Life (5 h/day)
21.91
Half -year useful life (at 8 h/day)
13.69
Directional
Non-Directional
Single/range CCT
Only
Single CCT
2700
INDEX R9
8
Minimum cri range
94
Maximum cri range
10
Chromaticity x
0.435
Chromaticity y
0.409
Applicable standards
EN 55015:2009;EN 61547:2009:EN 61000-3-2:2006;EN 61000-3-3:2008;EN 60598-2-2:2012;EN 60598-1:2009;EN 1122B:2001

Description

The Downlight Spotlight is designed for general lighting applications, both commercial and domestic.It provides an intense light with a multitude of possibilities, ideal to replace traditional halogen lights, reaching to savings of up to 90% and conventional low consumption downlight, reaching savings of up to 60% with which high energy efficiency is achieved.

It mounts LEDs -SMD that provide a beam width of 120º light. Designed to work at 85-265VAC and a frequency of 50-60Hz.

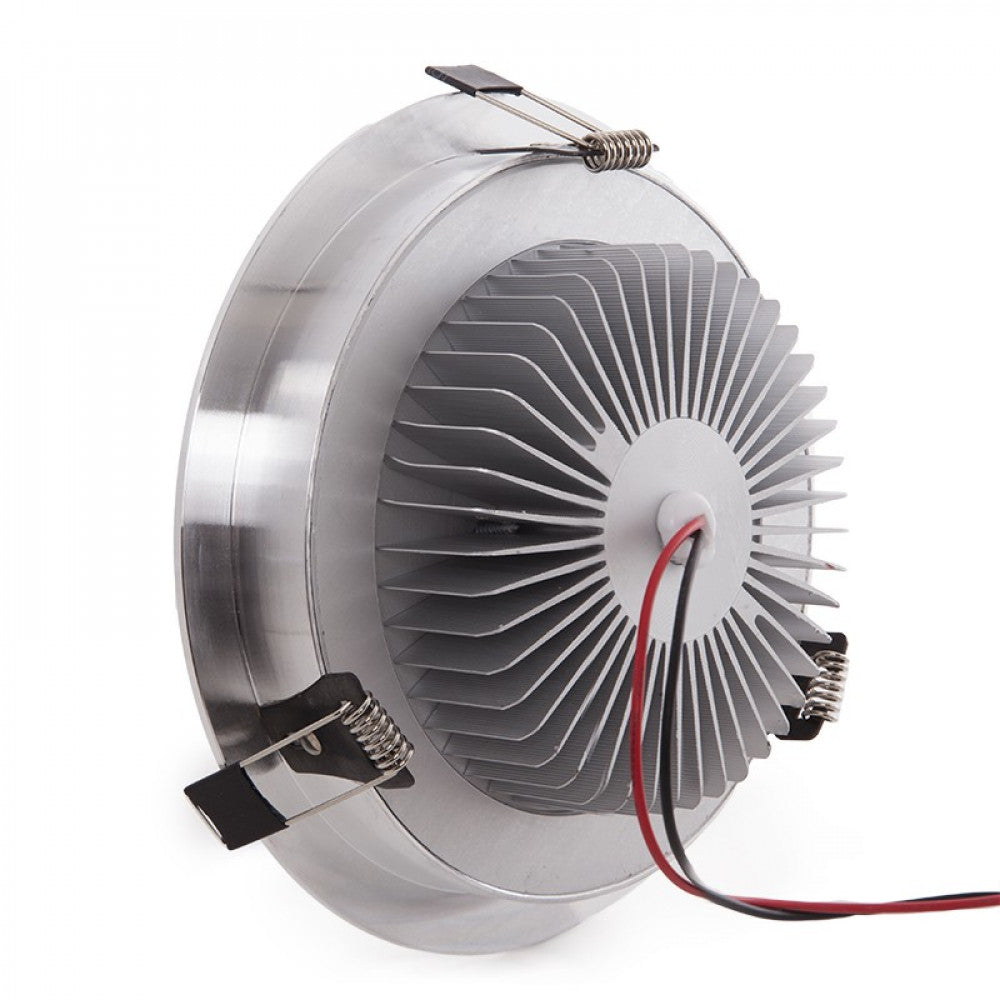

Equipped with an opal diffuser, it offers a semi-diffuse light ideal for use in both general applications and support lighting for downlights. greater luminosity.Includes a high-quality aluminum heatsink and clamps for perfect fixing to the ceiling.

The features of this type of product make it suitable for a multitude of spaces even outside the commercial field, whether in transit areas such as stairs, halls or corridors, and even in work environments such as offices.
