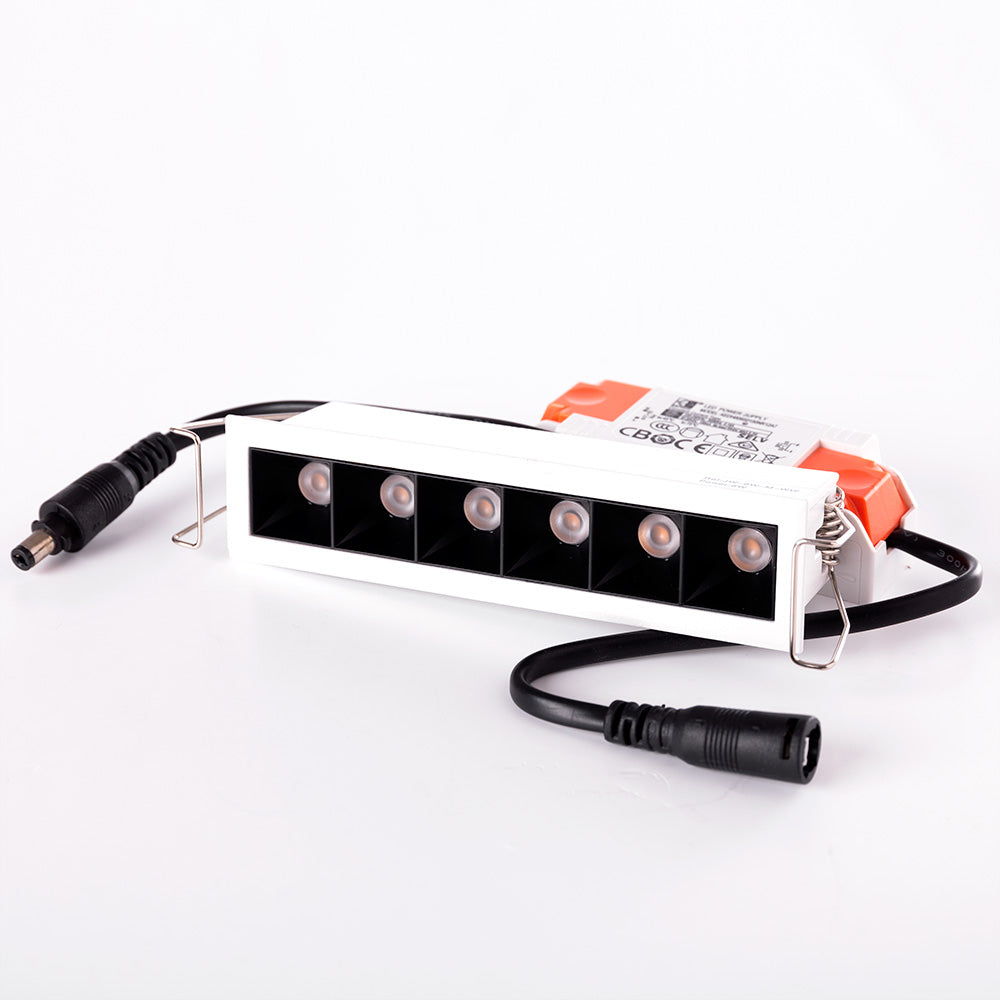

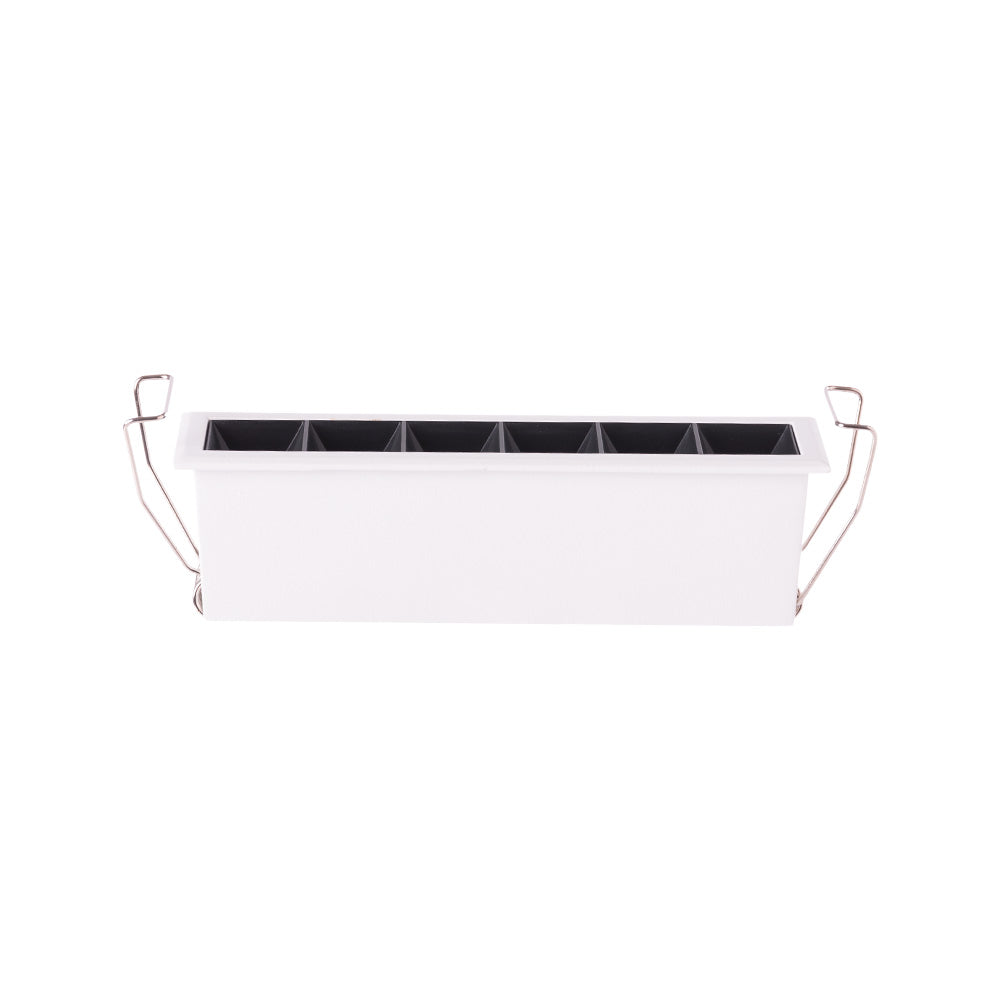

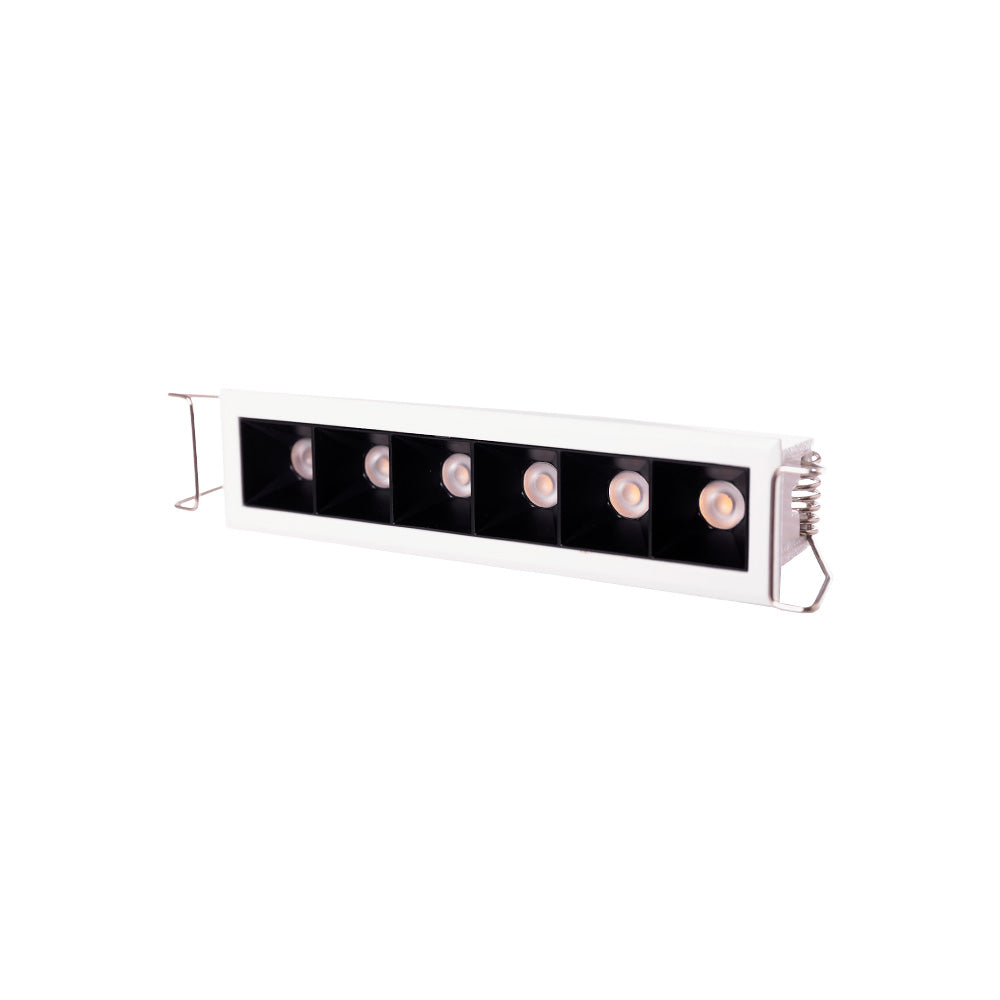

LED Downlight Spotlight 8W 575Lm 2700ºK Rectangular PRO SMD3030 50,000H [JW-8W-M-WW]

LED Downlight Spotlight 8W 575Lm 2700ºK Rectangular PRO SMD3030 50,000H [JW-8W-M-WW]

See questions and answers

For additional amounts the delivery period is 60 days As of the order date
  • Brand:Kimera
  • SkuJW-8W-M-WW
Eprel file
Warranty
  • Warranty 3 years
  • 38 º Opening
£20.50
£21.48 £20.50 -4%
Tax included. The Shipping expenses They are calculated on the payment screen.

Available

Warranty
  • Warranty 3 years
  • 38 º Opening
Are you a professional customer?

We have published a new website only for professionals.

Go to Professional Area
Advantages of buying in Greenice
  • Guaranteed minimum price
  • Free returns up to 60 days
  • Free shipping From € 21.95
  • Until 10 years guarantee
-4.56%(JW-8W-M-W_padreImg_jw_8w_m_w_0.jpeg)
Warm White
Available
Free shipping
£20.50
£21.48 £20.50 -4%

Accessories

Technical file

Product code
JW-8W-M-WW
Light temperature
Warm White
Kelvin º
2700
Power (W)
8.0
Luminosity (LM)
575
Luminous efficacy (LM/W)
71
LED efficacy
78
Type of LEDs
Osram Led
Number of LEDs
6
Measures (mm)
125,5x30,5x35,6
Roof cut (mm)
121x26
High
36.0
Long
126.0
Broad
30.5
CRI
90
UGR
◄17
Diffuser
Microprismatic
Power factor (PF)
0.8
Construction
Aluminum/ PC
Opening Angle (º)
38
Facility
IP20
Strain
220-240V AC
Estimated life (H)
50000
Dimable
No
Equivalence (W)
45
Isolation class
II
Work frequency (Hz)
50/ 60
Start time (s)
0.1
Energy class
G
Certificates
CE/ROHS/ISO9001
Bush
Terminal Block
Temperature range (ºC)
-20 +40
Lighting cycles
100000
Energy consumption (kWh/1000h)
8.0
Weight (gr)
500
Flicker
0.89
Half -year useful life (at 3 h/day)
45.66
Half -Year Useful Life (5 h/day)
27.39
Half -year useful life (at 8 h/day)
17.12
Directional
Non-Directional
Single/range CCT
Only
Single CCT
2700
INDEX R9
2
Minimum cri range
85
Maximum cri range
15
Chromaticity x
0.304
Chromaticity y
0.312
Applicable standards
EN 55015:2009;EN 61547:2009:EN 61000-3-2:2006;EN 61000-3-3:2008;EN 60598-2-2:2012;EN 60598-1:2009;EN 1122B:2001

Characteristics

Product code
JW-8W-M-WW
Light temperature
Warm White
Kelvin º
2700
Power (W)
8.0
Luminosity (LM)
575
Luminous efficacy (LM/W)
71
LED efficacy
78
Type of LEDs
Osram Led
Number of LEDs
6
Measures (mm)
125,5x30,5x35,6
Roof cut (mm)
121x26
High
36.0
Long
126.0
Broad
30.5
CRI
90
UGR
◄17
Diffuser
Microprismatic
Power factor (PF)
0.8
Construction
Aluminum/ PC
Opening Angle (º)
38
Facility
IP20
Strain
220-240V AC
Estimated life (H)
50000
Dimable
No
Equivalence (W)
45
Isolation class
II
Work frequency (Hz)
50/ 60
Start time (s)
0.1
Energy class
G
Certificates
CE/ROHS/ISO9001
Bush
Terminal Block
Temperature range (ºC)
-20 +40
Lighting cycles
100000
Energy consumption (kWh/1000h)
8.0
Weight (gr)
500
Flicker
0.89
Half -year useful life (at 3 h/day)
45.66
Half -Year Useful Life (5 h/day)
27.39
Half -year useful life (at 8 h/day)
17.12
Directional
Non-Directional
Single/range CCT
Only
Single CCT
2700
INDEX R9
2
Minimum cri range
85
Maximum cri range
15
Chromaticity x
0.304
Chromaticity y
0.312
Applicable standards
EN 55015:2009;EN 61547:2009:EN 61000-3-2:2006;EN 61000-3-3:2008;EN 60598-2-2:2012;EN 60598-1:2009;EN 1122B:2001

Description

The OSRAM Square CRI90 No Flicker COB LED Downlight is a very versatile product that incorporates the highest quality LED technology. Its light beam is centered at an angle of 38º and has an anti-glare factor (UGR19).

Made of aluminum with a very elegant finish, it has an estimated useful life of 50,000 hours. Its installation is very simple and only requires a small cut in the surface where it will be embedded.

By choosing LED lighting, we not only choose to save on the electricity bill, but we also opted for a more ecological technology, of higher quality and with a duration ten times longer than that of traditional lighting systems.

All the features of this LED lighting product make it perform well. Ideal for use in interior spaces where the use of a large amount of light is not necessary. See use especially in passageways such as hallways, corridors or stairs.

Documents

Installation_manual
