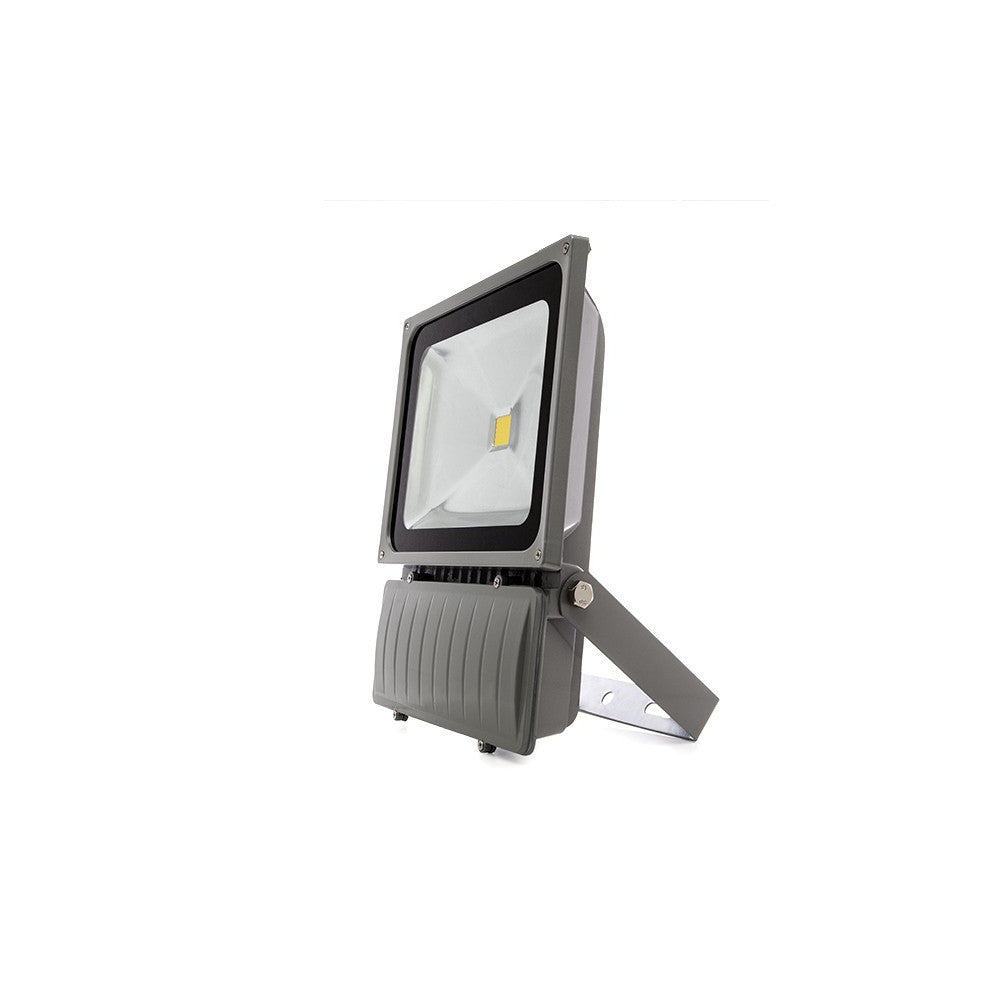

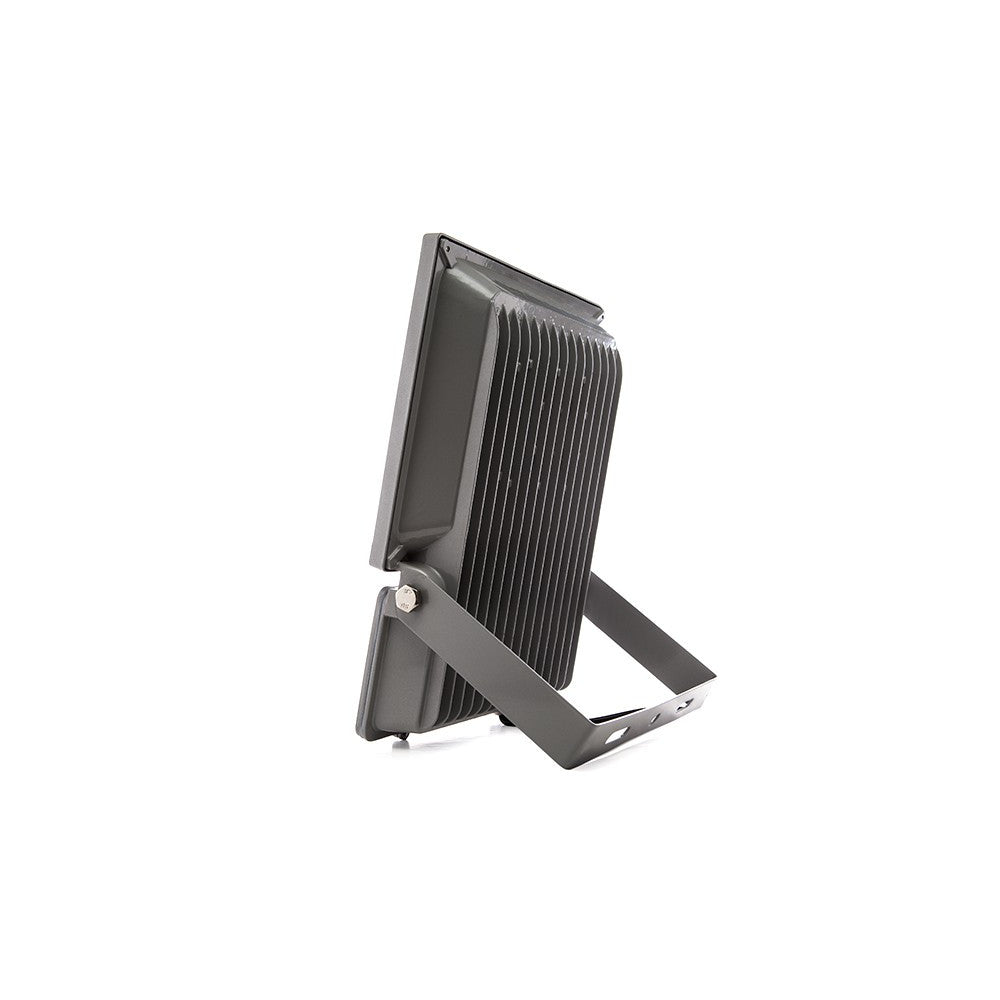

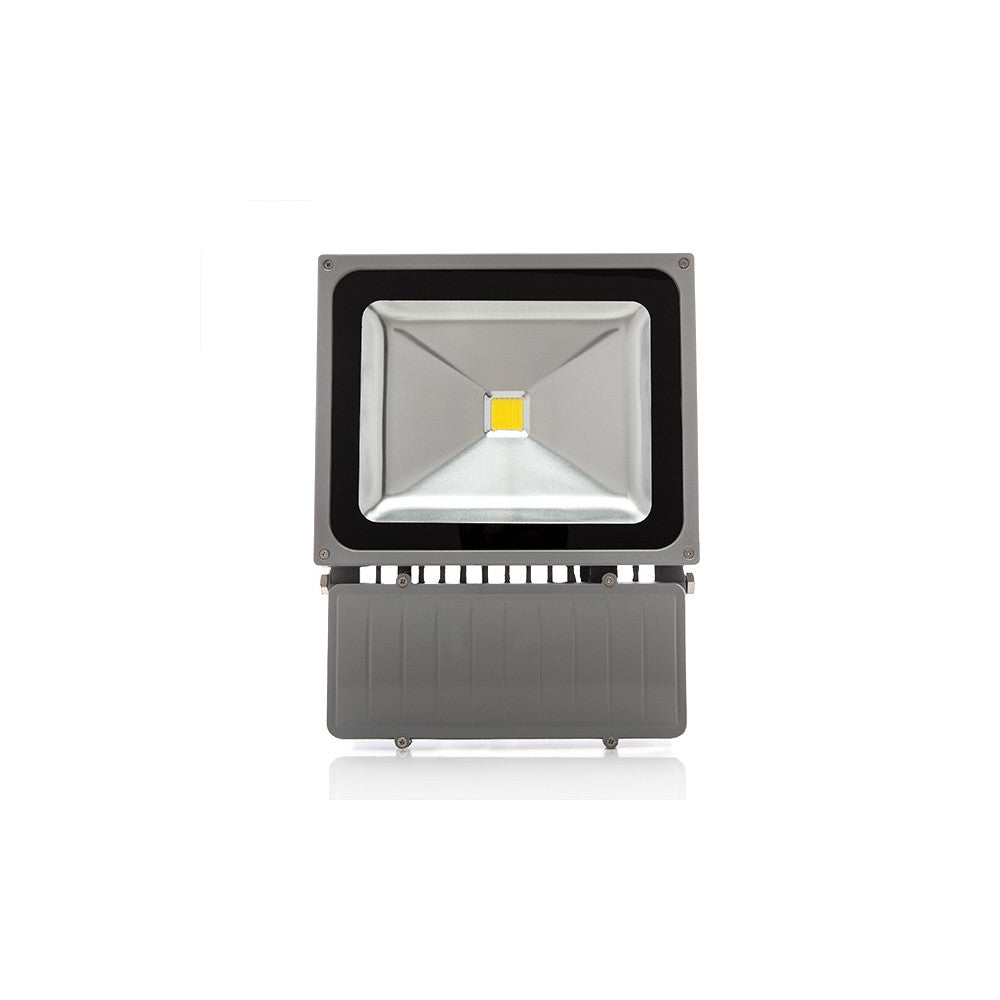

LED Floodlight 70W 6,000Lm 6000ºK IP65 12-24VDC 40,000H [JWSFL701224-0003]

LED Floodlight 70W 6,000Lm 6000ºK IP65 12-24VDC 40,000H [JWSFL701224-0003]

For additional amounts the delivery period is 60 days As of the order date
  • Brand:GreenIce
  • SkuJWSFL701224-0003
  • A 2021
Eprel file
Warranty
  • Warranty 3 years
  • 120 º Opening
£66.00
£118.00 £66.00 -44%
Tax included. The Shipping expenses They are calculated on the payment screen.

There are few

Warranty
  • Warranty 3 years
  • 120 º Opening
Are you a professional customer?

We have published a new website only for professionals.

Go to Professional Area
Advantages of buying in Greenice
  • Guaranteed minimum price
  • Free returns up to 60 days
  • Free shipping From € 21.95
  • Until 10 years guarantee
-44.07%(JWSFL701224-0003_padreImg_jwsfl701224_0003_0.jpeg)
12VDC
There are few
Free shipping
£66.00
£118.00 £66.00 -44%

Technical file

Product code
JWSFL701224-0003
Luminous efficacy (LM/W)
85
Light temperature
Cold White
Kelvin º
6000
Power (W)
70.0
Luminosity (LM)
6000
Measures (mm)
370x285
High
285.0
Long
370.0
Number and type of LEDs
Epistar Led
CRI
80
Power factor (PF)
0.8
Construction
Aluminum/Glass
Opening Angle (º)
120
Facility
IP65
IK Protection Index
IK08
Strain
12/ 24VDC
Estimated life (H)
40000
Dimable
No
Equivalence (W)
375
Isolation class
III
Work frequency (Hz)
50/ 60
Start time (s)
0.2
Energy class
F
Certificates
CE/ROHS/ISO9001
Bush
Terminal
Temperature range (ºC)
-20 +65
Lighting cycles
80000
Diffuser
Transparent
Energy consumption (kWh/1000h)
70.0
Weight (gr)
3850
Flicker
0.93
Half -year useful life (at 3 h/day)
36.52
Half -Year Useful Life (5 h/day)
21.91
Half -year useful life (at 8 h/day)
13.69
Directional
Non-Directional
Single/range CCT
Only
Single CCT
6000
INDEX R9
5
Minimum cri range
85
Maximum cri range
16
Chromaticity x
0.304
Chromaticity y
0.312
Driver output
DC30-36V
Applicable standards
EN 55015:2013; EN 61000-3-2:2014; EN 61000-3-3:2013; EN 61547:2009; EN 60598-1:2015; EN 60598-2-5:2015; EN 62031:2008:2015; EN 62471:2008; EN 62493:2015; IEC 62321:2008; IEC 62321:2013; IEC 62321:2015

Characteristics

Product code
JWSFL701224-0003
Luminous efficacy (LM/W)
85
Light temperature
Cold White
Kelvin º
6000
Power (W)
70.0
Luminosity (LM)
6000
Measures (mm)
370x285
High
285.0
Long
370.0
Number and type of LEDs
Epistar Led
CRI
80
Power factor (PF)
0.8
Construction
Aluminum/Glass
Opening Angle (º)
120
Facility
IP65
IK Protection Index
IK08
Strain
12/ 24VDC
Estimated life (H)
40000
Dimable
No
Equivalence (W)
375
Isolation class
III
Work frequency (Hz)
50/ 60
Start time (s)
0.2
Energy class
F
Certificates
CE/ROHS/ISO9001
Bush
Terminal
Temperature range (ºC)
-20 +65
Lighting cycles
80000
Diffuser
Transparent
Energy consumption (kWh/1000h)
70.0
Weight (gr)
3850
Flicker
0.93
Half -year useful life (at 3 h/day)
36.52
Half -Year Useful Life (5 h/day)
21.91
Half -year useful life (at 8 h/day)
13.69
Directional
Non-Directional
Single/range CCT
Only
Single CCT
6000
INDEX R9
5
Minimum cri range
85
Maximum cri range
16
Chromaticity x
0.304
Chromaticity y
0.312
Driver output
DC30-36V
Applicable standards
EN 55015:2013; EN 61000-3-2:2014; EN 61000-3-3:2013; EN 61547:2009; EN 60598-1:2015; EN 60598-2-5:2015; EN 62031:2008:2015; EN 62471:2008; EN 62493:2015; IEC 62321:2008; IEC 62321:2013; IEC 62321:2015

Description

LED Floodlight IP65 70W 6000Lm 12-24VDC

Documents

Installation_manual
