LED High Bay 150W 25500Lm 6000ºK Cree IP65 LIFUD 1-10V 100,000H [1916-HVB150WP3-CW

LED High Bay 150W 25500Lm 6000ºK Cree IP65 LIFUD 1-10V 100,000H [1916-HVB150WP3-CW

See questions and answers

For additional amounts the delivery period is 60 days As of the order date
  • Brand:GreenIce / Cree Led
  • Sku1916-HVB150WP3-CW
  • AAA 2021
Eprel file
Warranty
  • Warranty 5 years
  • Eye Care Eye Care
  • Tüv Süd TUV SUD
  • 120 º Opening
£75.00
£137.00 £75.00 -45%
Tax included. The Shipping expenses They are calculated on the payment screen.

Stock available

Warranty
  • Warranty 5 years
  • Eye Care Eye Care
  • Tüv Süd TUV SUD
  • 120 º Opening
¿Eres Cliente Profesional?

Hemos publicado una nueva web solo para Profesionales.

ir a Área Profesional
VENTAJAS DE COMPRAR EN GREENICE
  • Precio Mínimo Garantizado
  • Devoluciones Gratis hasta en 60 días
  • Envío Gratis desde 21,95€
  • Hasta 10 años de Garantía
-45.26%(1916-HVB150WP3-CW_padreImg_1916_hvb150wp3_cw_0.jpeg)
Cool White
Stock available
Free shipping
£75.00
£137.00 £75.00 -45%

Accessories

  • (HO-HY-EU110DM_padreImg_ho_hy_eu110dm_0.jpeg) (HO-HY-EU110DM_padreImg_ho_hy_eu110dm_1.jpeg)

    Dimmer LED 1-10V 5-100%

    Offer
    GreenIce

    Dimmer LED 1-10V 5-100%

    £21.00
    £23.00 £21.00 -8%
    Offer

Technical file

Product code
1916-HVB150WP3-CW
Light temperature
Cold white
Kelvin º
6000
Power (W)
150.0
Luminosity (LM)
25500
Luminous efficacy (LM/W)
170
LED efficacy
187
Type of LEDs
Cree Led
Number of LEDs
420
Measures (mm)
Ø360x110
Broad
110.0
Diameter
360
CRI
80
Diffuser
Microprismatic
Power factor (PF)
0.99
Construction
Aluminum/PC
Opening Angle (º)
120
Facility
IP65
IK Protection Index
IK08
Strain
100-277VAC
Estimated life (H)
100000
Dimable
Yes
Equivalence (W)
800
Isolation class
I
Work frequency (Hz)
50/ 60
Start time (s)
0.1
Energy class
C
Certificates
CE/ROHS/ISO9001
Bush
Terminal
Temperature range (ºC)
-20 +60
Lighting cycles
100000
Energy consumption (kWh/1000h)
150.0
Weight (gr)
4000
Flicker
0.58
Half -year useful life (at 3 h/day)
91.32
Half -Year Useful Life (5 h/day)
54.79
Half -year useful life (at 8 h/day)
34.24
Directional
Non-Directional
Single/range CCT
Only
Single CCT
6000
INDEX R9
3
Minimum cri range
92
Maximum cri range
1
Chromaticity x
0.334
Chromaticity y
0.352
Driver
Lifud
Applicable standards
EN 55015:2013; EN 61547:2009; EN 61000-3-2:2014; EN 61000-3-3:2013

Características

Product code
1916-HVB150WP3-CW
Light temperature
Cold white
Kelvin º
6000
Power (W)
150.0
Luminosity (LM)
25500
Luminous efficacy (LM/W)
170
LED efficacy
187
Type of LEDs
Cree Led
Number of LEDs
420
Measures (mm)
Ø360x110
Broad
110.0
Diameter
360
CRI
80
Diffuser
Microprismatic
Power factor (PF)
0.99
Construction
Aluminum/PC
Opening Angle (º)
120
Facility
IP65
IK Protection Index
IK08
Strain
100-277VAC
Estimated life (H)
100000
Dimable
Yes
Equivalence (W)
800
Isolation class
I
Work frequency (Hz)
50/ 60
Start time (s)
0.1
Energy class
C
Certificates
CE/ROHS/ISO9001
Bush
Terminal
Temperature range (ºC)
-20 +60
Lighting cycles
100000
Energy consumption (kWh/1000h)
150.0
Weight (gr)
4000
Flicker
0.58
Half -year useful life (at 3 h/day)
91.32
Half -Year Useful Life (5 h/day)
54.79
Half -year useful life (at 8 h/day)
34.24
Directional
Non-Directional
Single/range CCT
Only
Single CCT
6000
INDEX R9
3
Minimum cri range
92
Maximum cri range
1
Chromaticity x
0.334
Chromaticity y
0.352
Driver
Lifud
Applicable standards
EN 55015:2013; EN 61547:2009; EN 61000-3-2:2014; EN 61000-3-3:2013

Descripción

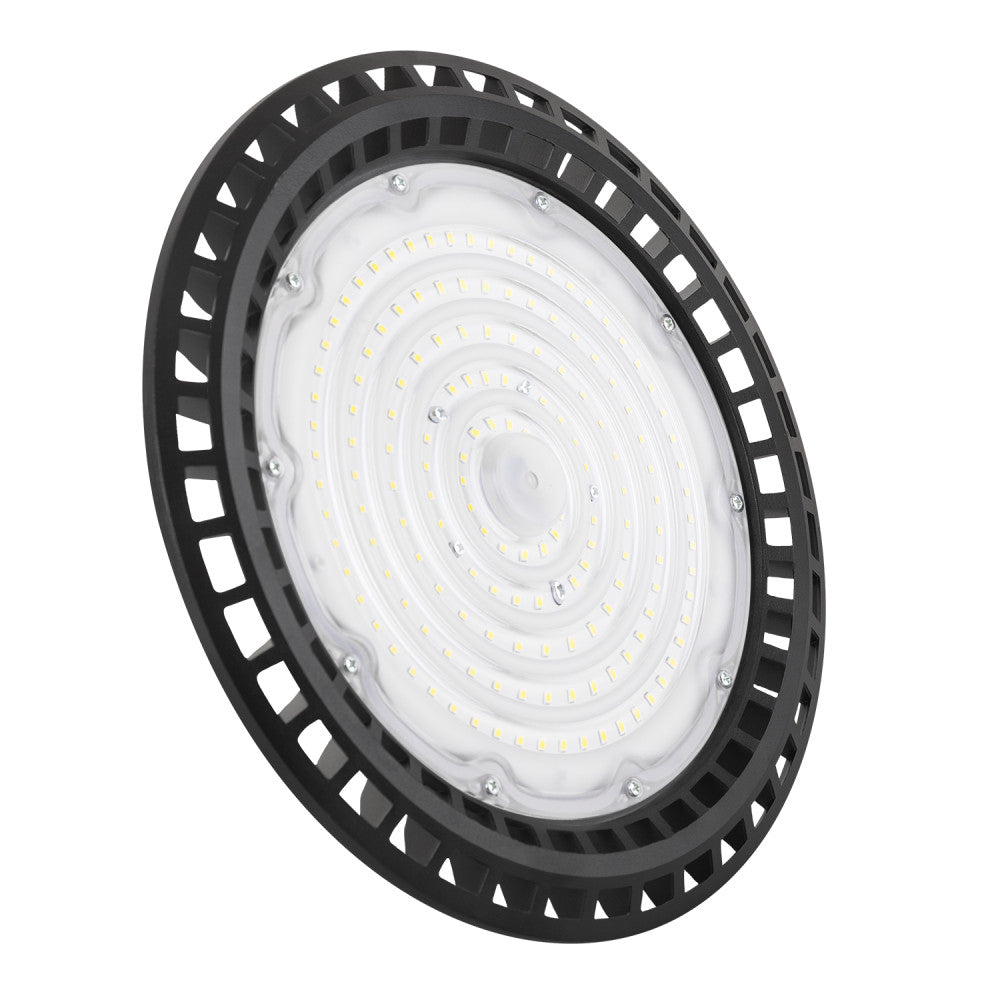

The CREE 150W 160lm/W LIFUD Dimmable 1-10V UFO LED High Bay allows you to obtain great power in a very small space, thanks to the latest generation advances that it incorporates. It has been possible to make one of the best LED high bays on the market, either due to energy savings, zero maintenance, long useful life or great reliability and flexibility.

It has CREE LEDs of high efficiency and a LIFUD Free Flicker driver, which together with the rest of the high-quality components they incorporate, achieve a LED performance of up to 160 lm/W.

The LIFUD Driver of this luminaire incorporates 4KV protection against overloads, short circuits, temperature, high input voltage and output voltage, making it a very safe driver. In addition, it should be noted that this Driver is Flicker Free, avoiding the flickering of the light and therefore reducing eye fatigue.

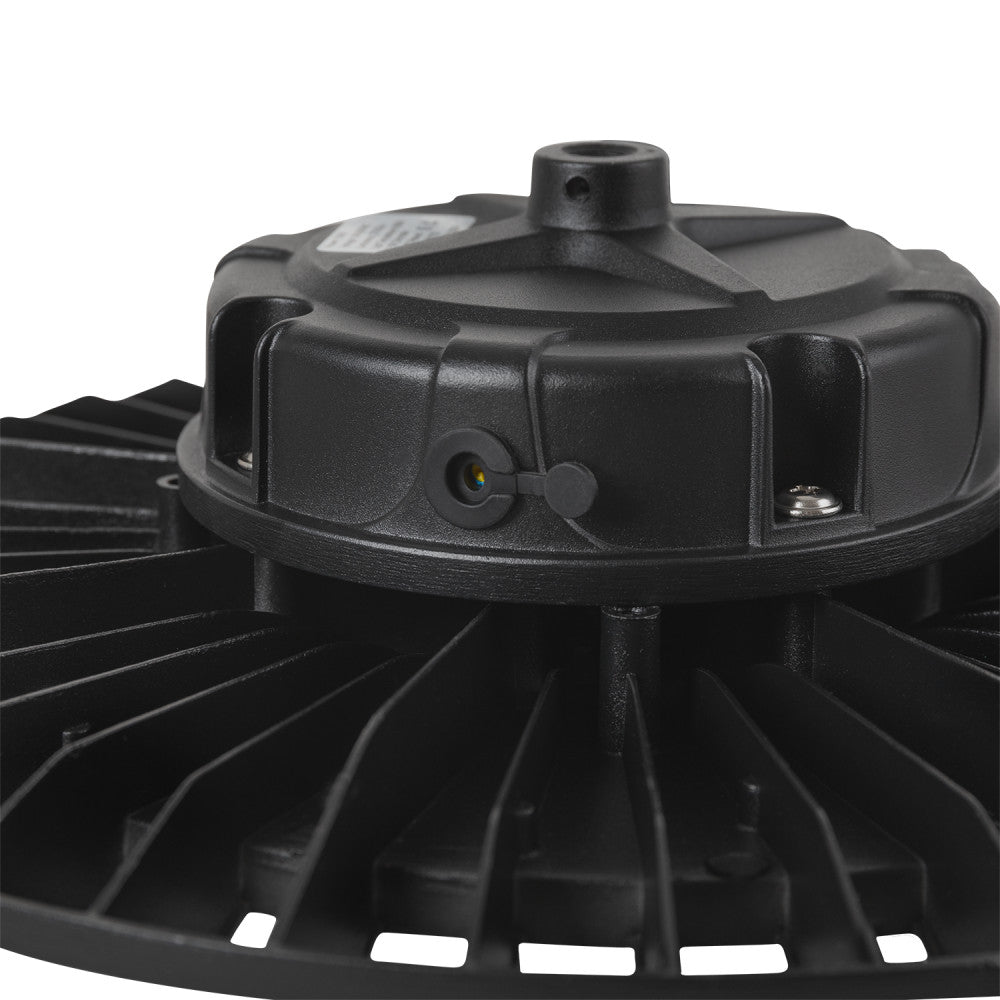

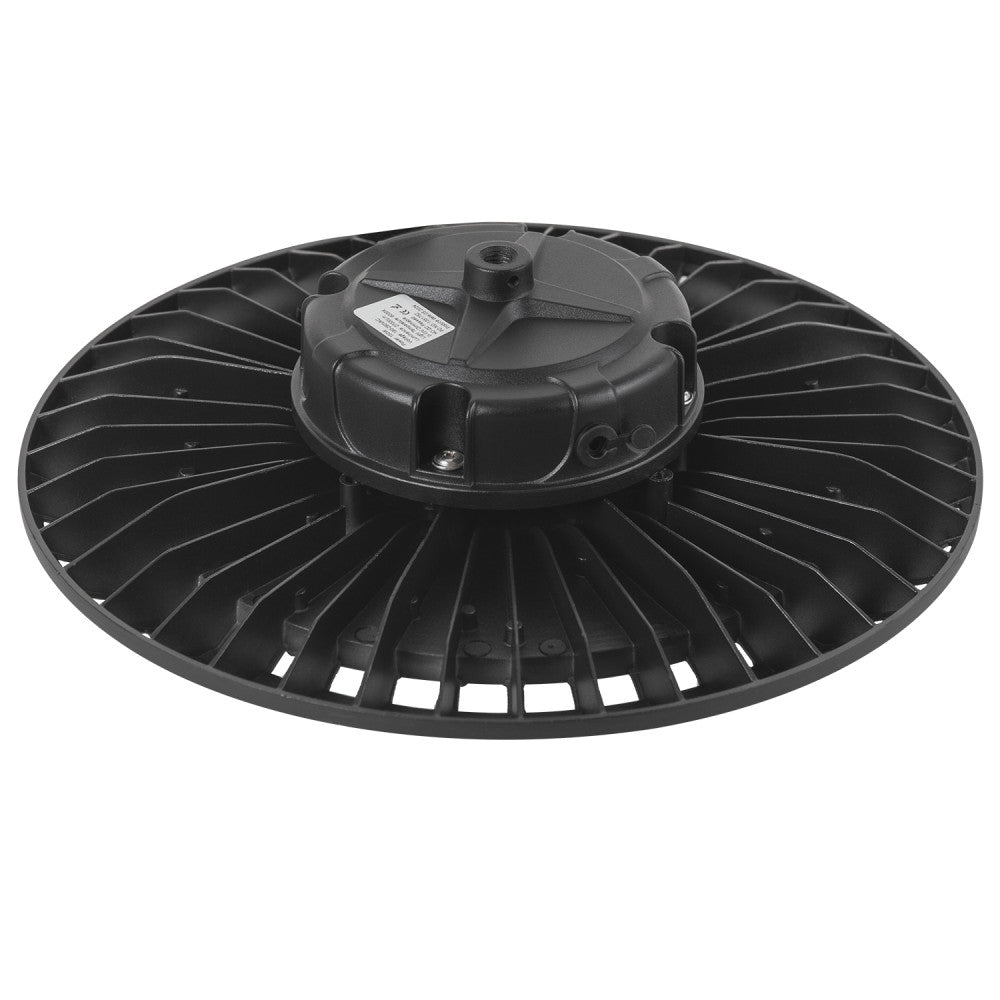

The light flux can be regulated in 1-10 V to adjust the intensity of the light emitted according to the needs of the moment, for greater energy savings, it also incorporates a potentiometer for fine adjustment of the current. Its innovative aluminum finish heatsink keeps the working temperature constant, eliminating heat very effectively in the most extreme conditions. In addition, it has a very high useful life of up to 50,000H.

This luminaire is perfect for all types of spaces, both indoors and outdoors even in the most unfavorable situations. It is used in all types of industrial or work areas, such as industrial warehouses, workshops, factories, warehouses or car parks.

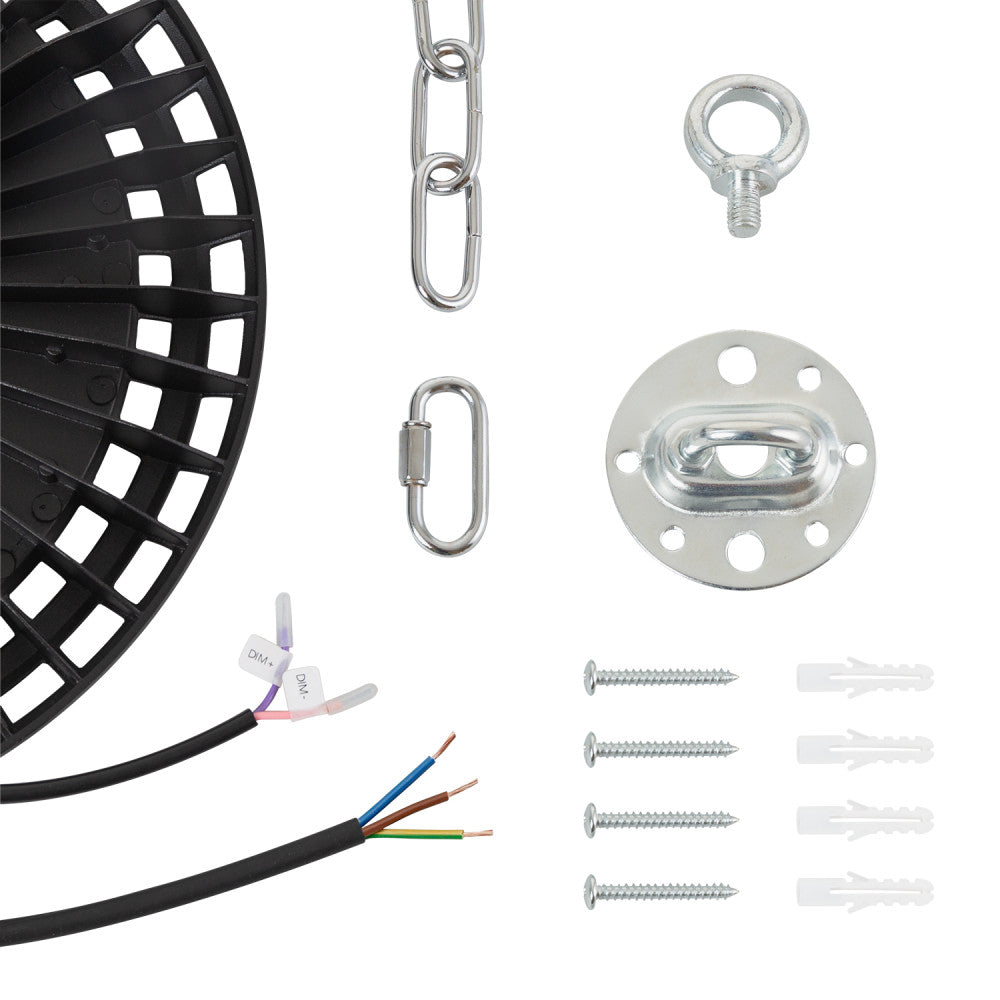

This hood has power, regulation and a 12V cable for the connection of auxiliary services such as sensors, regulators, etc. In this way, synchronization and control is possible, adapting better to the needs of the installation area.
