LED Luminaire 18W 1600Lm 6500ºK Linear Surface 60Cm 40,000H [HO-CNJHD-0.6M-18W-CW]

LED Luminaire 18W 1600Lm 6500ºK Linear Surface 60Cm 40,000H [HO-CNJHD-0.6M-18W-CW]

For additional amounts the delivery period is 60 days As of the order date
  • Brand:GreenIce / Epistar Led
  • SkuHO-CNJHD-0.6M-18W-CW
  • A 2021
Eprel file
Warranty
  • Warranty 3 years
  • Eye Care Eye Care
  • 120 º Opening
£9.00
£11.00 £9.00 -18%
Tax included. The Shipping expenses They are calculated on the payment screen.

Stock available

Warranty
  • Warranty 3 years
  • Eye Care Eye Care
  • 120 º Opening
Are you a professional customer?

We have published a new website only for professionals.

Go to Professional Area
Advantages of buying in Greenice
  • Guaranteed minimum price
  • Free returns up to 60 days
  • Free shipping From € 21.95
  • Until 10 years guarantee
-18.18%(HO-CNJHD-0.6M-18W-CW_padreImg_ho_cnjhd_0_6m_18w_cw_0.jpeg)
Cool White
Stock available
Free shipping
£9.00
£11.00 £9.00 -18%

Accessories

  • (WR-CON-T5-20CM_padreImg_wr_con_t5_20cm_0.jpeg) (WR-CON-T5-20CM_padreImg_wr_con_t5_20cm_1.jpeg)

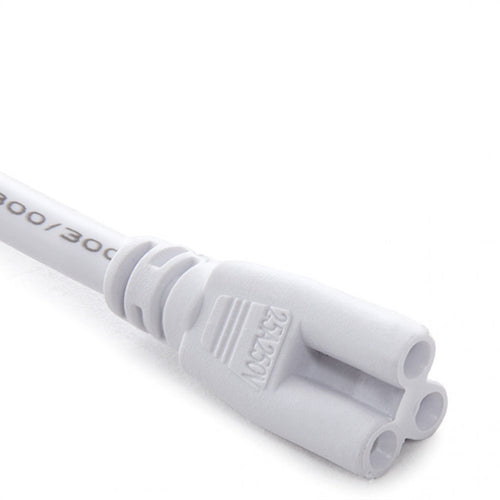

    Connector Luminaires T5 200Mm

    GreenIce

    Connector Luminaires T5 200Mm

    £2.00
    £2.00 £2.00 %

Technical file

Product code
HO-CNJHD-0.6M-18W-CW
Luminous efficacy (LM/W)
88
Light temperature
Cold White
Kelvin º
6500
Power (W)
18.0
Luminosity (LM)
1600
Measures (mm)
300x75x25
High
25.0
Long
300.0
Broad
75.0
Number and type of LEDs
Epistar Led
CRI
80
Power factor (PF)
0.9
Construction
PC/Aluminum
Opening Angle (º)
120
Facility
IP20
IK Protection Index
IK07
Strain
85-265VAC
Estimated life (H)
40000
Dimable
No
Equivalence (W)
192
Isolation class
II
Work frequency (Hz)
50/60
Start time (s)
0.1
Energy class
F
Certificates
CE/ROHS/ISO9001
Bush
Terminal
Temperature range (ºC)
-20+75
Lighting cycles
10000
Diffuser
Milky
Energy consumption (kWh/1000h)
18.0
Weight (gr)
180
Flicker
0.93
Half -year useful life (at 3 h/day)
36.52
Half -Year Useful Life (5 h/day)
21.91
Half -year useful life (at 8 h/day)
13.69
Directional
Non-Directional
Single/range CCT
Only
Single CCT
6500
INDEX R9
2
Minimum cri range
90
Maximum cri range
1
Chromaticity x
0.302
Chromaticity y
0.301
Driver output
DC24-42V 240MA
Applicable standards
EN 55015:2009;EN 61547:2009:EN 61000-3-2:2006;EN 61000-3-3:2008;EN 60598-2-2:2012;EN 60598-1:2009;EN 1122B:2001

Characteristics

Product code
HO-CNJHD-0.6M-18W-CW
Luminous efficacy (LM/W)
88
Light temperature
Cold White
Kelvin º
6500
Power (W)
18.0
Luminosity (LM)
1600
Measures (mm)
300x75x25
High
25.0
Long
300.0
Broad
75.0
Number and type of LEDs
Epistar Led
CRI
80
Power factor (PF)
0.9
Construction
PC/Aluminum
Opening Angle (º)
120
Facility
IP20
IK Protection Index
IK07
Strain
85-265VAC
Estimated life (H)
40000
Dimable
No
Equivalence (W)
192
Isolation class
II
Work frequency (Hz)
50/60
Start time (s)
0.1
Energy class
F
Certificates
CE/ROHS/ISO9001
Bush
Terminal
Temperature range (ºC)
-20+75
Lighting cycles
10000
Diffuser
Milky
Energy consumption (kWh/1000h)
18.0
Weight (gr)
180
Flicker
0.93
Half -year useful life (at 3 h/day)
36.52
Half -Year Useful Life (5 h/day)
21.91
Half -year useful life (at 8 h/day)
13.69
Directional
Non-Directional
Single/range CCT
Only
Single CCT
6500
INDEX R9
2
Minimum cri range
90
Maximum cri range
1
Chromaticity x
0.302
Chromaticity y
0.301
Driver output
DC24-42V 240MA
Applicable standards
EN 55015:2009;EN 61547:2009:EN 61000-3-2:2006;EN 61000-3-3:2008;EN 60598-2-2:2012;EN 60598-1:2009;EN 1122B:2001

Description

The Surface Linear LED Luminaire has a wide opening angle to offer general lighting with high efficiency. Ease of installation on any type of ceiling, whether plaster, concrete or any other surface.

The LED strip is linkable, the connections are on the sides with a connector that is already included.

>

With an opal diffuser that provides general lighting without reflections. Ideal to replace traditional halogens, reaching savings of up to 90% and conventional low consumption downlights, reaching savings of up to 60%, thus achieving high energy efficiency. Easy installation, long life of the LED luminaire, more than 30,000 hours and maintenance free.

Clean and architectural design where the latest LED technology is adapted to the simplicity of the linear lamp that offers a diffuse and soft light. Provides general and widely diffused lighting.

The perfect solution to create an elegant environment, in new construction or rehabilitation, to replace the current spotlights, for the home, offices, receptions, museums, bars, etc. .

Documents

Installation_manual
