LED Luminaire 40W 6800Lm 6000ºK LED Villa IP66 CREE Driver Inventronics 100,000H [GMD-1019A-40W-CW]

LED Luminaire 40W 6800Lm 6000ºK LED Villa IP66 CREE Driver Inventronics 100,000H [GMD-1019A-40W-CW]

See questions and answers

For additional amounts the delivery period is 60 days As of the order date
  • Brand:GreenIce / Cree Led
  • SkuGMD-1019A-40W-CW
  • AAA 2021
Eprel file
Warranty
  • Warranty 5 years
  • Eye Care Eye Care
  • Tüv Süd TUV SUD
  • 150 º Opening
£238.00
£397.00 £238.00 -40%
Tax included. The Shipping expenses They are calculated on the payment screen.

Stock available

Warranty
  • Warranty 5 years
  • Eye Care Eye Care
  • Tüv Süd TUV SUD
  • 150 º Opening
¿Eres Cliente Profesional?

Hemos publicado una nueva web solo para Profesionales.

ir a Área Profesional
VENTAJAS DE COMPRAR EN GREENICE
  • Precio Mínimo Garantizado
  • Devoluciones Gratis hasta en 60 días
  • Envío Gratis desde 21,95€
  • Hasta 10 años de Garantía
-40.05%(GMD-1019A-40W-CW_padreImg_gmd_1019a_40w_cw_0.jpeg)
Cool White
Stock available
Free shipping
£238.00
£397.00 £238.00 -40%

Technical file

Product code
GMD-1019A-40W-CW
Light temperature
Cold white
Kelvin º
6000
Power (W)
40.0
Luminosity (LM)
6800
Luminous efficacy (LM/W)
170
LED efficacy
187
Type of LEDs
Philips Led
Measures (mm)
440x766
High
766.0
Broad
440.0
CRI
80
Diffuser
Transparent
Power factor (PF)
0.99
Construction
Aluminum/Glass
Opening Angle (º)
150
Facility
IP66
IK Protection Index
IK08
Strain
100-240V AC
Estimated life (H)
100000
Dimable
No
Equivalence (W)
215
Isolation class
I
Work frequency (Hz)
50/ 60
Start time (s)
0.1
Energy class
D
Certificates
CE/ROHS/ISO9001
Bush
Terminal
Temperature range (ºC)
-20 +60
Lighting cycles
100000
Energy consumption (kWh/1000h)
40.0
Weight (gr)
9000
Flicker
0.5
Half -year useful life (at 3 h/day)
91.32
Half -Year Useful Life (5 h/day)
54.79
Half -year useful life (at 8 h/day)
34.24
Directional
Non Directional
Single/range CCT
Only
Single CCT
6000
INDEX R9
18
Minimum cri range
85
Maximum cri range
8
Chromaticity x
0.307
Chromaticity y
0.311
Driver
Inventronics
Applicable standards
EN 55015:2009;EN 61547:2009:EN 61000-3-2:2006;EN 61000-3-3:2008;EN 60598-2-2:2012;EN 60598-1:2009;EN 1122B:2001

Características

Product code
GMD-1019A-40W-CW
Light temperature
Cold white
Kelvin º
6000
Power (W)
40.0
Luminosity (LM)
6800
Luminous efficacy (LM/W)
170
LED efficacy
187
Type of LEDs
Philips Led
Measures (mm)
440x766
High
766.0
Broad
440.0
CRI
80
Diffuser
Transparent
Power factor (PF)
0.99
Construction
Aluminum/Glass
Opening Angle (º)
150
Facility
IP66
IK Protection Index
IK08
Strain
100-240V AC
Estimated life (H)
100000
Dimable
No
Equivalence (W)
215
Isolation class
I
Work frequency (Hz)
50/ 60
Start time (s)
0.1
Energy class
D
Certificates
CE/ROHS/ISO9001
Bush
Terminal
Temperature range (ºC)
-20 +60
Lighting cycles
100000
Energy consumption (kWh/1000h)
40.0
Weight (gr)
9000
Flicker
0.5
Half -year useful life (at 3 h/day)
91.32
Half -Year Useful Life (5 h/day)
54.79
Half -year useful life (at 8 h/day)
34.24
Directional
Non Directional
Single/range CCT
Only
Single CCT
6000
INDEX R9
18
Minimum cri range
85
Maximum cri range
8
Chromaticity x
0.307
Chromaticity y
0.311
Driver
Inventronics
Applicable standards
EN 55015:2009;EN 61547:2009:EN 61000-3-2:2006;EN 61000-3-3:2008;EN 60598-2-2:2012;EN 60598-1:2009;EN 1122B:2001

Descripción

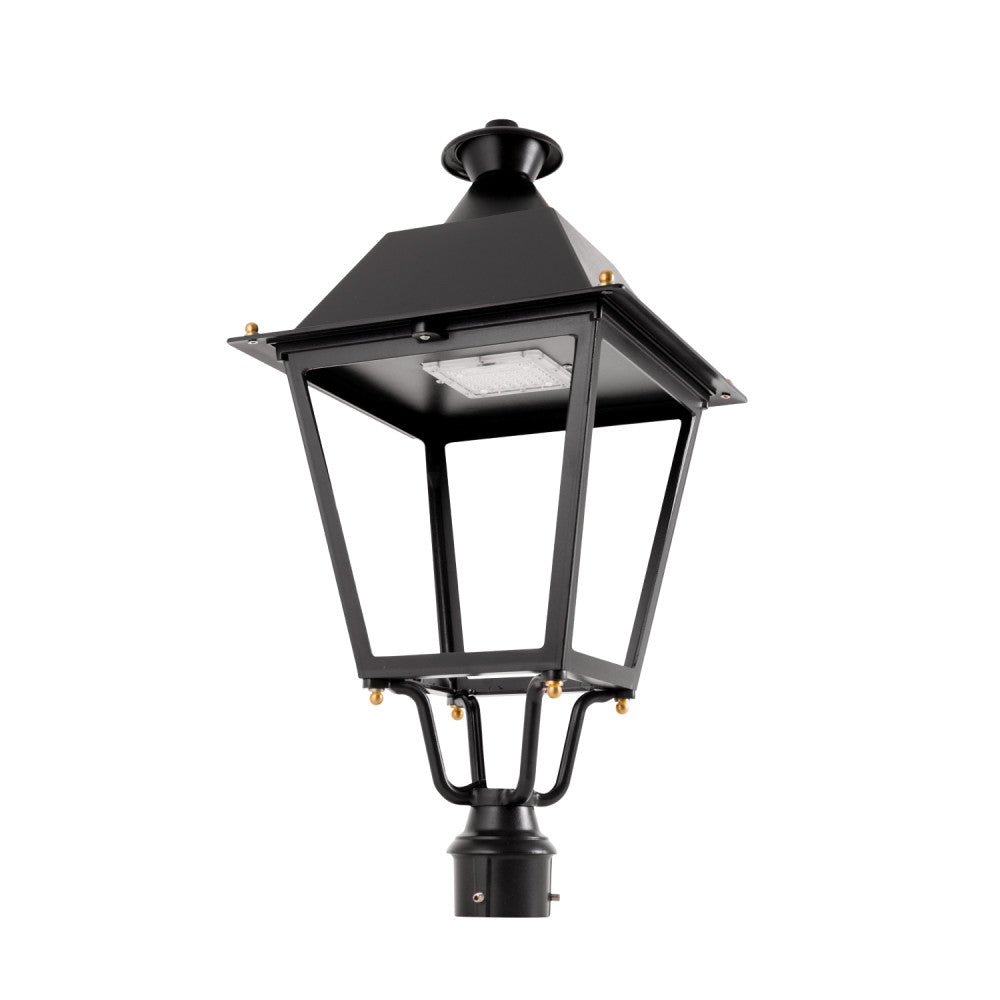

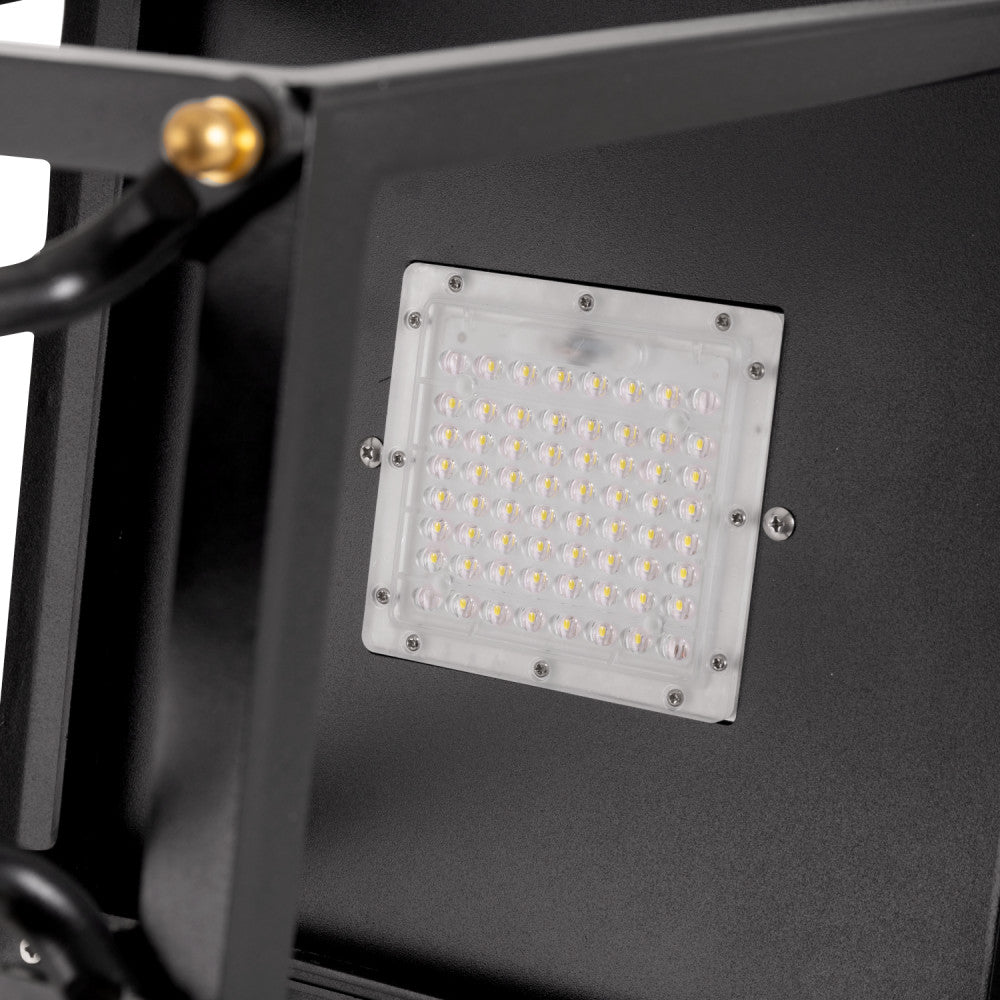

The Villa LED CREE XT-E luminaire is made of aluminium, with a classic and elegant design and a black finish. It has a multi-lens optic, which is protected with PMMA (Polymethylmethacrylate) and an anticorrosive chemical treatment, resistant to UV ultraviolet rays. Its high IP65 protection factor makes this lamppost the perfect product for street lighting.

Equipped with the latest lighting technologies, this streetlight mounts high-power CREE XT-E LEDs, which provide high light output. In addition, this lighting offers the possibility of reducing electricity consumption by up to 80% while favoring the environment since it does not pollute. It mounts a power supply from the prestigious brand Inventronics.

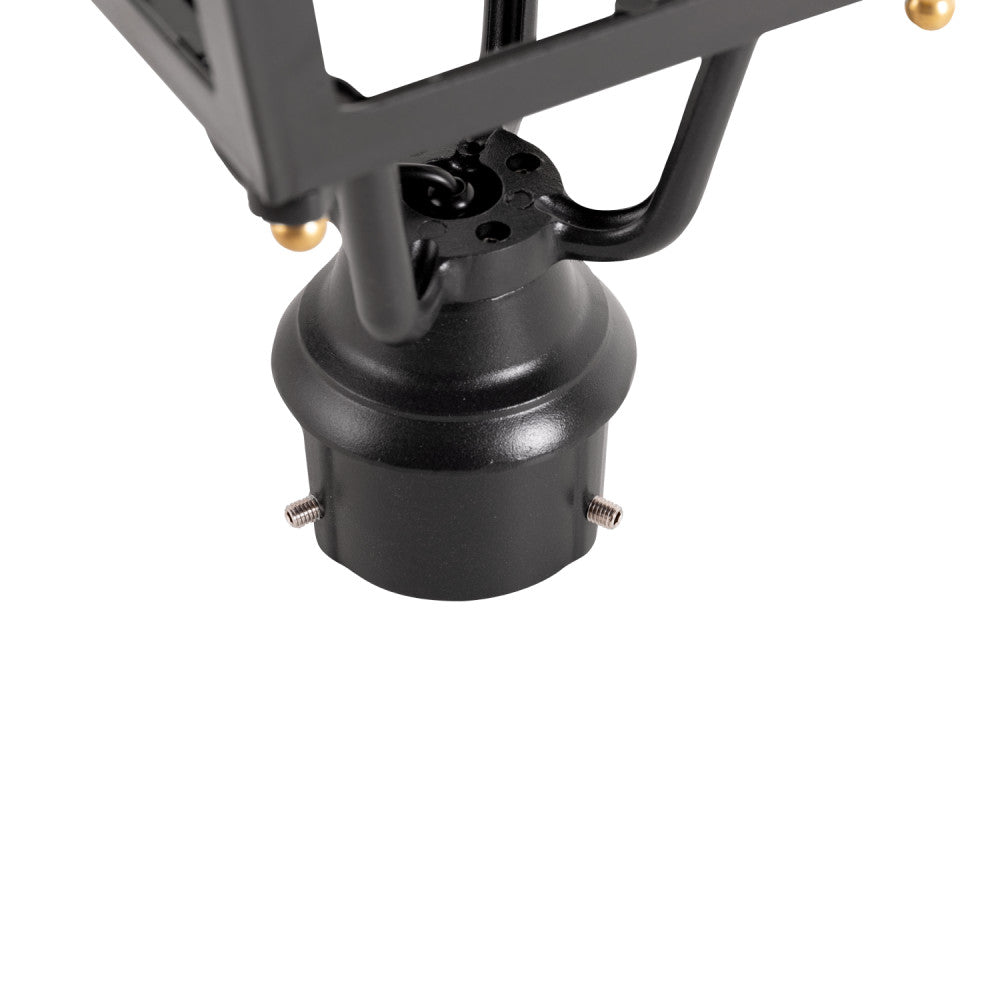

Base fixing diameter: Ø70mm
