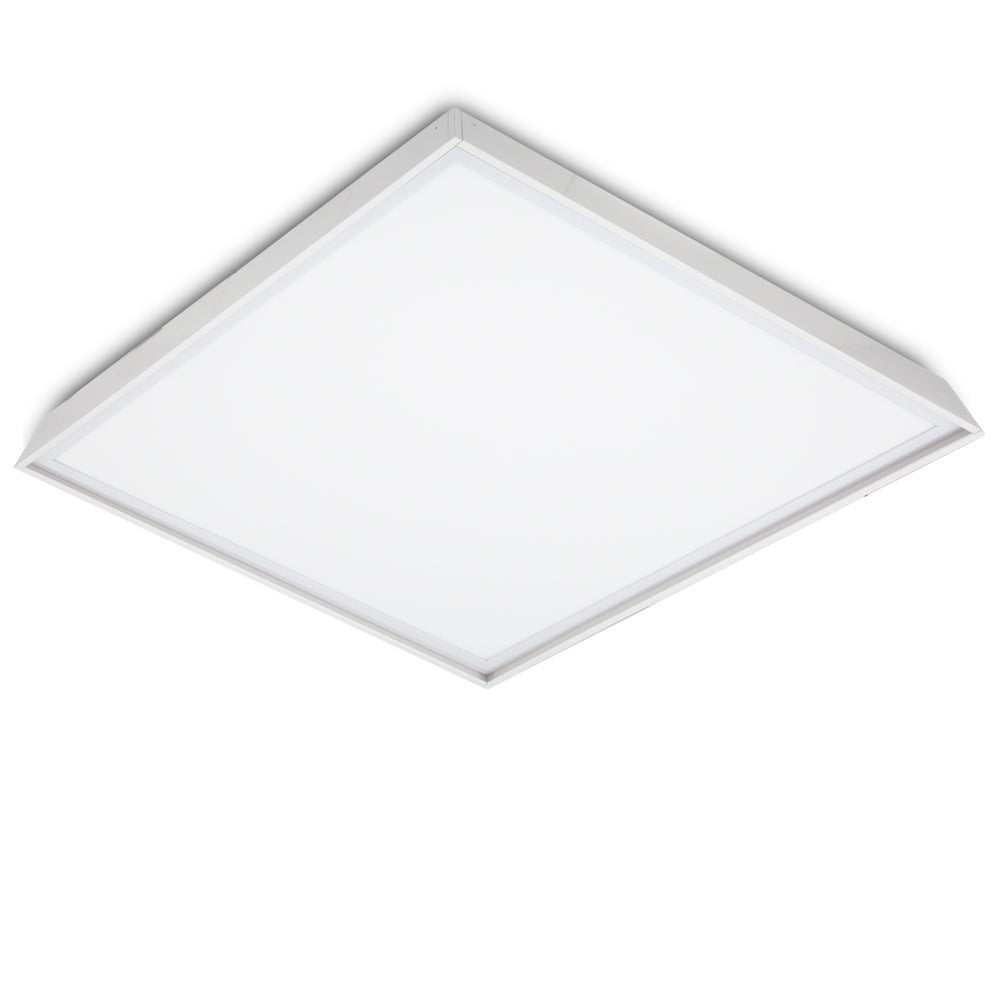

LED Panel 36W 3,623Lm 6000ºK 60x60cm + Surface Kit 40,000H [HO-KITPAN60X60-36W-CW]

LED Panel 36W 3,623Lm 6000ºK 60x60cm + Surface Kit 40,000H [HO-KITPAN60X60-36W-CW]

For additional amounts the delivery period is 8 days As of the order date
  • Brand:GreenIce / Samsung Led
  • SkuHO-KITPAN60X60-36W-CW
Energy efficiency
  • AA 2021
Warranty
  • Warranty 5 years

  • Eye Care Eye Care
  • 120 º Opening

Documents
Usual price £39.00
Usual price £60.00 Offer price £39.00 Discount -35%
Tax included. The Shipping expenses They are calculated on the payment screen.

There are few

Warranty
  • Warranty 5 years

  • Eye Care Eye Care
  • 120 º Opening

Documents
Are you a professional customer?

We have published a new website only for professionals.

Go to Professional Area
Advantages of buying in Greenice
  • Guaranteed minimum price
  • Free returns up to 60 days
  • Free shipping From € 21.95
  • Until 10 years guarantee
-35.0%(HO-KITPAN60X60-36W-CW_padreImg_ho_kitpan60x60_36w_cw_0.jpeg)
Cool White
There are few
Free shipping
Usual price £39.00
Usual price £60.00 Offer price £39.00 Discount -35%

Accessories

Technical file

Product code
HO-KITPAN60X60-36W-CW
Luminous efficacy (LM/W)
100
Light temperature
Cold White
Kelvin º
6000
Power (W)
36.0
Luminosity (LM)
3623
Measures (mm)
595x595x12
High
595.0
Long
595.0
Broad
12.0
Number and type of LEDs
Samsung Led
CRI
80
UGR
◄19
Power factor (PF)
0.99
Construction
Aluminum/PC
Opening Angle (º)
120
Facility
IP20
Strain
85-265VAC
Estimated life (H)
40000
Dimable
No
Equivalence (W)
190
Isolation class
II
Work frequency (Hz)
50/ 60
Start time (s)
0.2
Energy class
F
Certificates
CE/ROHS/ISO9001
Bush
Terminal
Temperature range (ºC)
-20 +40
Lighting cycles
100000
Diffuser
Microprismatic
Energy consumption (kWh/1000h)
36.0
Weight (gr)
2000
Flicker
0.95
Half -year useful life (at 3 h/day)
36.52
Half -Year Useful Life (5 h/day)
21.91
Half -year useful life (at 8 h/day)
13.69
Directional
Non-Directional
Single/range CCT
Only
Single CCT
6000
INDEX R9
22
Minimum cri range
92
Maximum cri range
11
Chromaticity x
0.306
Chromaticity y
0.327
Additional information

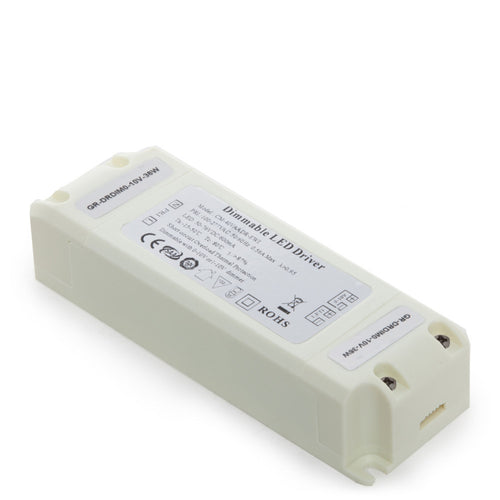

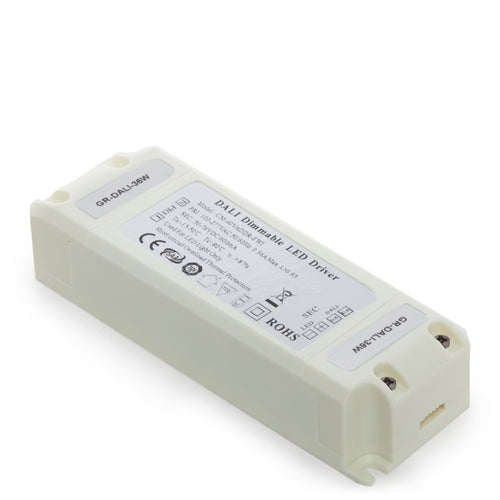

Possibility of dimming by purchasing an adjustable controller in the Accessories tab. Does not include suspension accessories
Applicable standards
EN 55015:2013;EN 61547:2009:EN 61000-3-2:2006;EN 61000-3-3:2013;EN 61000-4-2:2009;EN 61000-4-3:2006;EN 61000-4-4:2004;EN 61000-4-5:2006; EN 61000-4-6:2009; EN 61000-4-8:2010; EN 61000-4-11:2004;1194/2012/EU;874/2012/EU;EN 60598-1:2008;EN 60598-2-2:2012

Drop -down content

Characteristics

Product code
HO-KITPAN60X60-36W-CW
Luminous efficacy (LM/W)
100
Light temperature
Cold White
Kelvin º
6000
Power (W)
36.0
Luminosity (LM)
3623
Measures (mm)
595x595x12
High
595.0
Long
595.0
Broad
12.0
Number and type of LEDs
Samsung Led
CRI
80
UGR
◄19
Power factor (PF)
0.99
Construction
Aluminum/PC
Opening Angle (º)
120
Facility
IP20
Strain
85-265VAC
Estimated life (H)
40000
Dimable
No
Equivalence (W)
190
Isolation class
II
Work frequency (Hz)
50/ 60
Start time (s)
0.2
Energy class
F
Certificates
CE/ROHS/ISO9001
Bush
Terminal
Temperature range (ºC)
-20 +40
Lighting cycles
100000
Diffuser
Microprismatic
Energy consumption (kWh/1000h)
36.0
Weight (gr)
2000
Flicker
0.95
Half -year useful life (at 3 h/day)
36.52
Half -Year Useful Life (5 h/day)
21.91
Half -year useful life (at 8 h/day)
13.69
Directional
Non-Directional
Single/range CCT
Only
Single CCT
6000
INDEX R9
22
Minimum cri range
92
Maximum cri range
11
Chromaticity x
0.306
Chromaticity y
0.327
Additional information
Possibility of dimming by purchasing an adjustable controller in the Accessories tab. Does not include suspension accessories
Applicable standards
EN 55015:2013;EN 61547:2009:EN 61000-3-2:2006;EN 61000-3-3:2013;EN 61000-4-2:2009;EN 61000-4-3:2006;EN 61000-4-4:2004;EN 61000-4-5:2006; EN 61000-4-6:2009; EN 61000-4-8:2010; EN 61000-4-11:2004;1194/2012/EU;874/2012/EU;EN 60598-1:2008;EN 60598-2-2:2012

Description

Kit composed of a Slim LED Panel 59.5X59.5Cm 3623 lumens and an aluminum frame that allows surface installation.

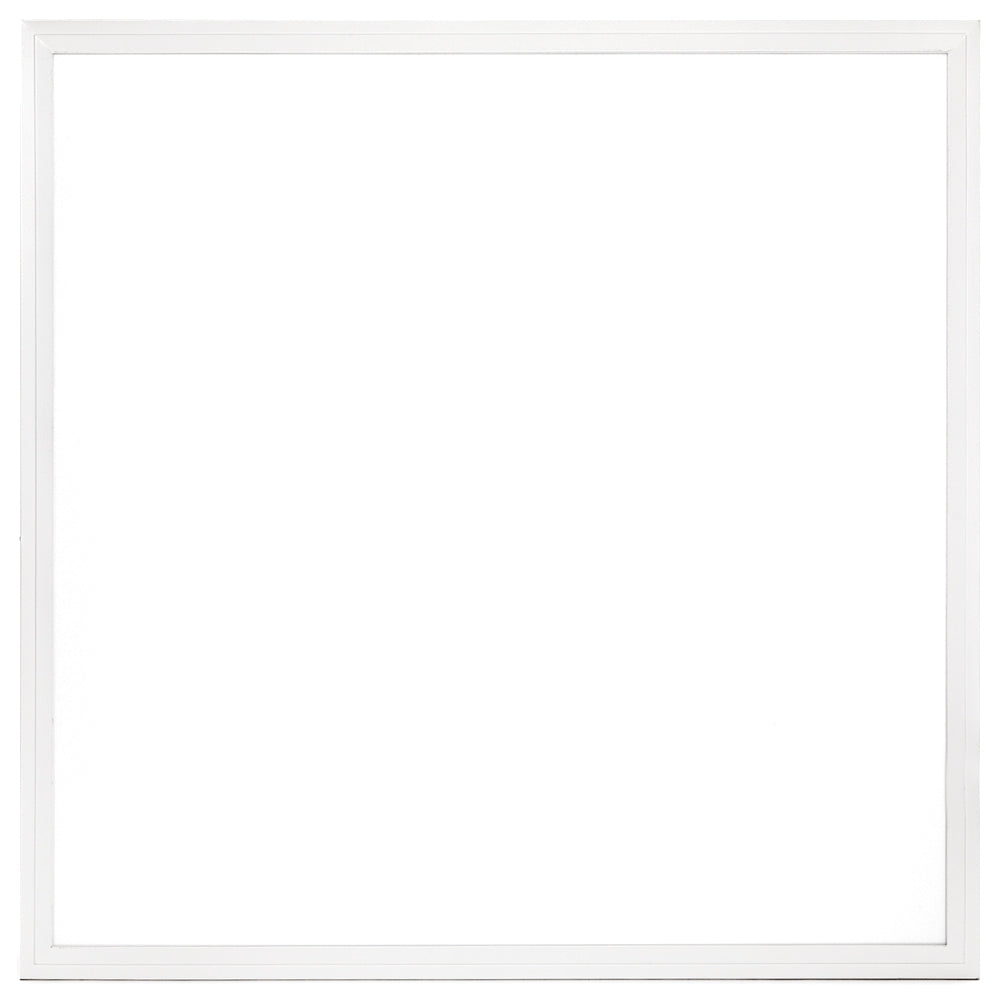

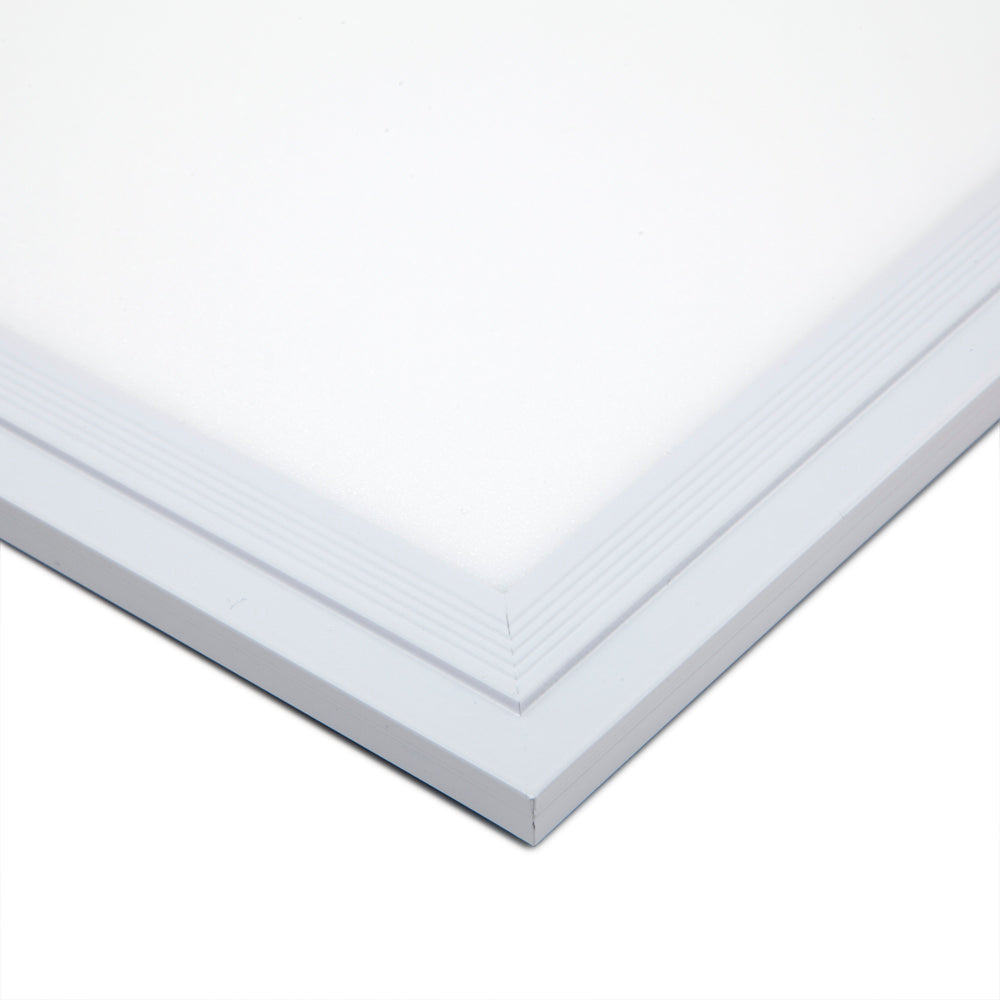

The 59.5X59.5Cm Slim LED Panel has an elegant finish, a white lacquered aluminum frame and an ultra-thin design of only 12mm.

You can be installed directly to outlets supplied by the electrical network (85-265VAC) with a service frequency of 50/60Hz. It has a high efficiency (100 Lm/W) consuming 36W through 320 SMD3014 type LEDs and managing to provide a luminous flux of 3623Lm uniformly distributed through an opalized plastic diffuser from which a color rendering index of 80 is obtained. Provides lighting equivalent to a 200W incandescent bulb, its consumption represents a value of 36kWh/1000h, reducing the amount of energy billed and the emissions of polluting gases into the atmosphere.

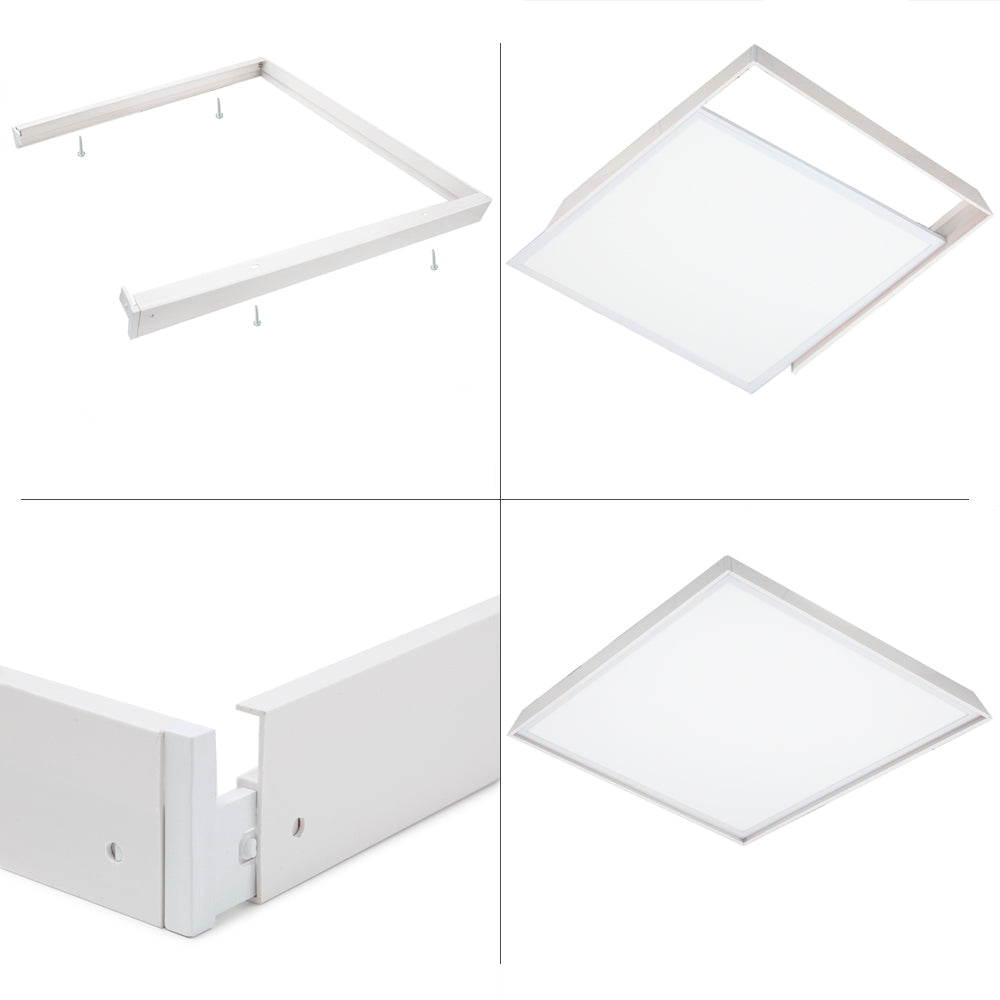

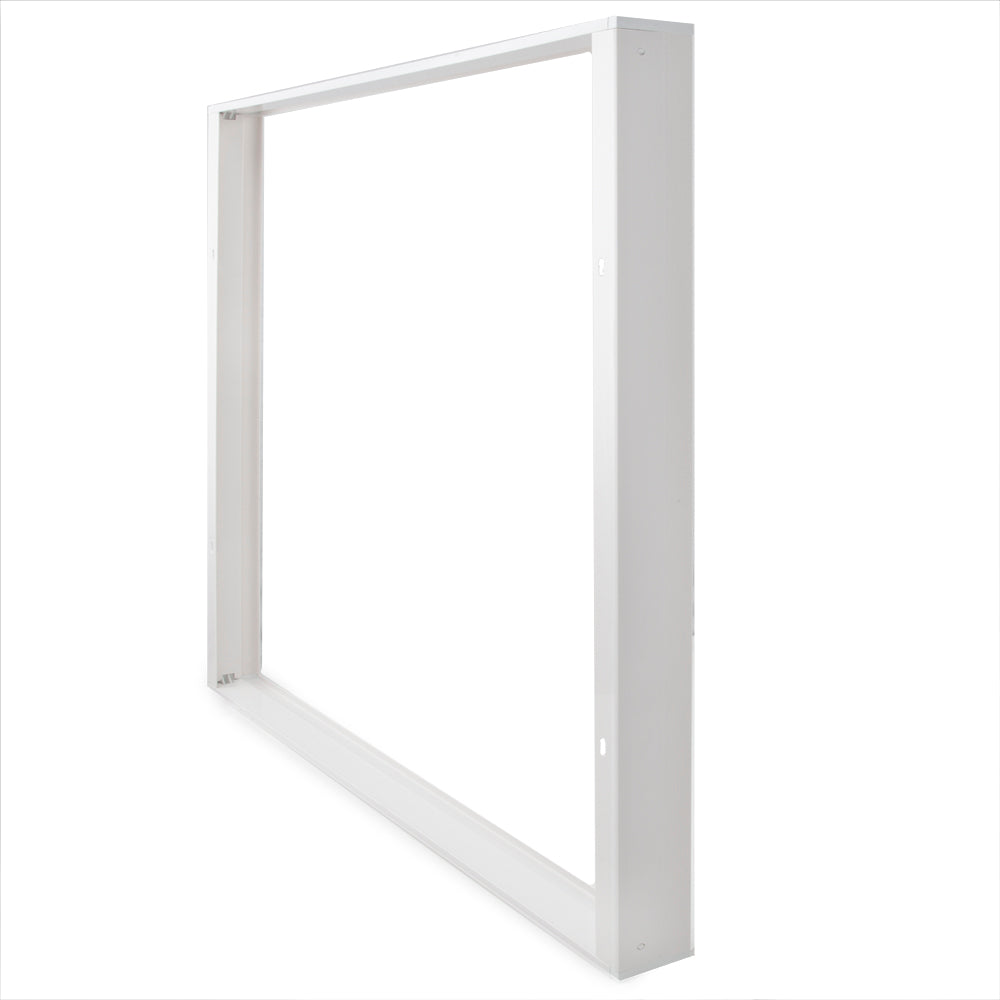

The Kit Surface for 60x60Cm panels is designed to be able to install 59.5X59.5Cm LED panels in spaces that do not have the removable ceiling in which this type of LED lighting is usually installed.

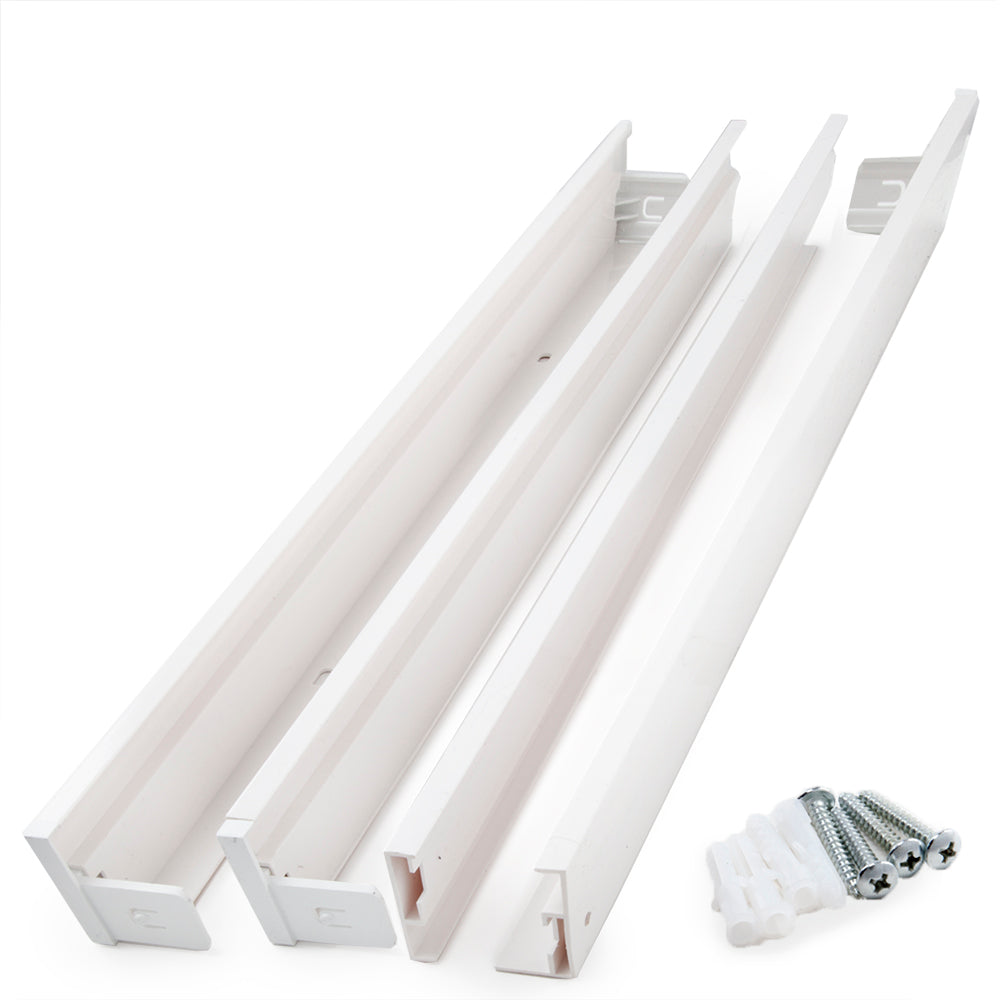

This surface kit is made up of 4 high-quality aluminum profiles that allow you to house the LED panel, the driver, and the wiring inside to fix it comfortably in any room of your choice, without having to who resigns r to modern lighting and low consumption.

It offers solutions for offices, factories, supermarkets, shops and for residential use, due to its design and elegant finish it represents an efficient alternative for the most demanding designers.
