LED Panel 48W 4,800Lm 6000ºK 60x60cm + Surface Kit 40,000H [HO-KITPAN60X60-48W-CW]

LED Panel 48W 4,800Lm 6000ºK 60x60cm + Surface Kit 40,000H [HO-KITPAN60X60-48W-CW]

For additional amounts the delivery period is 8 days As of the order date
  • Brand:GreenIce / Samsung Led
  • SkuHO-KITPAN60X60-48W-CW
  • AA 2021
Warranty
  • Warranty 5 years
  • Eye Care Eye Care
  • 120 º Opening
Documents
£45.00
£68.00 £45.00 -33%
Tax included. The Shipping expenses They are calculated on the payment screen.

There are few

Warranty
  • Warranty 5 years
  • Eye Care Eye Care
  • 120 º Opening
Documents
Are you a professional customer?

We have published a new website only for professionals.

Go to Professional Area
Advantages of buying in Greenice
  • Guaranteed minimum price
  • Free returns up to 60 days
  • Free shipping From € 21.95
  • Until 10 years guarantee
-33.82%(HO-KITPAN60X60-48W-CW_padreImg_ho_kitpan60x60_48w_cw_0.jpeg)
Cool White
There are few
Free shipping
£45.00
£68.00 £45.00 -33%

Accessories

  • (GR-DRDIM0-10V-48W_padreImg_gr_drdim0_10v_48w_0.jpeg) (GR-DRDIM0-10V-48W_padreImg_gr_drdim0_10v_48w_1.jpeg)

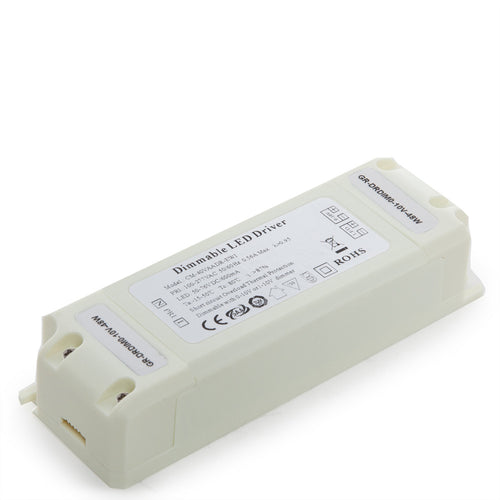

    Driver Adjustable 0-10V Ceiling Light / LED Panel 48W

    GreenIce

    Driver Adjustable 0-10V Ceiling Light / LED Panel 48W

    £15.00
    £15.00 £15.00 %
  • (GR-DALI-48W_padreImg_gr_dali_48w_0.jpeg) (GR-DALI-48W_padreImg_gr_dali_48w_1.jpeg)

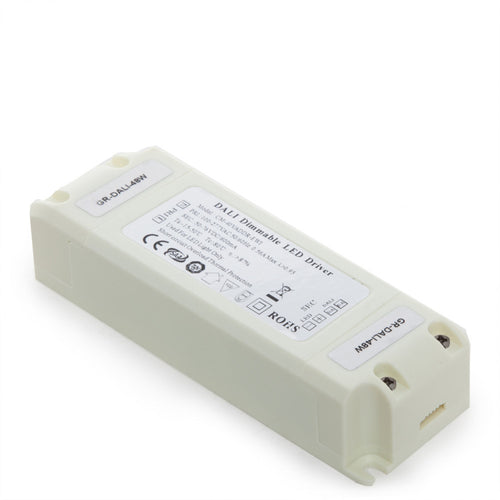

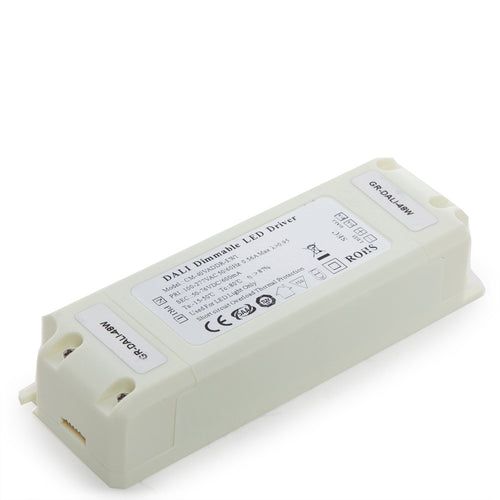

    Driver Adjustable DALI 48W

    Offer
    GreenIce

    Driver Adjustable DALI 48W

    £40.00
    £41.00 £40.00 -2%
    Offer

Technical file

Product code
HO-KITPAN60X60-48W-CW
Luminous efficacy (LM/W)
100
Light temperature
Cold White
Kelvin º
6000
Power (W)
48.0
Luminosity (LM)
4800
Measures (mm)
595x595x12
High
595.0
Long
595.0
Broad
12.0
Number and type of LEDs
Samsung Led
CRI
80
UGR
◄19
Power factor (PF)
0.99
Construction
Aluminum/PC
Opening Angle (º)
120
Facility
IP20
Strain
85-265VAC
Estimated life (H)
40000
Dimable
No
Equivalence (W)
260
Isolation class
II
Work frequency (Hz)
50/ 60
Start time (s)
0.1
Energy class
F
Certificates
CE/ROHS/ISO9001
Bush
Terminal
Temperature range (ºC)
-20 +40
Lighting cycles
100000
Diffuser
Microprismatic
Energy consumption (kWh/1000h)
48.0
Weight (gr)
2000
Flicker
0.93
Half -year useful life (at 3 h/day)
36.52
Half -Year Useful Life (5 h/day)
21.91
Half -year useful life (at 8 h/day)
13.69
Directional
Non-Directional
Single/range CCT
Only
Single CCT
6000
INDEX R9
14
Minimum cri range
95
Maximum cri range
11
Chromaticity x
0.305
Chromaticity y
0.324
Additional information
Possibility of dimming by purchasing an adjustable controller in the Accessories tab. Does not include suspension accessories
Applicable standards
EN 55015:2013;EN 61547:2009:EN 61000-3-2:2006;EN 61000-3-3:2013;EN 61000-4-2:2009;EN 61000-4-3:2006;EN 61000-4-4:2004;EN 61000-4-5:2006; EN 61000-4-6:2009; EN 61000-4-8:2010; EN 61000-4-11:2004;1194/2012/EU;874/2012/EU;EN 60598-1:2008;EN 60598-2-2:2012

Characteristics

Product code
HO-KITPAN60X60-48W-CW
Luminous efficacy (LM/W)
100
Light temperature
Cold White
Kelvin º
6000
Power (W)
48.0
Luminosity (LM)
4800
Measures (mm)
595x595x12
High
595.0
Long
595.0
Broad
12.0
Number and type of LEDs
Samsung Led
CRI
80
UGR
◄19
Power factor (PF)
0.99
Construction
Aluminum/PC
Opening Angle (º)
120
Facility
IP20
Strain
85-265VAC
Estimated life (H)
40000
Dimable
No
Equivalence (W)
260
Isolation class
II
Work frequency (Hz)
50/ 60
Start time (s)
0.1
Energy class
F
Certificates
CE/ROHS/ISO9001
Bush
Terminal
Temperature range (ºC)
-20 +40
Lighting cycles
100000
Diffuser
Microprismatic
Energy consumption (kWh/1000h)
48.0
Weight (gr)
2000
Flicker
0.93
Half -year useful life (at 3 h/day)
36.52
Half -Year Useful Life (5 h/day)
21.91
Half -year useful life (at 8 h/day)
13.69
Directional
Non-Directional
Single/range CCT
Only
Single CCT
6000
INDEX R9
14
Minimum cri range
95
Maximum cri range
11
Chromaticity x
0.305
Chromaticity y
0.324
Additional information
Possibility of dimming by purchasing an adjustable controller in the Accessories tab. Does not include suspension accessories
Applicable standards
EN 55015:2013;EN 61547:2009:EN 61000-3-2:2006;EN 61000-3-3:2013;EN 61000-4-2:2009;EN 61000-4-3:2006;EN 61000-4-4:2004;EN 61000-4-5:2006; EN 61000-4-6:2009; EN 61000-4-8:2010; EN 61000-4-11:2004;1194/2012/EU;874/2012/EU;EN 60598-1:2008;EN 60598-2-2:2012

Description

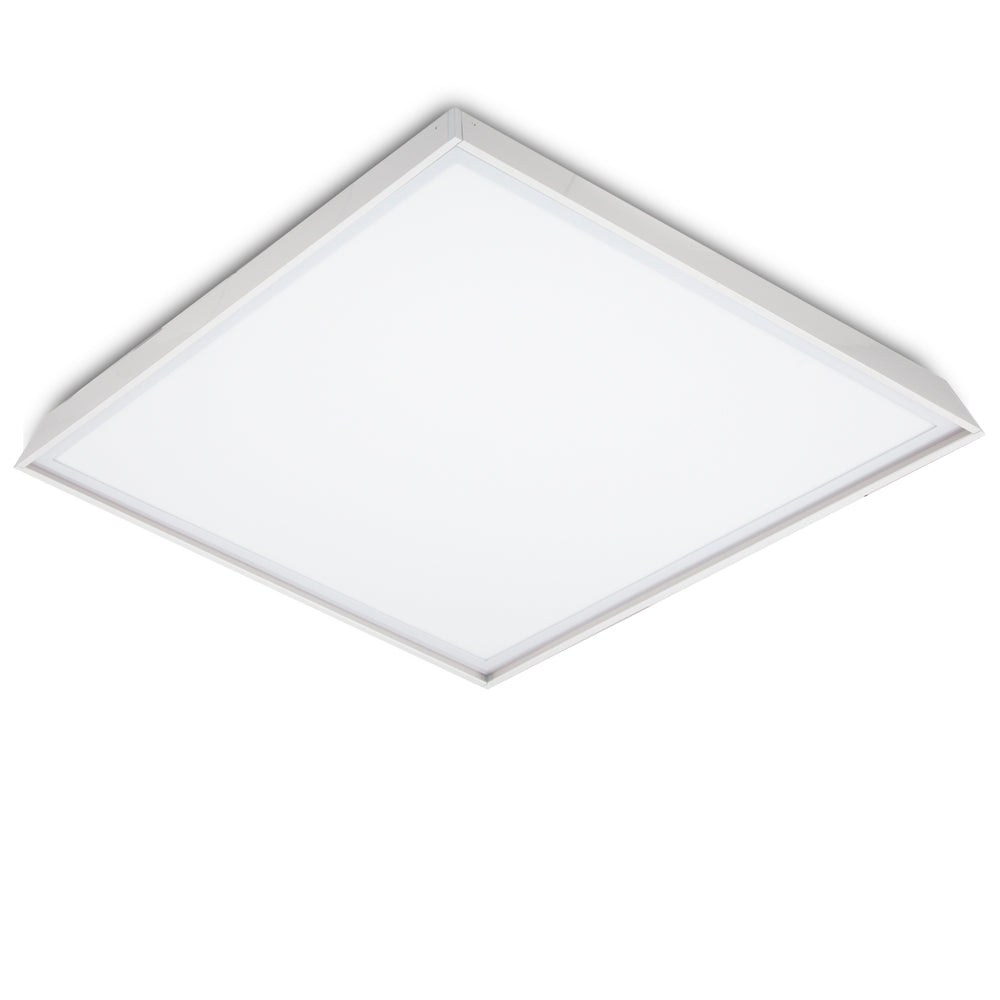

Kit composed of a Slim LED Panel 59.5X59.5Cm 4800 lumens and an aluminum frame that allows surface installation.

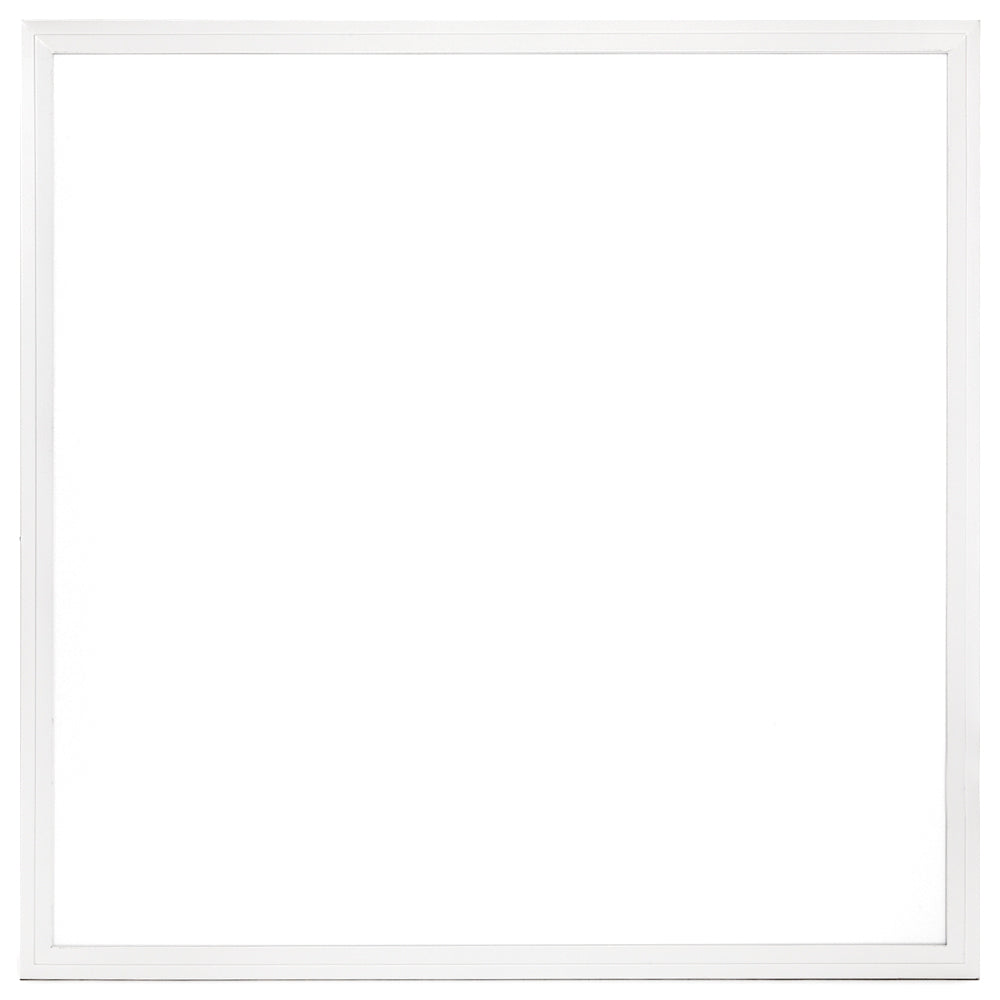

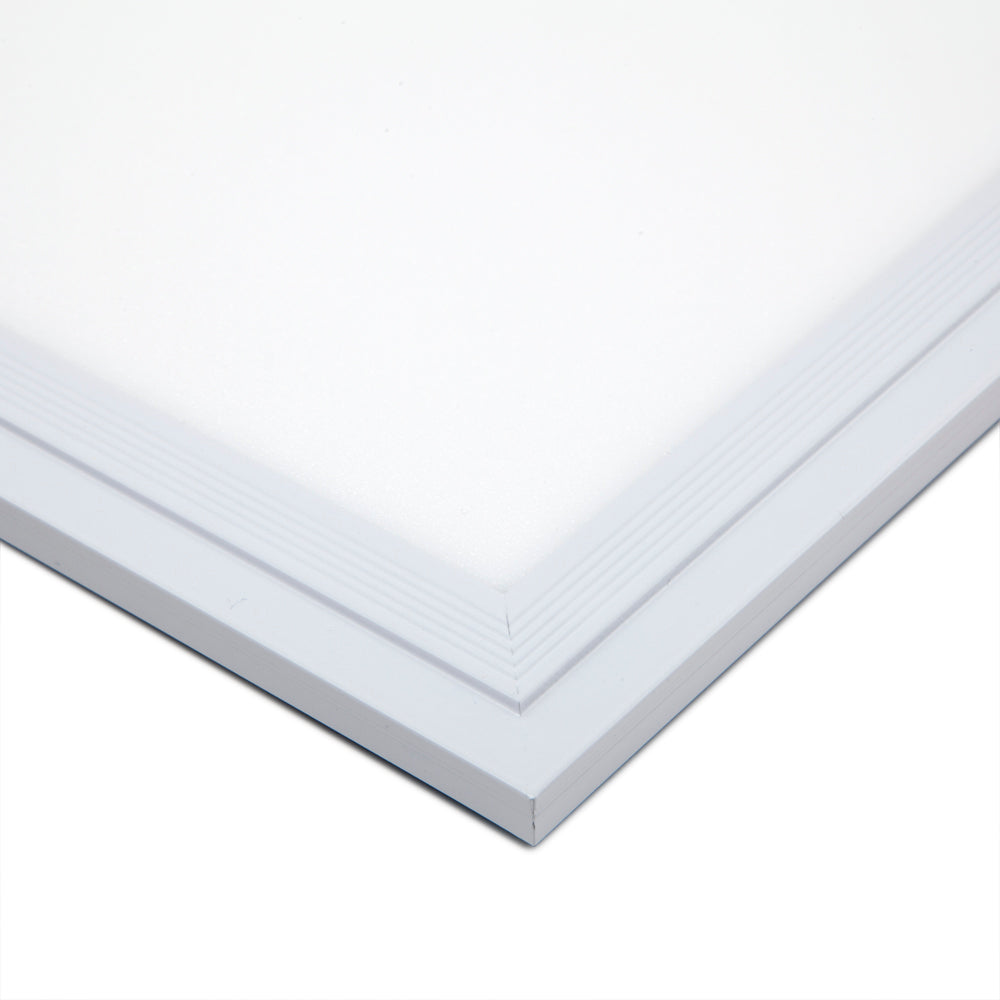

The 59.5X59.5Cm Slim LED Panel has an elegant finish, a white lacquered aluminum frame and an ultra-thin design of only 12mm.

You can be installed directly to outlets supplied by the electrical network (85-265VAC) with a service frequency of 50/60Hz. It has a high efficacy (100Lm/W) consuming 48W through 320 SMD3014 type LEDs and managing to provide a luminous flux of 4800Lm uniformly distributed through an opalized plastic diffuser from which a color rendering index of 80 is obtained. It provides lighting equivalent to a 300W incandescent bulb, its consumption represents a value of 48kWh/1000h, reducing the amount of energy billed and the emissions of polluting gases into the atmosphere.

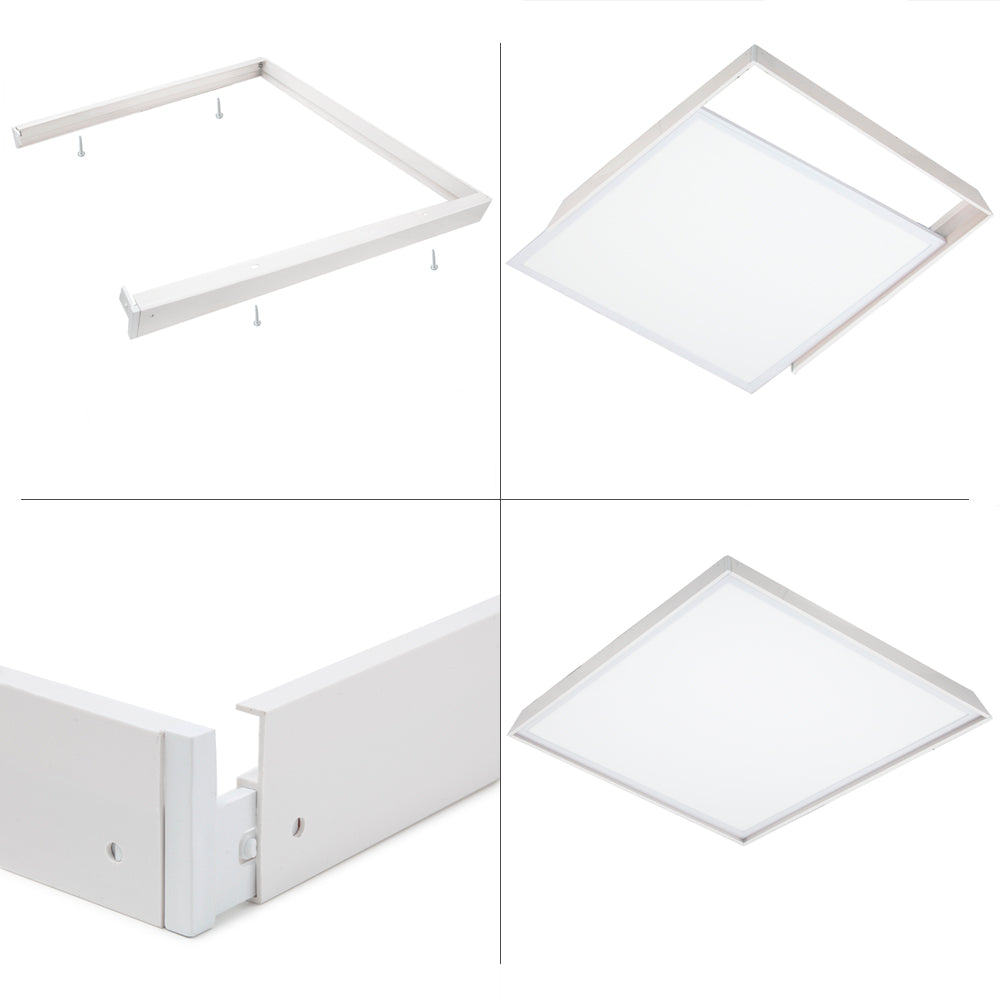

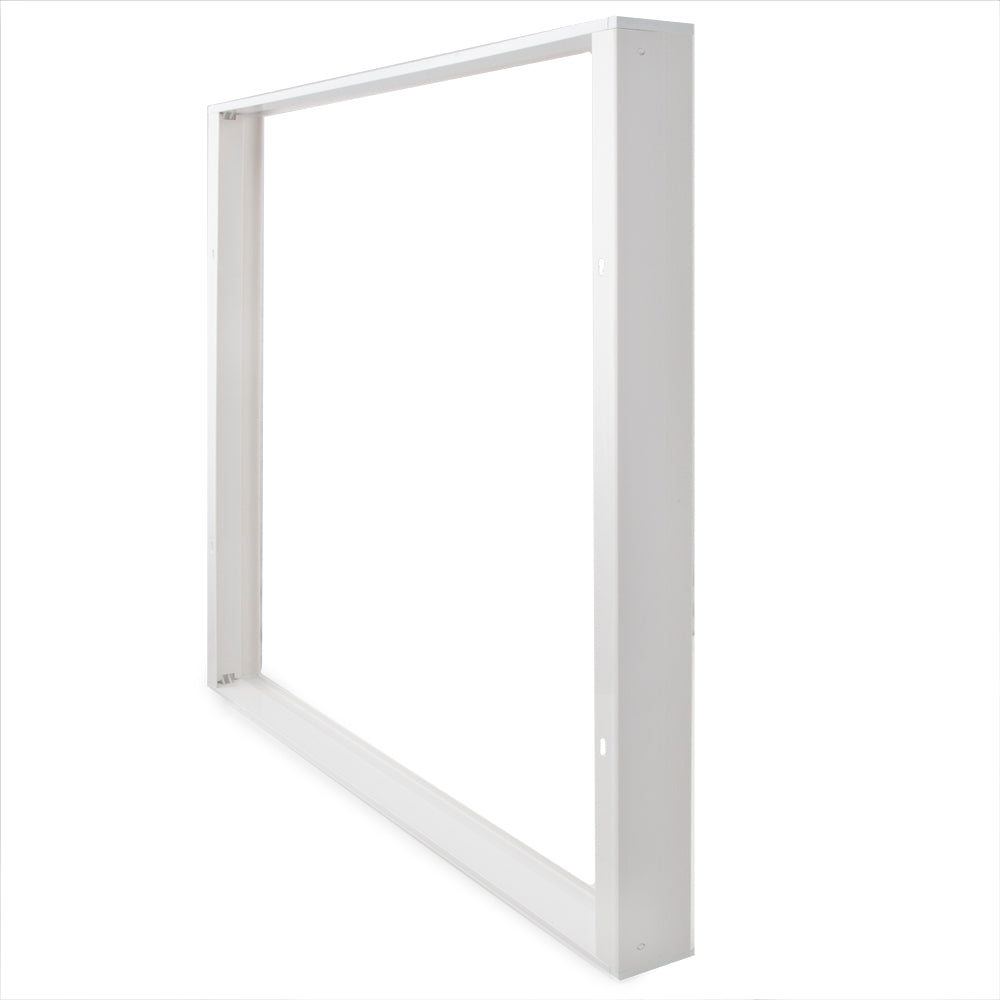

The Kit of Surface for 60x60Cm panels is designed to be able to install 59.5X59.5Cm LED panels in spaces that do not have the removable ceiling in which this type of LED lighting is usually installed.

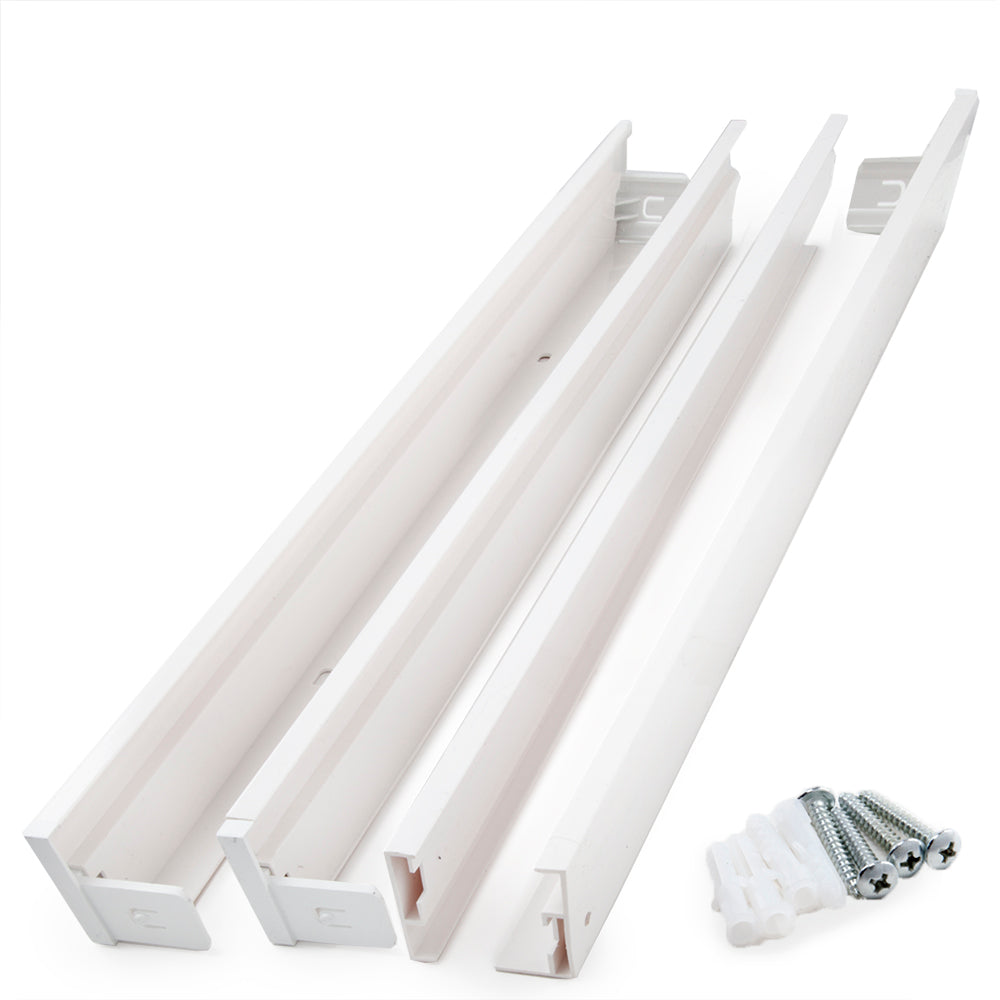

This surface kit is made up of 4 high-quality aluminum profiles that allow you to house the LED panel, the driver, and the wiring inside to comfortably fix it in any room of your choice, without having to give up to modern lighting and low consumption.

It offers solutions for offices, factories, supermarkets, shops and for residential use, due to its design and elegant finish it represents an efficient alternative for the most demanding designers.
