LED Plate 8W 569Lm 4200ºK Circular without Frame 40,000H [LUM-NSDL-R100-W]

LED Plate 8W 569Lm 4200ºK Circular without Frame 40,000H [LUM-NSDL-R100-W]

See questions and answers

For additional amounts the delivery period is 60 days As of the order date
  • Brand:Lumiastra / Lumiastra
  • SkuLUM-NSDL-R100
  • A 2021
Eprel file
Warranty
  • Warranty 3 years
  • Eye Care Eye Care
  • Tüv Süd TUV SUD
  • 120 º Opening
£10.00
£18.00 £10.00 -44%
Tax included. The Shipping expenses They are calculated on the payment screen.

There are few

Warranty
  • Warranty 3 years
  • Eye Care Eye Care
  • Tüv Süd TUV SUD
  • 120 º Opening
Are you a professional customer?

We have published a new website only for professionals.

Go to Professional Area
Advantages of buying in Greenice
  • Guaranteed minimum price
  • Free returns up to 60 days
  • Free shipping From € 21.95
  • Until 10 years guarantee
-44.44%(LUM-NSDL-R100_padreImg_lum_nsdl_r100_0.jpeg)
Daylight
There are few
Free shipping
£10.00
£18.00 £10.00 -44%

Accessories

  • (GH-90963602_padreImg_gh_90963602_0.jpeg) (GH-90963602_padreImg_gh_90963602_1.jpeg)

    Switch Double Panasonic Karre 10A 250V/Metal Frame With Claws/Key White

    Offer
    PANASONIC

    Switch Double Panasonic Karre 10A 250V/Metal Frame With Claws/Key White

    £4.00
    £7.00 £4.00 -42%
    Offer
  • (SB-BS041_padreImg_sb_bs041_0.jpeg) (SB-BS041_padreImg_sb_bs041_1.jpeg)

    Motion Sensor Recessed 360º ►1200/300W

    Offer
    GreenIce

    Motion Sensor Recessed 360º ►1200/300W

    £10.00
    £12.00 £10.00 -16%
    Offer
  • (SB-BS039_padreImg_sb_bs039_0.jpeg) (SB-BS039_padreImg_sb_bs039_1.jpeg)

    Motion Sensor Surface Mounted 180º IP44 ►1200/300W [SB-BS039]

    Offer
    GreenIce

    Motion Sensor Surface Mounted 180º IP44 ►1200/300W [SB-BS039]

    £8.00
    £15.00 £8.00 -46%
    Offer
  • (GH-90963601_padreImg_gh_90963601_0.jpeg) (GH-90963601_padreImg_gh_90963601_1.jpeg)

    Switch Panasonic Karre 10A 250V/Metal Frame With Claws/Key White

    PANASONIC

    Switch Panasonic Karre 10A 250V/Metal Frame With Claws/Key White

    £5.00
    £5.00 £5.00 %
  • (SB-BS031B_padreImg_sb_bs031b_0.jpeg) (SB-BS031B_padreImg_sb_bs031b_1.jpeg)

    Motion Sensor Recessed 160º ►600W/200W

    Offer
    GreenIce

    Motion Sensor Recessed 160º ►600W/200W

    £5.00
    £13.00 £5.00 -61%
    Offer
  • (GH-90963604_padreImg_gh_90963604_0.jpeg) (GH-90963604_padreImg_gh_90963604_1.jpeg)

    Commutator Panasonic Karre 10A 250V/Metal Frame With Claws/Key White

    PANASONIC

    Commutator Panasonic Karre 10A 250V/Metal Frame With Claws/Key White

    £6.00
    £6.00 £6.00 %

Technical file

Product code
LUM-NSDL-R100
Luminous efficacy (LM/W)
71
Light temperature
Natural White
Kelvin º
4200
Power (W)
8.0
Luminosity (LM)
569
Measures (mm)
100x8
Roof cut (mm)
Ø80
High
8.0
Diameter
100
Number and type of LEDs
SMD4014
CRI
80
Power factor (PF)
0.9
Construction
Aluminum/PC
Opening Angle (º)
120
Facility
IP65
Strain
85-265VAC
Estimated life (H)
40000
Dimable
No
Equivalence (W)
70
Isolation class
II
Work frequency (Hz)
50/ 60
Start time (s)
0.1
Energy class
G
Certificates
CE/ROHS/ISO9001
Bush
Terminal
Temperature range (ºC)
-20 +65
Lighting cycles
100000
Diffuser
Milky
Energy consumption (kWh/1000h)
8.0
Weight (gr)
180
Flicker
0.8
Half -year useful life (at 3 h/day)
36.52
Half -Year Useful Life (5 h/day)
21.91
Half -year useful life (at 8 h/day)
13.69
Directional
Non-Directional
Single/range CCT
Only
Single CCT
4200
INDEX R9
2
Minimum cri range
98
Maximum cri range
4
Chromaticity x
0.392
Chromaticity y
0.39
Applicable standards
EN 55015:2009;EN 61547:2009:EN 61000-3-2:2006;EN 61000-3-3:2008;EN 60598-2-2:2012;EN 60598-1:2009;EN 1122B:2001

Characteristics

Product code
LUM-NSDL-R100
Luminous efficacy (LM/W)
71
Light temperature
Natural White
Kelvin º
4200
Power (W)
8.0
Luminosity (LM)
569
Measures (mm)
100x8
Roof cut (mm)
Ø80
High
8.0
Diameter
100
Number and type of LEDs
SMD4014
CRI
80
Power factor (PF)
0.9
Construction
Aluminum/PC
Opening Angle (º)
120
Facility
IP65
Strain
85-265VAC
Estimated life (H)
40000
Dimable
No
Equivalence (W)
70
Isolation class
II
Work frequency (Hz)
50/ 60
Start time (s)
0.1
Energy class
G
Certificates
CE/ROHS/ISO9001
Bush
Terminal
Temperature range (ºC)
-20 +65
Lighting cycles
100000
Diffuser
Milky
Energy consumption (kWh/1000h)
8.0
Weight (gr)
180
Flicker
0.8
Half -year useful life (at 3 h/day)
36.52
Half -Year Useful Life (5 h/day)
21.91
Half -year useful life (at 8 h/day)
13.69
Directional
Non-Directional
Single/range CCT
Only
Single CCT
4200
INDEX R9
2
Minimum cri range
98
Maximum cri range
4
Chromaticity x
0.392
Chromaticity y
0.39
Applicable standards
EN 55015:2009;EN 61547:2009:EN 61000-3-2:2006;EN 61000-3-3:2008;EN 60598-2-2:2012;EN 60598-1:2009;EN 1122B:2001

Description

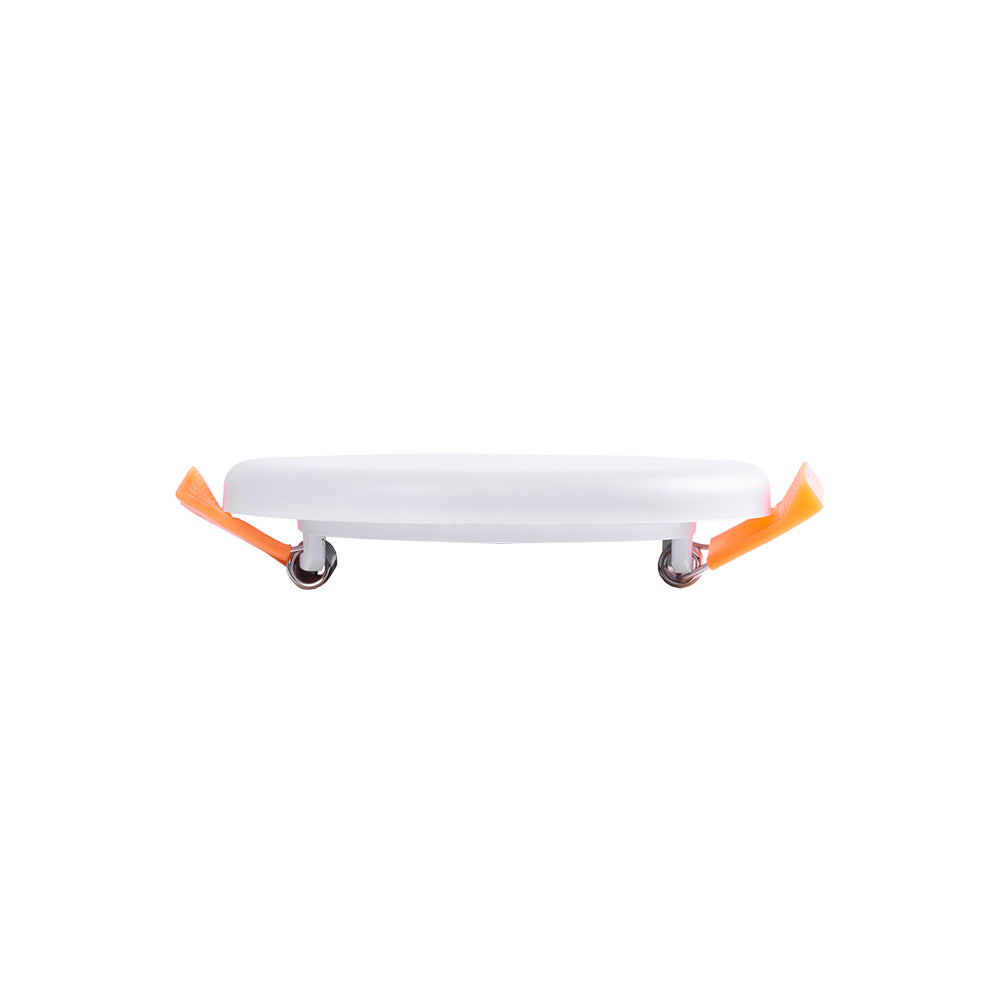

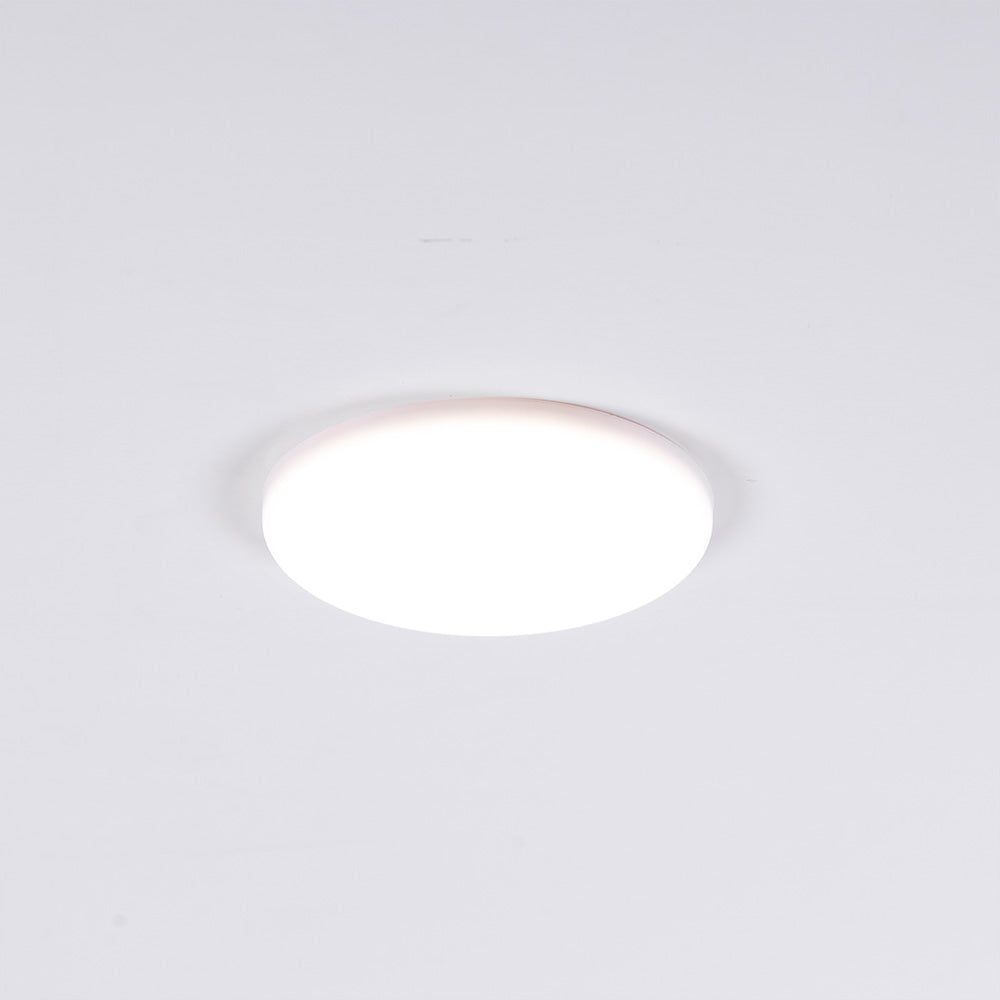

The Frameless LED Recessed Downlight with ultra-thin dimensions , offers solutions for offices, factories, supermarkets, shops and for residential use. It can be installed directly to outlets supplied by the electrical network (85-265VAC) with a service frequency of 50/60Hz.

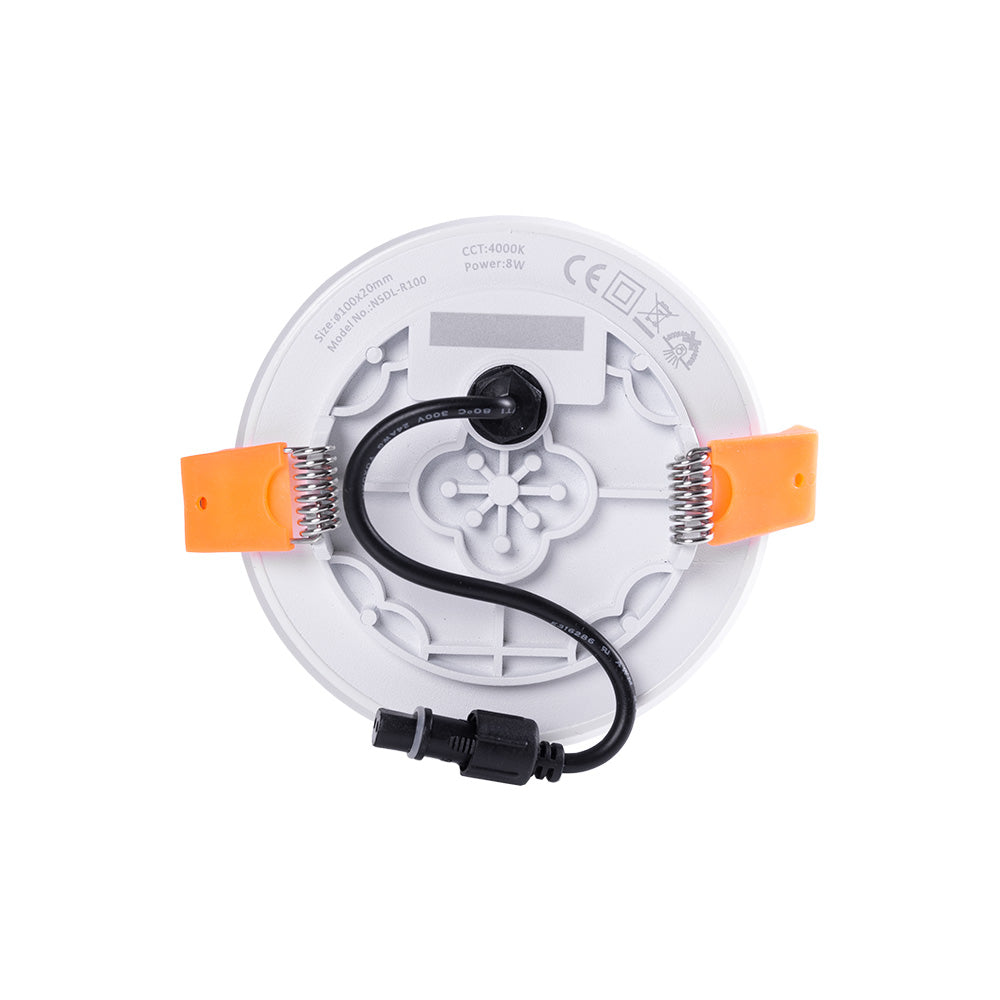

It has a high efficiency (72 Lm/W) .This downlight is powered by a non-dimmable driver included in the package that must be connected directly to the network, with an output connector compatible with the connection of the plate (27-36VDC, 300mA), additionally included the necessary accessories for the installation of the plate.

White finish made of aluminum. The downlight has an IP65 degree of protection (valid for outdoors), in addition to being robust enough for the required mechanical demands.

This downlight is available in natural white 4000ºk . The indicated color temperature may suffer fluctuations corresponding to a tolerance of 7%.

LED downlights are ideal for general lighting in spaces that require high performance and long periods of continuous lighting. And that is why they include a high-quality aluminum heat sink, which contributes to minimal heat emission from the LED luminaire. In addition, they are very easy to install and being so thin they can be placed in false ceilings with little height where more voluminous solutions could not be used.
