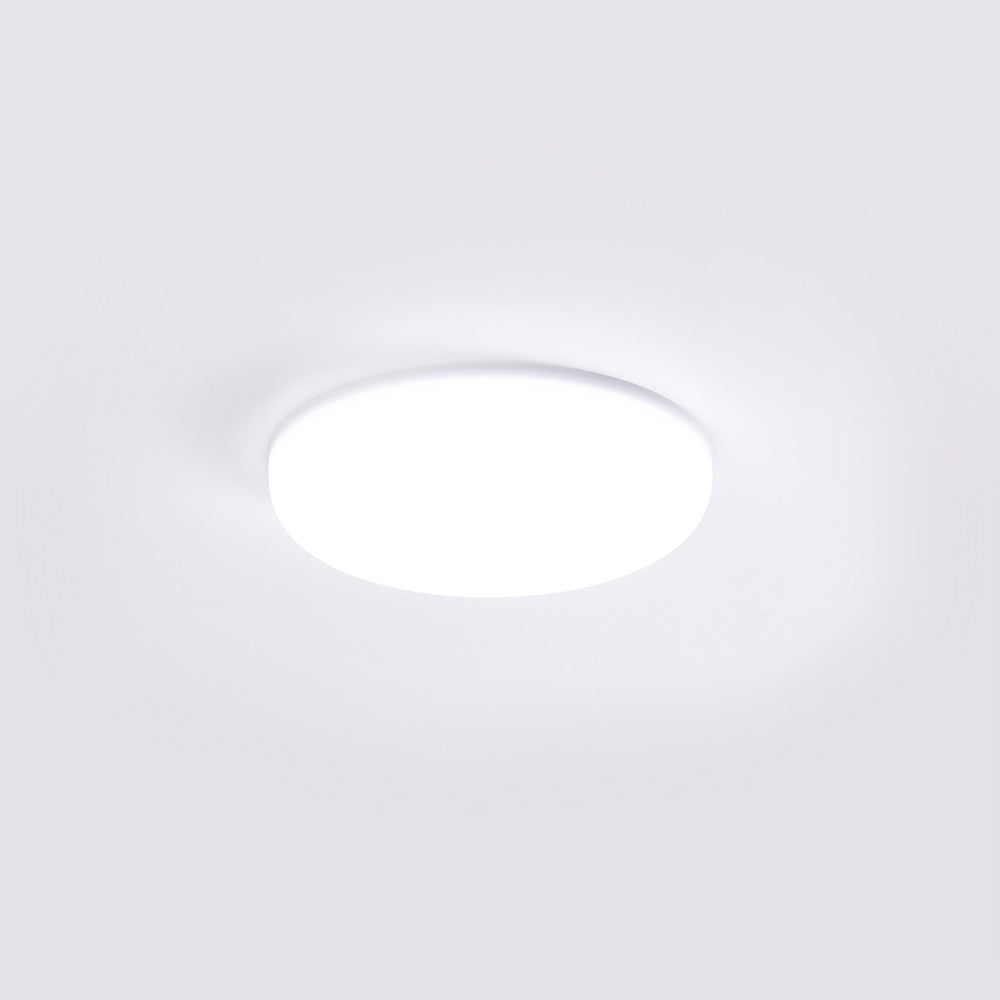

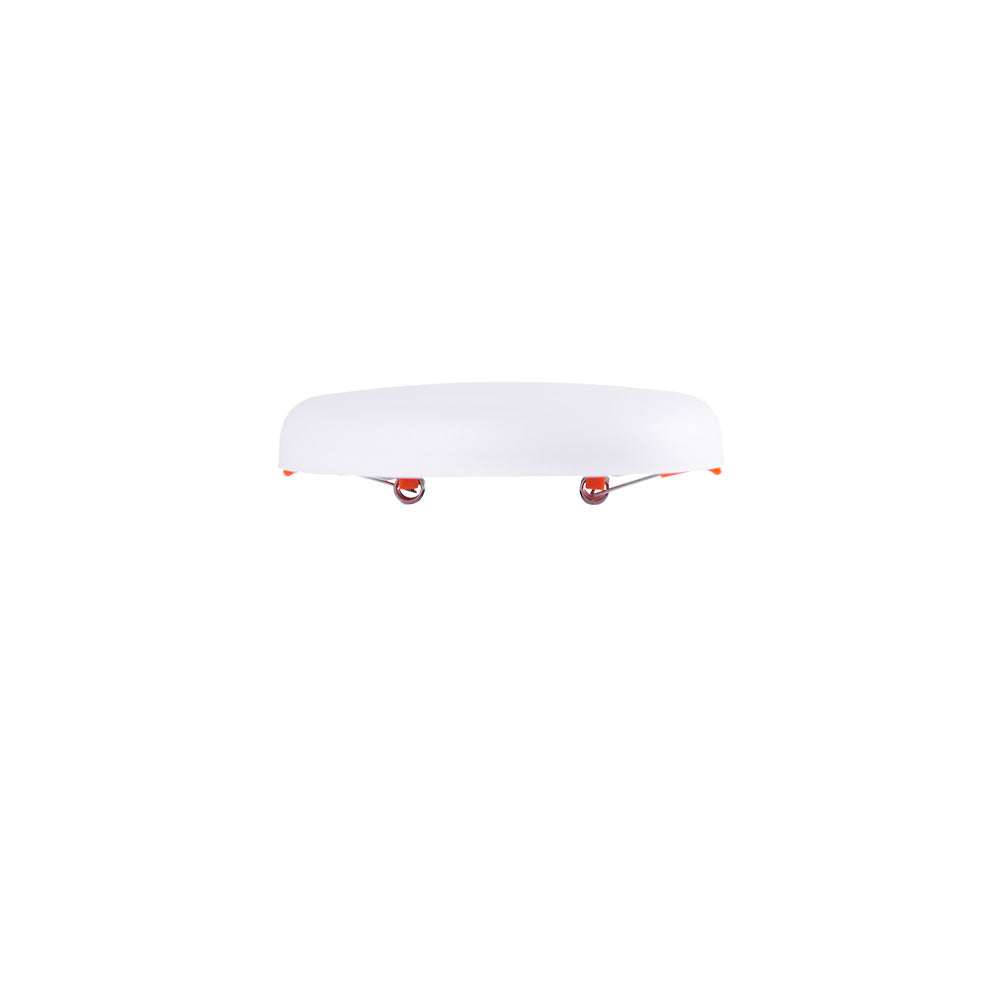

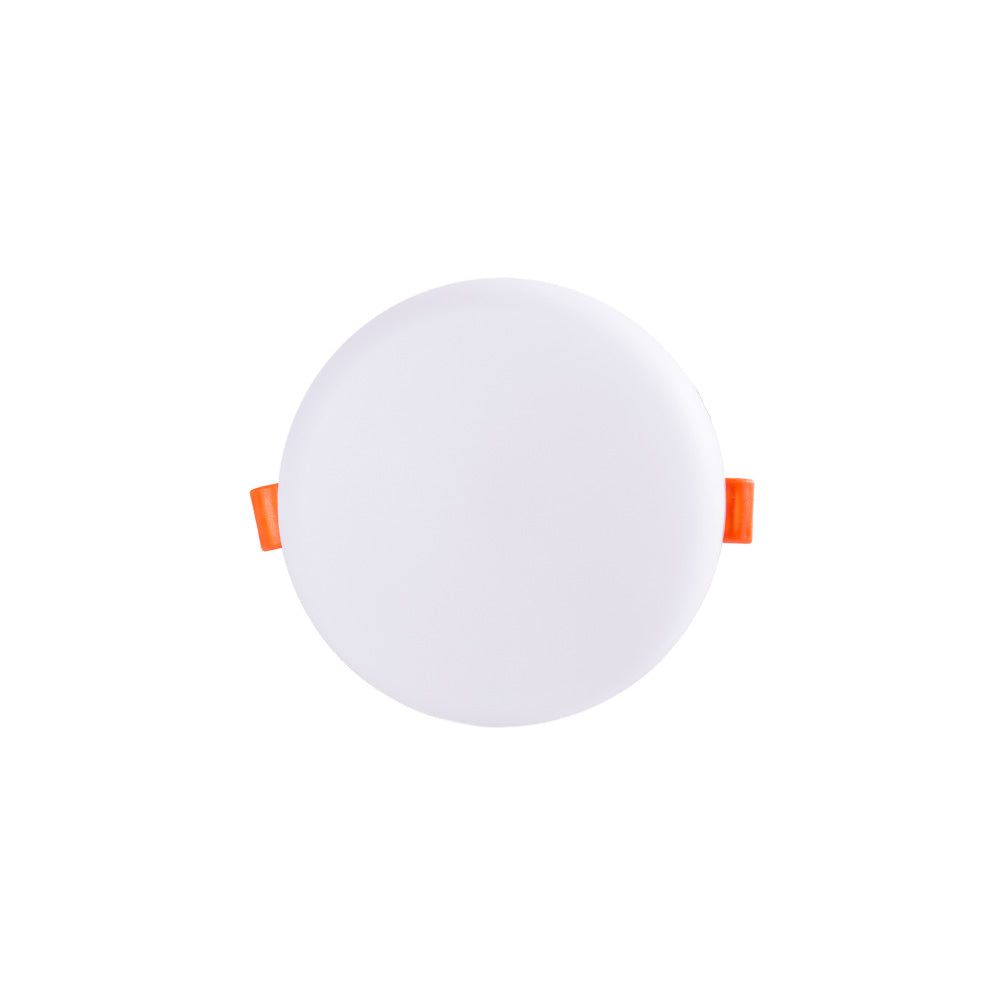

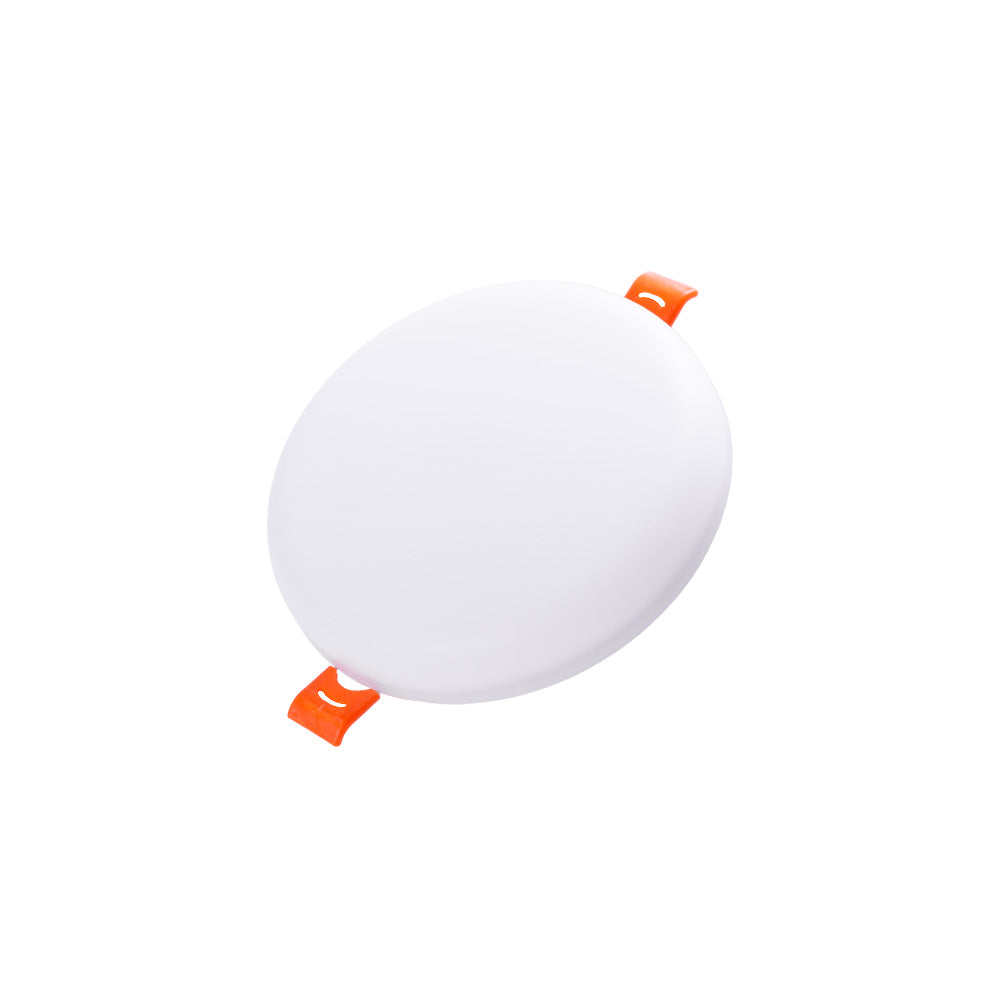

LED Recessed Downlight 18W 1,800Lm 6000ºK Circular Variable Cut 40,000H [HO-FWWB-R-18W-CW]

LED Recessed Downlight 18W 1,800Lm 6000ºK Circular Variable Cut 40,000H [HO-FWWB-R-18W-CW]

See questions and answers

For additional amounts the delivery period is 60 days As of the order date
  • Brand:GreenIce / Osram Led
  • SkuHO-FWWB-R-18W-CW
Energy efficiency
  • AA 2021
Eprel file
Warranty
  • Warranty 3 years

  • Eye Care Eye Care
  • 120 º Opening

Usual price £6.00
Usual price £8.00 Offer price £6.00 Discount -25%
Tax included. The Shipping expenses They are calculated on the payment screen.

Stock available

Warranty
  • Warranty 3 years

  • Eye Care Eye Care
  • 120 º Opening

Are you a professional customer?

We have published a new website only for professionals.

Go to Professional Area
Advantages of buying in Greenice
  • Guaranteed minimum price
  • Free returns up to 60 days
  • Free shipping From € 21.95
  • Until 10 years guarantee
-25.0%(HO-FWWB-R-18W-CW_padreImg_ho_fwwb_r_18w_cw_0.jpeg)
Cool White
Stock available
Free shipping
Usual price £6.00
Usual price £8.00 Offer price £6.00 Discount -25%

Accessories

Technical file

Product code
HO-FWWB-R-18W-CW
Light temperature
Cold White
Kelvin º
6000
Power (W)
18.0
Luminosity (LM)
1800
Luminous efficacy (LM/W)
100
LED efficacy
110
Type of LEDs
Osram Led
Measures (mm)
Ø120x25
Roof cut (mm)
Ø40-100
CRI
80
Diffuser
Opal
Power factor (PF)
0.9
Construction
Aluminum/ PC
Opening Angle (º)
120
Facility
IP20
Strain
85-265VAC
Driver output
DC24V-80V 280MA
Estimated life (H)
40000
Dimable
No
Equivalence (W)
120
Isolation class
II
Work frequency (Hz)
50/ 60
Start time (s)
0.1
Energy class
F
Certificates
CE/ROHS/ISO9001
Bush
Terminal Block
Temperature range (ºC)
-20 +40
Lighting cycles
100000
Energy consumption (kWh/1000h)
18.0
Weight (gr)
190
Flicker
0.98
Half -year useful life (at 3 h/day)
36.52
Half -Year Useful Life (5 h/day)
21.91
Half -year useful life (at 8 h/day)
13.69
Directional
Non-Directional
Single/range CCT
Only
Single CCT
6000
INDEX R9
26
Minimum cri range
97
Maximum cri range
7
Chromaticity x
0.304
Chromaticity y
0.312
Applicable standards
EN 55015:2009;EN 61547:2009:EN 61000-3-2:2006;EN 61000-3-3:2008;EN 60598-2-2:2012;EN 60598-1:2009;EN 1122B:2001

Drop -down content

Characteristics

Product code
HO-FWWB-R-18W-CW
Light temperature
Cold White
Kelvin º
6000
Power (W)
18.0
Luminosity (LM)
1800
Luminous efficacy (LM/W)
100
LED efficacy
110
Type of LEDs
Osram Led
Measures (mm)
Ø120x25
Roof cut (mm)
Ø40-100
CRI
80
Diffuser
Opal
Power factor (PF)
0.9
Construction
Aluminum/ PC
Opening Angle (º)
120
Facility
IP20
Strain
85-265VAC
Driver output
DC24V-80V 280MA
Estimated life (H)
40000
Dimable
No
Equivalence (W)
120
Isolation class
II
Work frequency (Hz)
50/ 60
Start time (s)
0.1
Energy class
F
Certificates
CE/ROHS/ISO9001
Bush
Terminal Block
Temperature range (ºC)
-20 +40
Lighting cycles
100000
Energy consumption (kWh/1000h)
18.0
Weight (gr)
190
Flicker
0.98
Half -year useful life (at 3 h/day)
36.52
Half -Year Useful Life (5 h/day)
21.91
Half -year useful life (at 8 h/day)
13.69
Directional
Non-Directional
Single/range CCT
Only
Single CCT
6000
INDEX R9
26
Minimum cri range
97
Maximum cri range
7
Chromaticity x
0.304
Chromaticity y
0.312
Applicable standards
EN 55015:2009;EN 61547:2009:EN 61000-3-2:2006;EN 61000-3-3:2008;EN 60598-2-2:2012;EN 60598-1:2009;EN 1122B:2001

Description

The Variable Cut LED Recessed Downlight with ultra-thin dimensions , offers solutions for offices, factories, supermarkets, shops and for residential use. It can be installed directly to outlets supplied by the electrical network (85-265VAC) with a service frequency of 50/60Hz.

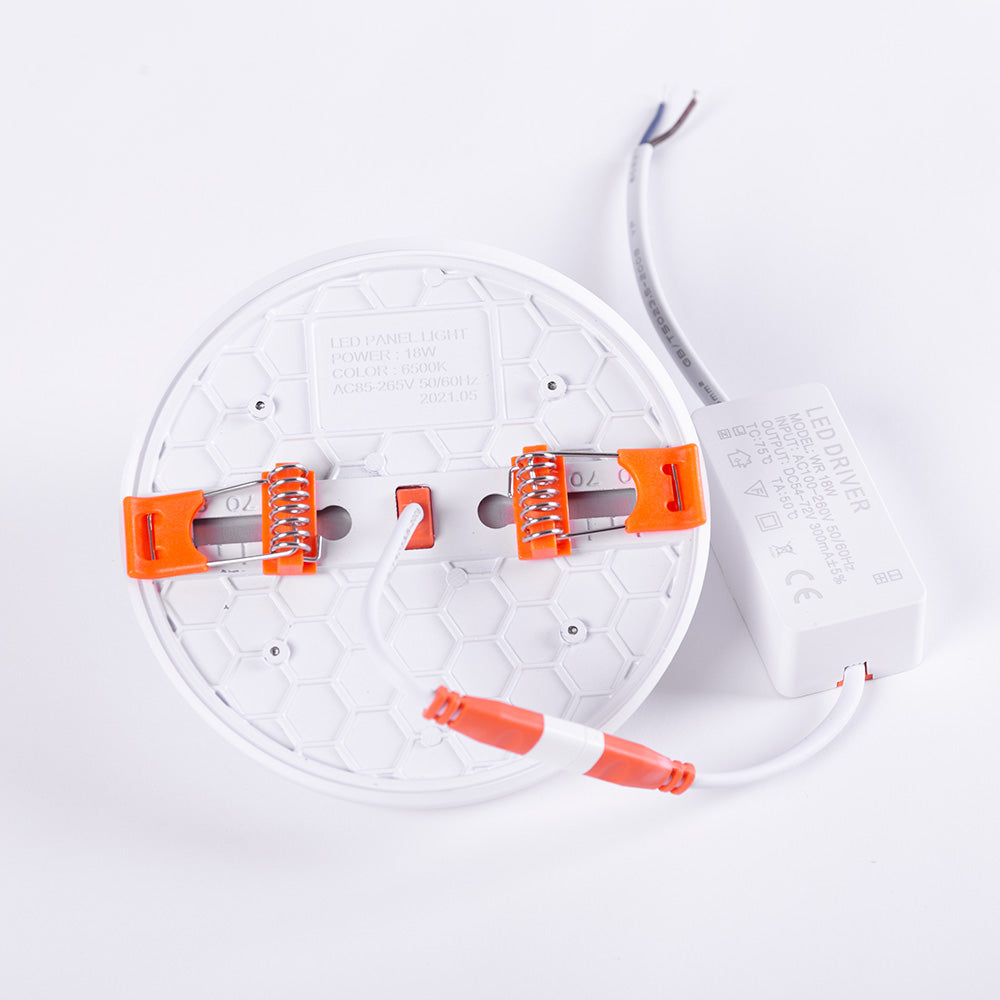

It has a high efficiency (100 Lm/W) .This downlight is powered by a non-dimmable driver included in the package that must be connected directly to the network, with an output connector compatible with the connection of the plate (27-36VDC, 300mA), additionally included the necessary accessories for the installation of the plate.

White finish made of aluminum. The downlight has a IP20 degree of protection (valid for dust and humidity indoors), as well as being robust enough for the required mechanical demands.

This downlight is available in cold white 6000ºK, natural white 4000ºK and warm white 3000ºk. The indicated color temperature may suffer fluctuations corresponding to a tolerance of 7%.

LED downlights are ideal for general lighting in spaces that require high performance and long periods of continuous lighting. And that is why they include a high-quality aluminum heat sink, which contributes to minimal heat emission from the LED luminaire. In addition, they are very easy to install and being so thin they can be placed in false ceilings with little height where more voluminous solutions could not be used.
