Superslim LED Panel 42W 2,650Lm 6000ºK 120x30Cm 40,000H [HO-PAN120030042W-CW]

Superslim LED Panel 42W 2,650Lm 6000ºK 120x30Cm 40,000H [HO-PAN120030042W-CW]

For additional amounts the delivery period is 60 days As of the order date
  • Brand:GreenIce / Epistar Led
  • SkuHO-PAN120030042W-CW
Eprel file
Warranty
  • Warranty 3 years
  • Eye Care Eye Care
  • Tüv Süd TUV SUD
  • 120 º Opening
£28.00
£46.00 £28.00 -39%
Tax included. The Shipping expenses They are calculated on the payment screen.

Available

Warranty
  • Warranty 3 years
  • Eye Care Eye Care
  • Tüv Süd TUV SUD
  • 120 º Opening
Are you a professional customer?

We have published a new website only for professionals.

Go to Professional Area
Advantages of buying in Greenice
  • Guaranteed minimum price
  • Free returns up to 60 days
  • Free shipping From € 21.95
  • Until 10 years guarantee
-39.13%(HO-PAN120030042W-CW_padreImg_ho_pan120030042w_cw_0.jpeg)
Cool White
Available
Free shipping
£28.00
£46.00 £28.00 -39%

Accessories

  • (DR-P-ND-42W_padreImg_dr_p_nd_42w_0.jpeg) (DR-P-ND-42W_padreImg_dr_p_nd_42w_1.jpeg)

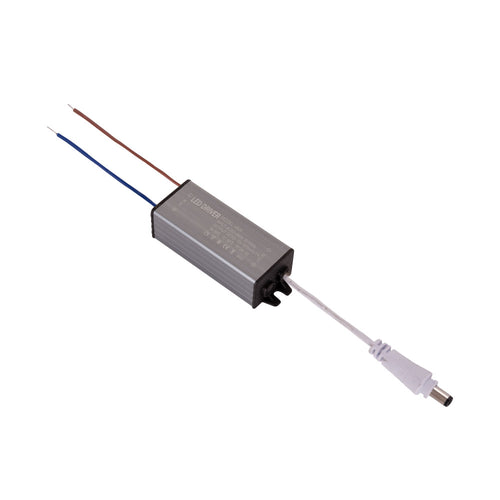

    Driver Non Dimmable LED Panel 42W

    Offer
    GreenIce

    Driver Non Dimmable LED Panel 42W

    £14.00
    £30.00 £14.00 -53%
    Offer
  • (CPS-LF-AAD040_padreImg_cps_lf_aad040_0.jpeg)

    Driver Lifud Adjustable DALI 40W In: 220-240V Out: 9-42VDC Flicker Free DIP Switch

    Offer
    Lifud Driver

    Driver Lifud Adjustable DALI 40W In: 220-240V Out: 9-42VDC Flicker Free DIP Switch

    £19.00
    £25.00 £19.00 -24%
    Offer
  • (CPS-LF-GSD040YA-40_padreImg_cps_lf_gsd040ya_40_0.jpeg) (CPS-LF-GSD040YA-40_padreImg_cps_lf_gsd040ya_40_1.jpeg)

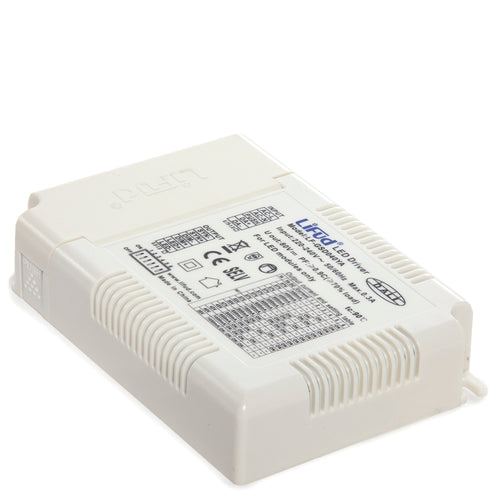

    Driver LIFUD 40W AC220-240V 5 en 1 DIM (Dali/Push/0-10V/PWM/RX) Flicker Free + DIP

    Offer
    Lifud Driver

    Driver LIFUD 40W AC220-240V 5 en 1 DIM (Dali/Push/0-10V/PWM/RX) Flicker Free + DIP

    £30.00
    £46.00 £30.00 -34%
    Offer
  • (SB-BS041_padreImg_sb_bs041_0.jpeg) (SB-BS041_padreImg_sb_bs041_1.jpeg)

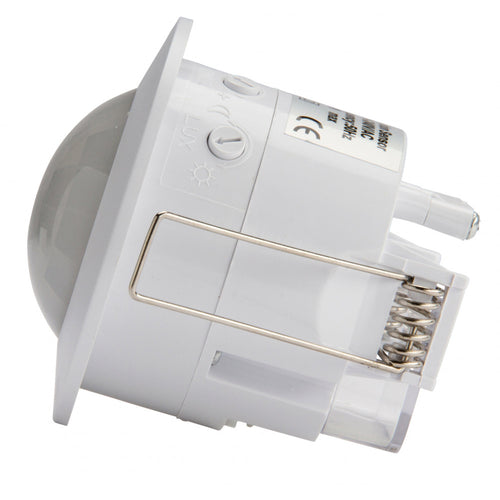

    Motion Sensor Recessed 360º ►1200/300W

    Offer
    GreenIce

    Motion Sensor Recessed 360º ►1200/300W

    £11.00
    £13.00 £11.00 -15%
    Offer
  • (HO-CLIP-PAN-4_padreImg_ho_clip_pan_4_0.jpeg) (HO-CLIP-PAN-4_padreImg_ho_clip_pan_4_1.jpeg)

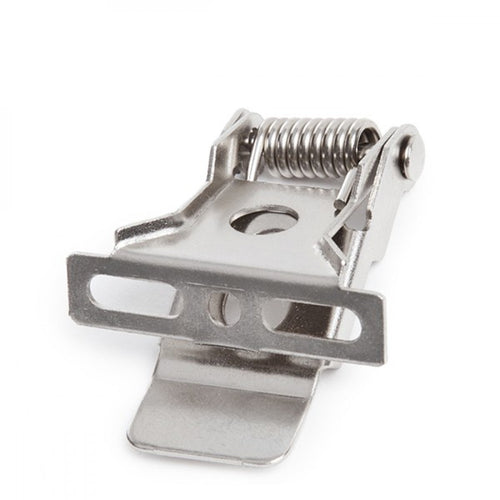

    Set of 4 Clips for LED Panel Mounting

    GreenIce

    Set of 4 Clips for LED Panel Mounting

    £2.00
    £2.00 £2.00 %
  • (HO-HP-ND-42W_padreImg_ho_hp_nd_42w_0.jpeg) (HO-HP-ND-42W_padreImg_ho_hp_nd_42w_1.jpeg)

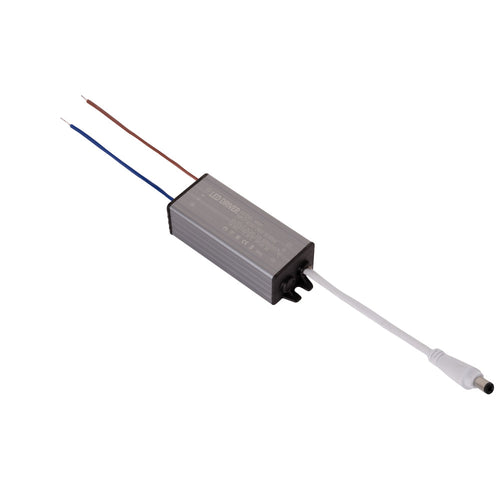

    Driver Non Dimmable 0.95 F.P. 50.000H LED Panel 42W

    GreenIce

    Driver Non Dimmable 0.95 F.P. 50.000H LED Panel 42W

    £14.00
    £14.00 £14.00 %
  • (CPS-LF-AAA040_padreImg_cps_lf_aaa040_0.jpeg)

    Driver LIFUD Adjustable 0-10V 40W In: 220-240V Out: 9-42VDC Flicker Free DIP Switch

    Offer
    Lifud Driver

    Driver LIFUD Adjustable 0-10V 40W In: 220-240V Out: 9-42VDC Flicker Free DIP Switch

    £19.00
    £25.00 £19.00 -24%
    Offer
  • (HO-KIT-MONSUP_padreImg_ho_kit_monsup_0.jpeg) (HO-KIT-MONSUP_padreImg_ho_kit_monsup_1.jpeg)

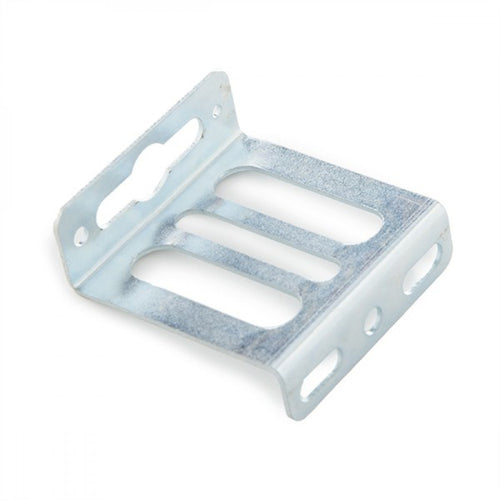

    Surface Mounting Kit for LED Panels

    Offer
    GreenIce

    Surface Mounting Kit for LED Panels

    £4.00
    £5.00 £4.00 -20%
    Offer
  • (NE-M-P-1200300_padreImg_ne_m_p_1200300_0.jpeg) (NE-M-P-1200300_padreImg_ne_m_p_1200300_1.jpeg)

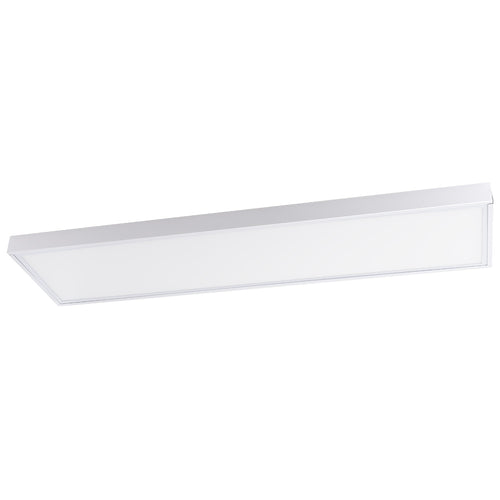

    Mounting Frame Surface Mounted LED Panel 120x30Cm

    Offer
    GreenIce

    Mounting Frame Surface Mounted LED Panel 120x30Cm

    £15.00
    £21.00 £15.00 -28%
    Offer

Technical file

Product code
HO-PAN120030042W-CW
Luminous efficacy (LM/W)
63
Light temperature
Cold White
Kelvin º
6000
Power (W)
42.0
Luminosity (LM)
2650
Measures (mm)
300x1200x12
High
12.0
Long
1200.0
Broad
300.0
Number and type of LEDs
Epistar Led
CRI
80
UGR
◄19
Power factor (PF)
0.99
Construction
Aluminum/PC
Opening Angle (º)
120
Facility
IP20
Strain
220-245VAC
Estimated life (H)
40000
Dimable
No
Equivalence (W)
225
Isolation class
II
Work frequency (Hz)
50/ 60
Start time (s)
0.2
Energy class
G
Certificates
CE/ROHS/ISO9001
Bush
Terminal
Temperature range (ºC)
-20 +40
Lighting cycles
100000
Diffuser
Microprismatic
Energy consumption (kWh/1000h)
42.0
Weight (gr)
2800
Flicker
0.75
Half -year useful life (at 3 h/day)
36.52
Half -Year Useful Life (5 h/day)
21.91
Half -year useful life (at 8 h/day)
13.69
Directional
Non-Directional
Single/range CCT
Only
Single CCT
6000
INDEX R9
18
Minimum cri range
88
Maximum cri range
26
Chromaticity x
0.319
Chromaticity y
0.338
Additional information
Supplied with a suspension kit, reference HZ-KITUSPENSION
Driver output
30-42 V
Applicable standards
EN 55015:2013;EN 61547:2009:EN 61000-3-2:2006;EN 61000-3-3:2013;EN 61000-4-2:2009;EN 61000-4-3:2006;EN 61000-4-4:2004;EN 61000-4-5:2006; EN 61000-4-6:2009; EN 61000-4-8:2010; EN 61000-4-11:2004;1194/2012/EU;874/2012/EU;EN 60598-1:2008;EN 60598-2-2:2012

Characteristics

Product code
HO-PAN120030042W-CW
Luminous efficacy (LM/W)
63
Light temperature
Cold White
Kelvin º
6000
Power (W)
42.0
Luminosity (LM)
2650
Measures (mm)
300x1200x12
High
12.0
Long
1200.0
Broad
300.0
Number and type of LEDs
Epistar Led
CRI
80
UGR
◄19
Power factor (PF)
0.99
Construction
Aluminum/PC
Opening Angle (º)
120
Facility
IP20
Strain
220-245VAC
Estimated life (H)
40000
Dimable
No
Equivalence (W)
225
Isolation class
II
Work frequency (Hz)
50/ 60
Start time (s)
0.2
Energy class
G
Certificates
CE/ROHS/ISO9001
Bush
Terminal
Temperature range (ºC)
-20 +40
Lighting cycles
100000
Diffuser
Microprismatic
Energy consumption (kWh/1000h)
42.0
Weight (gr)
2800
Flicker
0.75
Half -year useful life (at 3 h/day)
36.52
Half -Year Useful Life (5 h/day)
21.91
Half -year useful life (at 8 h/day)
13.69
Directional
Non-Directional
Single/range CCT
Only
Single CCT
6000
INDEX R9
18
Minimum cri range
88
Maximum cri range
26
Chromaticity x
0.319
Chromaticity y
0.338
Additional information
Supplied with a suspension kit, reference HZ-KITUSPENSION
Driver output
30-42 V
Applicable standards
EN 55015:2013;EN 61547:2009:EN 61000-3-2:2006;EN 61000-3-3:2013;EN 61000-4-2:2009;EN 61000-4-3:2006;EN 61000-4-4:2004;EN 61000-4-5:2006; EN 61000-4-6:2009; EN 61000-4-8:2010; EN 61000-4-11:2004;1194/2012/EU;874/2012/EU;EN 60598-1:2008;EN 60598-2-2:2012

Description

The 120x30cm rectangular LED panel has an elegant finish, a silver lacquered aluminum frame and an ultra-thin design of only 12mm. immediate start-up, without noise and without flickering, this LED Panel is perfect for places where you want to maximize the illuminated space, projecting light uniformly and without glare.

It offers solutions for offices, factories, supermarkets , stores and for residential use, due to its design and elegant finish, it represents an efficient alternative for the most demanding designers. It can be installed directly to outlets supplied by the electrical network (85-265VAC) with a service frequency of 50/60Hz.

It has a high efficiency (63 Lm/W) consuming 42W through 400 SMD3014 type LEDs and managing to provide a luminous flux of 2650Lm uniformly distributed by an opal plastic diffuser from which a color rendering index of 80 is obtained. It provides lighting equivalent to a 240W incandescent bulb , its consumption represents a value of 42kWh/1000h, reducing the amount of energy billed and the emissions of polluting gases into the atmosphere.

This panel is powered by a non-dimmable driver included in the package that must be connected directly to the network, with an output connector compatible with the connection of the panel (25-42VDC, 1200mA), includes the suspension kit, additionally, the accessories necessary for the installation of the panel are optionally offered on surface. Gray finish built with aluminum. The panel has an IP25 degree of protection (valid for dust and humidity indoors), in addition to being robust enough for the required mechanical demands.

These extra-flat LED screens consume up to 55% less and they do not require any type of maintenance, with which we avoid substitutions of primers or reactances. And having the advantage of being a much lighter and more manageable product.

The led panel can be used supported on Armstrong false ceiling, on plasterboard with the help of the fastening clips for led panels, with which we can embed said panel in the ceiling, or with suspension kits for led panels. These kits are made up of four tensors, one in each corner, allowing us to achieve the desired height or inclination to give the perfect touch to our decoration.

This panel is available in natural white (4200°K ), cold white (6000°K) and warm white (3000°K). The indicated color temperature may suffer fluctuations corresponding to a tolerance of 7%.
