Superslim LED Panel 72W 7,900Lm 6000ºK 120x60Cm 40,000H [HO-PAN120060072W-CW]

Superslim LED Panel 72W 7,900Lm 6000ºK 120x60Cm 40,000H [HO-PAN120060072W-CW]

For additional amounts the delivery period is 60 days As of the order date
  • Brand:GreenIce / Lifud Driver
  • SkuHO-PAN120060072W-CW
  • AA 2021
Eprel file
Warranty
  • Warranty 5 years
  • Eye Care Eye Care
  • Tüv Süd TUV SUD
  • 120 º Opening
£68.00
£113.00 £68.00 -39%
Tax included. The Shipping expenses They are calculated on the payment screen.

Stock available

Warranty
  • Warranty 5 years
  • Eye Care Eye Care
  • Tüv Süd TUV SUD
  • 120 º Opening
Are you a professional customer?

We have published a new website only for professionals.

Go to Professional Area
Advantages of buying in Greenice
  • Guaranteed minimum price
  • Free returns up to 60 days
  • Free shipping From € 21.95
  • Until 10 years guarantee
-39.82%(HO-PAN120060072W-CW_padreImg_ho_pan120060072w_cw_0.jpeg)
Cool White
Stock available
Free shipping
£68.00
£113.00 £68.00 -39%

Accessories

  • (SB-BS041_padreImg_sb_bs041_0.jpeg) (SB-BS041_padreImg_sb_bs041_1.jpeg)

    Motion Sensor Recessed 360º ►1200/300W

    Offer
    GreenIce

    Motion Sensor Recessed 360º ►1200/300W

    £11.00
    £13.00 £11.00 -15%
    Offer
  • (HO-CLIP-PAN-4_padreImg_ho_clip_pan_4_0.jpeg) (HO-CLIP-PAN-4_padreImg_ho_clip_pan_4_1.jpeg)

    Set of 4 Clips for LED Panel Mounting

    GreenIce

    Set of 4 Clips for LED Panel Mounting

    £2.00
    £2.00 £2.00 %
  • (NE-M-P-1200600_padreImg_ne_m_p_1200600_0.jpeg) (NE-M-P-1200600_padreImg_ne_m_p_1200600_1.jpeg)

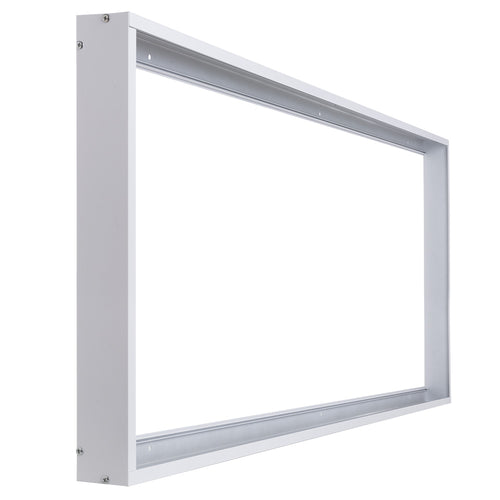

    Mounting Frame Surface Mounted LED Panel 120x60Cm

    Offer
    GreenIce

    Mounting Frame Surface Mounted LED Panel 120x60Cm

    £19.00
    £27.00 £19.00 -29%
    Offer
  • (HO-KIT-MONSUP_padreImg_ho_kit_monsup_0.jpeg) (HO-KIT-MONSUP_padreImg_ho_kit_monsup_1.jpeg)

    Surface Mounting Kit for LED Panels

    Offer
    GreenIce

    Surface Mounting Kit for LED Panels

    £4.00
    £5.00 £4.00 -20%
    Offer

Technical file

Product code
HO-PAN120060072W-CW
Luminous efficacy (LM/W)
109
Light temperature
Cold White
Kelvin º
6000
Power (W)
72.0
Luminosity (LM)
7900
Measures (mm)
1195x595x12
High
12.0
Long
1195.0
Broad
595.0
Number and type of LEDs
Epistar Led
CRI
80
UGR
◄19
Power factor (PF)
0.99
Construction
Aluminum/PC
Opening Angle (º)
120
Facility
IP20
Strain
220-245VAC
Estimated life (H)
40000
Dimable
No
Equivalence (W)
385
Isolation class
II
Work frequency (Hz)
50/ 60
Start time (s)
0.2
Energy class
F
Certificates
CE/ROHS/ISO9001
Bush
Terminal
Temperature range (ºC)
-20 +40
Lighting cycles
100000
Diffuser
Microprismatic
Energy consumption (kWh/1000h)
72.0
Weight (gr)
5100
Flicker
0.89
Half -year useful life (at 3 h/day)
36.52
Half -Year Useful Life (5 h/day)
21.91
Half -year useful life (at 8 h/day)
13.69
Directional
Non-Directional
Single/range CCT
Only
Single CCT
6000
INDEX R9
8
Minimum cri range
89
Maximum cri range
9
Chromaticity x
0.378
Chromaticity y
0.378
Additional information
Supplied with a suspension kit, reference HZ-KITUSPENSION
Driver output
30-42 V
Applicable standards
EN 55015:2013;EN 61547:2009:EN 61000-3-2:2006;EN 61000-3-3:2013;EN 61000-4-2:2009;EN 61000-4-3:2006;EN 61000-4-4:2004;EN 61000-4-5:2006; EN 61000-4-6:2009; EN 61000-4-8:2010; EN 61000-4-11:2004;1194/2012/EU;874/2012/EU;EN 60598-1:2008;EN 60598-2-2:2012

Characteristics

Product code
HO-PAN120060072W-CW
Luminous efficacy (LM/W)
109
Light temperature
Cold White
Kelvin º
6000
Power (W)
72.0
Luminosity (LM)
7900
Measures (mm)
1195x595x12
High
12.0
Long
1195.0
Broad
595.0
Number and type of LEDs
Epistar Led
CRI
80
UGR
◄19
Power factor (PF)
0.99
Construction
Aluminum/PC
Opening Angle (º)
120
Facility
IP20
Strain
220-245VAC
Estimated life (H)
40000
Dimable
No
Equivalence (W)
385
Isolation class
II
Work frequency (Hz)
50/ 60
Start time (s)
0.2
Energy class
F
Certificates
CE/ROHS/ISO9001
Bush
Terminal
Temperature range (ºC)
-20 +40
Lighting cycles
100000
Diffuser
Microprismatic
Energy consumption (kWh/1000h)
72.0
Weight (gr)
5100
Flicker
0.89
Half -year useful life (at 3 h/day)
36.52
Half -Year Useful Life (5 h/day)
21.91
Half -year useful life (at 8 h/day)
13.69
Directional
Non-Directional
Single/range CCT
Only
Single CCT
6000
INDEX R9
8
Minimum cri range
89
Maximum cri range
9
Chromaticity x
0.378
Chromaticity y
0.378
Additional information
Supplied with a suspension kit, reference HZ-KITUSPENSION
Driver output
30-42 V
Applicable standards
EN 55015:2013;EN 61547:2009:EN 61000-3-2:2006;EN 61000-3-3:2013;EN 61000-4-2:2009;EN 61000-4-3:2006;EN 61000-4-4:2004;EN 61000-4-5:2006; EN 61000-4-6:2009; EN 61000-4-8:2010; EN 61000-4-11:2004;1194/2012/EU;874/2012/EU;EN 60598-1:2008;EN 60598-2-2:2012

Description

The 1195x595mm rectangular LED panel has an elegant finish, a silver lacquered aluminum frame and an ultra-thin design of only 12mm. immediate start-up, without noise and without flickering, this LED Panel is perfect for places where you want to maximize the illuminated space, projecting light uniformly and without glare.

It offers solutions for offices, factories, supermarkets , stores and for residential use, due to its design and elegant finish, it represents an efficient alternative for the most demanding designers. It can be installed directly to outlets supplied by the electrical network (85-265VAC) with a service frequency of 50/60Hz.

It has a high efficiency (110 Lm/W) consuming 72W through 320 SMD2835 type LEDs and managing to provide a luminous flux of 7900Lm uniformly distributed by an opal plastic diffuser from which a color rendering index of 80 is obtained. It provides lighting equivalent to a 400W incandescent bulb , its consumption represents a value of 72kWh/1000h, reducing the amount of energy billed and the emissions of polluting gases into the atmosphere.

This panel is powered by two non-dimmable drivers included in the package that must be connected directly to the network, with an output connector compatible with the connection of the panel (38-65VDC, 600mA), the necessary accessories for the installation of the panel on the surface are optionally offered. Gray finish built with aluminum. The panel has an IP25 degree of protection (valid for dust and humidity indoors), as well as being robust enough for the required mechanical demands.

These extra-flat LED screens consume up to 55% less and they do not require any type of maintenance, with which we avoid substitutions of primers or reactances. And having the advantage of being a much lighter and more manageable product.

The led panel can be used supported on Armstrong false ceiling, on plasterboard with the help of the fastening clips for led panels, with which we can embed said panel in the ceiling, or with suspension kits for led panels. These kits are made up of four tensors, one in each corner, allowing us to achieve the desired height or inclination to give the perfect touch to our decoration.

This panel is available in natural white (4200°K ), cold white (6000°K) and warm white (3000°K). The indicated color temperature may suffer fluctuations corresponding to a tolerance of 7%.
