Technical file
Product code
PH-64976000-PRO
Power (W)
36.0
Measures (mm)
97x43x30
High
97.0
Long
43.0
Broad
30.0
Facility
IP20
Strain
60V 1050 mA
Isolation class
I/II
Certificates
CE/ROHS/ENEC/ISO9001
Energy consumption (kWh/1000h)
36.0
Weight (gr)
100
Driver output
24V
Description

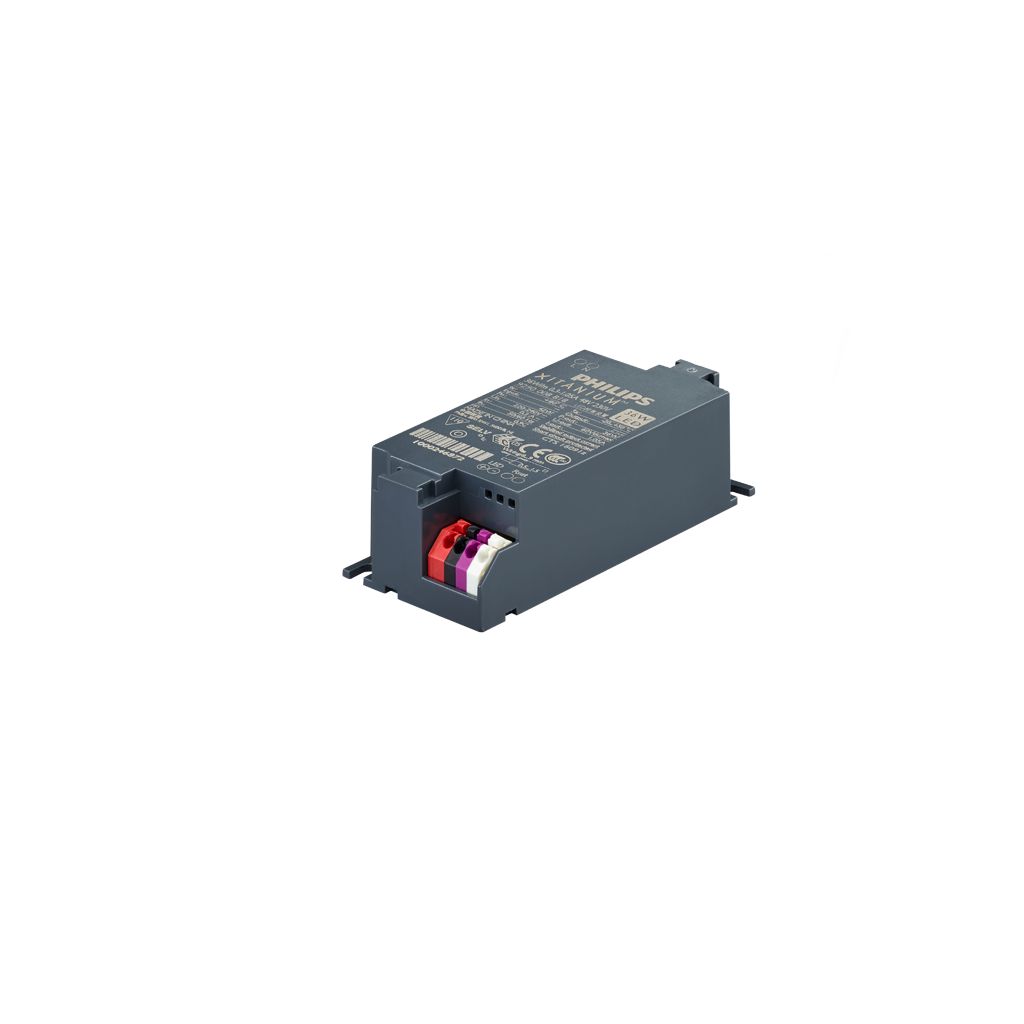

Xitanium LED drivers are designed to operate LED solutions for general lighting applications. Reliability is enhanced by features that protect the connected LED module, e.g. hot wiring, reduced ripple current and thermal derating. Most drivers feature central DC operation. In the coming years LEDs will continue to increase in efficiency, creating challenges for OEMs. With Xitanium LED drivers, flexibility in luminaire design is assured thanks to an adjustable output current. Application-oriented operating windows offer stable lumen output and light quality levels that specifiers and architects demand. The adjustable output current also enables operation of various LED PCB solutions from different manufacturers.
Benefits
•High reliability underpinned by 5 year warranty
•Future-proof flexibility application-oriented operating windows enable LED generation and complexity management
•Compatibility - can also be used for other manufacturers' modules or OEMs' own PCB designs
Features
•Operating windows - Output current can be adjusted via the Philips MultiOne configurator ('TD' drivers) or with a resistor outside the driver
•Multiple versions - DALI dimmable & programmable, trailing-edge dimmable, fixed-current/fixed-output trailing-edge dimmable, fixed-output, and fixed-current/fixed-output
•Wide range of power ratings
•Choice of housing designs -linear housing for tracks in '3 in 1' in design, conventional HID housings for down and Spotlighting and WH housing for independent use with strain relief and loop throug
