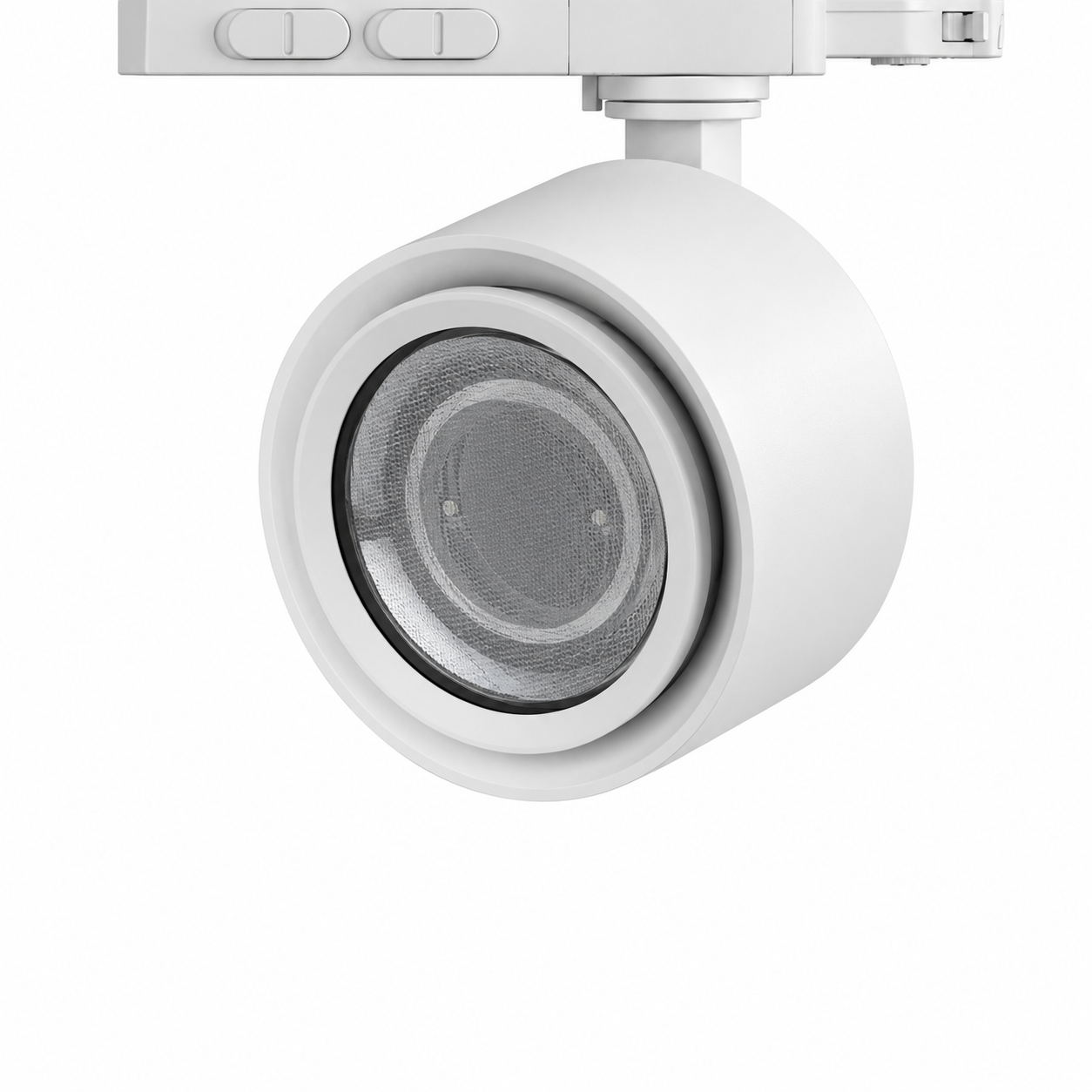

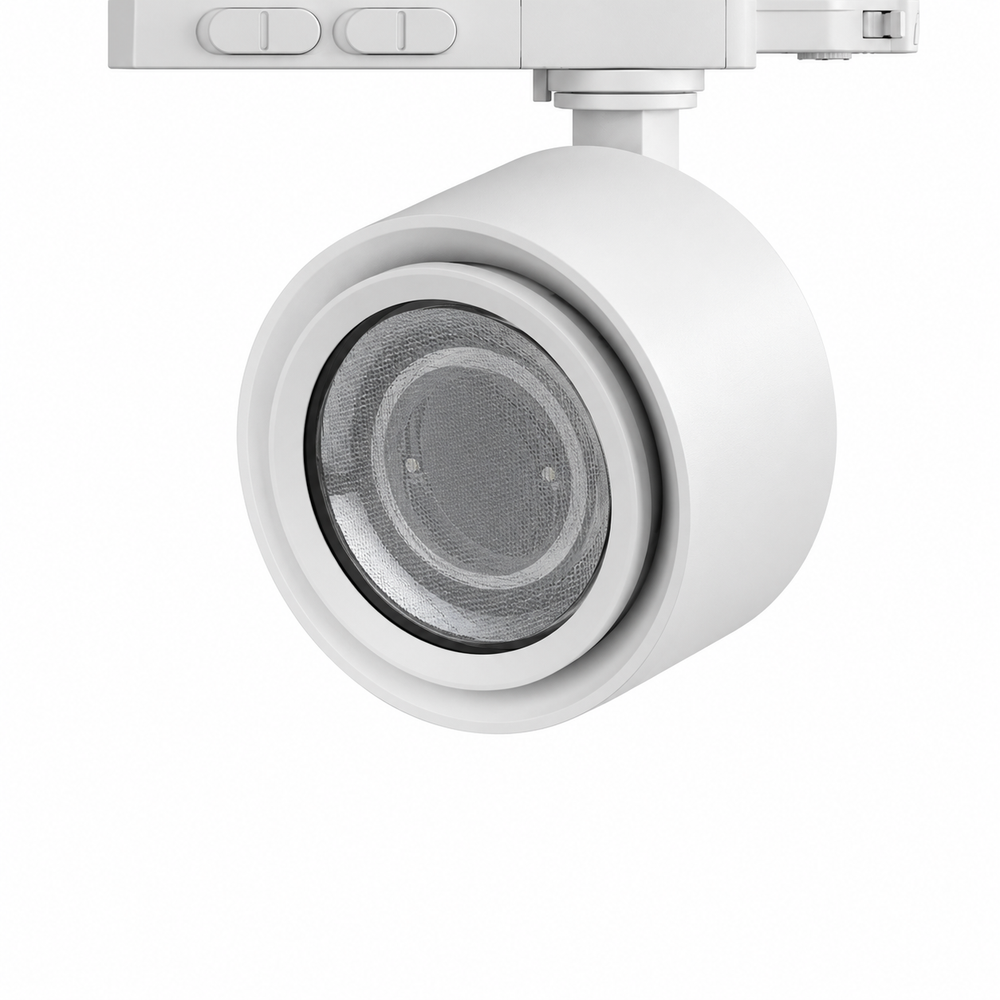

20W 36º CCT Track Spotlight (Adjustable Light Tone) White Finish

20W 36º CCT Track Spotlight (Adjustable Light Tone) White Finish

See questions and answers

For additional amounts the delivery period is 1 days As of the order date
  • + Philips Led
  • Sku:HT-TL04A25-W
Eprel file
Warranty
  • Warranty 5 years
  • Eye Care Eye Care
  • Tüv Süd TUV SUD
  • 20-55 º Opening
  • Certificado ENEC
£31.92
£31.92 £31.92 %
Tax included. The Shipping expenses They are calculated on the payment screen.

Available

Warranty
  • Warranty 5 years
  • Eye Care Eye Care
  • Tüv Süd TUV SUD
  • 20-55 º Opening
  • Certificado ENEC
Are you a professional customer?

We have published a new website only for professionals.

Go to Professional Area
Advantages of buying in Greenice
  • Guaranteed minimum price
  • Free returns up to 60 days
  • Free shipping From € 21.95
  • Until 10 years guarantee
(HT-TL04A25-W_padreImg_ht_tl04a25_w_0.png)
CCT
Available
Free shipping
£31.92
£31.92 £31.92 %

Technical file

Product code
HT-TL04A25-W
Light temperature
CCT
Power (W)
20.0
Luminosity (LM)
2600
Luminous efficacy (LM/W)
130
LED efficacy
140
Type of LEDs
Philips LED
Number of LEDs
1
Measures (mm)
100x100x47
High
100.0
Long
100.0
Broad
47.0
Diameter
Ø100
CRI
95
UGR
◄15
Diffuser
Transparent
Power factor (PF)
0.99
Construction
Aluminum/PC
Opening Angle (º)
20-55
Facility
IP20
Strain
AC 230 V
Estimated life (H)
50000
Dimable
No
Equivalence (W)
150
Isolation class
II
Work frequency (Hz)
50/60
Start time (s)
0.1
Energy class
D
Certificates
CE/ROHS/ISO9001
Bush
Terminal Block
Temperature range (ºC)
-20+40
Lighting cycles
100000
Energy consumption (kWh/1000h)
20.0
Weight (gr)
620
Flicker
0.48
Half -year useful life (at 3 h/day)
45.66
Half -Year Useful Life (5 h/day)
27.39
Half -year useful life (at 8 h/day)
17.12
Directional
Directional
Single/range CCT
CCT
INDEX R9
8
Minimum cri range
96
Maximum cri range
50
Chromaticity x
0.429
Chromaticity y
0.404
Minimum CCT range
2700
Maximum cri range
6000
Número unidades caja exterior
20.0

Characteristics

Product code
HT-TL04A25-W
Light temperature
CCT
Power (W)
20.0
Luminosity (LM)
2600
Luminous efficacy (LM/W)
130
LED efficacy
140
Type of LEDs
Philips LED
Number of LEDs
1
Measures (mm)
100x100x47
High
100.0
Long
100.0
Broad
47.0
Diameter
Ø100
CRI
95
UGR
◄15
Diffuser
Transparent
Power factor (PF)
0.99
Construction
Aluminum/PC
Opening Angle (º)
20-55
Facility
IP20
Strain
AC 230 V
Estimated life (H)
50000
Dimable
No
Equivalence (W)
150
Isolation class
II
Work frequency (Hz)
50/60
Start time (s)
0.1
Energy class
D
Certificates
CE/ROHS/ISO9001
Bush
Terminal Block
Temperature range (ºC)
-20+40
Lighting cycles
100000
Energy consumption (kWh/1000h)
20.0
Weight (gr)
620
Flicker
0.48
Half -year useful life (at 3 h/day)
45.66
Half -Year Useful Life (5 h/day)
27.39
Half -year useful life (at 8 h/day)
17.12
Directional
Directional
Single/range CCT
CCT
INDEX R9
8
Minimum cri range
96
Maximum cri range
50
Chromaticity x
0.429
Chromaticity y
0.404
Minimum CCT range
2700
Maximum cri range
6000
Número unidades caja exterior
20.0

Description

El Foco Carril LED 20W 20-55º CCT con acabado blanco es una solución de iluminación profesional diseñada para espacios comerciales, escaparates, exposiciones, oficinas, hoteles y proyectos de interiorismo donde se requiere una iluminación versátil y adaptable.

Incorpora tecnología CCT (Tonalidad de Luz Ajustable), que permite seleccionar diferentes temperaturas de color en una única luminaria, adaptando el ambiente lumínico a las necesidades de cada instalación y facilitando la optimización del stock.

Dispone de un ángulo de apertura regulable entre 20° y 55°, permitiendo modificar la concentración del haz de luz. Los ángulos más cerrados son ideales para iluminación de acento y para destacar elementos concretos, mientras que los ángulos más amplios proporcionan una iluminación más uniforme y general.

Su sistema orientable y su instalación sobre carril ofrecen una gran flexibilidad, permitiendo dirigir y reposicionar fácilmente el punto de luz según las necesidades del espacio.

Con una potencia de 20W y un elegante acabado blanco, presenta un diseño moderno y minimalista que se integra discretamente en todo tipo de ambientes. Es especialmente adecuado para tiendas, galerías, showrooms y otros espacios profesionales donde se busca combinar eficiencia, precisión y flexibilidad lumínica.
